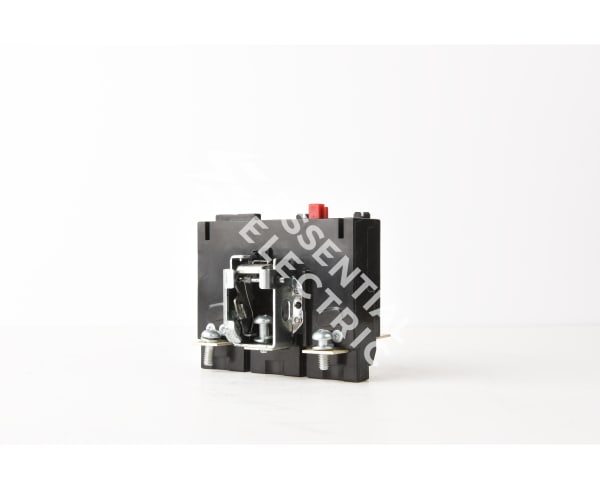

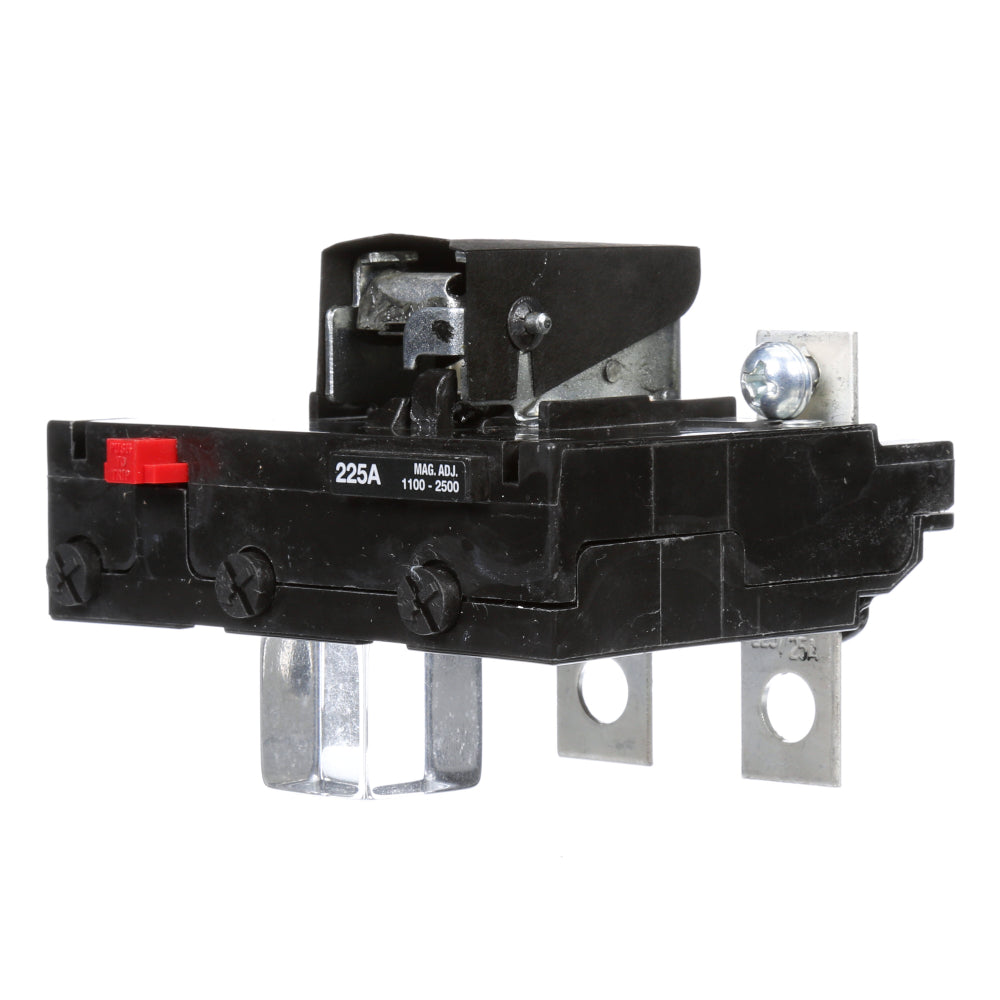

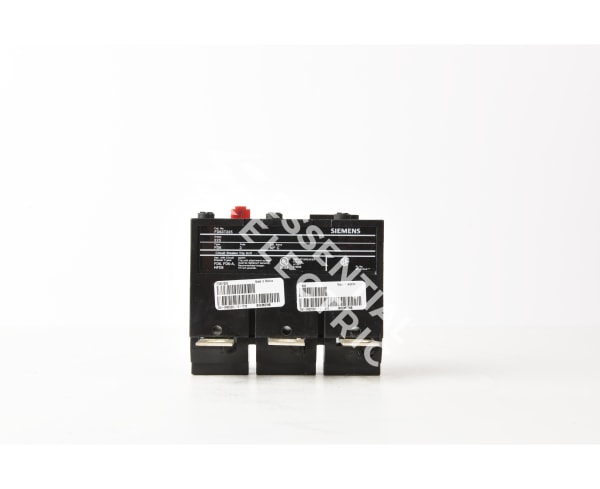

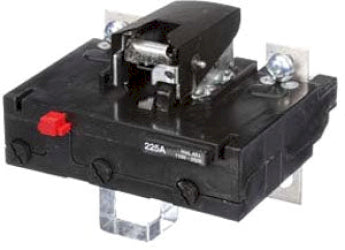

FD63T225 is a Siemens Type FD molded case circuit breaker trip unit designed for 225 ampere, 3-pole applications at 600 volts with a 22 kA interrupt rating at 600V. This interchangeable thermal magnetic trip unit is compatible with FD6 Series Molded Case Circuit Breakers and provides reliable overcurrent protection and performance for industrial and commercial power distribution systems. The unit meets UL 489 and IEC 60947-2 standards, ensuring compliance with industry safety requirements. It features a 40 degree Celsius operating temperature rating and is suitable for standard breaking capacity applications.

• Amperage: 225 Amp
• Voltage: 600 VAC
• Poles: 3
• Frame: FD
• Trip Unit Type: Thermal Magnetic
• Interrupt Rating: 22 kA @ 600V
• Interrupt Rating: 35 kA @ 480V
• Operating Temperature: 40 degrees Celsius
• Standards: UL 489, IEC 60947-2
• Frequency: 50/60 Hz
• Trip Range: 1100 to 2500 A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD63T225
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous Trip
• Frame Size : 225
• Temp Rating : -13°F to 158°F (-25°C to 70°C)
• Amperage Maximum : 225
• Protection : Thermal Magnetic
• Compatible Frames : FD,HFD,HHFD

Product Data

• UPC : 078364321198
• GTIN : 7.83643E+11
• Country of Origin : Mexico
• Weight : 1.199
• Standards : UL 489, IEC 60947-2
• Certification : UL, CSA, IEC
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
