Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Trip Units & Programmers
- Series
- Sentron Series
- Frame
- FD
- Rated current
- 150
- Max current rating
- 150
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- LI - Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Country of origin
- Mexico
Show all specifications (8 more)
- Frame Size
- 150
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Amperage Maximum
- 150
- Compatible Frames
- FD,HFD,HHFD
- UPC
- 078364321195
- GTIN
- 7.83643E+11
- Weight
- 1.206
- Certification
- UL, CSA, IEC
Product description & additional details
FD63T150

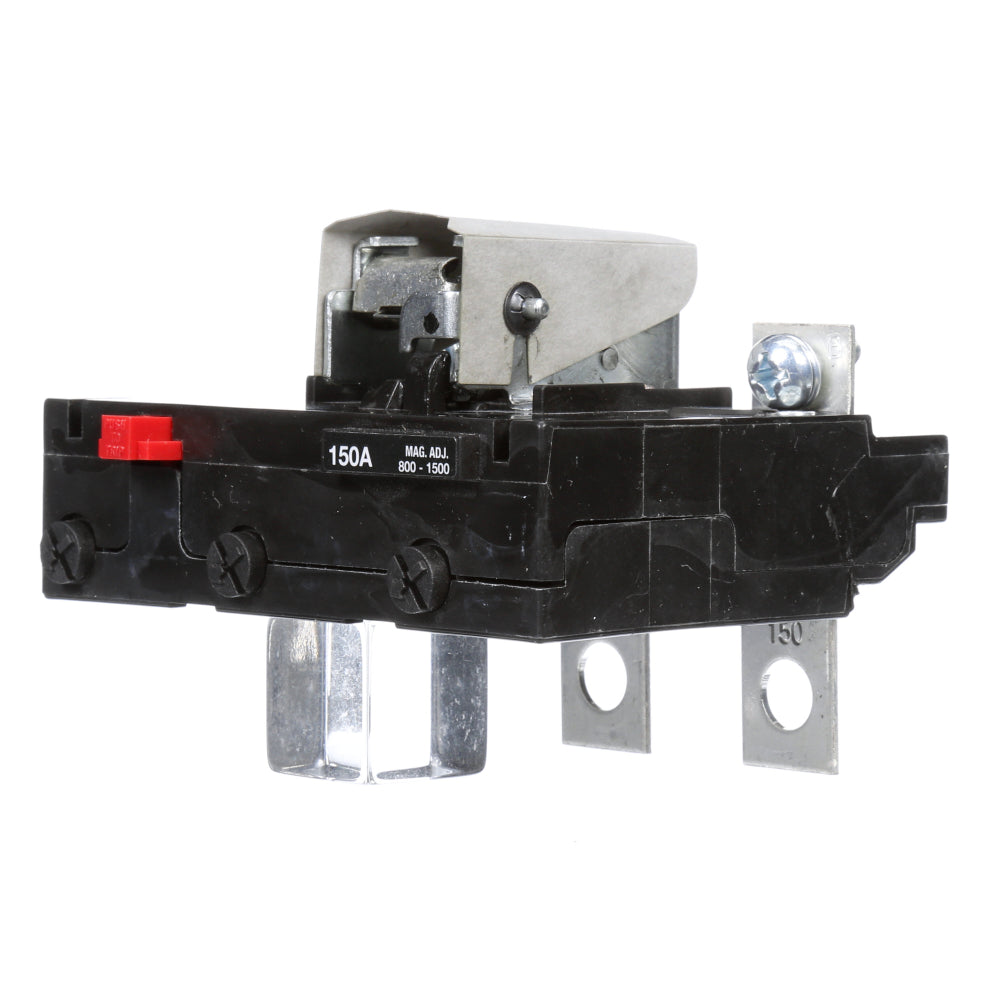

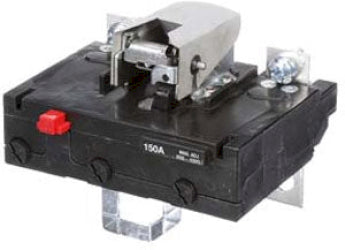

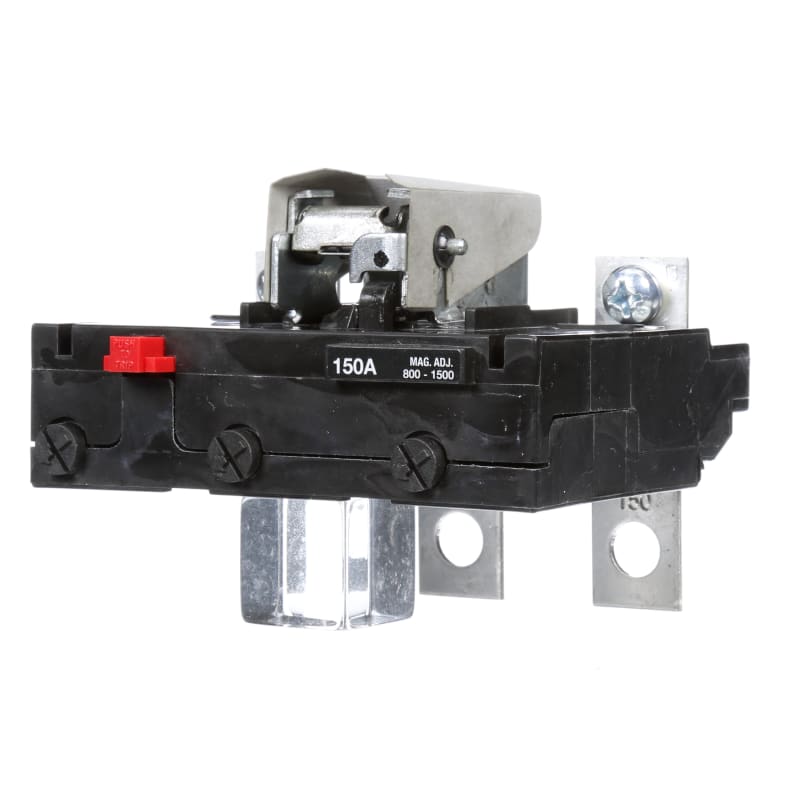

FD63T150 - Siemens interchangeable thermal-magnetic trip unit for FD frame molded case circuit breakers.FD63T150 is a 3-pole, 150A trip unit rated at 600VAC with bolt-on mounting, designed for FD6 series breakers featuring thermal-magnetic overcurrent protection.
- Part Number: FD63T150
- Manufacturer: Siemens
- Amperage: 150A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Series/Frame: FD / FD6
- Trip Unit: Thermal-Magnetic
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: FD63T150
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Frame Size : 150
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Amperage Maximum : 150
- Protection : Thermal Magnetic
- Compatible Frames : FD,HFD,HHFD
Product Data
- UPC : 078364321195
- GTIN : 7.83643E+11
- Country of Origin : Mexico
- Weight : 1.206
- Certification : UL, CSA, IEC
