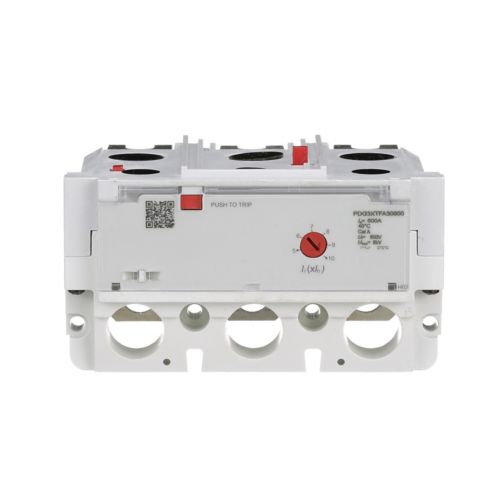

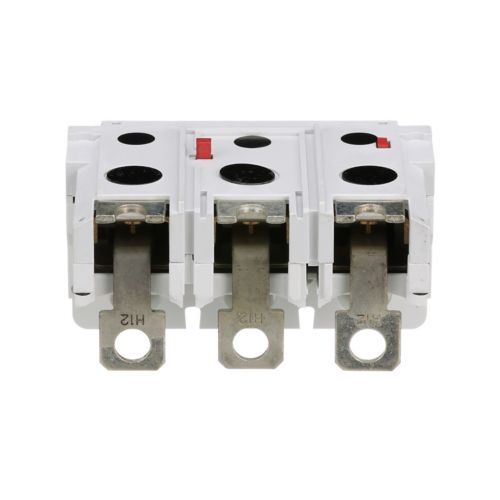

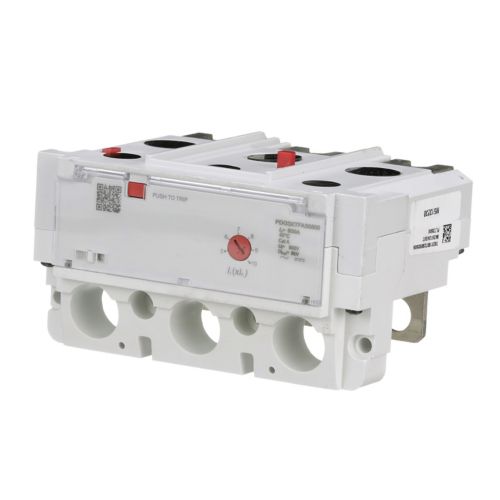

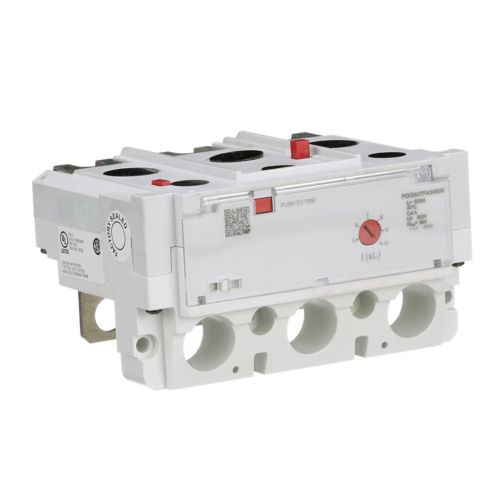

Reference images. Contact us for photos of the available unit.


Eaton

PDG3XTFA30200

Eaton Power Defense Trip Unit 3 Frame 3P 200A 600V

Current: 200Poles: 3Voltage: 600V
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$619.78
Low inventory, please call (866) 377-3532 for stock check
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Eaton
Sub-Category
Trip Units & Programmers
Series
Power Defense Series
Frame
PDG
Rated current
200
Max current rating
200
Voltage
600V
Poles
3
Trip functions
LI - Long Time and Instantaneous Trip
Protection
Thermal Magnetic
Standards
RoHS
Amperage Maximum
200
Compatible Frames
PDG
UPC
786679588772
Show all specifications (4 more)
GTIN
00786679588772
Dimensions
8.5 in x 4.5 in x 5.25 in (Length/Depth x Height x Width)
Weight
2.2
Certification
UL, CCC, CSA, IEC
Product description & additional details

PDG3XTFA30200


PDG3XTFA30200 is an Eaton Power Defense trip unit designed for use with molded case circuit breakers, providing reliable protection and performance in demanding electrical environments.This trip unit features a three-pole configuration, 200A current rating, and is compatible with the Power Defense Frame 3 series. It offers thermal magnetic protection and is rated for 600V AC applications, making it suitable for a wide range of industrial and commercial power distribution systems.
  • Part Number: PDG3XTFA30200
  • Manufacturer: Eaton
  • Series/Frame: Power Defense Frame 3
  • Amperage: 200A
  • Voltage: 600V AC
  • Poles: 3P
  • Protection Type: Thermal Magnetic
  • Mounting Type: Molded Case Circuit Breaker Accessory
  • Trip Unit Type: Accessory Trip Unit
  • Application: Power Defense Circuit Breakers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: PDG3XTFA30200
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Trip Units & Programmers
  • Family : Power Defense Series
  • Type : PDG
  • Voltage : 600V
  • Amperage : 200
  • Poles : 3
  • Functions : LI - Long Time and Instantaneous Trip
  • Amperage Maximum : 200
  • Protection : Thermal Magnetic
  • Compatible Frames : PDG

Product Data

  • UPC : 786679588772
  • GTIN : 00786679588772
  • Dimensions : 8.5 in x 4.5 in x 5.25 in (Length/Depth x Height x Width)
  • Weight : 2.2
  • Standards : RoHS
  • Certification : UL, CCC, CSA, IEC
