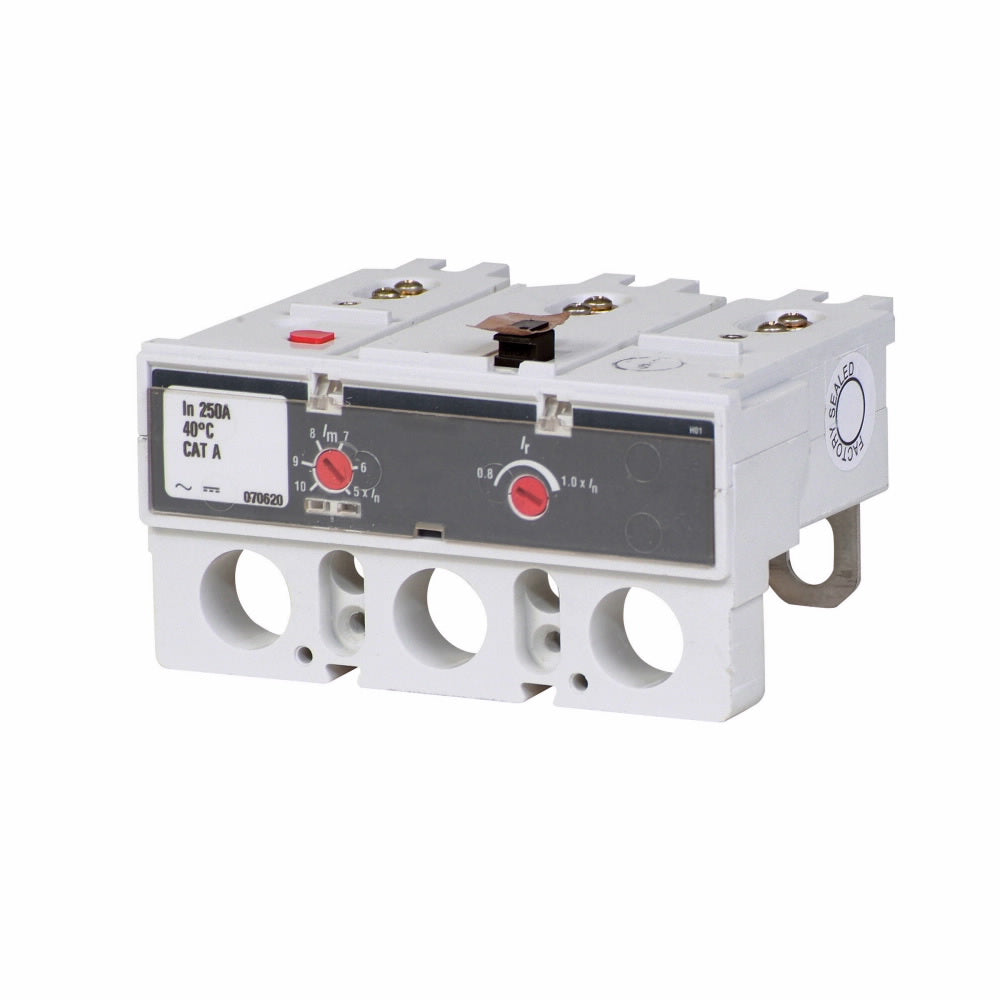

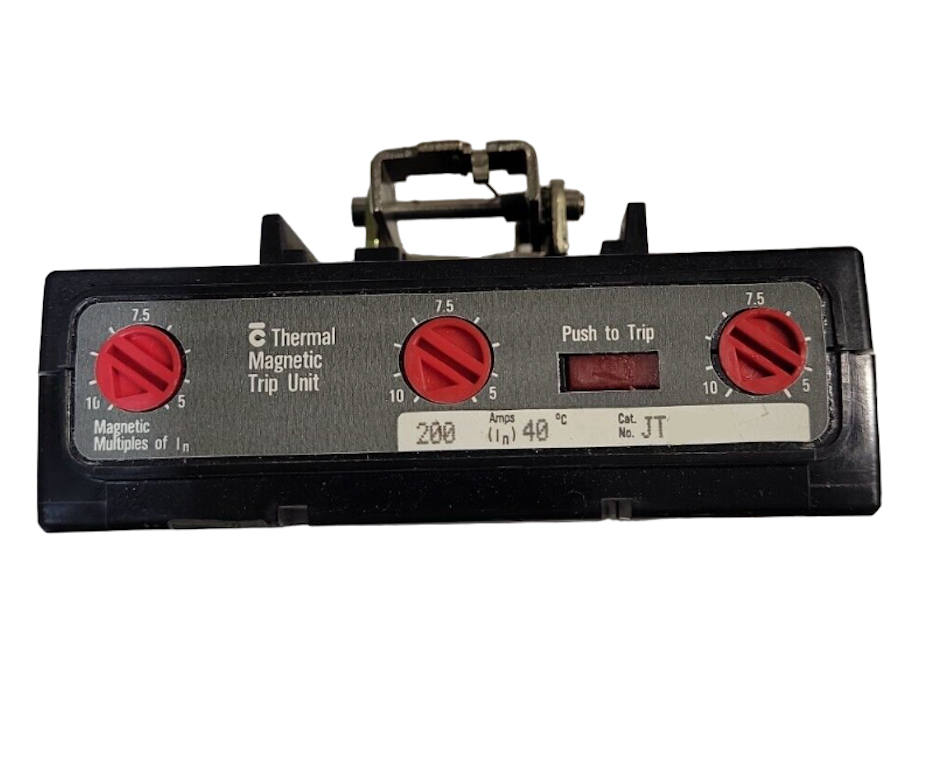

Reference images. Contact us for photos of the available unit.


Eaton

JT3200T

Cutler Hammer 200 Amp 600 VAC 3 Pole Thermal Magnetic Trip Unit Frame J

Current: 200Poles: 3Voltage: 600VAC
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$440.43 $3,133.18
Save $2,692.75
100+ in stock, ready to be shipped
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Eaton
Brand
Cutler Hammer
Sub-Category
Trip Units & Programmers
Series
Series C
Frame
C
Rated current
200
Max current rating
200
Voltage
600VAC
Poles
3
Phases
3
Trip functions
Long Time and Instantaneous Trip
Protection
Thermal Magnetic
Country of origin
Dominican Republic
Frame Size
200
Show all specifications (8 more)
Amperage Maximum
200
Amperage Minimum
200
Compatible Frames
HJDDC,JD,HJD,JDC
UPC
786679404157
GTIN
00786679404157
Dimensions
5.25 in x 7 in x 4.5 in (Length/Depth x Height x Width)
Weight
1.82
Certification
UL
Product description & additional details

JT3200T


JT3200T is a Cutler Hammer thermal magnetic trip unit designed for 3 pole circuit breakers with a 200 Amp rating and 600 VAC voltage capacity.This trip unit fits Eaton Cutler-Hammer JT series molded case circuit breakers, Frame J, Series C. It features a fixed thermal and adjustable magnetic trip type (T185) for reliable protection. The unit is panel mountable with bolt-on mounting type and is UL listed for safety and compliance. It is interchangeable and suitable for industrial applications.
  • Manufacturer: Cutler Hammer (Eaton)
  • Amperage: 200 A
  • Voltage: 600 VAC
  • Poles: 3
  • Frame Size: J
  • Series: C
  • Trip Type: Thermal Magnetic (T185)
  • Mounting Type: Bolt-On Panel Mount
  • Approvals: UL Listed, CSA, CE
  • Weight: 1.82 lbs
  • Dimensions: 7" H x 4.5" W x 5.25" D
  • Interchangeable Trip Unit
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: JT3200T
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Circuit Breaker
  • Item Subcategory : Trip Units & Programmers
  • Family : Series C
  • Type : C
  • Voltage : 600VAC
  • Amperage : 200
  • Phase : 3
  • Poles : 3
  • Functions : Long Time and Instantaneous Trip
  • Frame Size : 200
  • Amperage Maximum : 200
  • Amperage Minimum : 200
  • Protection : Thermal Magnetic
  • Compatible Frames : HJDDC,JD,HJD,JDC

Product Data

  • UPC : 786679404157
  • GTIN : 00786679404157
  • Country of Origin : Dominican Republic
  • Dimensions : 5.25 in x 7 in x 4.5 in (Length/Depth x Height x Width)
  • Weight : 1.82
  • Certification : UL
