Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Trip Units & Programmers
- Series
- Sentron Series
- Frame
- FD
- Rated current
- 125
- Max current rating
- 125
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- LI - Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Country of origin
- Mexico
Show all specifications (8 more)
- Frame Size
- 125
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Amperage Maximum
- 125
- Compatible Frames
- FD,HFD,HHFD
- UPC
- 783643211940
- GTIN
- 00783643211940
- Weight
- 1.301
- Certification
- UL, CSA, IEC
Product description & additional details

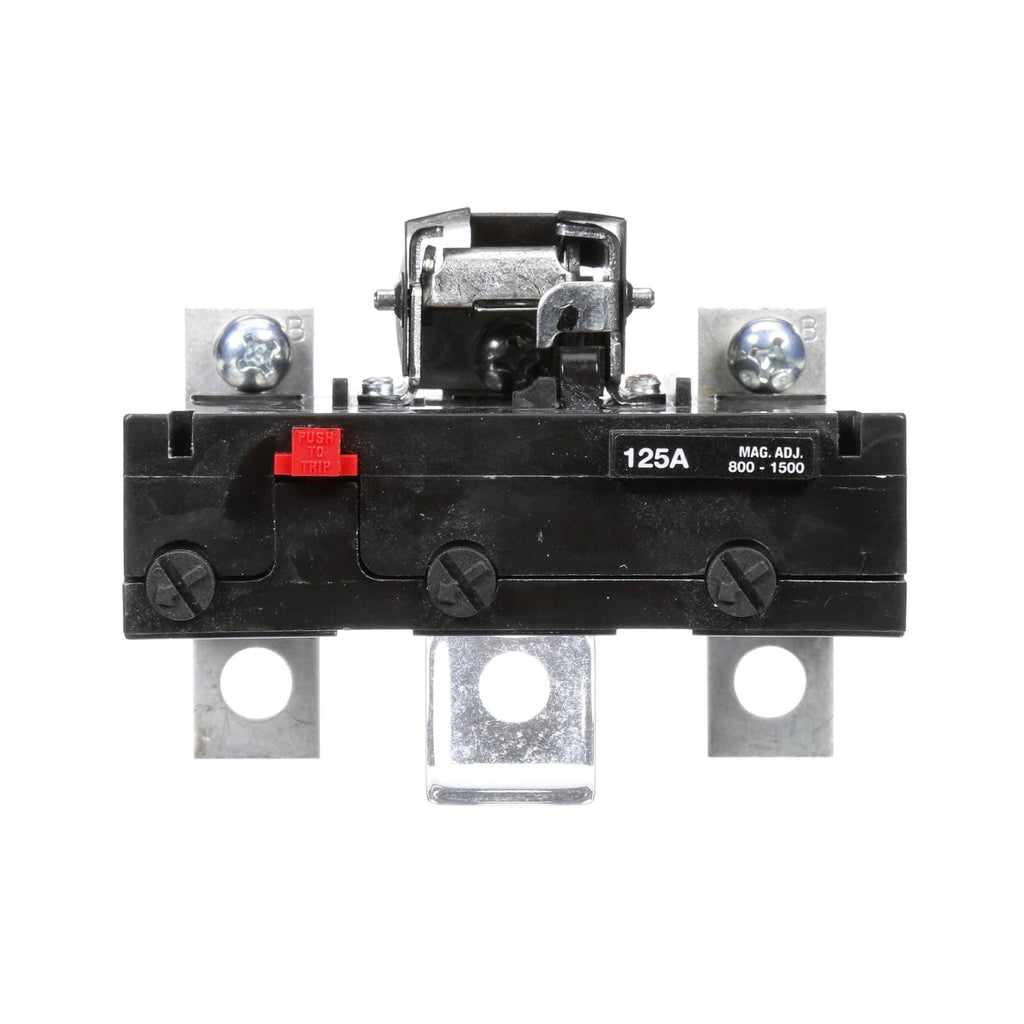

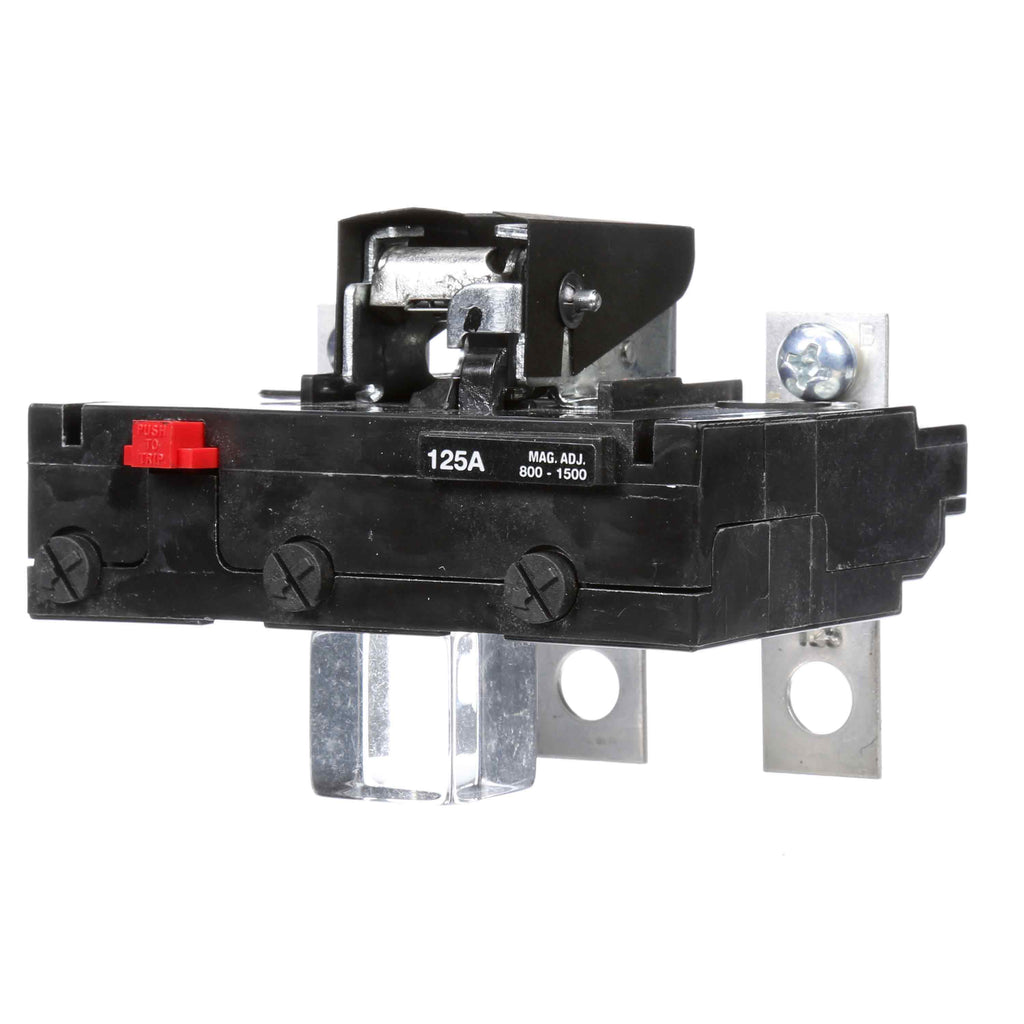

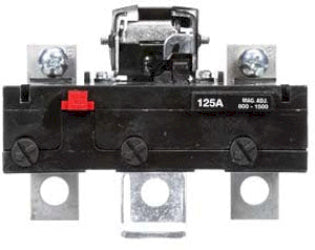

FD63T125
FD63T125 is a Siemens 3 pole circuit breaker trip unit rated for 125 amps and 600 volts AC, designed for FD frame breakers.This Siemens FD63T125 trip unit features interchangeable thermal magnetic trip functionality with long-time and instantaneous trip adjustments. It is compatible with FD6 series molded case circuit breakers and supports a 22kA interrupt rating at 600VAC. The unit is compact, easy to install, and RoHS compliant, suitable for industrial power distribution applications.
- Manufacturer: Siemens
- Part Number: FD63T125
- Amperage: 125A
- Poles: 3
- Voltage Rating: 600VAC
- Frame Type: FD
- Interrupt Rating: 22kA at 600VAC
- Trip Unit Type: Interchangeable Thermal Magnetic
- Mounting: Bolt-On for FD6 Series Breakers
- Compliance: RoHS Directive
- Weight: Approx. 1.3 lb
Specifications
- Part Number: FD63T125
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Frame Size : 125
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Amperage Maximum : 125
- Protection : Thermal Magnetic
- Compatible Frames : FD,HFD,HHFD
Product Data
- UPC : 783643211940
- GTIN : 00783643211940
- Country of Origin : Mexico
- Weight : 1.301
- Certification : UL, CSA, IEC
