FD63T200

FD63T200

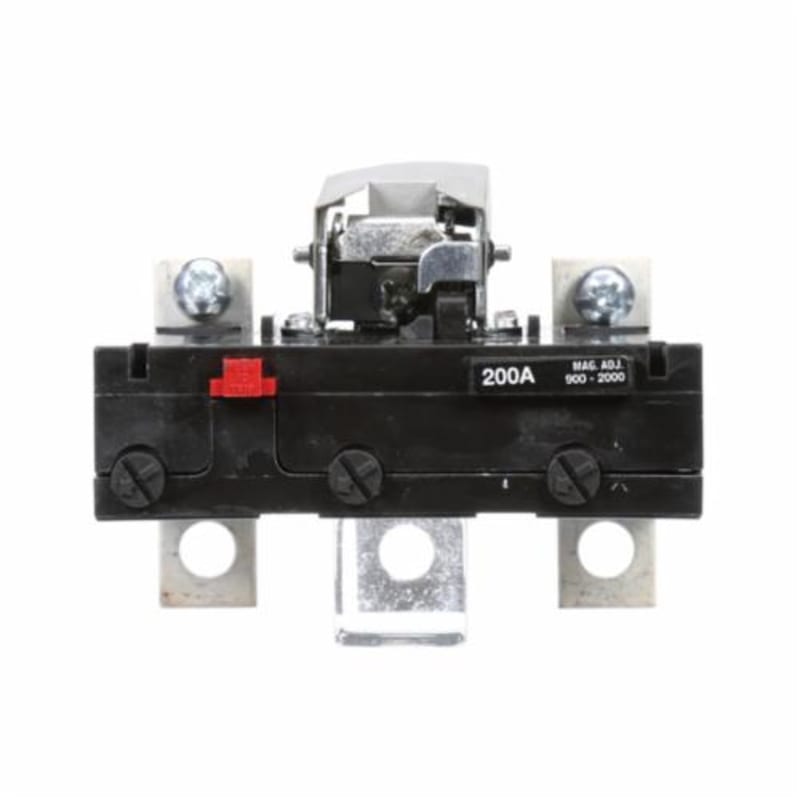

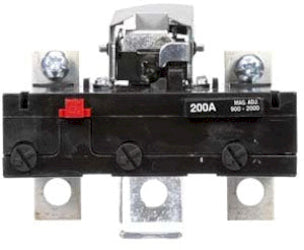

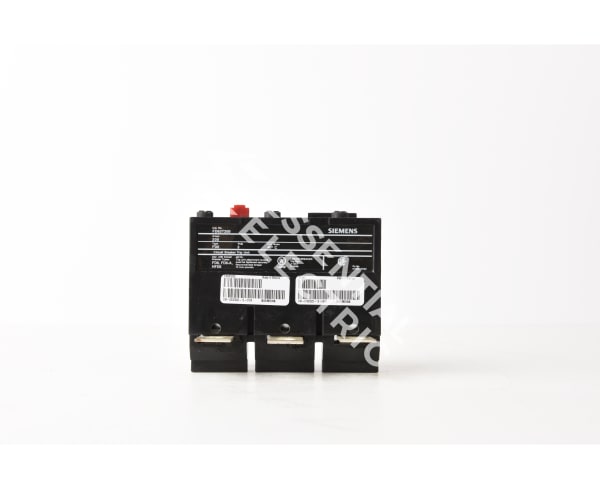

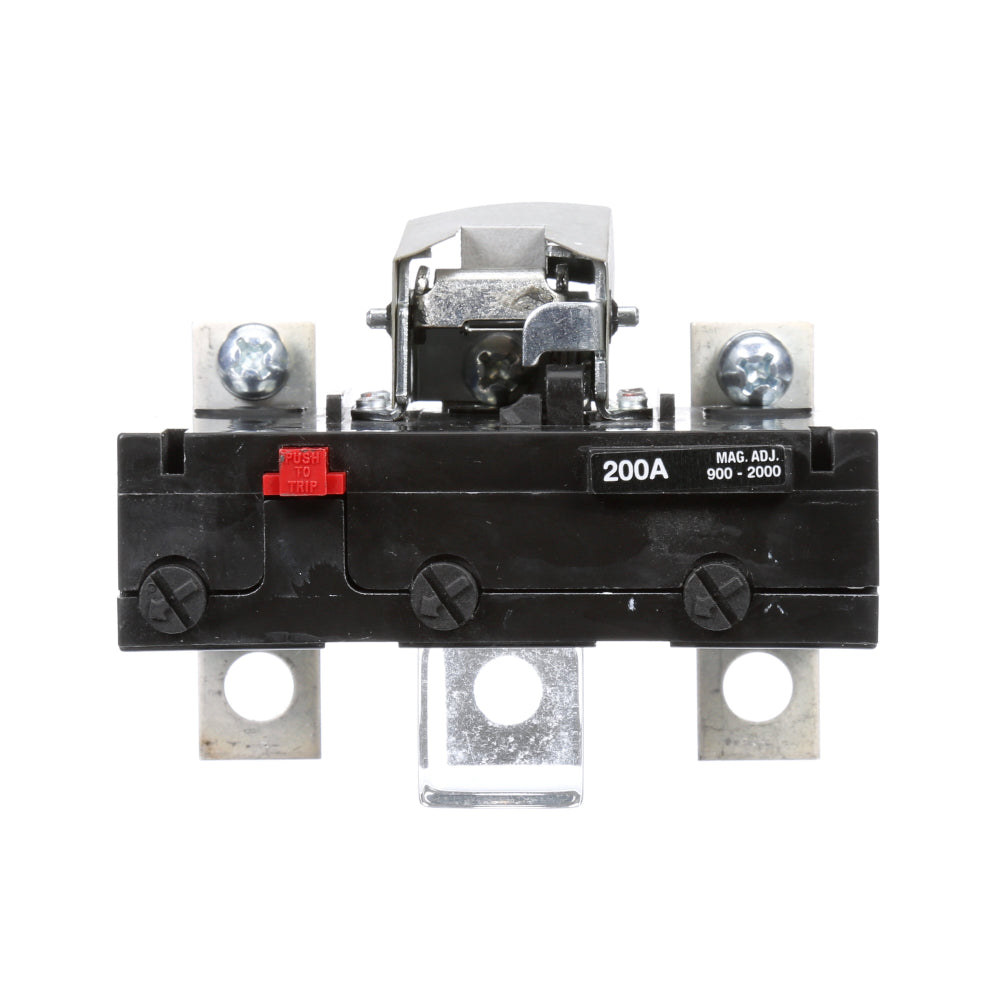

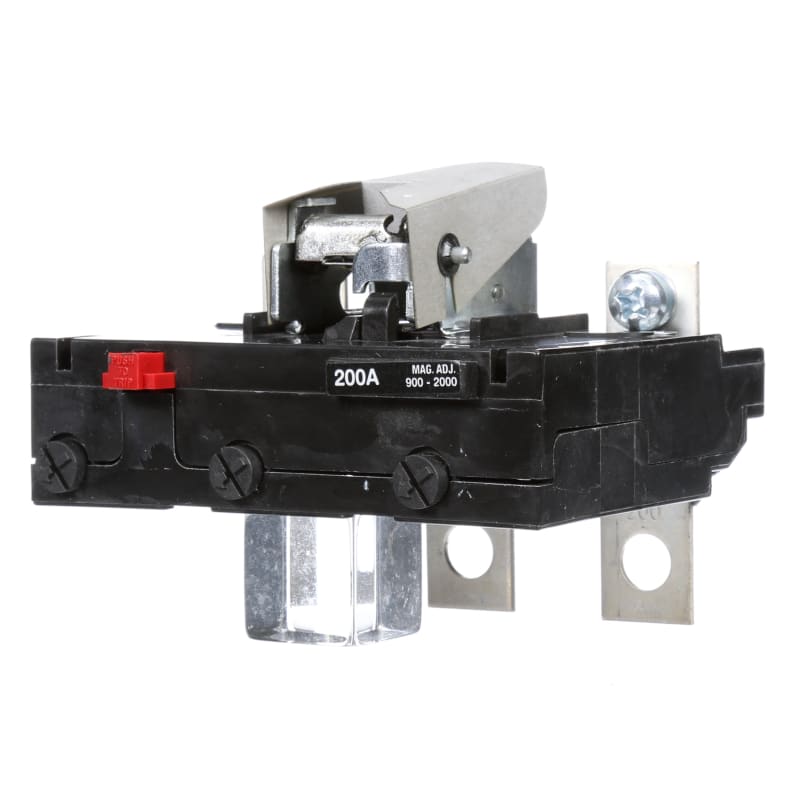

FD63T200 is a Siemens 3-pole circuit breaker trip unit rated for 200 amps and 600 volts AC, designed for FD frame breakers with a 22kA interrupt rating.This FD63T200 trip unit features a thermal magnetic trip mechanism, is interchangeable within the FD series, and meets UL 489 and IEC 60947-2 standards. It supports a standard breaking capacity of 22kA at 600V and 35kA at 480V, suitable for industrial and commercial power distribution applications.

• Amperage: 200 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 22kA at 600V, 35kA at 480V
• Frame Type: FD
• Trip Unit: Thermal Magnetic
• Mounting Type: Interchangeable FD Frame
• Standards: UL 489, IEC 60947-2
• Operating Temperature: 40°C
• Application: Molded Case Circuit Breaker Trip Unit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD63T200
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous Trip
• Frame Size : 200
• Temp Rating : -13°F to 158°F (-25°C to 70°C)
• Amperage Maximum : 200
• Protection : Thermal Magnetic
• Compatible Frames : FD,HFD,HHFD

Product Data

• UPC : 783643211971
• GTIN : 00783643211971
• Country of Origin : Mexico
• Weight : 0.899
• Standards : UL 489, IEC 60947-2
• Certification : UL, CSA, IEC
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
