FD63T080

FD63T080

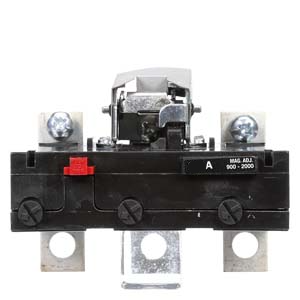

FD63T080 is a Siemens 80 amp, 600 volt, 3-pole circuit breaker trip unit designed for FD frame applications.This thermal magnetic trip unit provides reliable overload and short circuit protection with a magnetic trip adjustment feature. It is compatible with Siemens FD frame circuit breakers and supports a 22kA interrupt rating at 600 volts AC. The breaker is UL listed and meets industry standards for safety and performance.

• Manufacturer: Siemens
• Amperage: 80A
• Voltage: 600V AC
• Poles: 3
• Frame Type: FD
• Trip Unit Type: Thermal Magnetic with Magnetic Trip Adjustment
• Interrupt Rating: 22kA at 600V
• Mounting Type: Trip Unit Only (for FD frame breakers)
• Certifications: UL Listed, ANSI compliant
• Weight: Approximately 1.3 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD63T080
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous Trip
• Frame Size : 80
• Temp Rating : -13°F to 158°F (-25°C to 70°C)
• Amperage Maximum : 80
• Protection : Thermal Magnetic
• Compatible Frames : FD,HFD,HHFD

Product Data

• UPC : 783643211902
• GTIN : 00783643211902
• Country of Origin : Mexico
• Weight : 1.29
• Certification : UL, CSA, IEC
