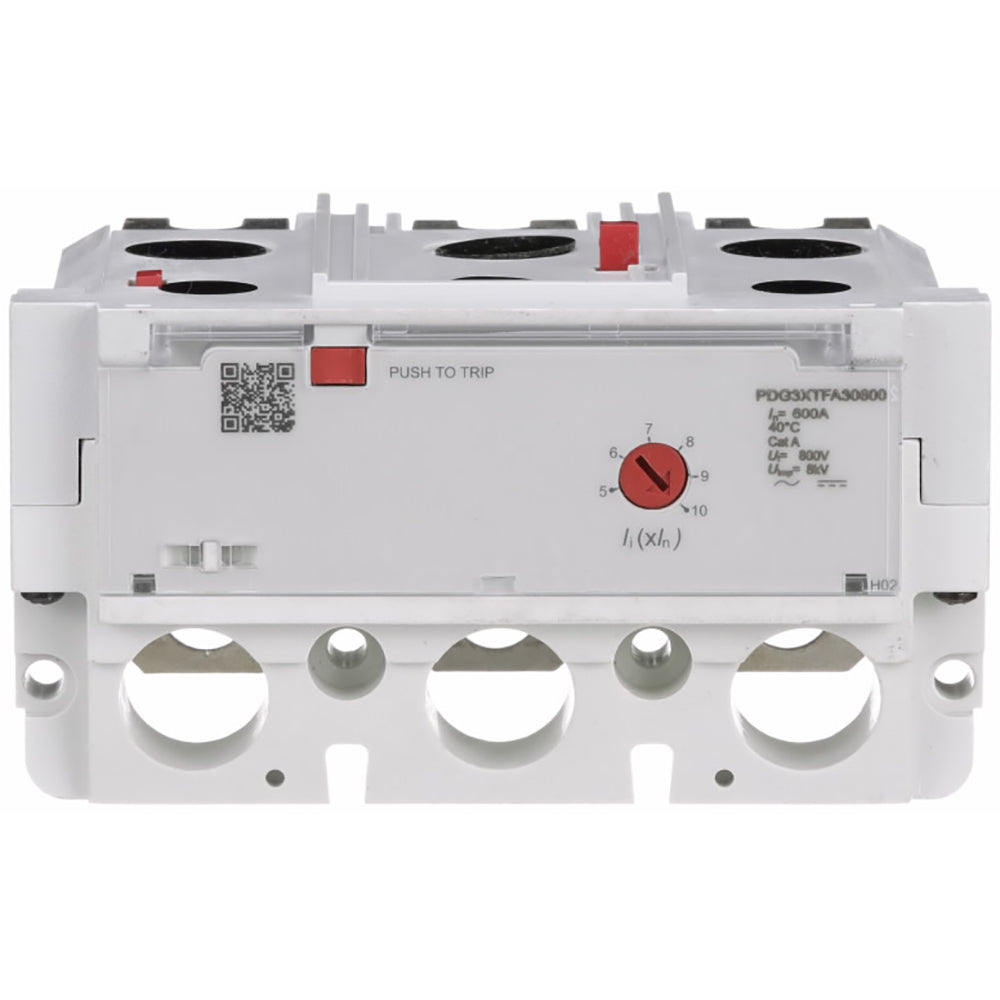

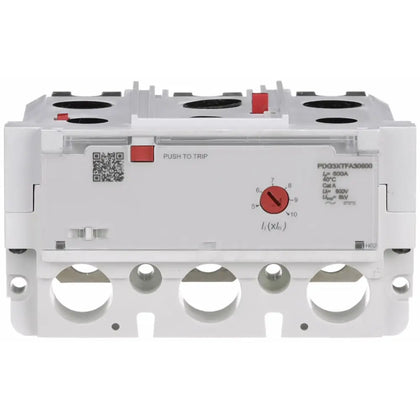

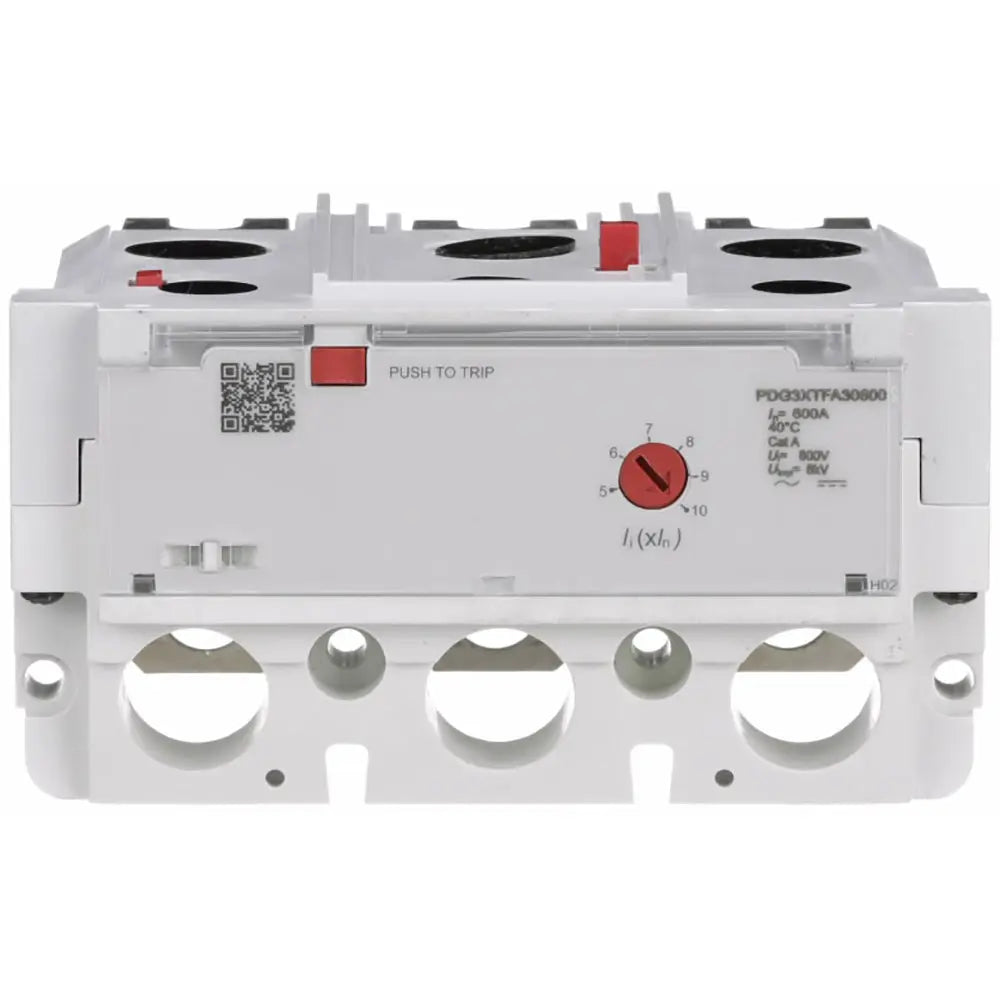

Reference images. Contact us for photos of the available unit.


Eaton

PDG3XTFA30350

Eaton Power Defense Trip Unit 3 Pole 350 Amp 600 VAC Frame J-K

Current: 350Poles: 3Voltage: 600VAC
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$538.80
Low inventory, please call (866) 377-3532 for stock check
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Eaton
Sub-Category
Trip Units & Programmers
Series
Power Defense Series
Frame
PDG
Rated current
350
Max current rating
350
Voltage
600VAC
Poles
3
Trip functions
LI - Long-Time and Instantaneous
Protection
Thermal Magnetic
Terminals
Standard Line and Load Side Lug
Standards
RoHS
Temp Rating
-13°F to 158°F (-25°C to 70°C)
Amperage Maximum
350
Show all specifications (6 more)
Compatible Frames
PDG
UPC
786679589304
GTIN
00786679589304
Dimensions
8.31 in x 4.18 in x 5.18 in (Length/Depth x Height x Width)
Weight
2.1
Certification
IEC, CSA, UL, CCC
Product description & additional details

PDG3XTFA30350


PDG3XTFA30350 is a three-pole trip unit designed for use with Eaton Power Defense molded case circuit breakers. This unit provides reliable protection and performance for industrial and commercial power distribution applications. The Eaton PDG3XTFA30350 trip unit is compatible with the PD3 Global series and fits Frame J-K breakers. It is rated for 350 amps and 600 volts AC, making it suitable for a wide range of circuit protection needs. The unit is engineered for durability and precise trip characteristics in demanding environments.
  • Part Number: PDG3XTFA30350
  • Manufacturer: Eaton
  • Series: Power Defense
  • Frame: J-K
  • Amperage Rating: 350 A
  • Voltage Rating: 600 VAC
  • Poles: 3
  • Circuit Breaker Type: PD3 Global
  • Used With: Power Defense Breakers
  • Trip Unit Type: Accessory Trip Unit
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: PDG3XTFA30350
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Trip Units & Programmers
  • Family : Power Defense Series
  • Type : PDG
  • Voltage : 600VAC
  • Amperage : 350
  • Poles : 3
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Standard Line and Load Side Lug
  • Temp Rating : -13°F to 158°F (-25°C to 70°C)
  • Amperage Maximum : 350
  • Protection : Thermal Magnetic
  • Compatible Frames : PDG

Product Data

  • UPC : 786679589304
  • GTIN : 00786679589304
  • Dimensions : 8.31 in x 4.18 in x 5.18 in (Length/Depth x Height x Width)
  • Weight : 2.1
  • Standards : RoHS
  • Certification : IEC, CSA, UL, CCC
