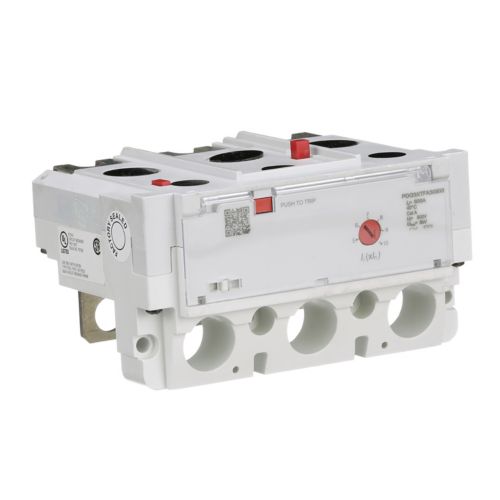

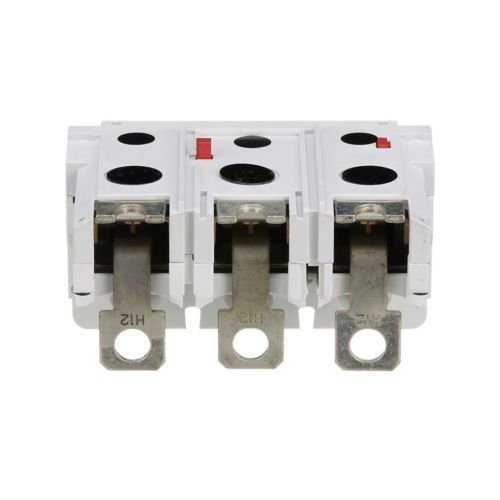

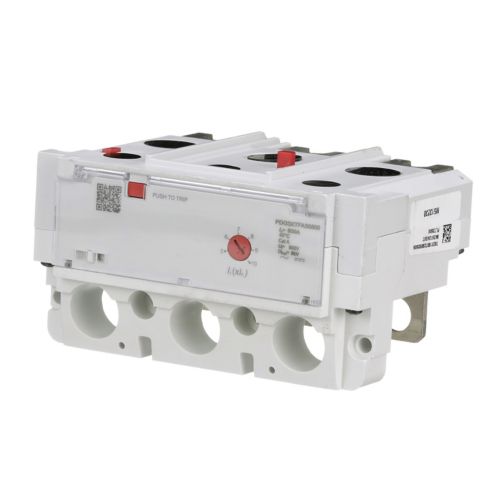

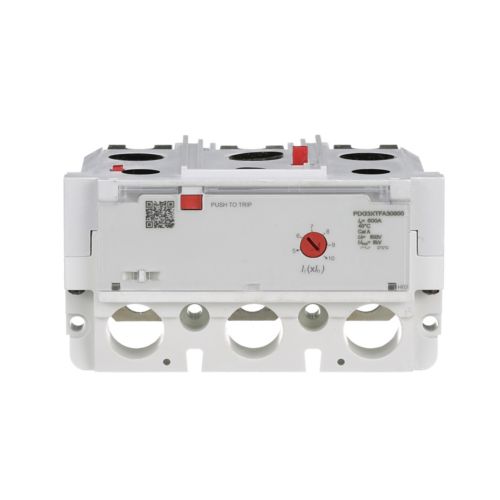

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Trip Units & Programmers
- Series
- Power Defense Series
- Frame
- PDG
- Rated current
- 400
- Max current rating
- 400
- Voltage
- 600VAC
- Poles
- 3
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Standards
- RoHS
- Amperage Maximum
- 400
- Compatible Frames
- PDG
- UPC
- 786679589335
Show all specifications (3 more)
- Dimensions
- 8.31 in x 4.18 in x 5.18 in (Length/Depth x Height x Width)
- Weight
- 2
- Certification
- IEC, CSA, UL, CCC
Product description & additional details
PDG3XTFA30400
PDG3XTFA30400 is a Cutler Hammer Power Defense trip unit designed for circuit breaker applications with a 400 amp rating and 600 volt capacity.This trip unit features a three-pole configuration and fits Power Defense Frame J-K (Frame 3) breakers. It includes fixed thermal and adjustable magnetic trip elements, providing reliable protection and coordination. The unit is RoHS compliant and certified to CSA, CCC, IEC 60947-2, and UL 489 standards.
- Amperage Rating: 400 A
- Voltage Rating: 600 V AC
- Number of Poles: 3
- Frame Size: J-K (Frame 3)
- Circuit Breaker Type: PD3 Global Power Defense
- Trip Unit: Fixed Thermal, Adjustable Magnetic
- Certifications: CSA, CCC, IEC 60947-2, UL 489
- RoHS Compliant
- Product Dimensions: 8.31 in (Depth) x 4.18 in (Height) x 5.18 in (Width)
- Product Weight: 2 lb
Specifications
- Part Number: PDG3XTFA30400
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Power Defense Series
- Type : PDG
- Voltage : 600VAC
- Amperage : 400
- Poles : 3
- Functions : LI - Long-Time and Instantaneous
- Amperage Maximum : 400
- Protection : Thermal Magnetic
- Compatible Frames : PDG
Product Data
- UPC : 786679589335
- Dimensions : 8.31 in x 4.18 in x 5.18 in (Length/Depth x Height x Width)
- Weight : 2
- Standards : RoHS
- Certification : IEC, CSA, UL, CCC
