Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Motor Starter
- Series
- Class 2510
- Frame
- M
- Rated current
- 18
- Voltage
- 600V
- Poles
- 2
- Phases
- 1
- NEMA rating
- M0
- Country of origin
- Mexico
- UPC
- 785901792826
- GTIN
- 00785901792826
- Dimensions
- 5.72 in (145.29 mm) x 3.5 in (88.9 mm) x 4.03 in (102.36 mm) (Height x Width x Depth)
Show all specifications (1 more)
- Weight
- 2.08
Product description & additional details
2510MBO1

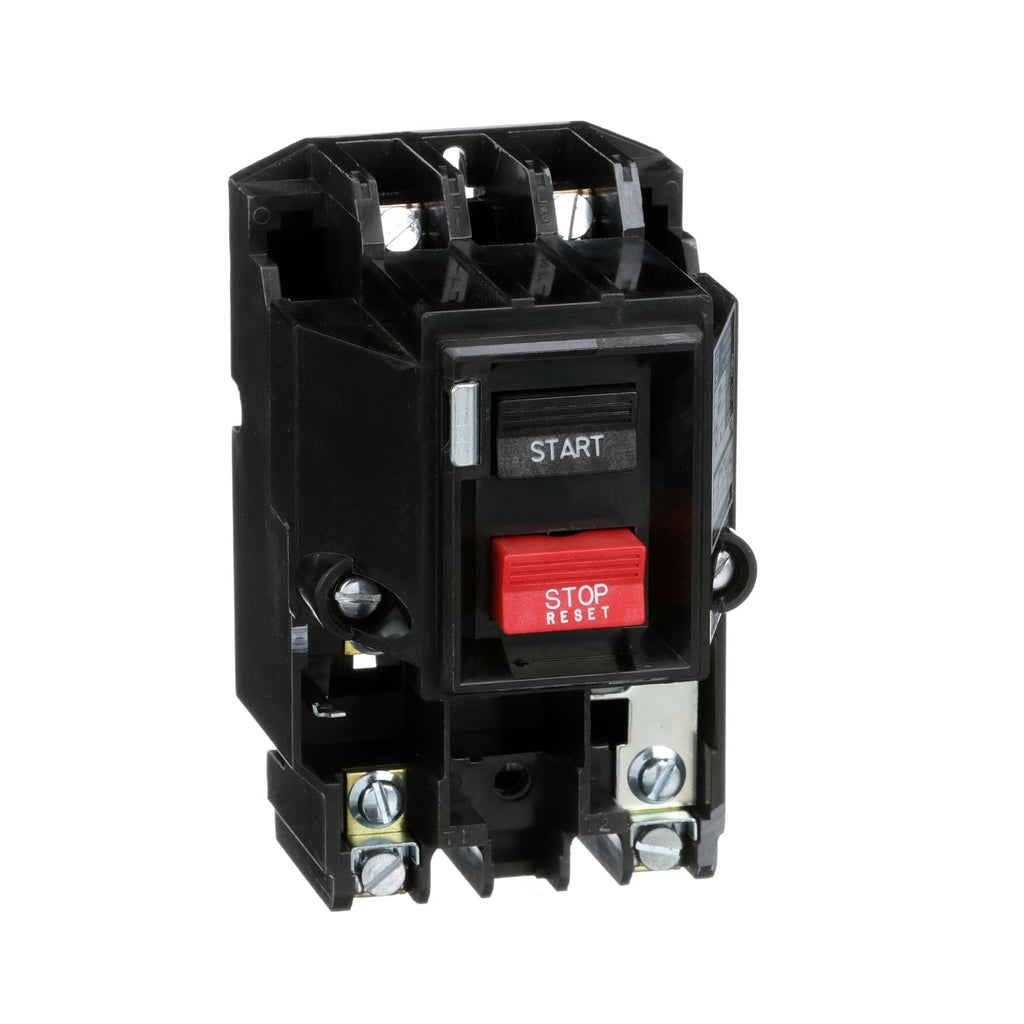

2510MBO1 is a Square D Class 2510 manual motor starter designed for motor control applications with 2 poles and 1 phase operation at 600 volts AC.2510MBO1 features an 18 amp rating with a NEMA M-0 frame size and pushbutton operator. It supports 1 HP at 115 VAC and 2 HP at 230 VAC, suitable for single-phase motors. This open-style starter includes integral horsepower rating and is UL and CSA certified. Heater packs are sold separately.
- Amperage: 18A
- Voltage: 600 VAC
- Poles: 2
- Phase: 1
- Frame: NEMA M-0 (Class 2510)
- Operator: Pushbutton
- Horsepower Rating: 1 HP @ 115 VAC, 2 HP @ 230 VAC
- Certifications: UL, CSA
- Mounting Type: Open
- Interrupt Rating: Based on thermal unit selected
- Manual Motor Starter
Specifications
- Part Number: 2510MBO1
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 2510
- Type : M
- Voltage : 600
- Amperage : 18
- Phase : 1
- Poles : 2
- Nema Rating : M0
Product Data
- UPC : 785901792826
- GTIN : 00785901792826
- Country of Origin : Mexico
- Dimensions : 5.72 in (145.29 mm) x 3.5 in (88.9 mm) x 4.03 in (102.36 mm) (Height x Width x Depth)
- Weight : 2.08
