AN19DN0A5E020

AN19DN0A5E020

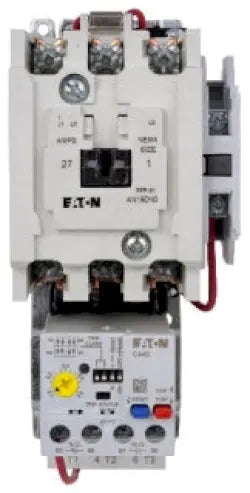

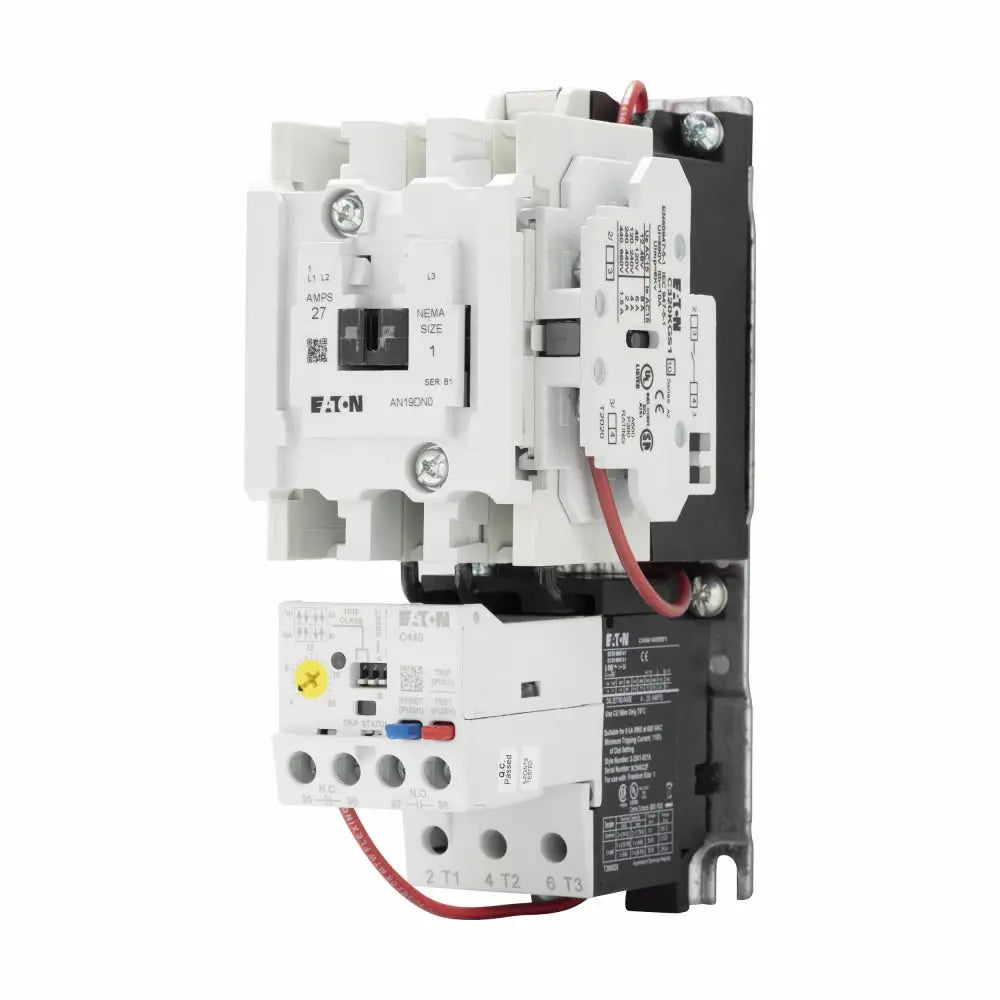

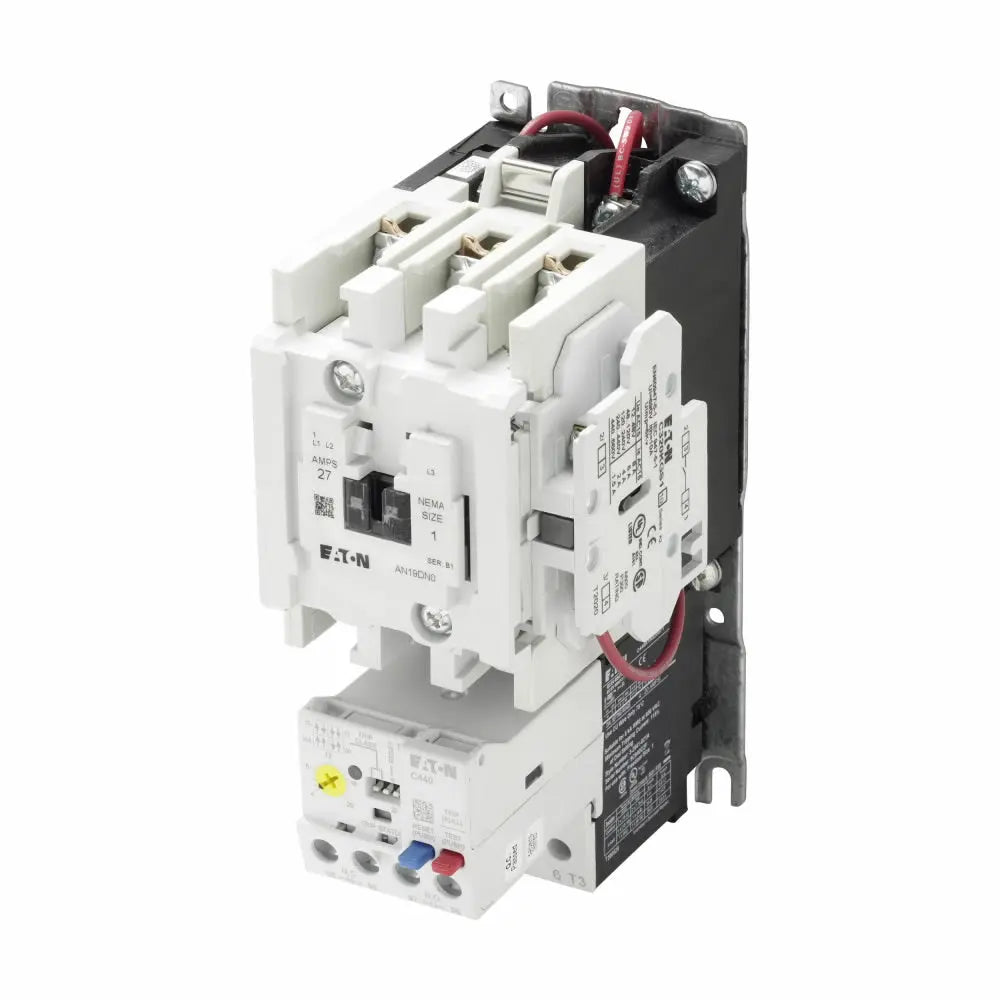

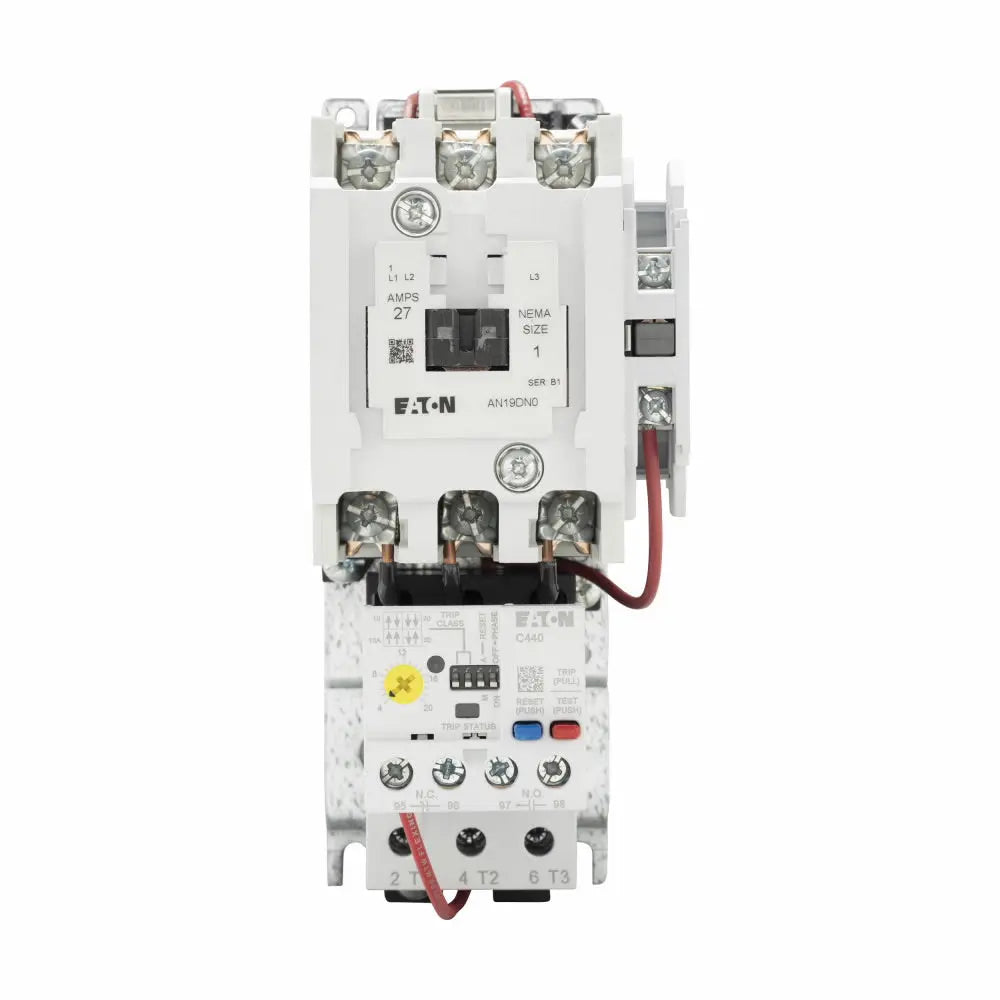

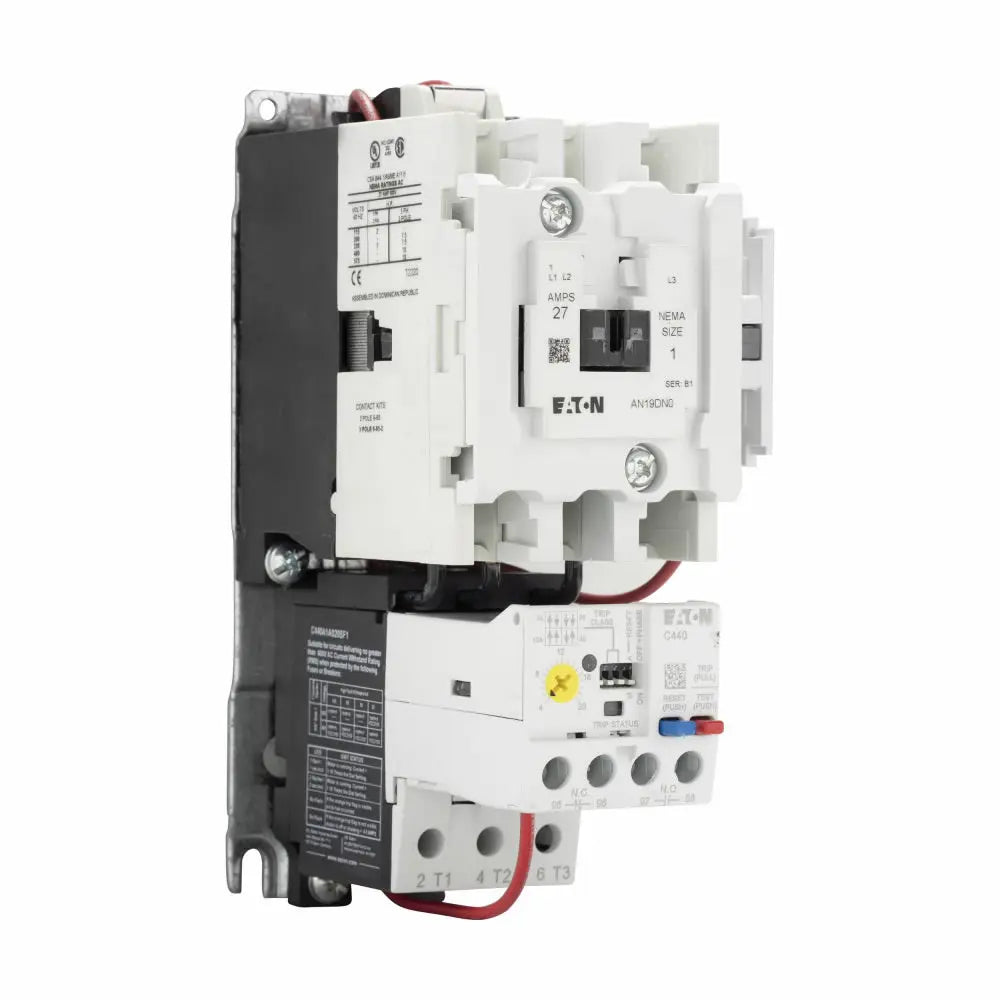

AN19DN0A5E020 is a Cutler Hammer Freedom Series motor starter rated for 27 amps, 600VAC, and 3 poles with NEMA 1 enclosure. This non-reversing motor starter features a C440 electronic overload relay adjustable from 4 to 20 amps with selectable trip classes (10, 20, 30), phase loss protection, and auxiliary contacts for alarm and fault signaling. It supports 7.5 HP at 230V and 10 HP at 460V three-phase motors and mounts horizontally with a surface mounting type. The starter is UL, CSA, CE, and RoHS certified, designed for reliable motor control in industrial applications.

• Amperage: 27 Amps
• Voltage: 600 VAC
• Poles: 3
• Phase: 3
• Mounting Type: Surface, Horizontal
• Overload Relay: C440 electronic, adjustable 4-20A
• Trip Classes: 10, 20, 30 selectable
• Horsepower Rating: 7.5 HP @ 230V, 10 HP @ 460V
• Enclosure: NEMA 1
• Certifications: UL, CSA, CE, RoHS
• Auxiliary Contacts: 1 NO side mounted
• Series: Freedom

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AN19DN0A5E020
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN19
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Nema Rating : 1

Product Data

• UPC : 786685417660
• GTIN : 00786685417660
• Country of Origin : Dominican Republic
• Dimensions : 4.98 in x 7.1 in x 2.6 in (Length/Depth x Height x Width)
• Weight : 3.92 lb
• Certification : CE, CSA, UL Listed
