AN19GN0A5E045

AN19GN0A5E045

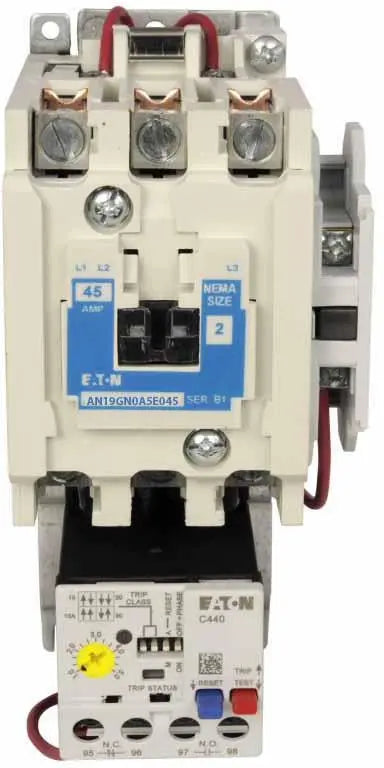

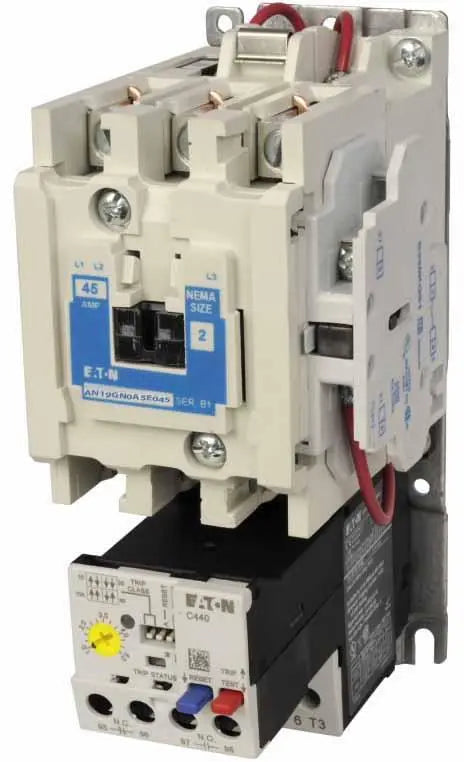

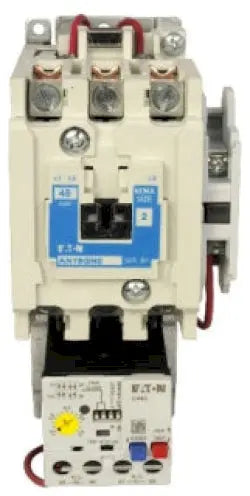

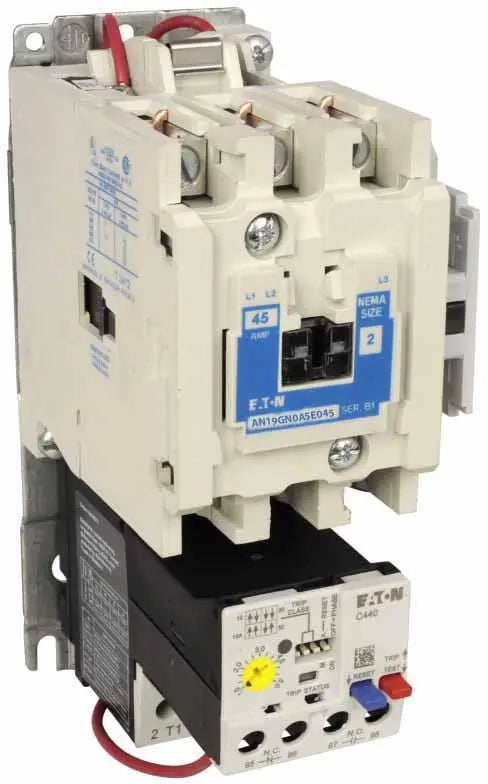

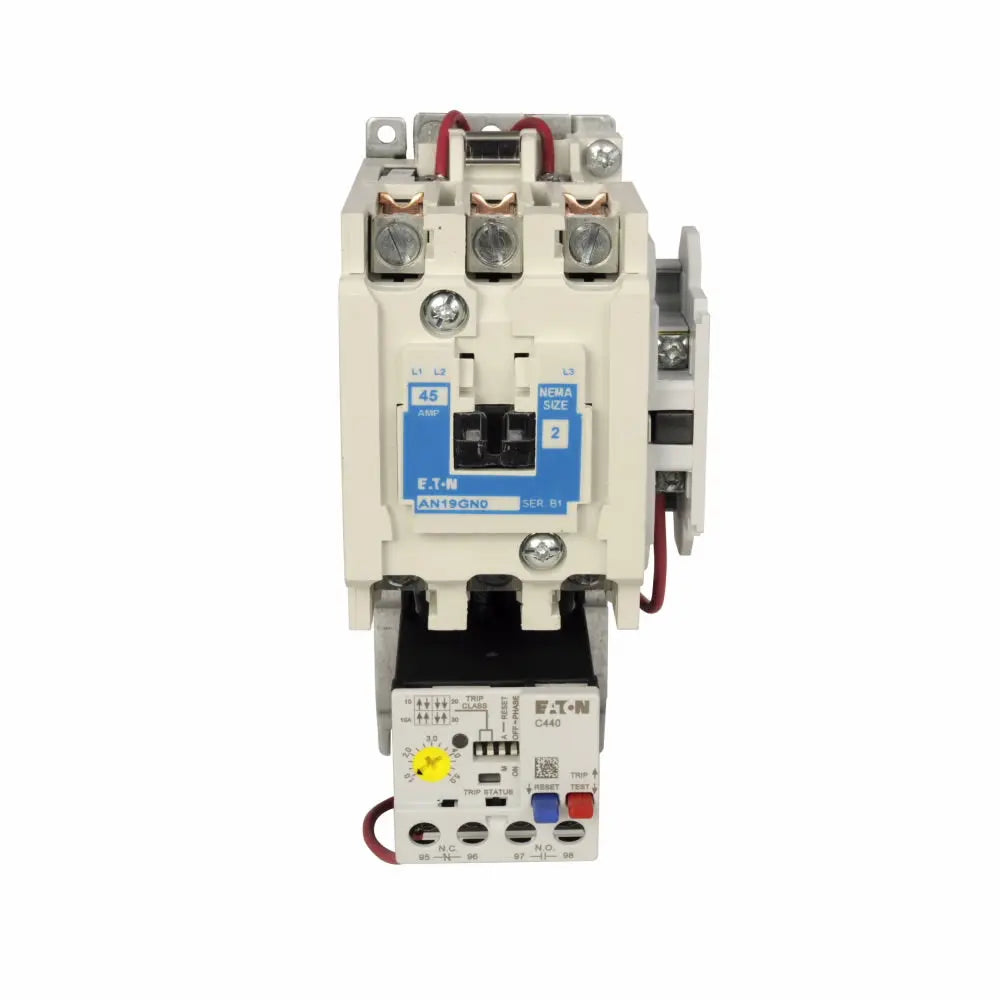

AN19GN0A5E045 is a Cutler Hammer Freedom Series NEMA Size 2 motor starter rated at 45 amps with a 110/120V AC coil and C440 electronic overload relay.This 3-pole, full voltage non-reversing motor starter features a horizontal mount and is designed for motor control applications. It supports 15 HP at 230V and 25 HP at 460V with an adjustable overload range of 9 to 45 amps. The integrated C440 electronic overload relay offers selectable trip classes (10, 20, 30), phase loss protection, and auxiliary contacts for alarm and fault signaling.

Key Specifications
• Amperage: 45 Amps
• Voltage: 110/120V AC Coil
• Poles: 3
• Mounting Type: Horizontal Panel Mount
• Interrupt Rating: NEMA Size 2
• Series/Frame: Freedom Series
• Trip Unit: C440 Electronic Overload Relay (9-45A adjustable)
• Horsepower Rating: 15 HP @ 230V, 25 HP @ 460V
• Auxiliary Contacts: 1 N.O. side mounted
• Trip Class: Selectable 10, 20, or 30
• Phase Loss and Ground Fault Protection
• Certifications: Eaton OEM
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: AN19GN0A5E045
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN19
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Nema Rating : 2



Product Data

• UPC : 786685415420
• GTIN : 00786685415420
• Country of Origin : Dominican Republic
• Dimensions : 4.98 in x 7.1 in x 2.6 in (Length/Depth x Height x Width)
• Weight : 3.92
• Certification : CE, CSA, UL Listed
