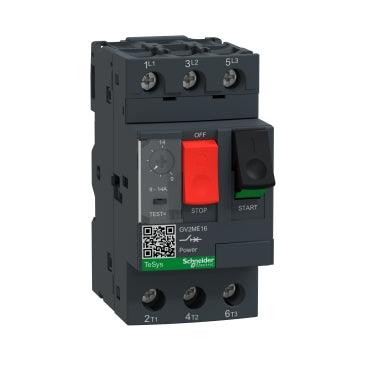

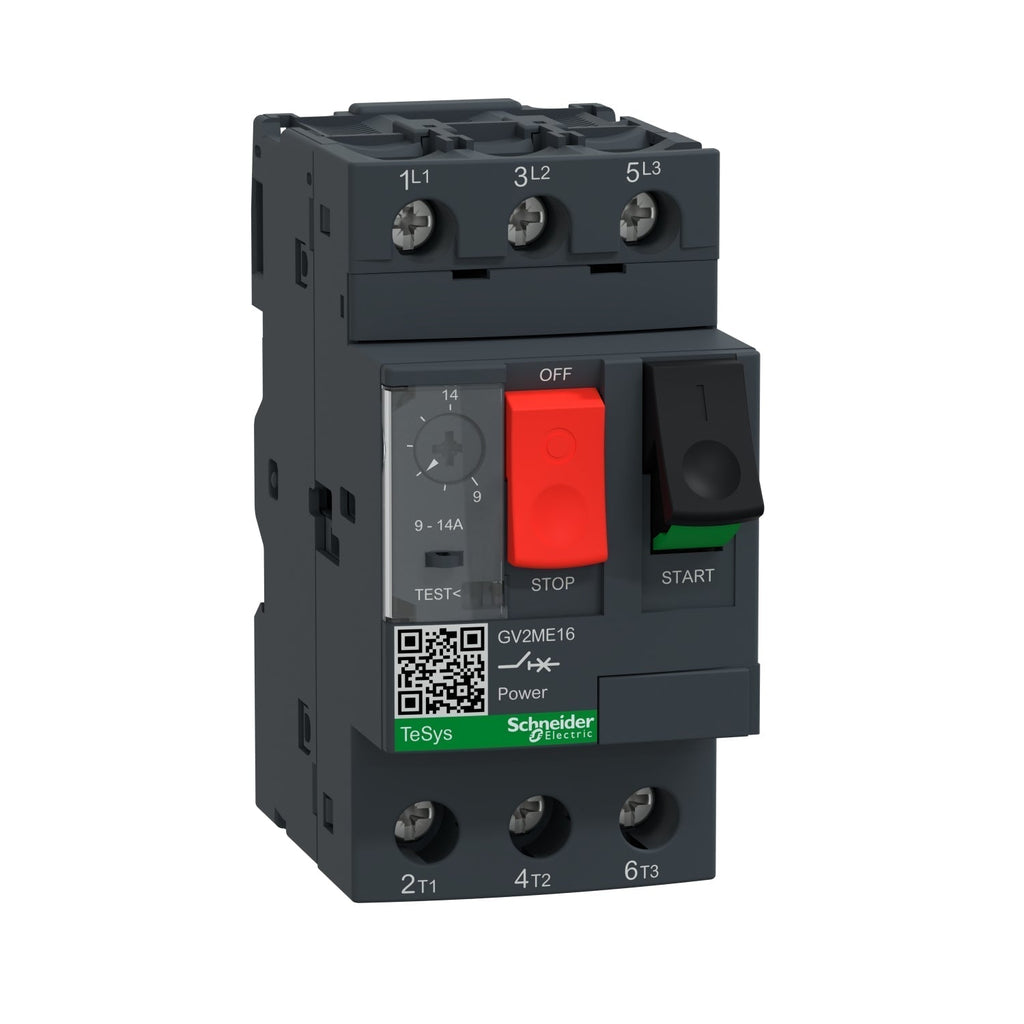

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Motor Starter
- Series
- TeSys GV2
- Frame
- GV2
- Rated current
- 14
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- NEMA rating
- 00
- Country of origin
- Thailand
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Horse Power
- HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 10 hp
- UPC
- 785901211983
- GTIN
- 03389110343175
Show all specifications (3 more)
- Dimensions
- 3.5 in (89 mm) x 1.8 in (45 mm) x 3.09 in (78.5 mm) (Height x Width x Depth)
- Weight
- 0.617
- Certification
- EN/IEC, UL, CSA, CCC, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
Product description & additional details
GV2ME16
GV2ME16 is a Schneider Electric TeSys Deca 3-pole motor circuit breaker designed for reliable motor protection and control.
This thermal magnetic circuit breaker features a pushbutton actuator, screw clamp terminals for secure connections, and is part of the GV2 series. It is engineered for easy installation and long-lasting performance in industrial applications.
-
Key Specifications
- Amperage: 9–14A (adjustable thermal protection)
- Voltage: 690V AC
- Poles: 3
- Mounting Type: DIN rail
- Interrupt Rating: Up to 100 kA (IEC 60947-2)
- Series/Frame: GV2
- Trip Unit: Thermal magnetic, Class 10A
- Actuator: Pushbutton
- Terminals: Screw clamp
- Width: 45 mm
- Height: 89 mm
- Depth: 78.5 mm
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GV2ME16
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : TeSys GV2
- Type : GV2
- Voltage : 600
- Amperage : 14-Sep
- Phase : 3
- Poles : 3
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 10 hp
- Nema Rating : 00
Product Data
- UPC : 785901211983
- GTIN : 03389110343175
- Country of Origin : Thailand
- Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.09 in (78.5 mm) (Height x Width x Depth)
- Weight : 0.617
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Certification : EN/IEC, UL, CSA, CCC, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
