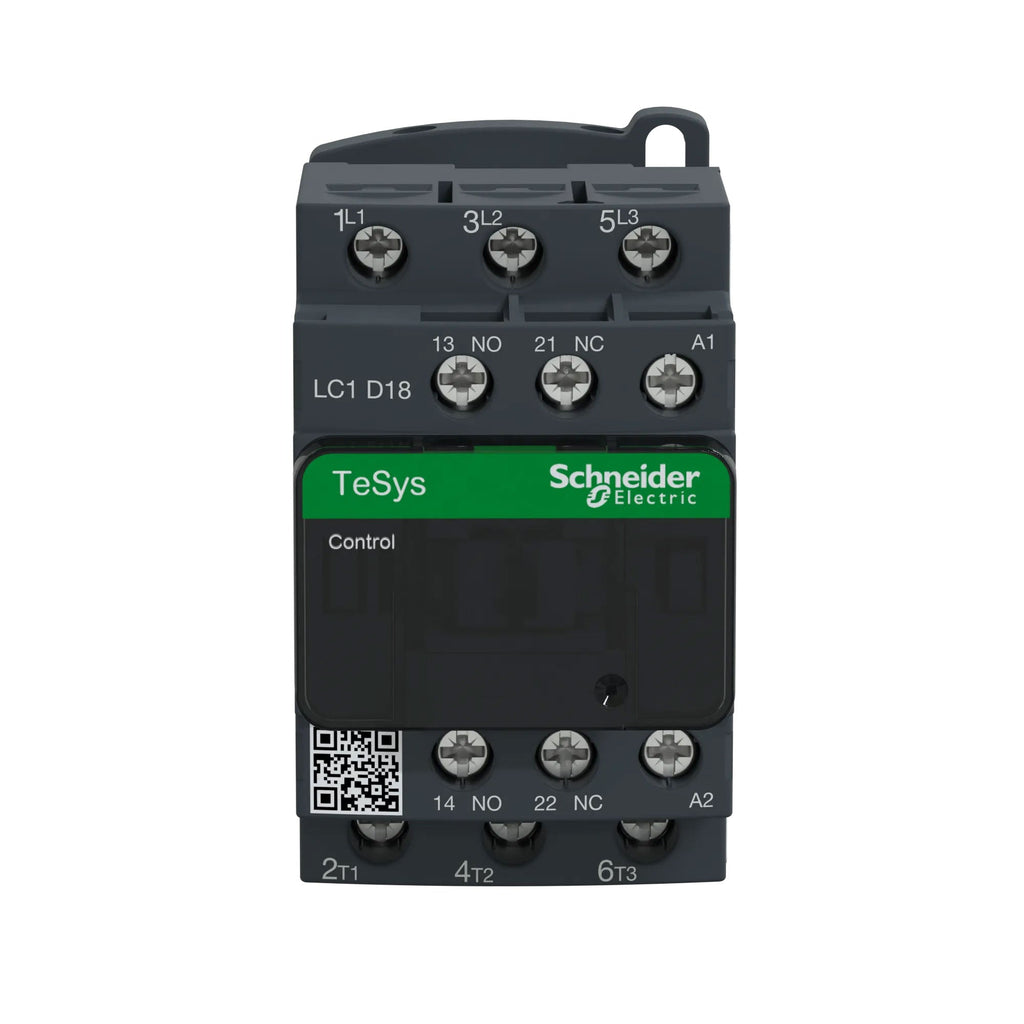

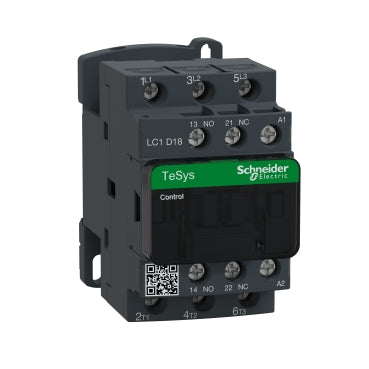

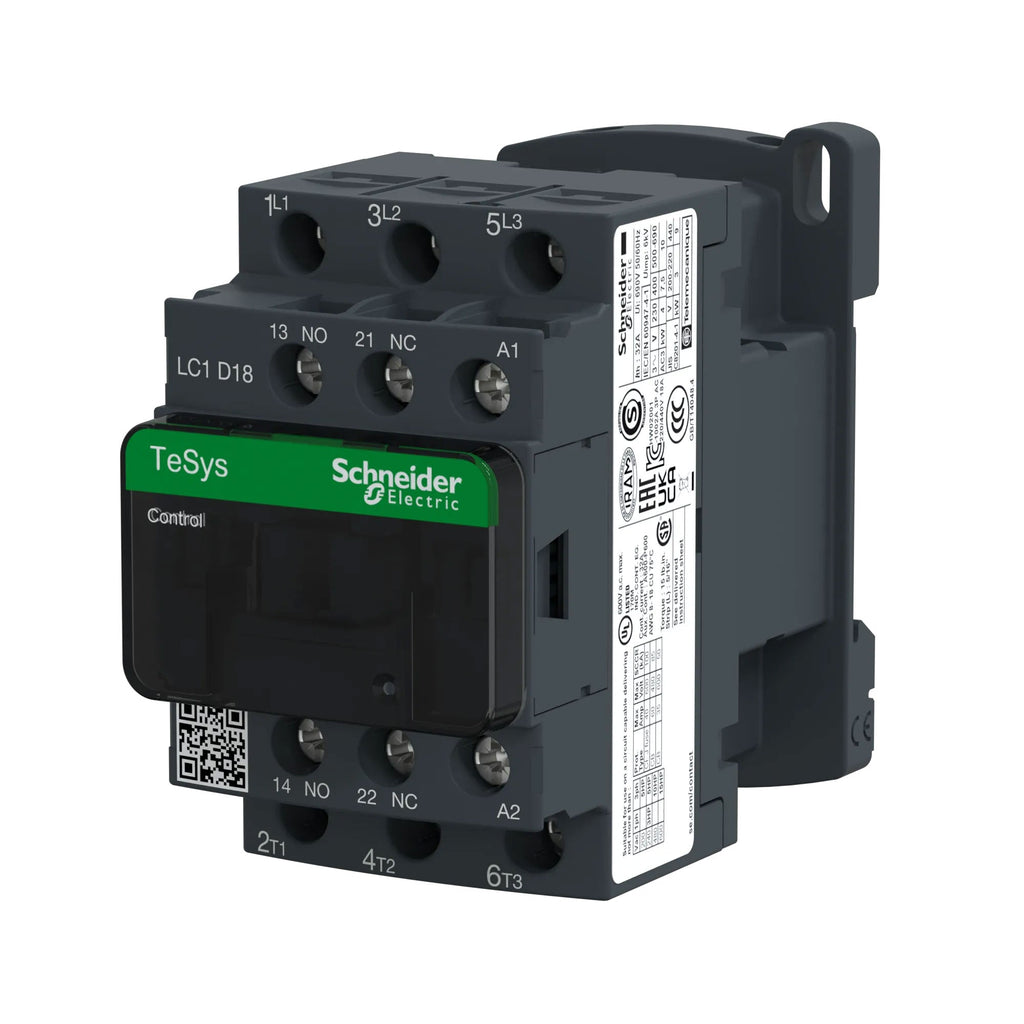

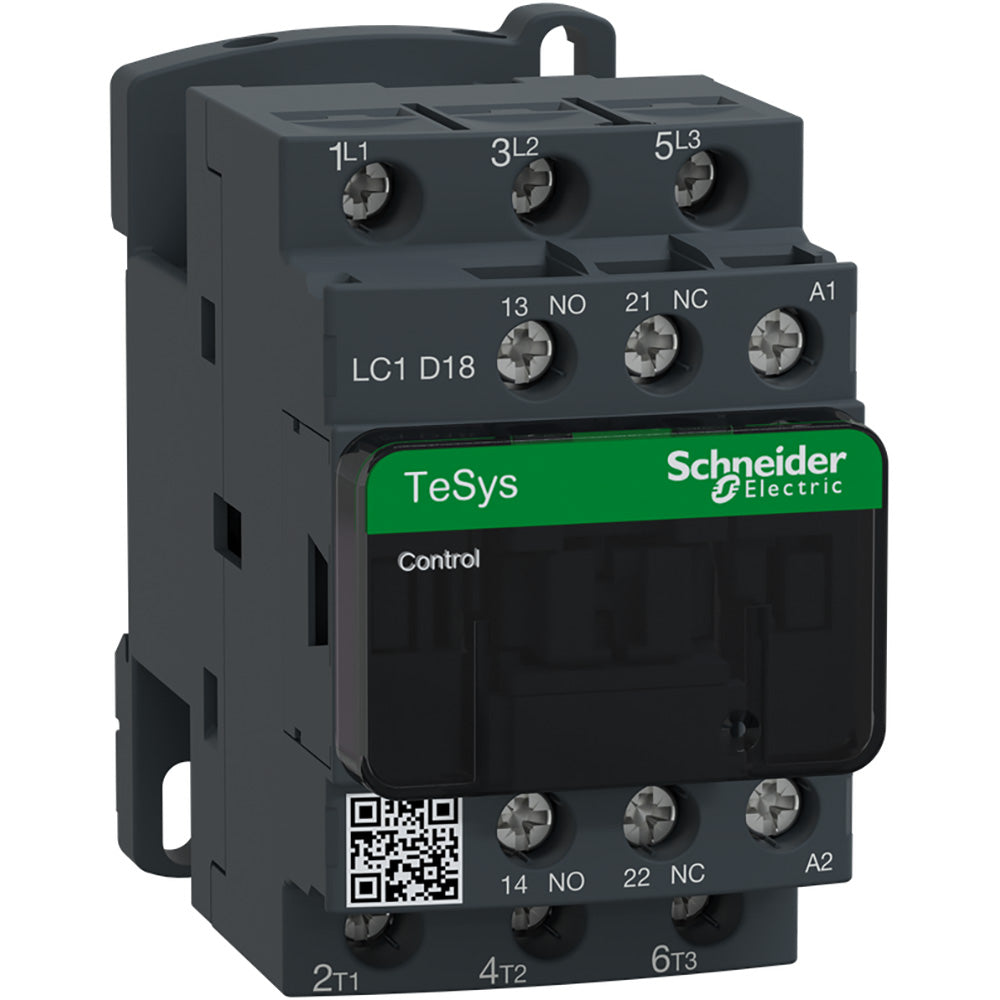

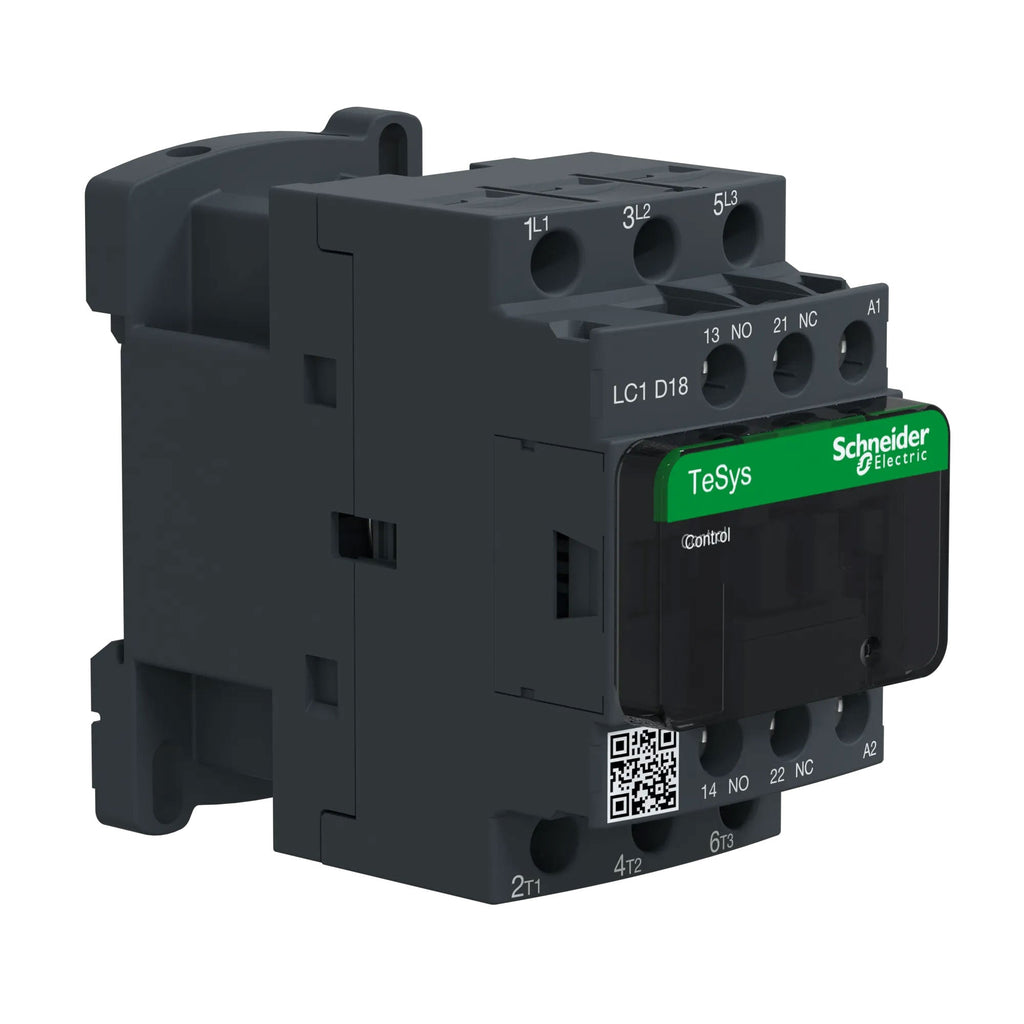

LC1D18G7 is a Square D 18 amp 3-pole IEC contactor designed for motor control applications with a 120V AC coil and rated up to 600VAC.This contactor supports motor loads up to 10 HP at 480 VAC and 15 HP at 600 VAC three-phase, with a power circuit voltage rating up to 690 V AC and 300 V DC. It features 3 normally open poles, screw clamp terminals, and can be mounted on plate or DIN rail. The device complies with UL 508, CSA C22.2 No 14, IEC 60947-4-1, and other international standards, offering a short-circuit current rating (SCCR) up to 100 kA when used with appropriate fuses. It includes a safety cover and is suitable for industrial and HVAC applications.

Key Specifications
• Amperage: 18 A
• Voltage Rating: Up to 690 V AC, 300 V DC
• Poles: 3 (3 NO)
• Coil Voltage: 120 V AC 50/60 Hz
• Horsepower Ratings: 10 HP at 480 VAC, 15 HP at 600 VAC (3-phase)

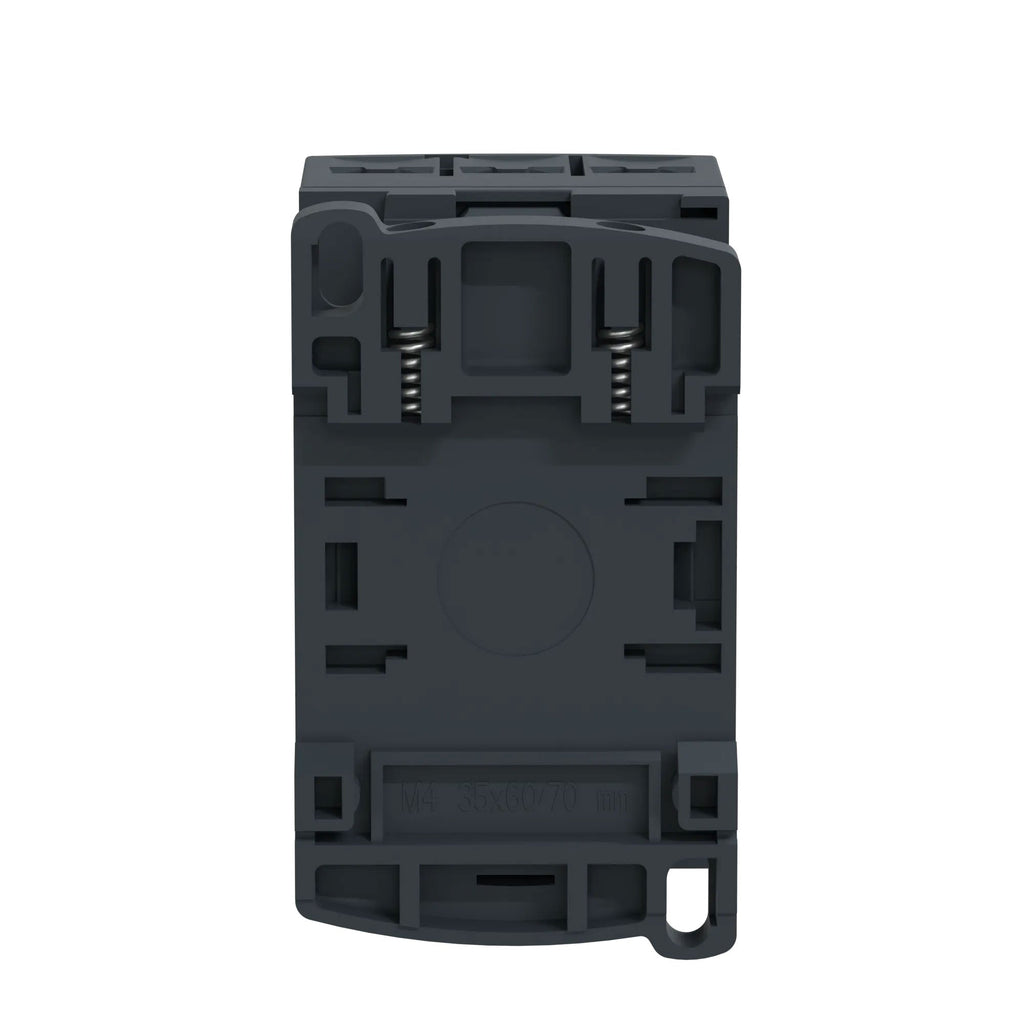

• Mounting Type: Plate or DIN Rail
• Interrupt Rating: Up to 100 kA SCCR with proper fusing
• Standards: UL 508, CSA C22.2 No 14, IEC 60947-4-1, IEC 60947-5-1
• Safety Cover: Included
• Certifications: UL, CSA, BV, GL, CCC, RINA,(more...)


  Specifications

  • Part Number: LC1D18G7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 18
  • Phase : 3
  • Poles : 3
  • Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • Configuration : Non reversing
  • Aux Contacts : 1NO/1NC
  • Coil Voltage Maximum : 120
  • Full Load Amps : Full Load Amps-Inductive 18A Full Load Amps-Resistive 32A
  • Coil Voltage Minimum : 110



  Product Data

  • UPC : 785901207108
  • GTIN : 03389110349474
  • Country of Origin : Indonesia
  • Dimensions : 3.03 in x 1.8 in x 3.4 in
  • Weight : 0.803 lb
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
