Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Contactor
- Series
- TeSys D
- Frame
- LC1D
- Rated current
- 18
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 220–240 V
- Auxiliary contacts
- 3 NO
- Country of origin
- Indonesia
- Horse Power
- 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Coil Voltage Maximum
- 240
- Full Load Amps
- Full Load Amps-Inductive 18A Full Load Amps-Resistive 32A
Show all specifications (7 more)
- Coil Voltage Minimum
- 220
- Frequency
- 50/60 Hz
- UPC
- 078590120711
- GTIN
- 03389110349597
- Dimensions
- 1.77 in (45 mm) x 3.03 in (77 mm)
- Weight
- 0.785
- Certification
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Product description & additional details

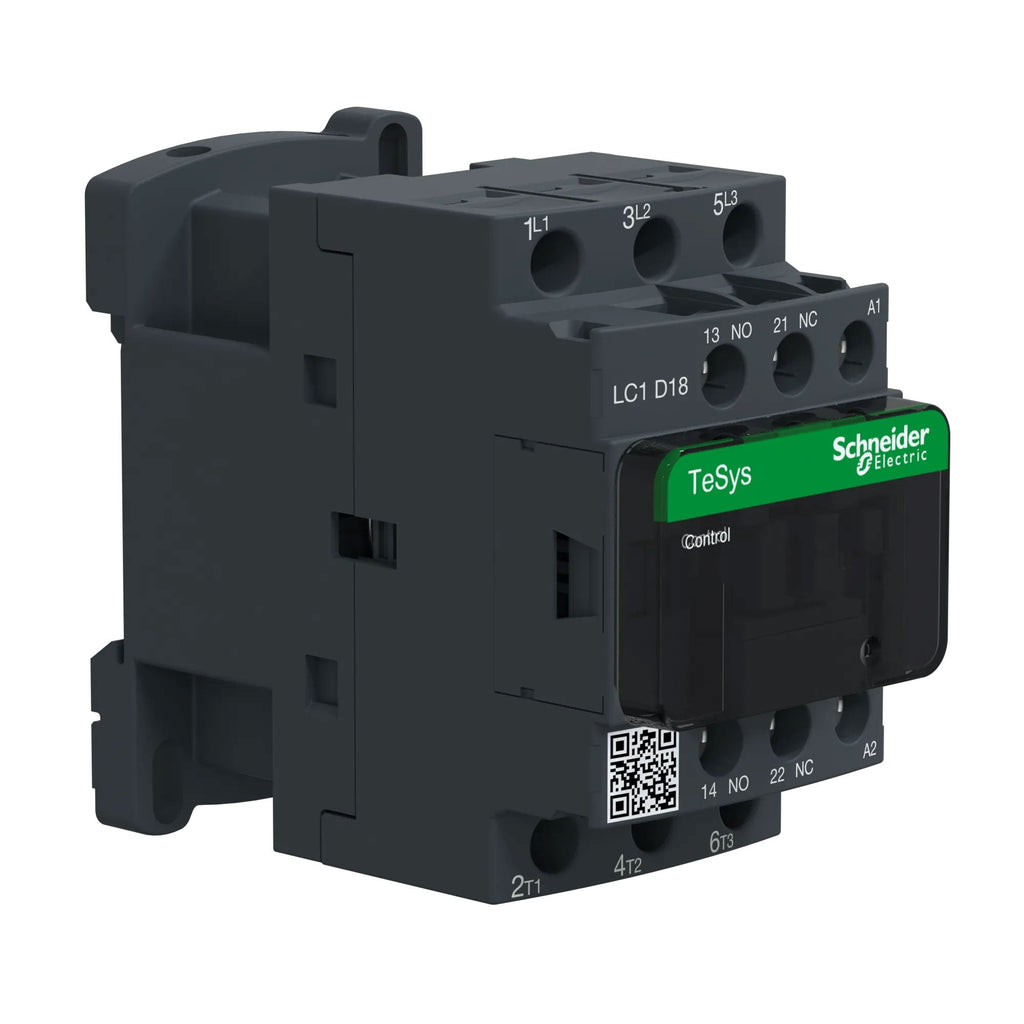

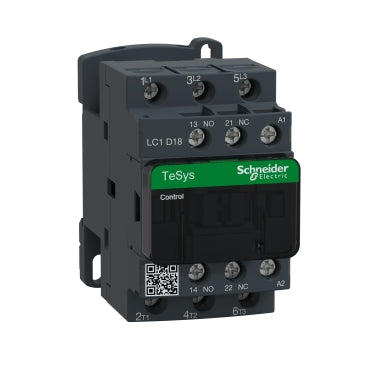

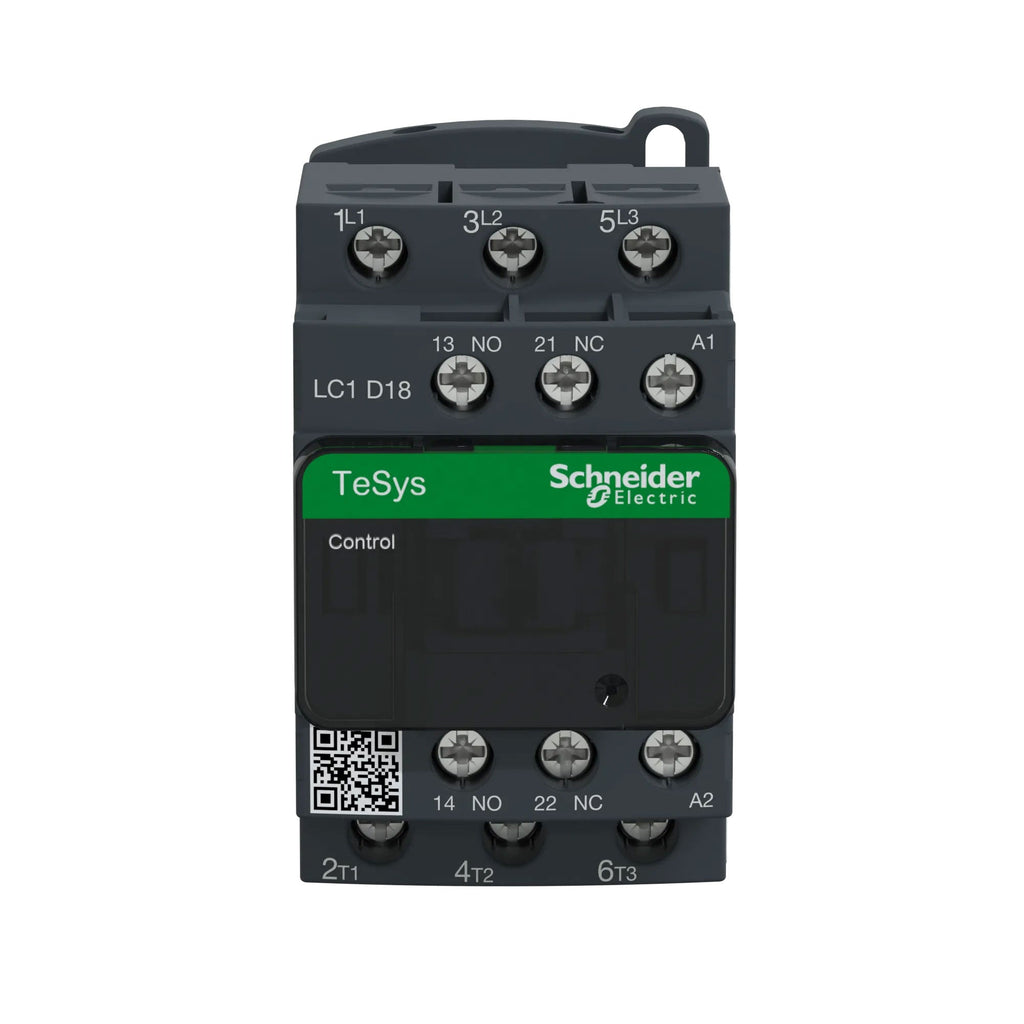

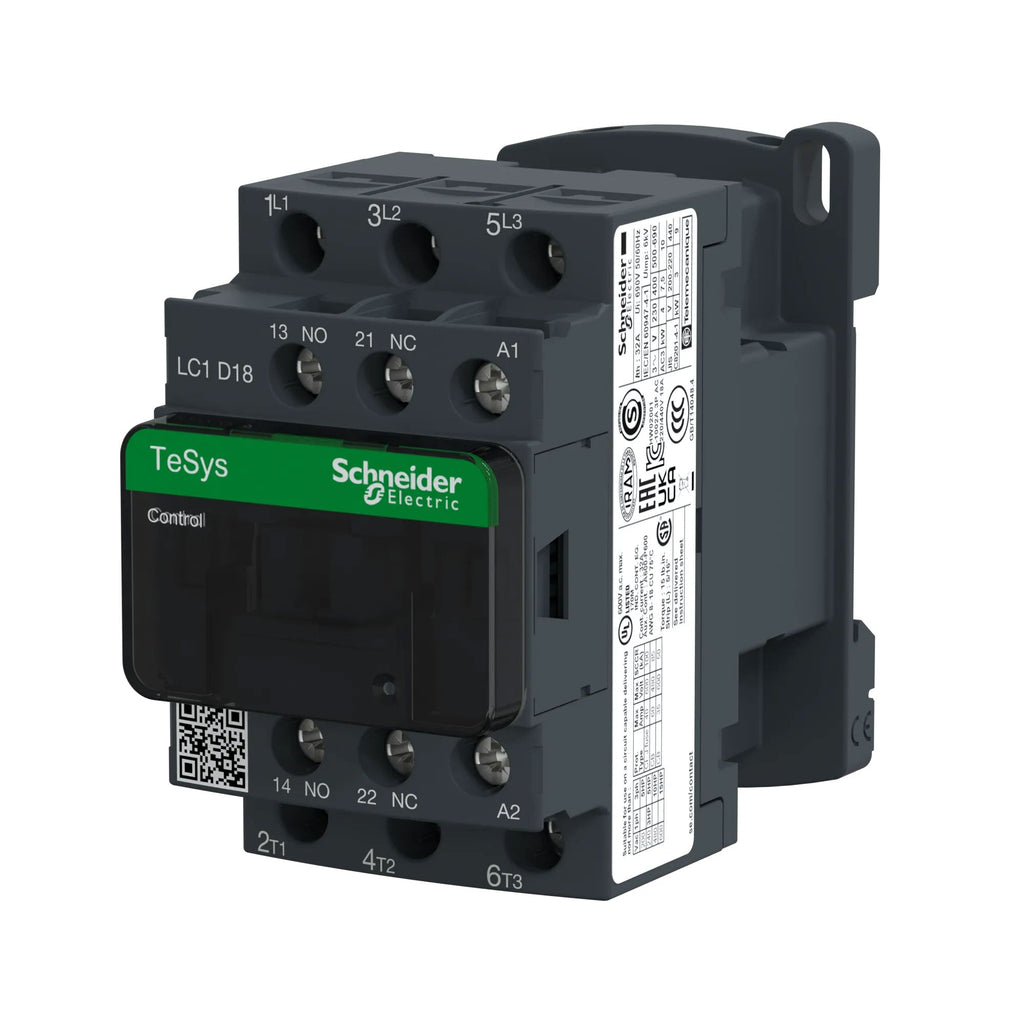

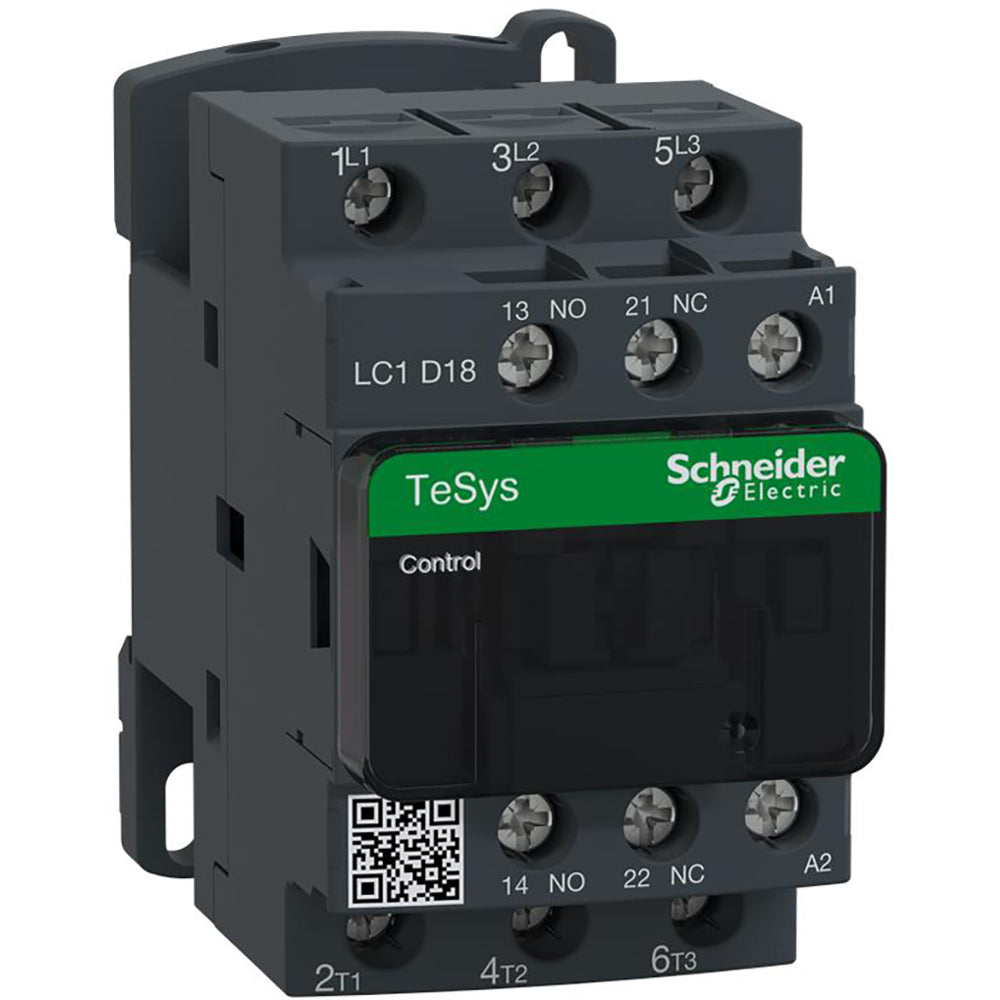

LC1D18U7
LC1D18U7 is a Square D TeSys D IEC contactor designed for motor control applications with an 18 amp rating and 240V AC coil voltage.
This 3-pole, non-reversing contactor features a 3NO contact configuration, screw clamp terminals, and supports up to 690 VAC power circuit voltage. It is suitable for industrial and HVAC use, offering a 60/60 A interrupt rating at 600 VAC and complies with IEC standards including IEC60335-1. The contactor supports 50/60 Hz frequency operation, has a compact size, and is designed for rail or surface mounting with IP2X enclosure protection.
- Key Specifications
- Amperage: 18 A
- Coil Voltage: 240 V AC, 50/60 Hz
- Poles: 3
- Contact Configuration: 3 Normally Open (3NO)
- Power Circuit Voltage: Up to 690 VAC
- Interrupt Rating: 60/60 A at 600 VAC

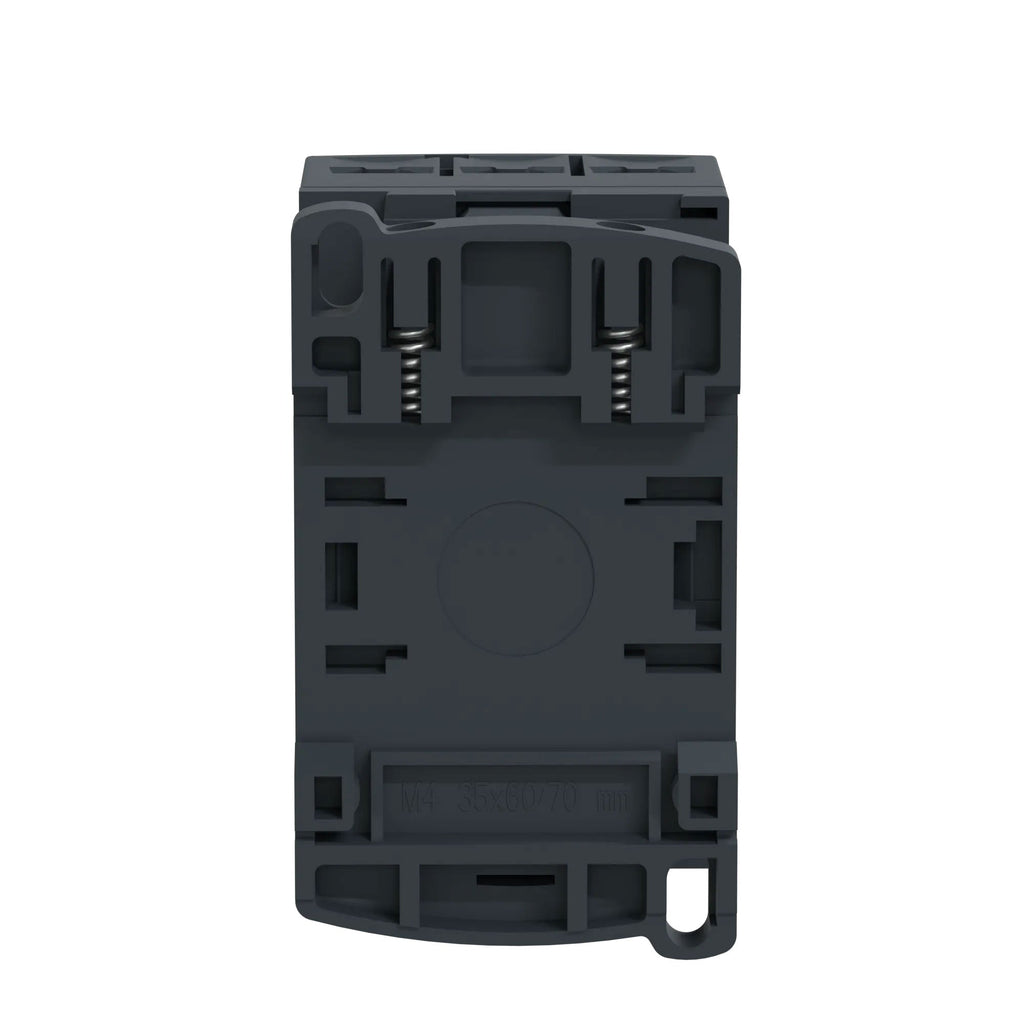

- Mounting Type: Rail or Surface Mount
- Terminal Type: Screw Clamp
- Operating Temperature: -5 to 60°C (operating), -40 to 70°C (storage)
- Standards: IEC60335-1 compliant
- Cycle Rate: 3600 cycles/hour

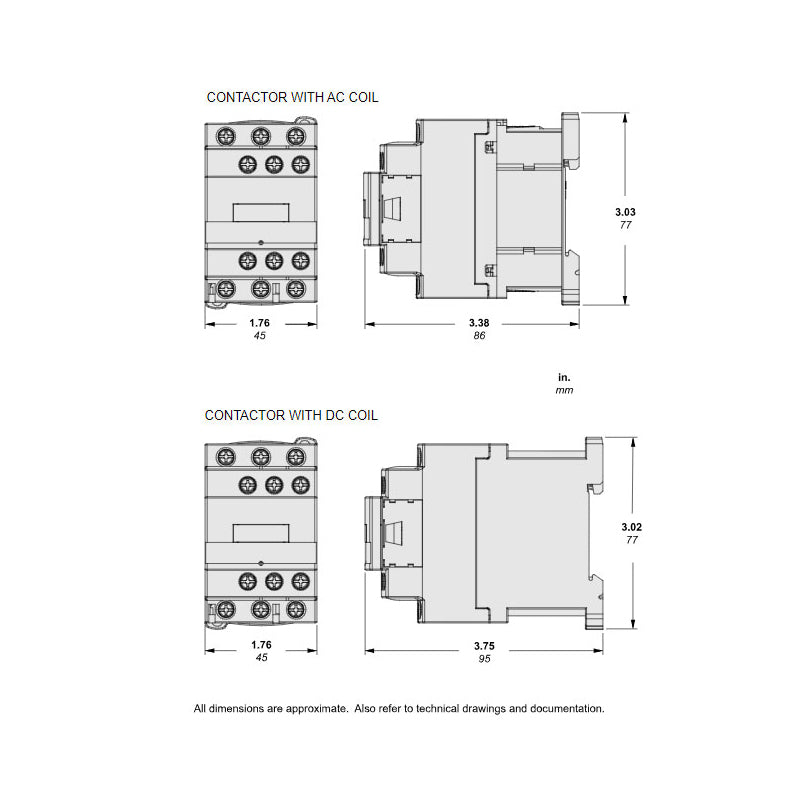

- Dimensions: 45 mm W x 84 mm D x 77 mm H (more...)
- Part Number: LC1D18U7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 18
- Phase : 3
- Poles : 3
- Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 240
- Full Load Amps : Full Load Amps-Inductive 18A Full Load Amps-Resistive 32A
- Coil Voltage Minimum : 220
- Frequency : 50/60 Hz
- UPC : 078590120711
- GTIN : 03389110349597
- Country of Origin : Indonesia
- Dimensions : 1.77 in (45 mm) x 3.03 in (77 mm)
- Weight : 0.785
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Additional Information
This TeSys D IEC Contactor includes a 240 VAC coil.
Specifications
Product Data
Technical Documents
