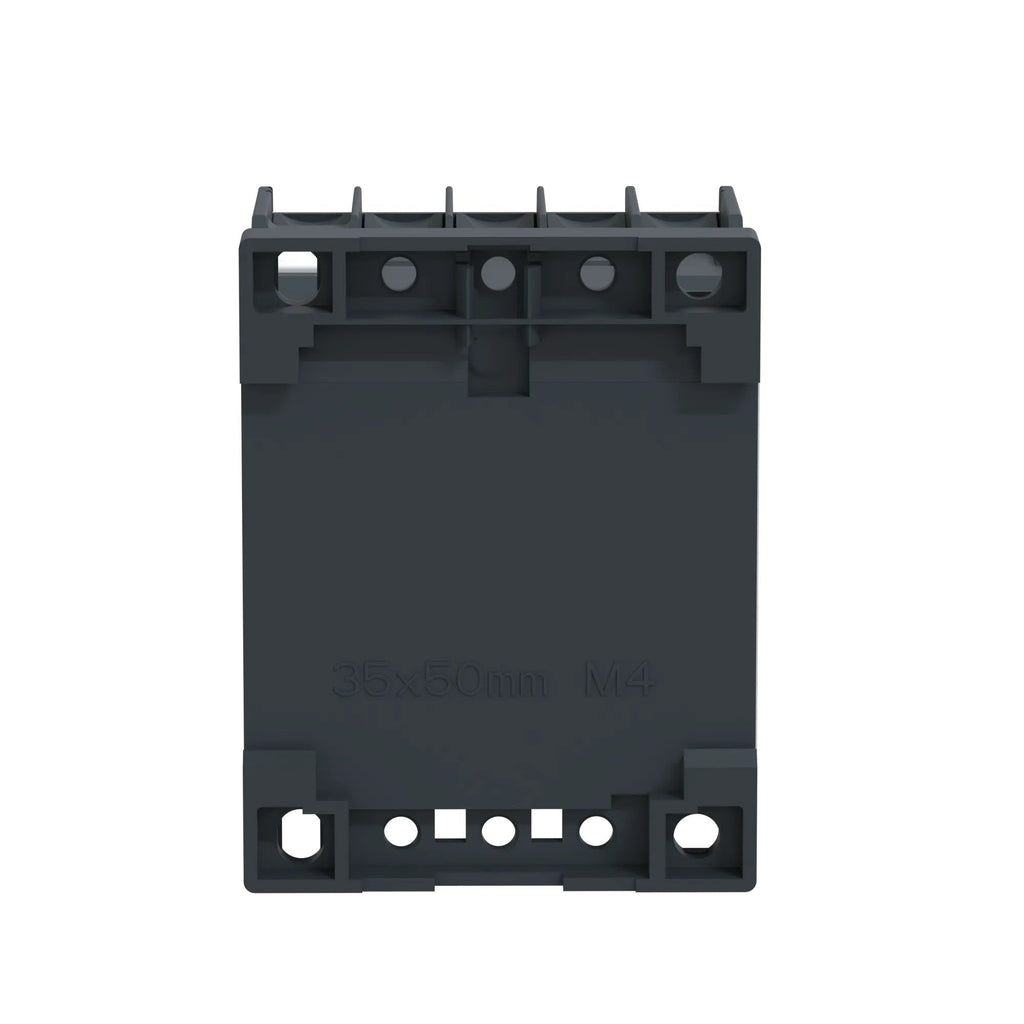

LC1K0601B7 - Schneider Electric TeSys K 3-Pole Motor Contactor 6A 690V AC 24V AC Coil

LC1K0601B7

LC1K0601B7 is a Schneider Electric TeSys K 3-pole motor contactor designed for reliable motor control applications.This compact contactor features a 3-pole (3 NO) configuration rated for 6 amps at up to 690V AC in AC-3 utilization category. It includes a 24V AC coil operating at 50/60 Hz and one normally closed (1 NC) auxiliary contact. The device supports motor loads up to 2.2 kW at 400V AC and is suitable for industrial, infrastructure, and building applications. It offers a rated impulse withstand voltage of 8 kV and a mechanical operating time of 10-20 ms.

• Manufacturer: Schneider Electric
• Series: TeSys K
• Poles: 3 (3 NO power contacts)
• Rated operational current: 6 A (AC-3)
• Rated operational voltage: Up to 690 V AC
• Coil voltage: 24 V AC, 50/60 Hz
• Auxiliary contacts: 1 NC
• Motor power rating: 2.2 kW at 400 V AC
• Rated impulse withstand voltage: 8 kV
• Mounting type: Plate
• Operating time: 10-20 ms

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys K Miniature Contactor includes a 24 VAC coil.

Specifications

• Part Number: LC1K0601B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 20
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Mounting : Plate
• Frequency : AC 50/60 Hz

Product Data

• UPC : 038911036883
• GTIN : 03389110368833
• Country of Origin : Indonesia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.392
• Certification : CB Scheme CCC UL CSA EAC CE UKCA
