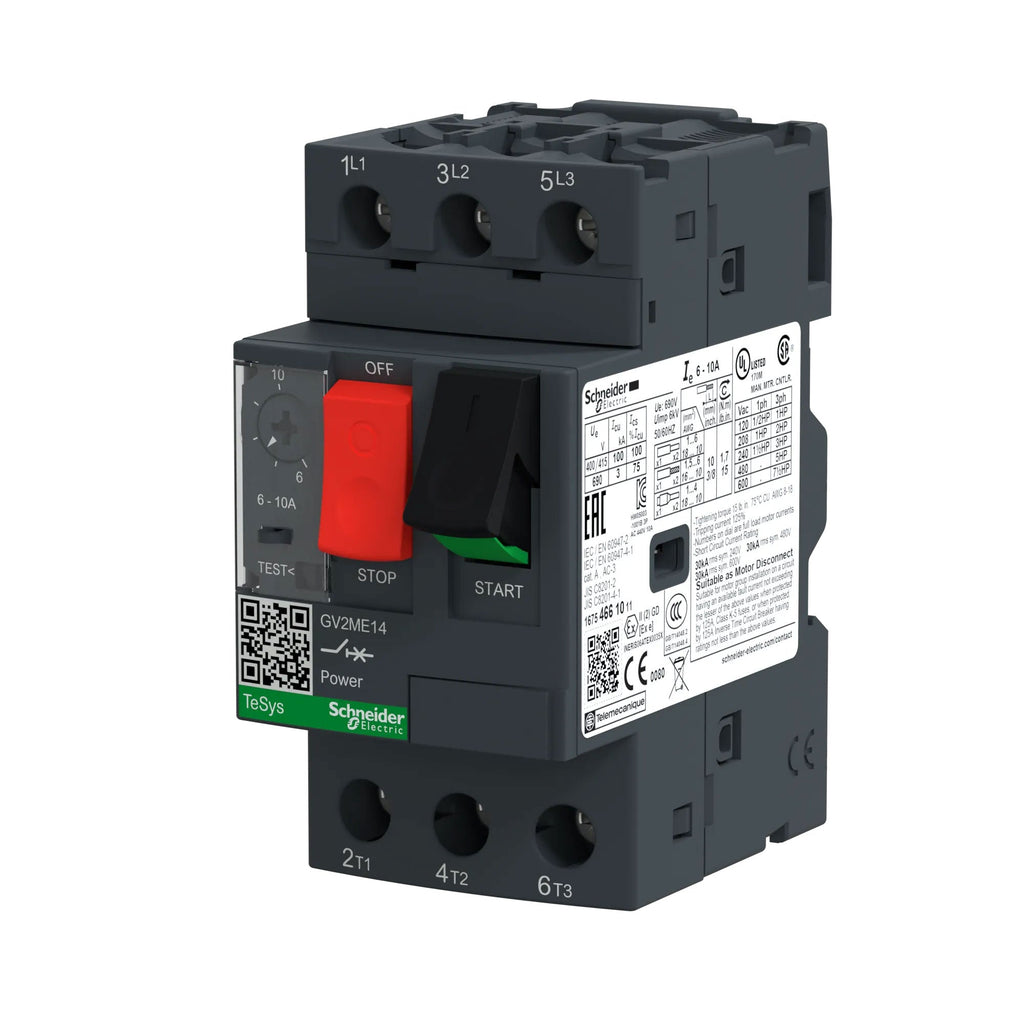

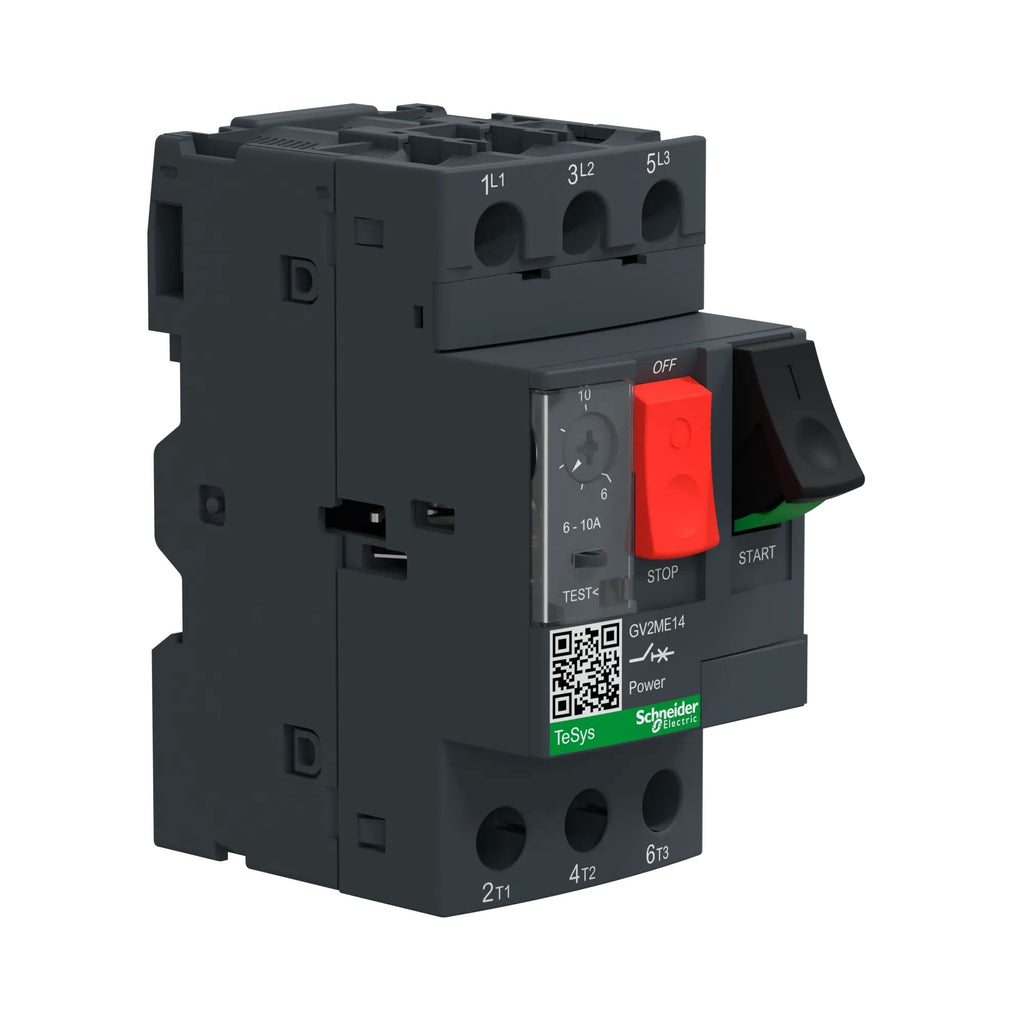

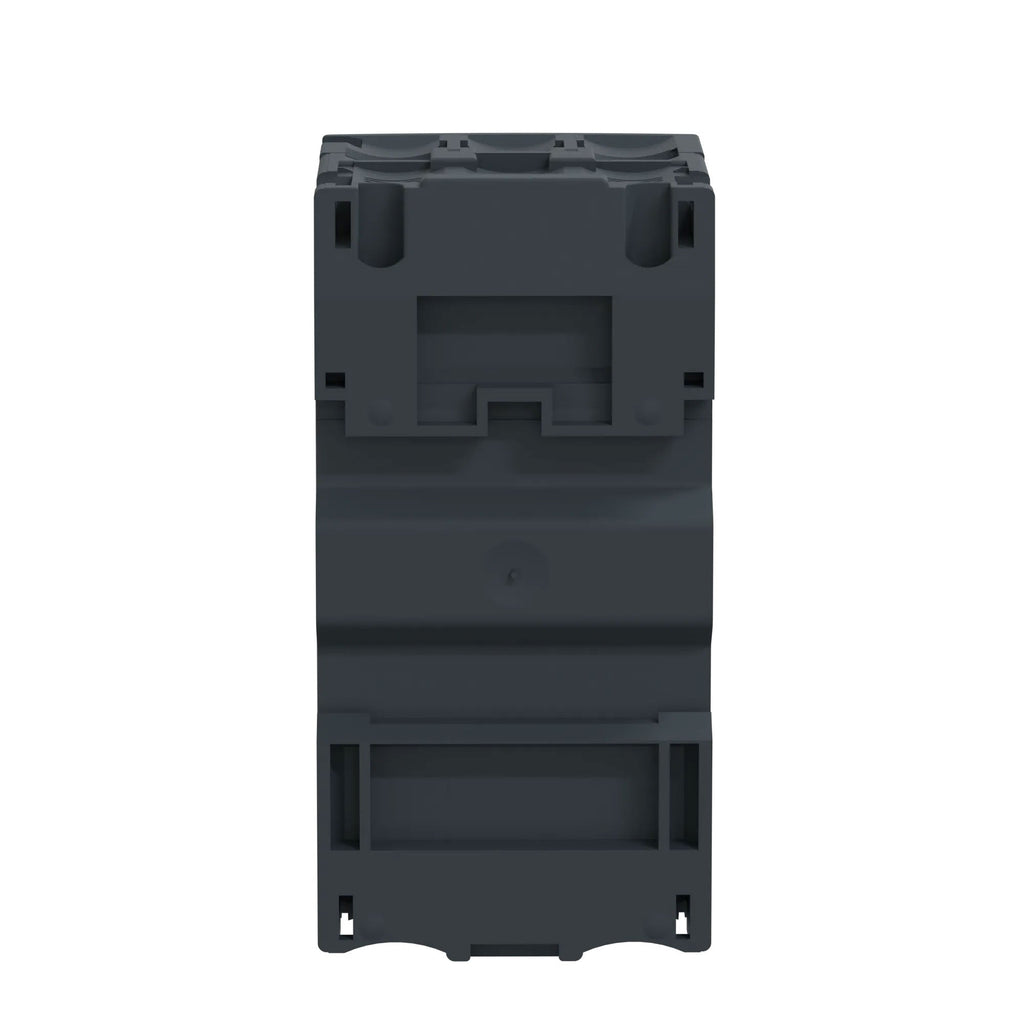

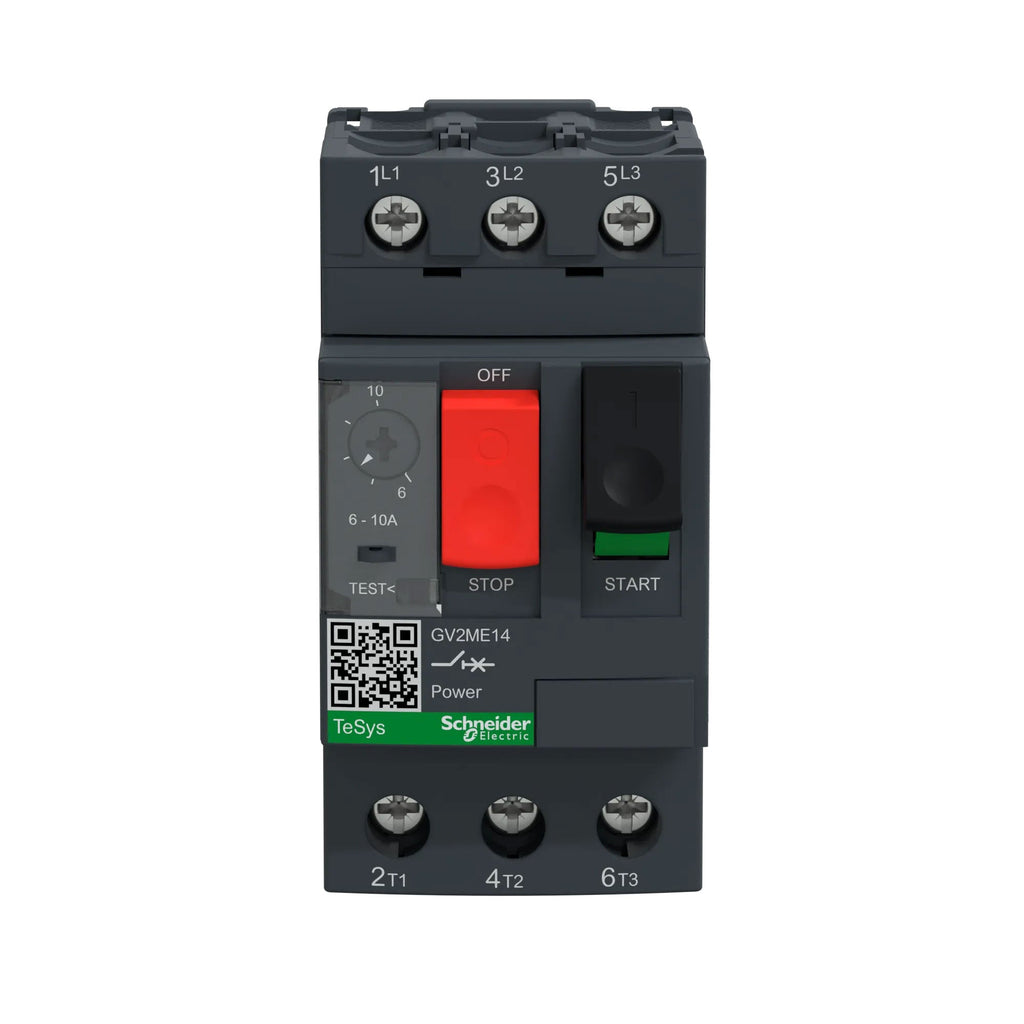

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Motor Starter
- Series
- TeSys GV2
- Frame
- GV2
- Rated current
- 10
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- NEMA rating
- 00
- Country of origin
- Thailand
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Horse Power
- HP @ 3 Phase - 208V 2 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
- UPC
- 785901211976
- GTIN
- 03389110343137
Show all specifications (3 more)
- Dimensions

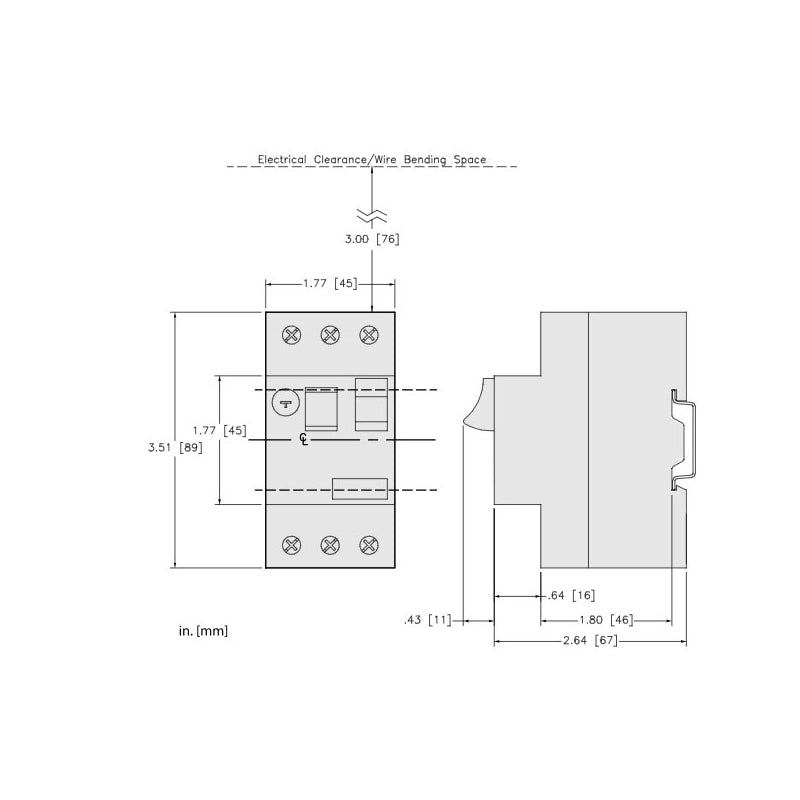

- 3.5 in (89 mm) x 1.8 in (45 mm) x 3.09 in (78.5 mm) (Height x Width x Depth)
- Weight
- 0.591
- Certification
- ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
Product description & additional details
GV2ME14
GV2ME14 is a 3-pole manual motor starter from Square D designed for motor control with thermal magnetic protection and adjustable trip from 6 to 10 amps.
This motor starter operates at 600 VAC with a 3 kA interrupt rating, suitable for motors up to 7.5 kW. It features a thermal magnetic trip unit adjustable between 6 and 10 amps, screw clamp terminals, pushbutton actuator, and threaded mounting. The unit complies with IEC, UL, CSA certifications and has an IP20/IK04 enclosure rating. It supports 3-phase motors and offers manual isolation and motor control in a compact design.
- Amperage Rating: 6 to 10 A adjustable
- Voltage Rating: 600 VAC (up to 690 VAC)
- Number of Poles: 3
- Interrupt Rating: 3 kA
- Trip Unit: Thermal Magnetic
- Mounting Type: Threaded
- Connection Type: Screw Clamp Terminals
- Enclosure Rating: IP20/IK04
- Frequency: 50/60 Hz
- Power Rating: 7.5 kW
- Certifications: IEC, UL, CSA
- Actuator Type: Pushbutton
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GV2ME14
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : TeSys GV2
- Type : GV2
- Voltage : 600
- Amperage : 10
- Phase : 3
- Poles : 3
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Horse Power : HP @ 3 Phase - 208V 2 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
- Nema Rating : 00
Product Data
- UPC : 785901211976
- GTIN : 03389110343137
- Country of Origin : Thailand
- Dimensions : 3.5 in (89 mm) x 1.8 in (45 mm) x 3.09 in (78.5 mm) (Height x Width x Depth)
- Weight : 0.591
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Certification : ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed
