Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Motor Starter
- Series
- Class 8536
- Frame
- SCG
- Rated current
- 27
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 110 – 120 VAC
- Configuration
- Nonreversing
- NEMA rating
- 1
- Auxiliary contacts
- No Auxiliary Contacts
- Country of origin
- Mexico
Show all specifications (9 more)
- Horse Power
- HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
- Coil Voltage Maximum
- 120 VAC
- Coil Voltage Minimum
- 110
- Nema Starter Size
- 1
- UPC
- 785901845119
- GTIN
- 00785901845119
- Dimensions
- 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
- Weight
- 4.019 lb
- Certification
- CSA, UL Listed
Product description & additional details

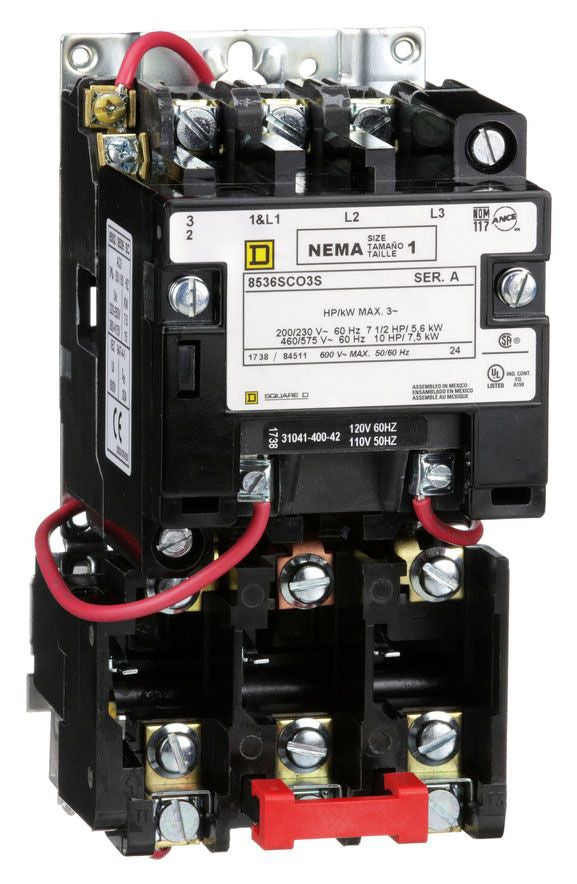

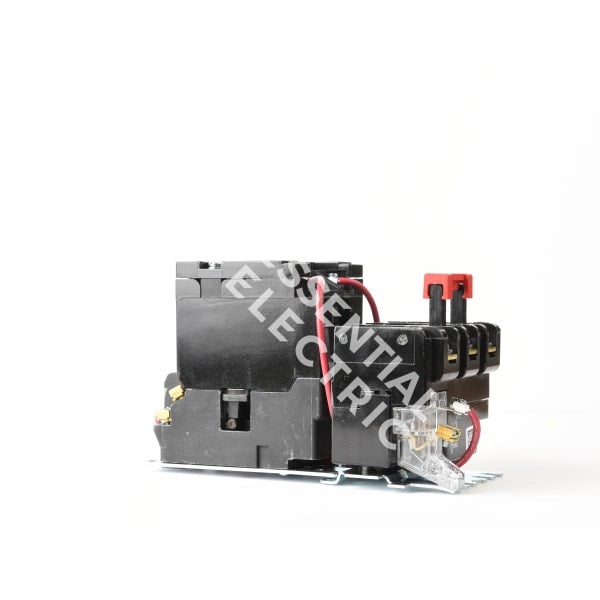

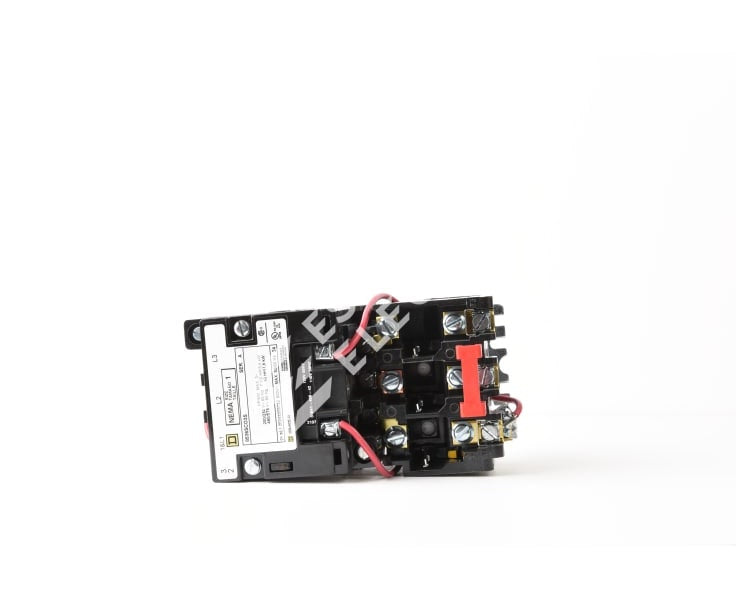

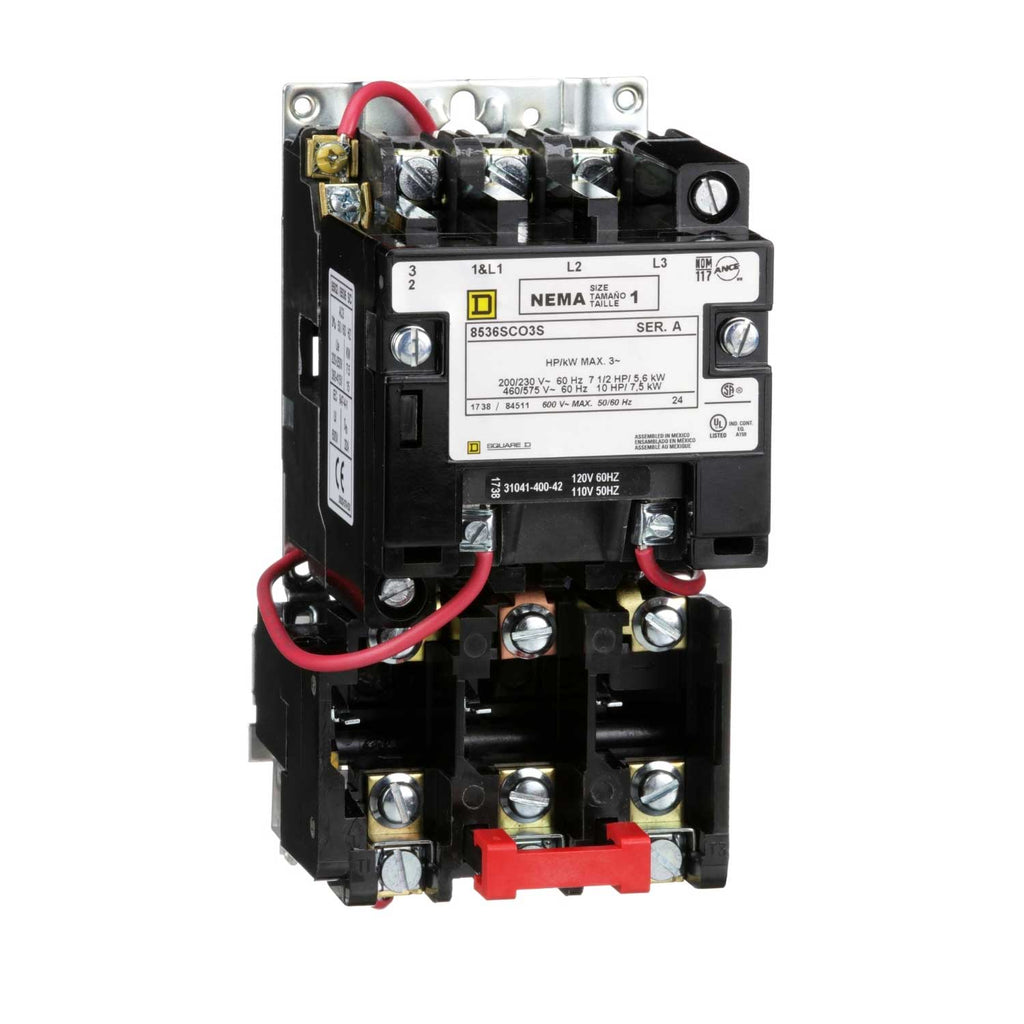

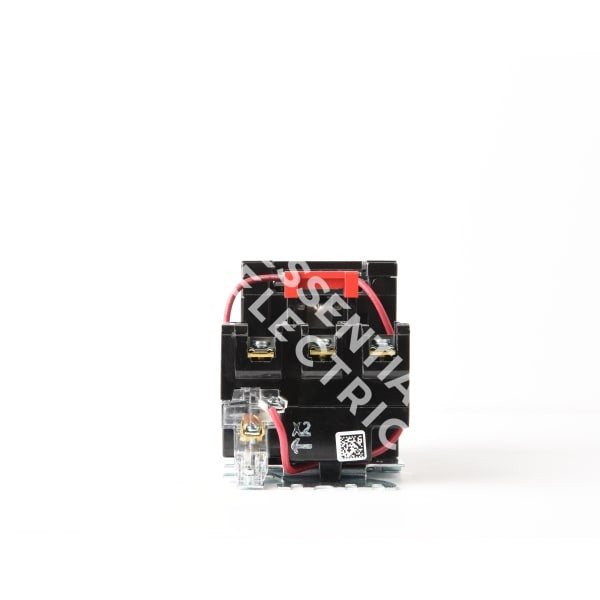

8536SCO3V02S
8536SCO3V02S is a Class 8536 NEMA Motor Starter by Schneider Electric (Square D), designed for reliable control and lighting applications. This catalog number uses Square D suffix conventions for coil voltage, enclosure features, and lighting contactor style. See the decoded suffix summary below.
- Family: Class 8536 NEMA Motor Starter
- Application: Industrial control, motor starting, or lighting loads
- Mounting: Panel/enclosure as configured
- Manufacturer: Schneider Electric (Square D)
- V02: 120 V 60 Hz coil
- S: Factory assembled/enclosed unit (per catalog build)
Specifications
- Part Number: 8536SCO3V02S
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 8536
- Type : SCG
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
- Configuration : Nonreversing
- Aux Contacts : No Auxiliary Contacts
- Coil Voltage Maximum : 120 VAC
- Coil Voltage Minimum : 110
- Nema Rating : 1
- Nema Starter Size : 1
Product Data
- UPC : 785901845119
- GTIN : 00785901845119
- Country of Origin : Mexico
- Dimensions : 6.81 in (172.96 mm) x 3.50 in (88.90 mm) x 4.22 in (107.19 mm) (Height x Width x Depth)
- Weight : 4.019 lb
- Certification : CSA, UL Listed
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
