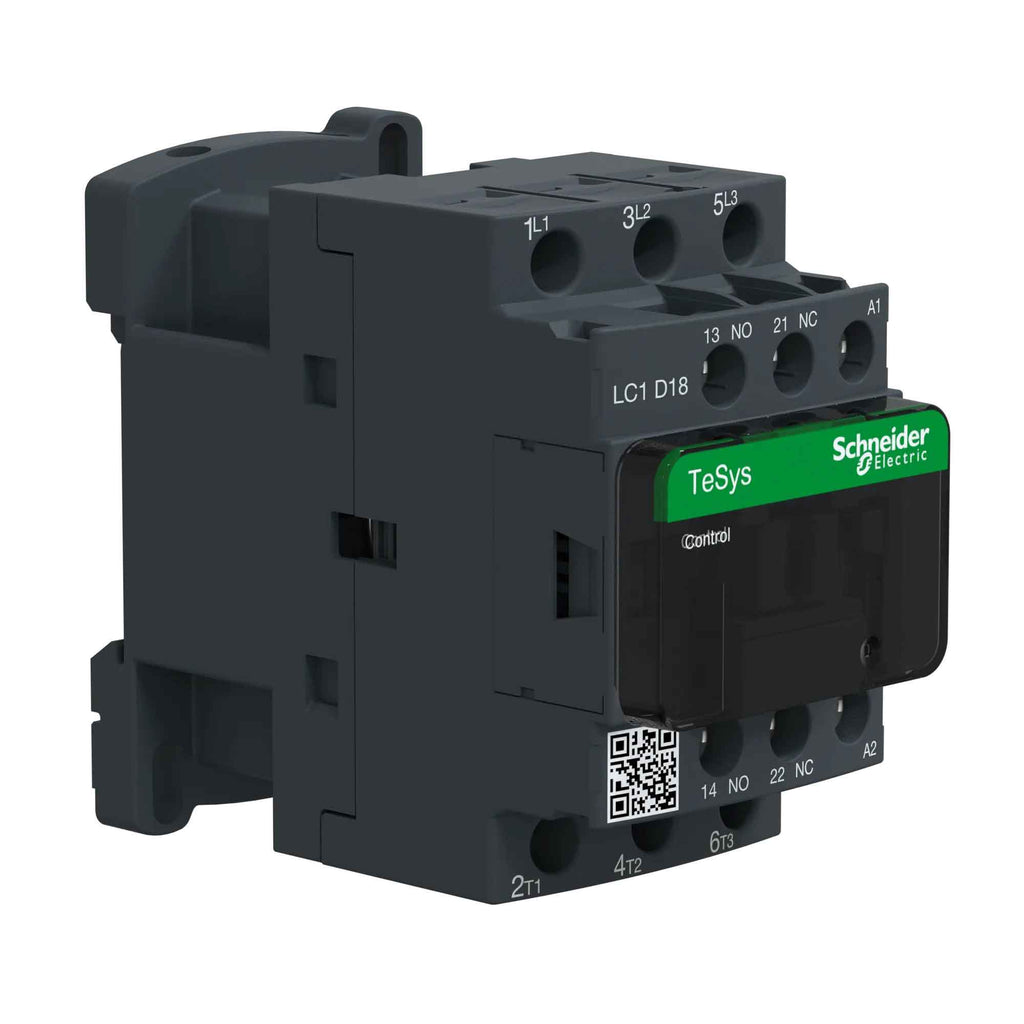

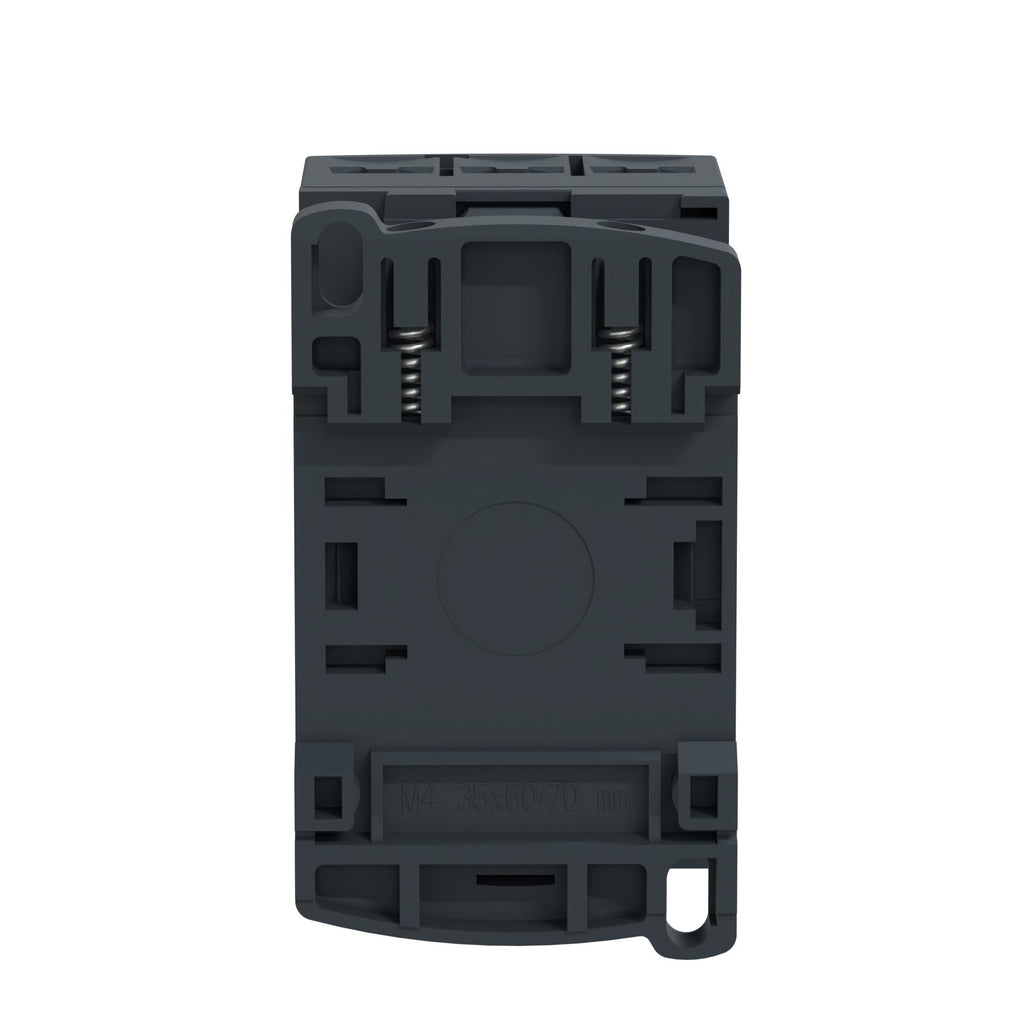

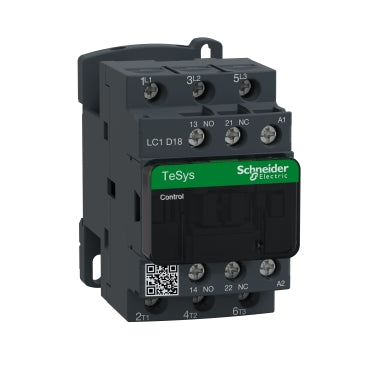

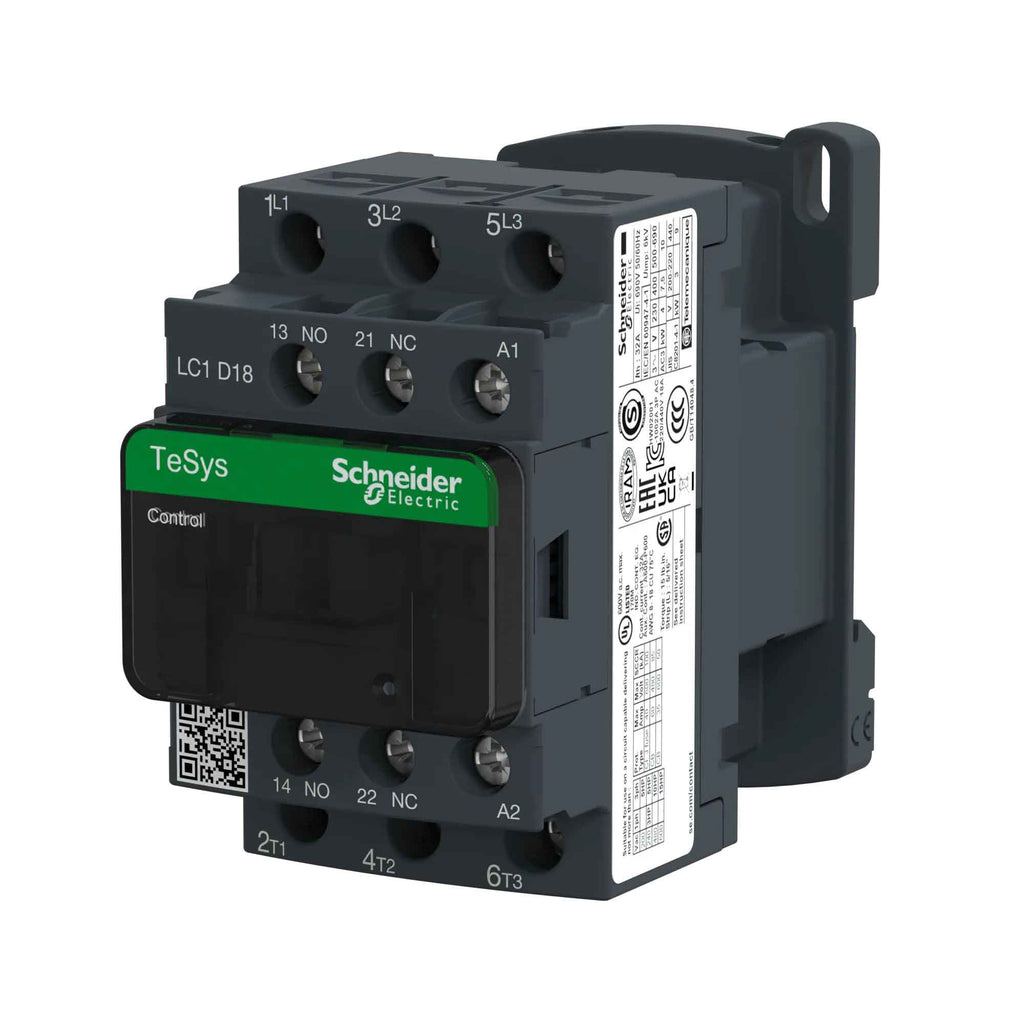

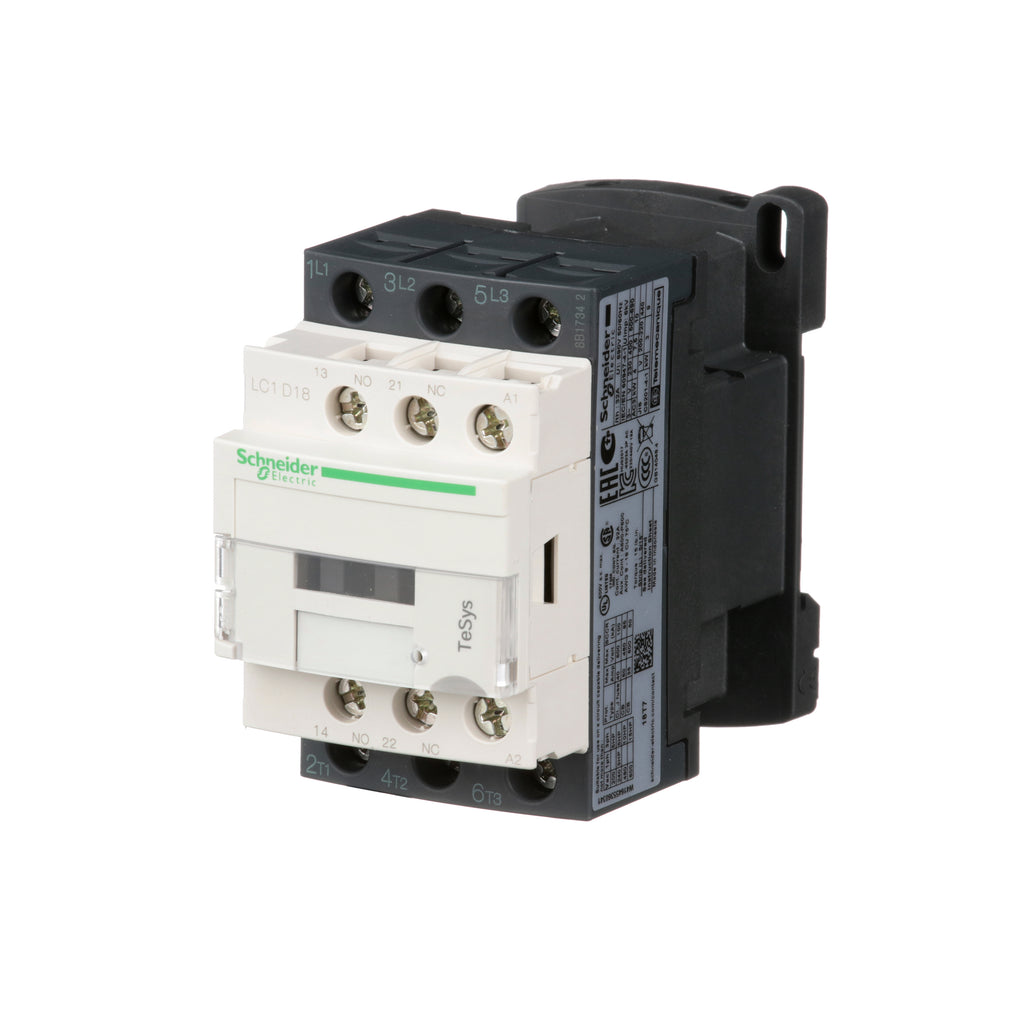

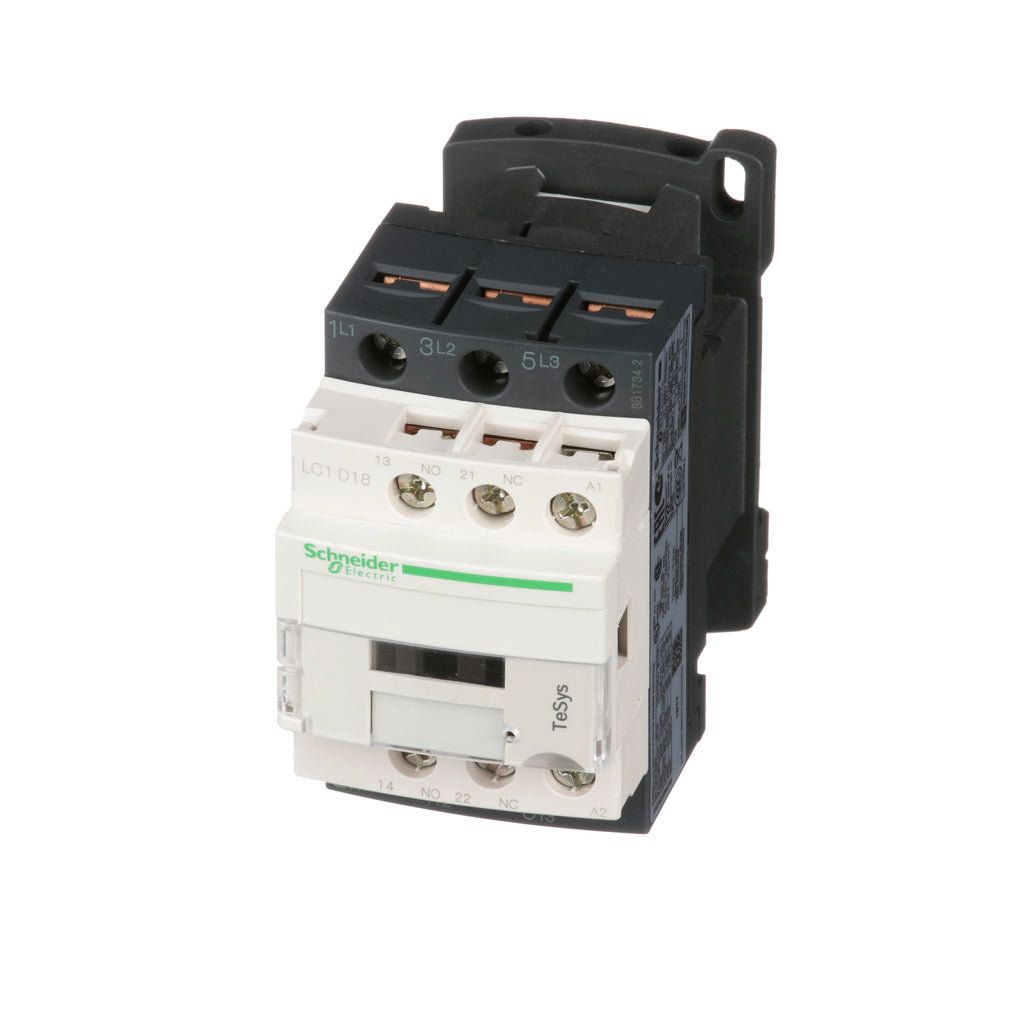

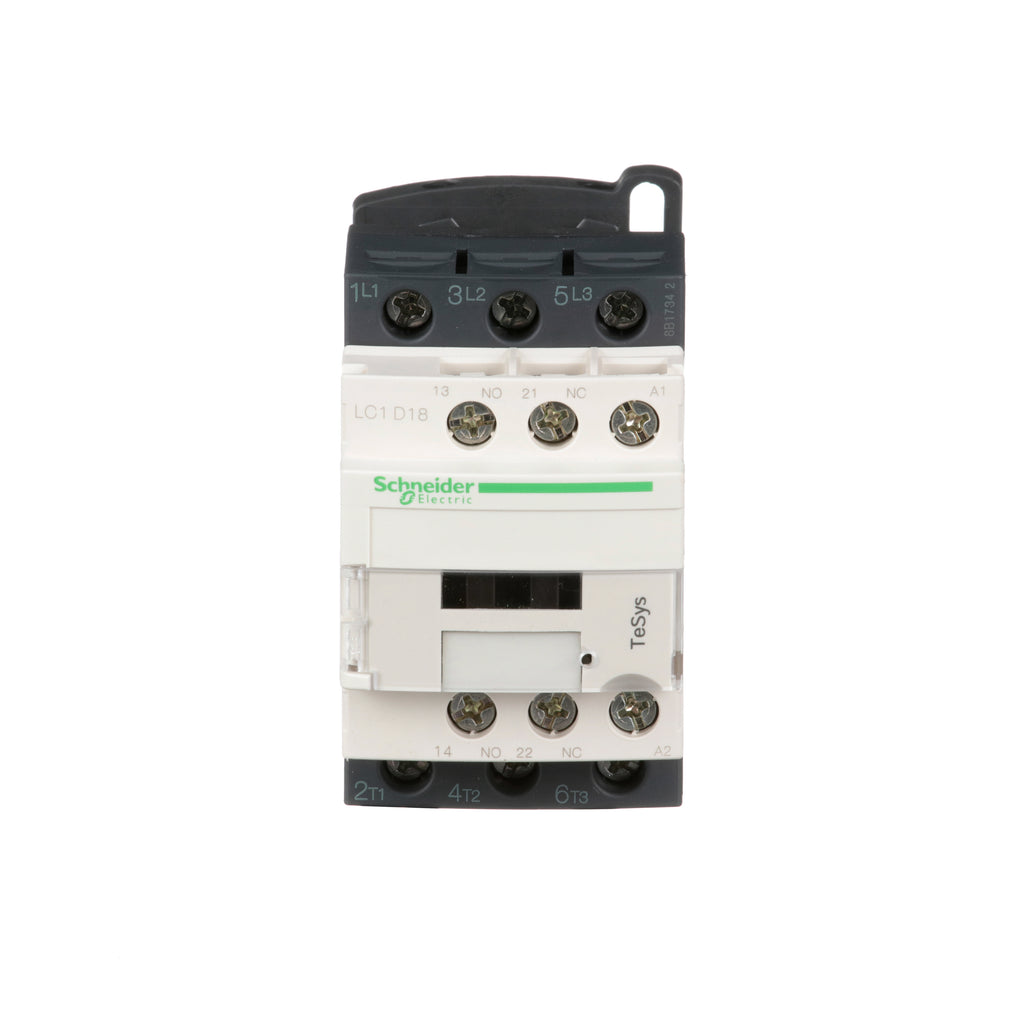

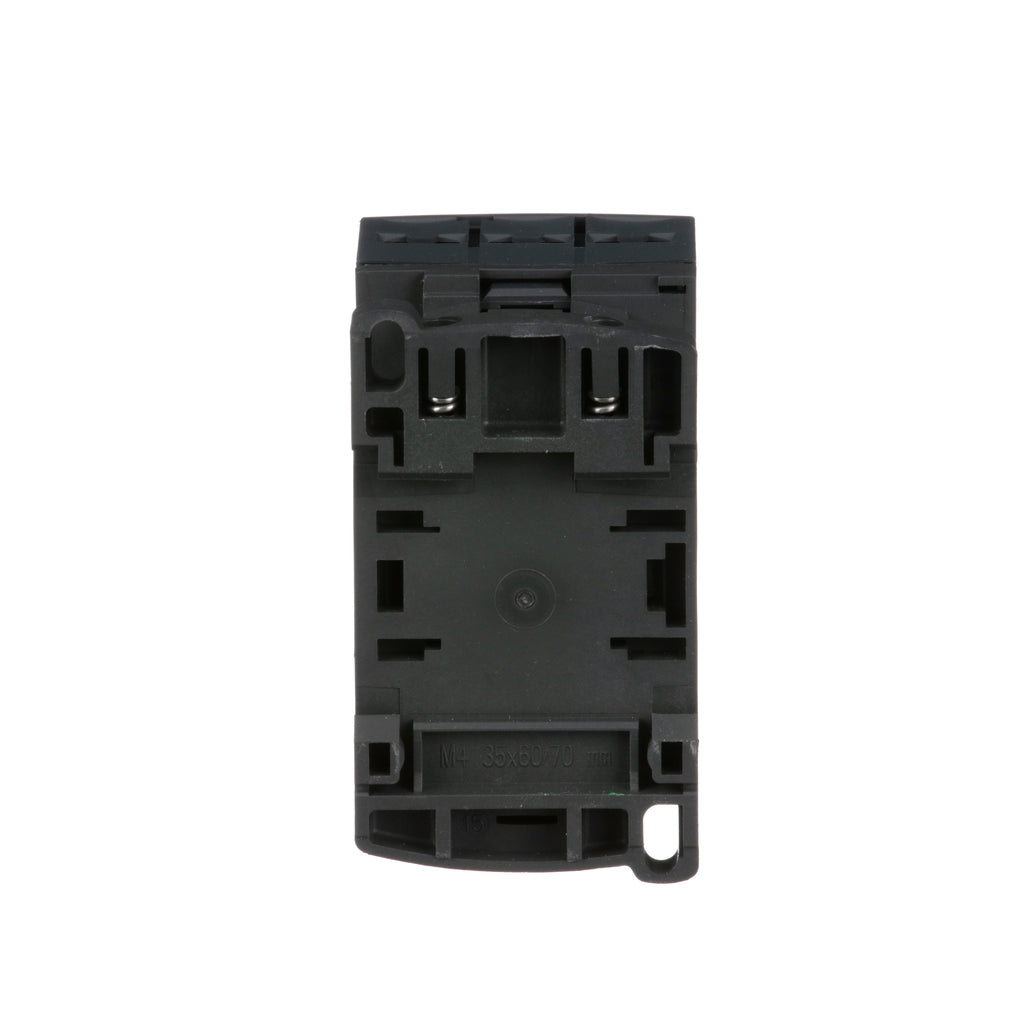

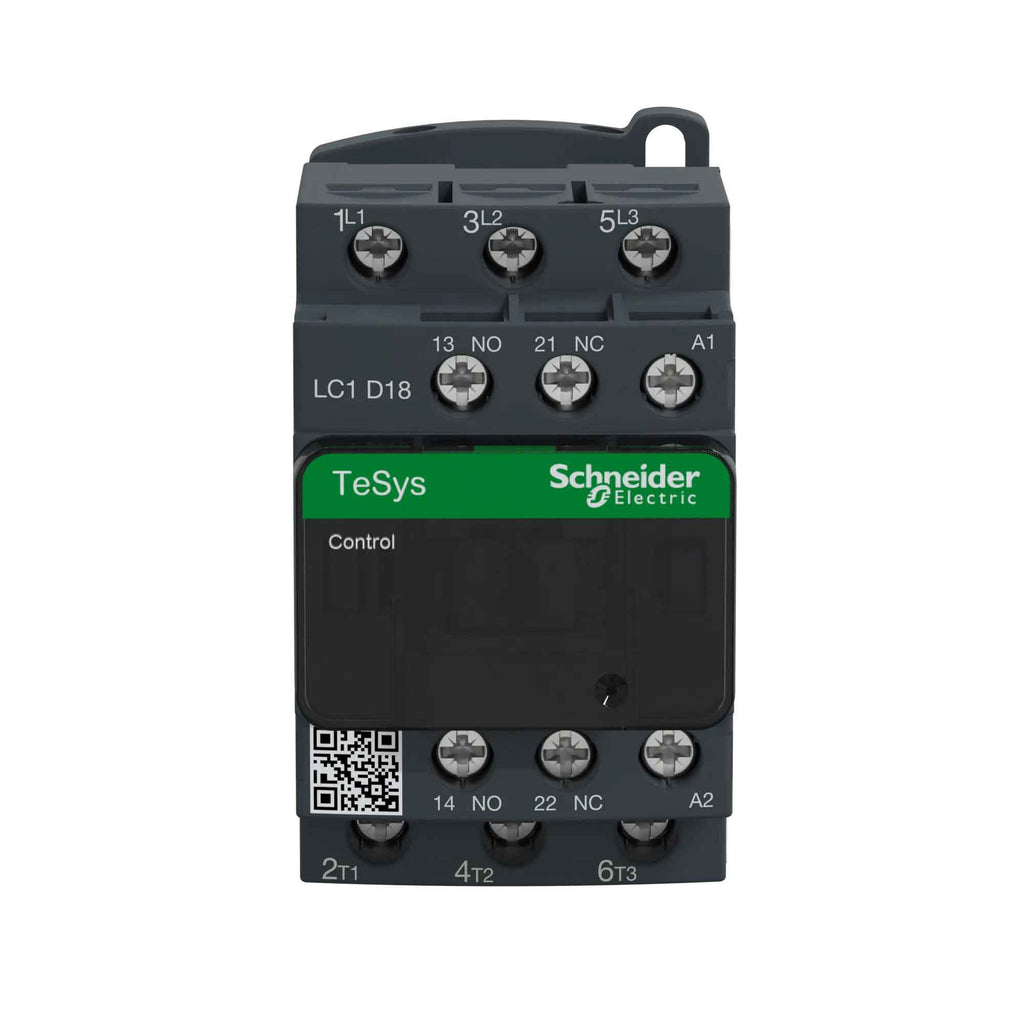

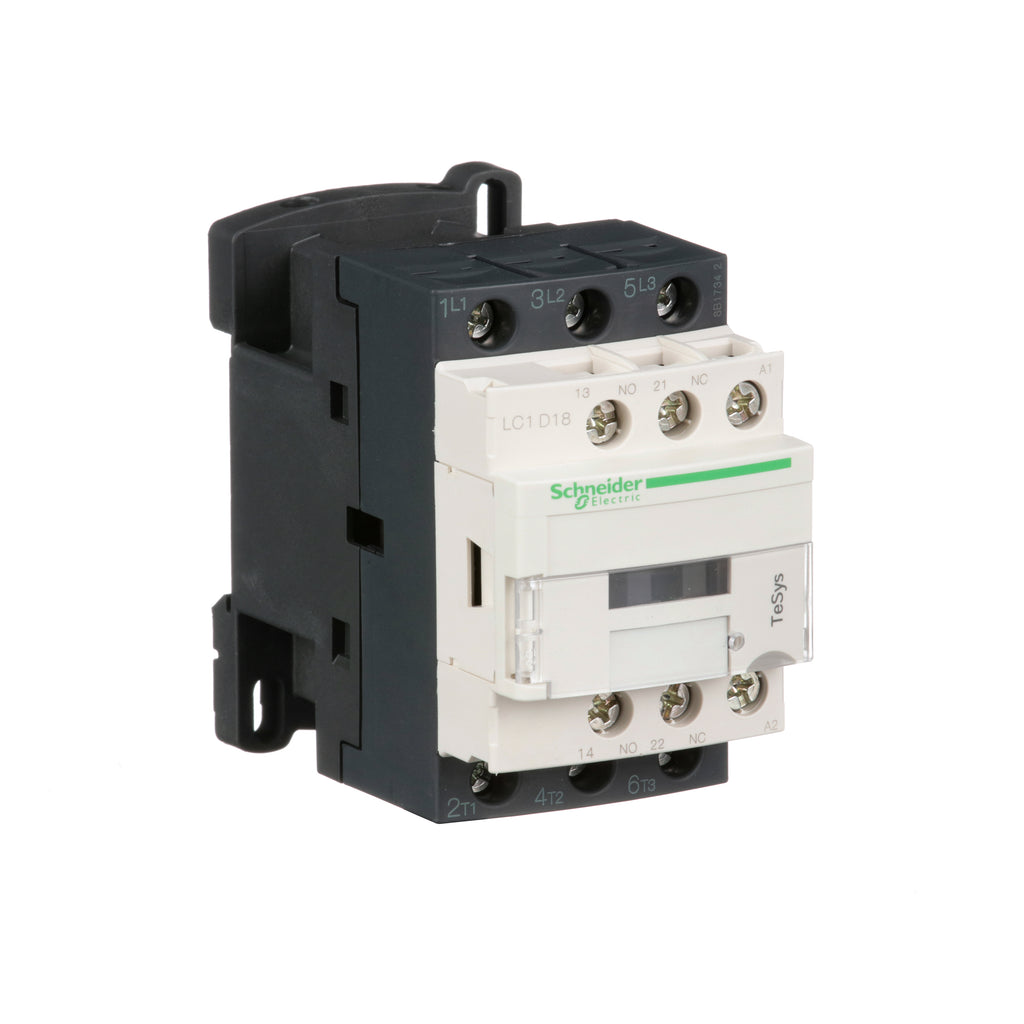

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Contactor
- Series
- TeSys D
- Frame
- LC1D
- Rated current
- 18
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 480 V
- Auxiliary contacts
- 3 NO
- Country of origin
- Indonesia
- Horse Power
- 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Coil Voltage Maximum
- 480
- Full Load Amps
- Full Load Amps-Inductive 18A Full Load Amps-Resistive 32A
Show all specifications (7 more)
- Coil Voltage Minimum
- 480
- Frequency
- 50/60 Hz
- UPC
- 785901207092
- GTIN
- 03389110349467
- Dimensions
- 1.77 in x 3.03 in
- Weight
- 0.794
- Certification
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Product description & additional details
LC1D18T7
LC1D18T7 is a Square D TeSys D series 3-pole motor control contactor with an 18 amp rating and 480V AC coil voltage.This non-reversing IEC contactor features 3 normally open (3 NO) poles, supports motor loads up to 10 HP at 480VAC, and is suitable for AC-3 utilization category. It includes screw clamp terminals for secure wiring and is designed for DIN rail or screw mounting. Rated operational current is 18A at 440V AC (AC-3) and 32A at 440V AC (AC-1). The compact design measures 45mm wide and supports voltages up to 690V AC.
- Key Specifications
- Manufacturer: Square D
- Series: TeSys D
- Part Number: LC1D18T7
- Amperage: 18 A (AC-3)
- Voltage: 480 V AC coil, up to 690 V AC power circuit
- Poles: 3 (3 NO)
- Mounting Type: DIN rail or screw fixing
- Motor Power: 10 HP at 480 V AC
- Utilization Category: AC-3, AC-1, AC-4
- Terminal Type: Screw clamp terminals
- Frame Type: LC1D
- Non-Reversing Contactor
- Part Number: LC1D18T7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 18
- Phase : 3
- Poles : 3
- Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 480
- Full Load Amps : Full Load Amps-Inductive 18A Full Load Amps-Resistive 32A
- Coil Voltage Minimum : 480
- Frequency : 50/60 Hz
- UPC : 785901207092
- GTIN : 03389110349467
- Country of Origin : Indonesia
- Dimensions : 1.77 in x 3.03 in
- Weight : 0.794
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Additional Information
This TeSys D IEC Contactor includes a 480 VAC coil.
Specifications
Product Data
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
