QOB3201021 - Square D 20 Amp 3 Pole Mini Bolt-On Circuit Breaker 120/240VAC 10kA Shunt Trip

QOB3201021

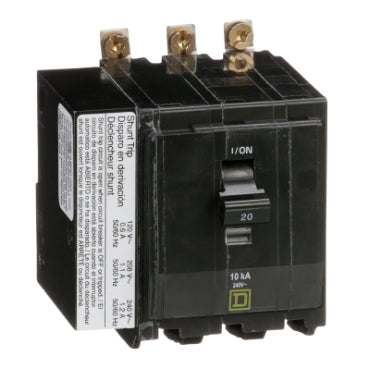

QOB3201021 is a Square D 3 Pole Mini Bolt-On Circuit Breaker with a 20 Amp rating and 120/240VAC voltage capacity, featuring a 10kA interrupt rating and AC shunt trip.This thermal magnetic molded case circuit breaker is designed for three-phase applications, providing reliable overcurrent protection with a bolt-on mounting type. It supports 14-8 AWG copper and aluminum wiring and meets industry certifications for safety and performance.

Key Specifications
• Amperage: 20 Amps
• Voltage: 120/240 VAC, 48 VDC
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120/240 VAC
• Trip Unit: Thermal Magnetic with AC Shunt Trip
• Wire Range: 14-8 AWG Copper/Aluminum
• Series/Frame: QO
• Certifications: Industry Standard Safety Certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB3201021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901875925
• GTIN : 00785901875925
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.16
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper or Aluminum
