QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit

Save $290.85
SKU: QOB290VH-New
Condition: New
Price:
$123.87 $414.72
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

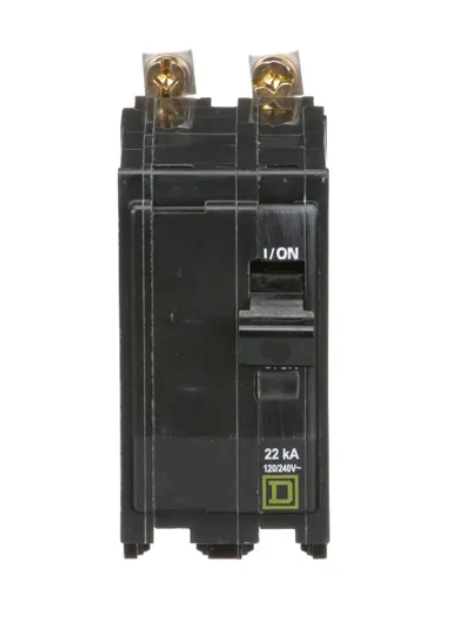

QOB290VH - Square D Bolt-On 90 Amp 2 Pole Circuit Breaker - Essential Electric Supply

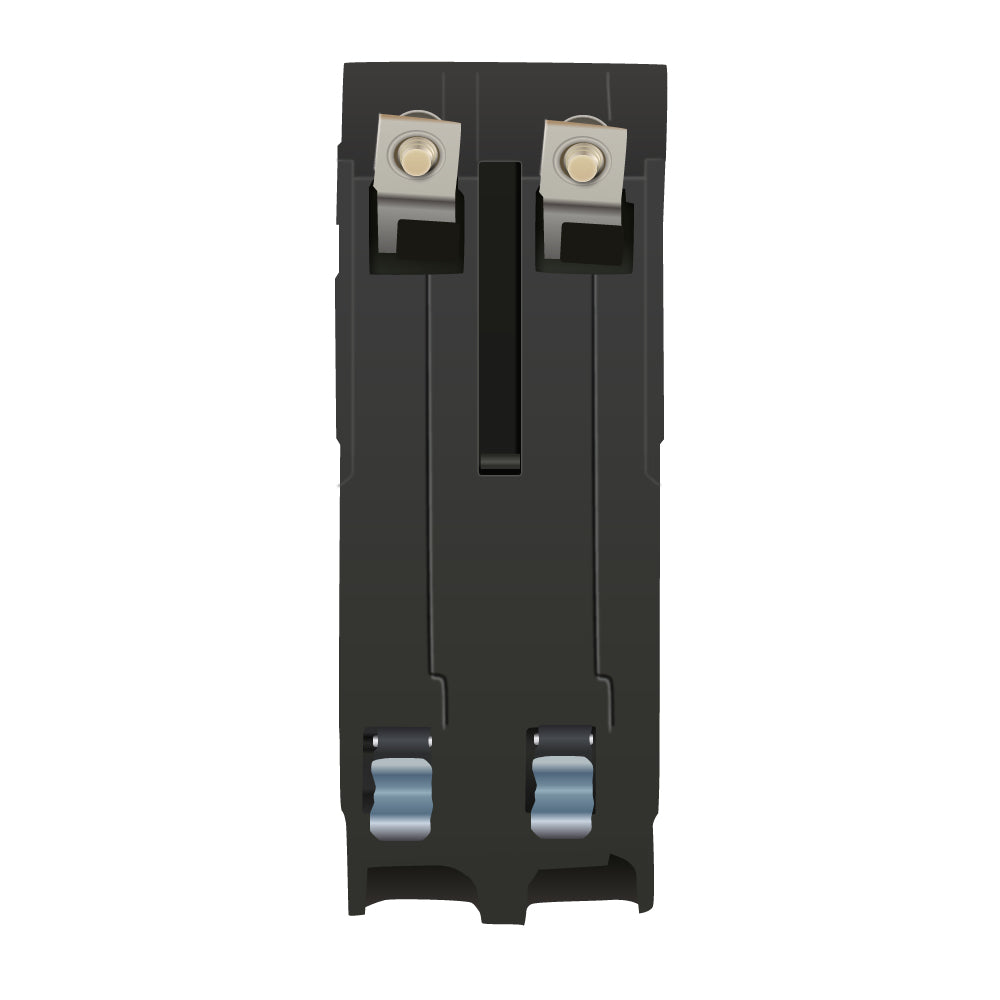

QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit - Essential Electric Supply

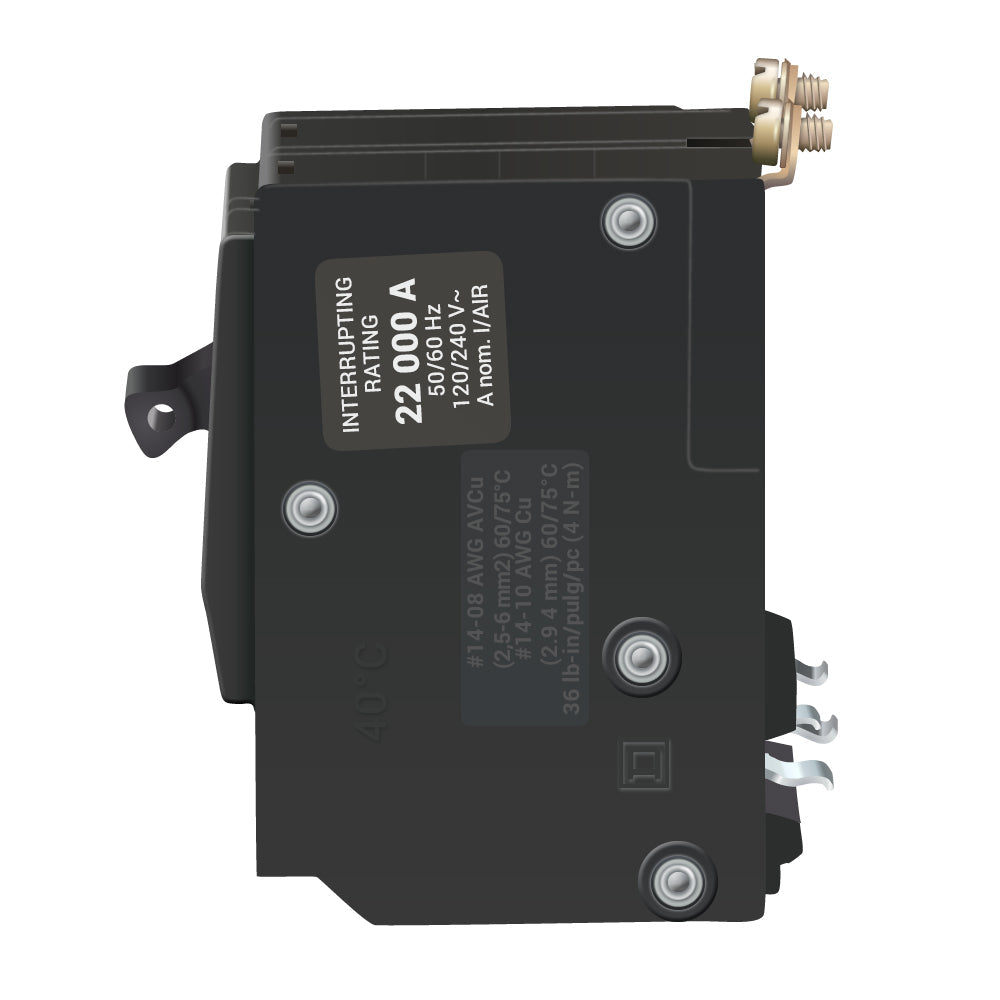

QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit - Essential Electric Supply

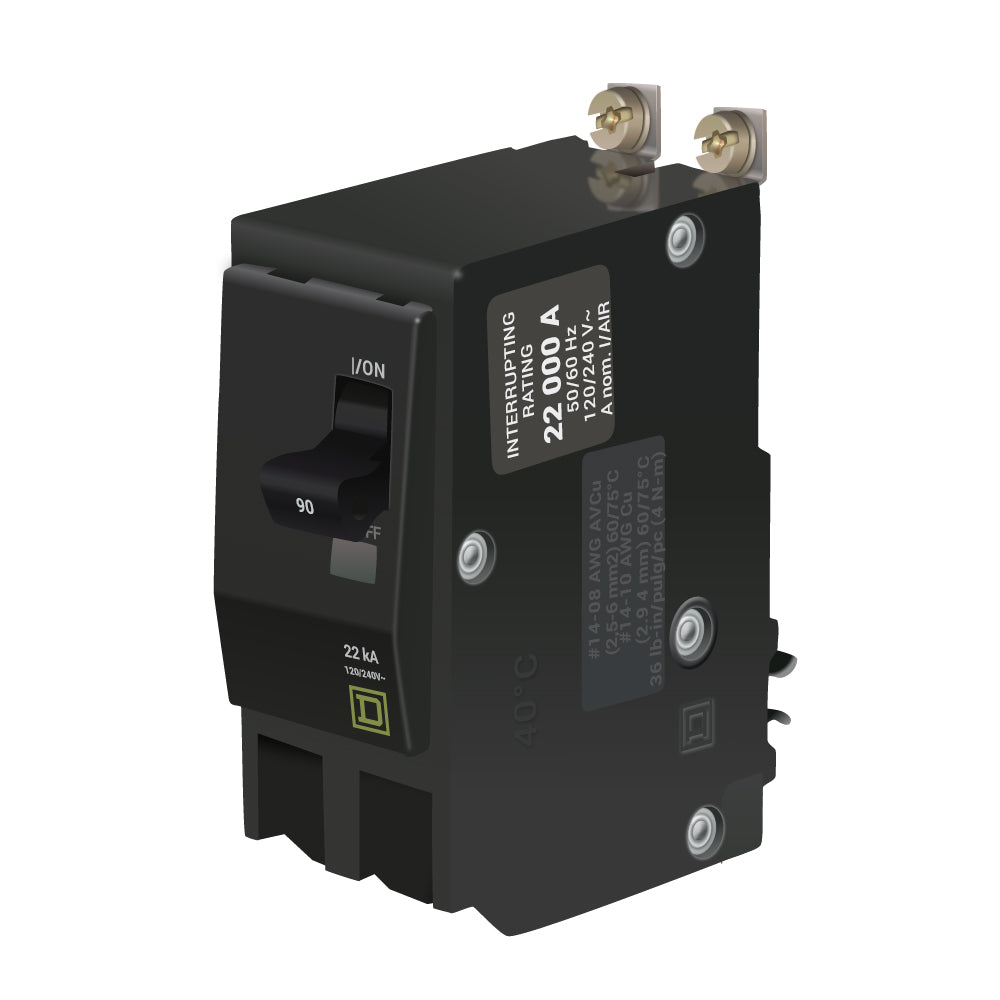

QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit - Essential Electric Supply

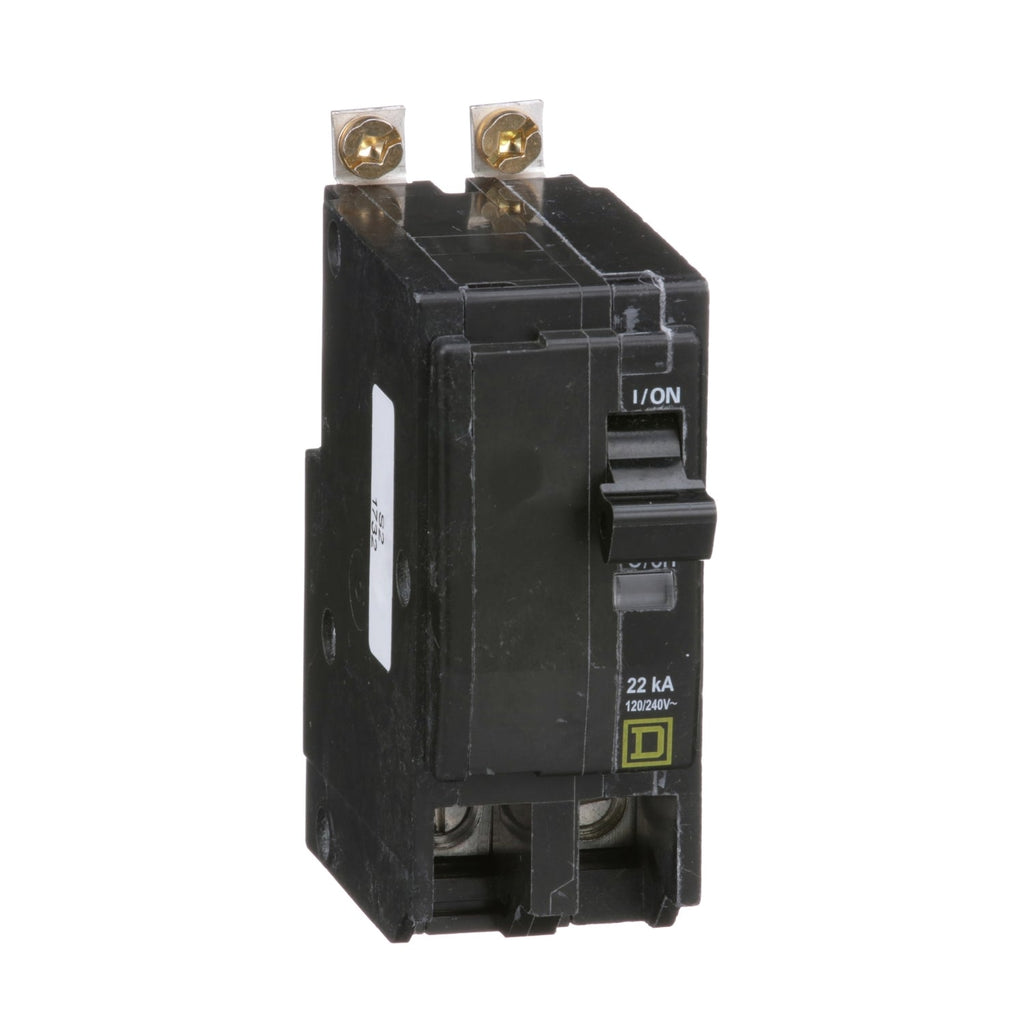

QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit - Essential Electric Supply

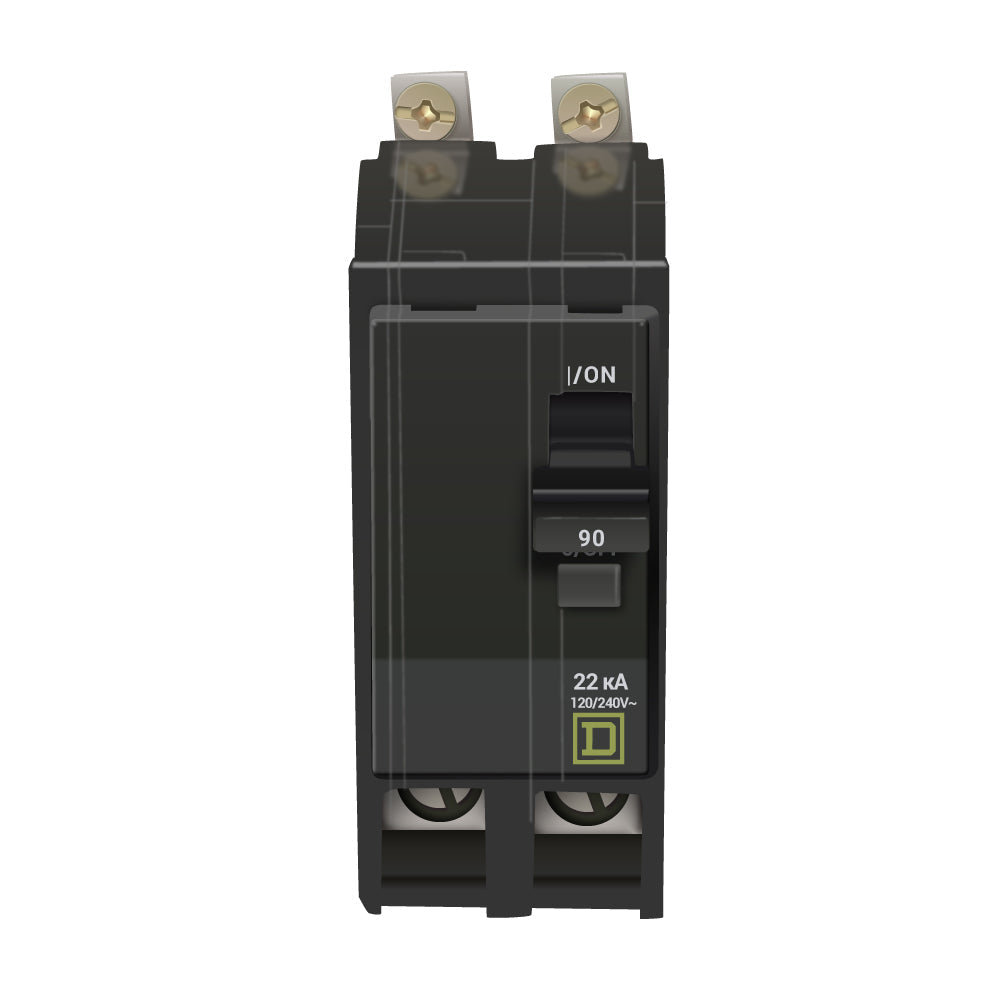

QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB290VH - Square D Bolt-On 90 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit - Essential Electric Supply
QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit - Essential Electric Supply
QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit - Essential Electric Supply
QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit - Essential Electric Supply
QOB290VH - Square D 90 Amp 2 Pole 120/240VAC 22kAIC Bolt-On Miniature Circuit Breaker, QOB Series, Thermal Magnetic Trip Unit - Essential Electric Supply

Description

QOB290VH


QOB290VH is a Square D 2-pole, 90 Amp miniature circuit breaker designed for reliable protection in residential and commercial electrical systems.

This thermal magnetic circuit breaker features a bolt-on mounting style, high interrupting capacity, and is calibrated for use at 40¡C. It is suitable for 1-phase applications and accepts box lugs for #4 to #2/0 AWG (Al/Cu) conductors. The QOB290VH is part of the trusted Square D QOB series, known for durability and performance in power distribution equipment.

    Key Specifications
  • Part Number: QOB290VH
  • Manufacturer: Square D
  • Amperage: 90A
  • Voltage: 120/240VAC, 240VAC
  • Poles: 2
  • Mounting Type: Bolt-On
  • Interrupt Rating: 22kAIC at 120/240VAC
  • Series/Frame: QOB
  • Trip Unit: Thermal Magnetic (long time and instantaneous)
  • Frequency Rating: 50/60 Hz
  • Conductor Range: #4 to #2/0 AWG (Al/Cu)
  • Material: Fiberglass filled thermoset
  • Certifications: UL Listed

At Essential Parts, we offer fast (more...)

Specifications

  • Part Number: QOB290VH
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 90
  • Phase : 1
  • Poles : 2
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
  • Breaker Type : High Interrupting Capacity
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901120674
  • GTIN : 00785901120674
  • Country of Origin : Mexico
  • Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.728
  • Panel Type : Square D NQOD Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 4 to AWG 2/0, Copper/Aluminum
