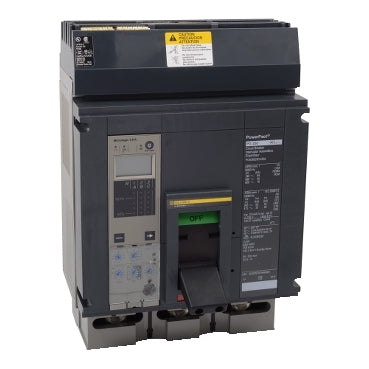

PGA36100SA - Square D PowerPact 1000A 600V 3-Pole I-Line Circuit Breaker

PGA36100SA

PGA36100SA is a 3-pole, 600-volt, 1000-amp molded case circuit breaker designed for industrial power distribution and control panel applications. This PowerPact P series breaker features I-Line style plug-in connection with solid state electronic trip protection, providing reliable short circuit and overload protection in demanding environments. The unit incorporates long-time and instantaneous (LI) trip functions with an ET 1.0L trip unit for precise coordination and selectivity.

• Poles: 3
• Amperage: 1000A
• Voltage: 600VAC
• Connection Type: I-Line Style Plug-In
• Interrupt Rating: 35kA @ 480V
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Unit: ET 1.0L Solid State Electronic
• Series: PowerPact P
• Certifications: UL 489 Listed, CSA NMX, IEC Certified
• Dimensions: 8.27 in W x 8.05 in D x 16.16 in H
• Weight: 32 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PGA36100SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGA
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• Country of Origin : United States
• Weight : 32
