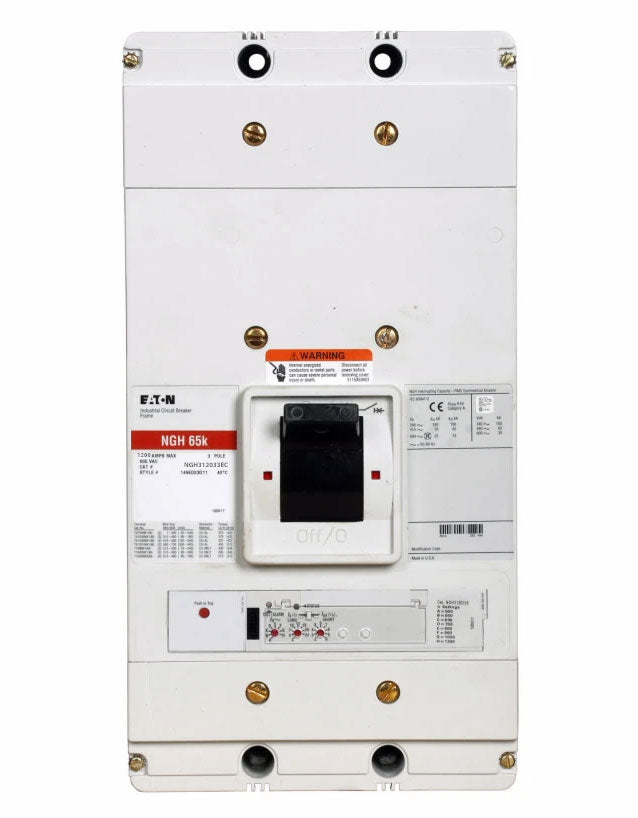

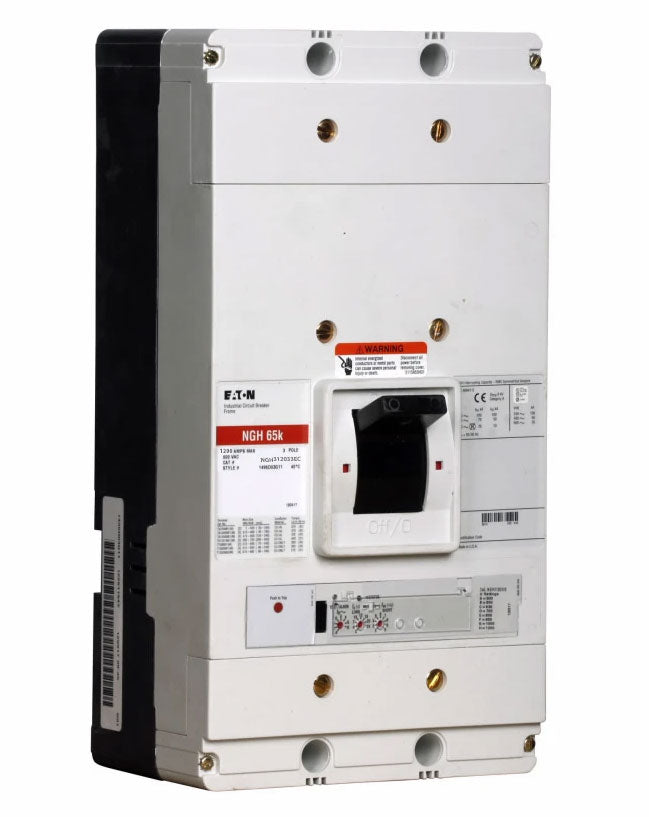

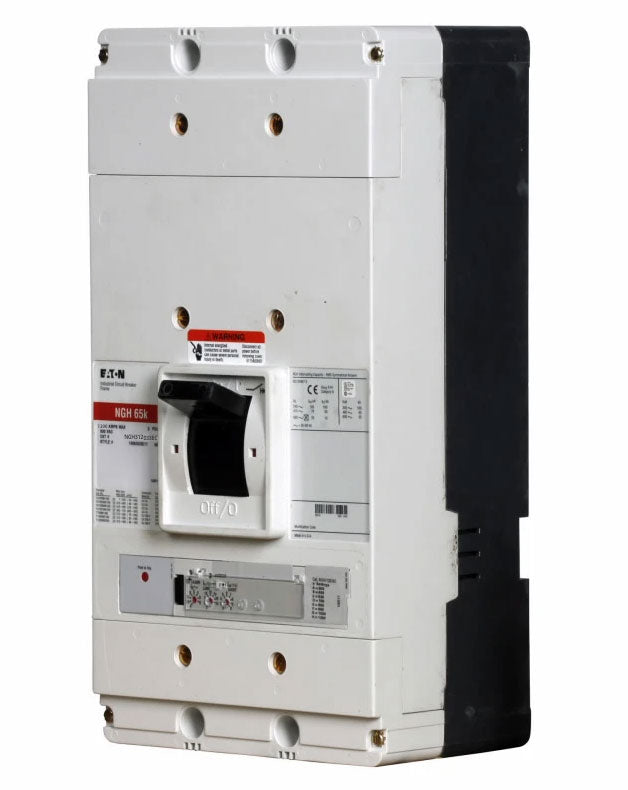

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Molded Case
- Series
- Series G
- Frame
- NGH
- Rated current
- 1200
- Voltage
- 480 Vac
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 65 kA at 480 Vac; 100 kA at 240 Vac
- Trip functions
- LS (Long-Time and Short-Time)
- Protection
- Solid state electronic
- Connection
- Bolt-On
- Frequency
- 50/60 Hz
- Country of origin
- United States
Show all specifications (9 more)
- Frame Size
- NG-frame
- Breaker Type
- Electronic molded case circuit breaker
- Hz
- 50-60 Hz
- Trip Type
- Digitrip 310 RMS electronic LS (T167)
- UPC
- 786685574356
- GTIN
- 00786685574356
- Dimensions
- 6 in x 9 in x 9 in (Length/Depth x Height x Width)
- Weight
- 48 lb
- Certification
- UL Listed,CSA Certified,HACR Rated
Product description & additional details
NGH312033EC
NGH312033EC is a Cutler Hammer Series G molded case circuit breaker designed for high-capacity protection in power distribution systems.This electronic NG-frame breaker features a Digitrip 310 RMS LS trip unit, providing long-time and short-time protection at 1200 A and up to 480 Vac with high interrupting capability.Key Specifications
- Part Number: NGH312033EC
- Manufacturer: Cutler Hammer
- Family: Series G
- Type: NGH
- Voltage: 480 Vac
- Amperage: 1200 A
- Phase: 3
- Poles: 3
- AIC Rating: 65 kA at 480 Vac; 100 kA at 240 Vac
- Connection: Bolt-On
- Functions: LS (Long-Time and Short-Time)
- Frame Size: NG-frame
- Breaker Type: Electronic molded case circuit breaker
- Protection: Solid state electronic
- Hz: 50-60 Hz
- Trip Type: Digitrip 310 RMS electronic LS (T167)
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: NGH312033EC
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : NGH
- Voltage : 480 Vac
- Amperage : 1200 A
- Phase : 3
- Poles : 3
- AIC rating : 65 kA at 480 Vac; 100 kA at 240 Vac
- Connection : Bolt-On
- Functions : LS (Long-Time and Short-Time)
- Frame Size : NG-frame
- Breaker Type : Electronic molded case circuit breaker
- Hz : 50-60 Hz
- Protection : Solid state electronic
- Trip Type : Digitrip 310 RMS electronic LS (T167)
Product Data
- UPC : 786685574356
- GTIN : 00786685574356
- Country of Origin : United States
- Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
- Weight : 48 lb
- Certification : UL Listed,CSA Certified,HACR Rated
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
