Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Lug Terminal Kit
- Series
- BR Series
- Rated current
- 150
- Voltage
- 240V
- Poles
- 2
- Phases
- 1
- Country of origin
- Dominican Republic
- Section
- Terminal Blocks
- UPC
- 786676001779
- GTIN
- 00786676001779
- Dimensions
- 4 in x 2.25 in x 3.5 in (Length/Depth x Height x Width)
- Weight
- 0.51 lb
Show all specifications (2 more)
- Certification
- UL Listed
- Wire Size
- AWG 8 to AWG 2/0, Cu/Al
Product description & additional details
BRSF150

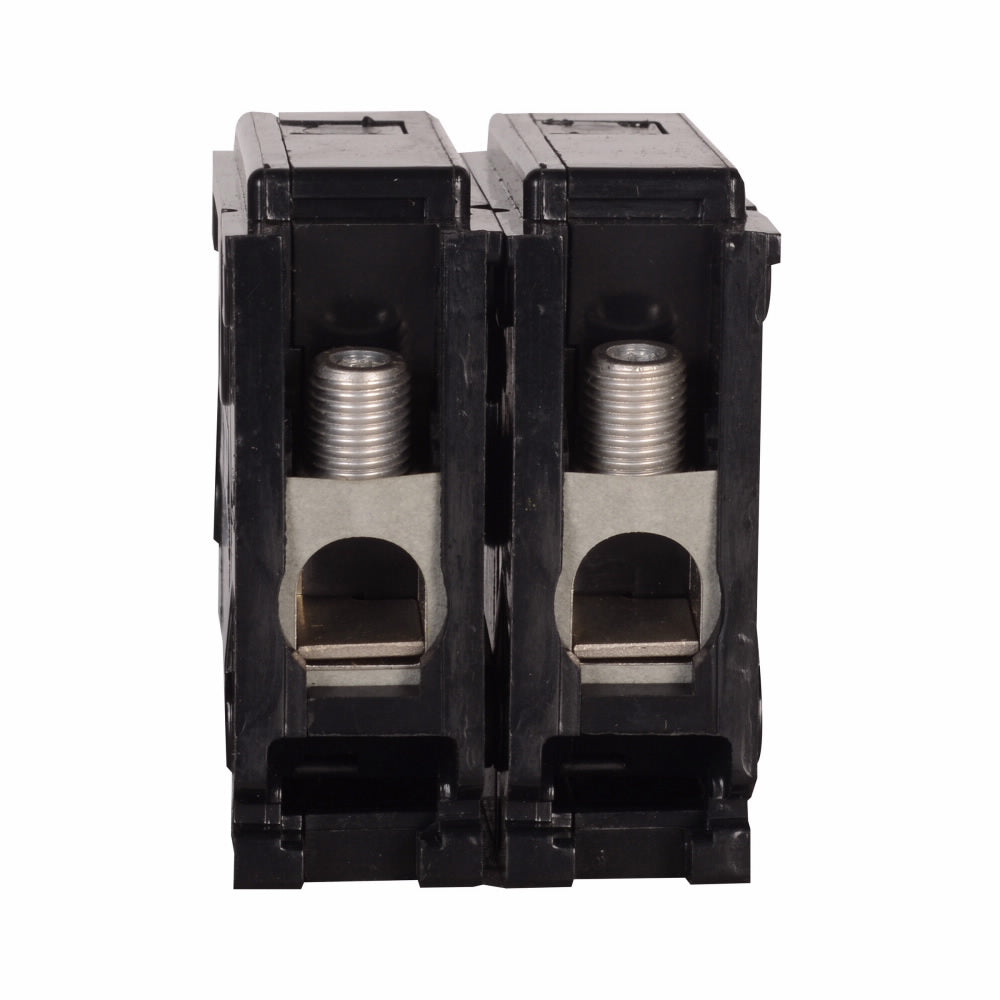

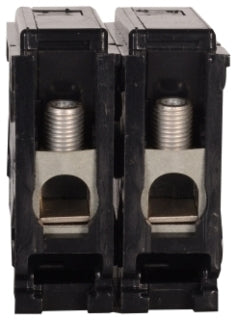

BRSF150 - Eaton Cutler Hammer 150A 2-Pole Sub-Feed Lug Kit for Type BR Loadcenters
The BRSF150 is an Eaton (Cutler Hammer) main and sub-feed lug block rated 150 A, two-pole, listed by the manufacturer as a field installation kit and part for Type BR loadcenters. The BRSF150 is a lug block, not a circuit breaker, and provides no overcurrent protection.
The BRSF150 accepts #8-2/0 AWG Cu/Al conductors and occupies two 1 in spaces within the loadcenter interior. It is UL Listed, supplied in a clamshell pack, and carries a 10 year manufacturer warranty.
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Common Applications
- Main lug termination in Eaton Type BR loadcenters
- Sub-feed termination for downstream distribution from a Type BR loadcenter
- Field installation and retrofit of existing Type BR loadcenter interiors
Key Features
- Main and sub-feed lug block: Terminates feeder conductors in Type BR loadcenters and does not provide overcurrent protection.
- Dual-rated conductor range: Accepts #8-2/0 AWG copper or aluminum conductors.
- Two-pole assembly: Provides two termination points rated 150 A.
- Defined space requirement: Occupies (2) 1 in spaces in the loadcenter.
- UL Listed: Listed by Eaton as a UL Listed field installation kit and part.
Specifications
- Catalog Number: BRSF150
- Manufacturer: Eaton (Cutler Hammer)
- Product Type: Main and sub-feed lug block
- Amperage Rating: 150 A
- Poles: Two-pole
- Wire Range: #8-2/0 AWG Cu/Al
- Loadcenter Series: Type BR
- Spaces Required: (2) 1 in spaces
- Certification: UL Listed
- Packaging: Clamshell pack
- Warranty: 10 year
Product Identification
- UPC: 786676001779
- GTIN: 00786676001779
- Country of Origin: Dominican Republic
- Product Dimensions: 3.5 in W x 2.25 in H x 4 in D
- Product Weight: 0.51 lb
FAQ
Is the BRSF150 a circuit breaker? No. The BRSF150 is a main and sub-feed lug block. It terminates conductors and provides no overcurrent protection.
What conductor sizes does the BRSF150 accept? The BRSF150 accepts #8-2/0 AWG copper or aluminum conductors.
How much loadcenter space does the BRSF150 require? The BRSF150 requires (2) 1 in spaces.
What is the BRSF150 rated for? The BRSF150 is a two-pole assembly rated 150 A.
Which loadcenters does Eaton list the BRSF150 for? Eaton lists the BRSF150 as a field installation kit and part for Type BR loadcenters.
&l
Specifications
- Part Number: BRSF150
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Section : Terminal Blocks
- Family : BR Series
- Voltage : 240
- Amperage : 150
- Phase : 1
- Poles : 2
Product Data
- UPC : 786676001779
- GTIN : 00786676001779
- Country of Origin : Dominican Republic
- Dimensions : 4 in x 2.25 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 0.51 lb
- Certification : UL Listed
- Wire Size : AWG 8 to AWG 2/0, Cu/Al
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
