Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Molded Case
- Series
- BD Series
- Frame
- BD
- Rated current
- 20
- Voltage
- 120V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@120V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Feed-Thru
- Country of origin
- Dominican Republic
Show all specifications (5 more)
- UPC
- 786676369459
- GTIN
- 00786676369459
- Dimensions
- 2 in x 3 in x 1 in (Length/Depth x Height x Width)
- Weight
- 0.38
- Certification
- UL 489,Federal Specifications Classification W-C375
Product description & additional details

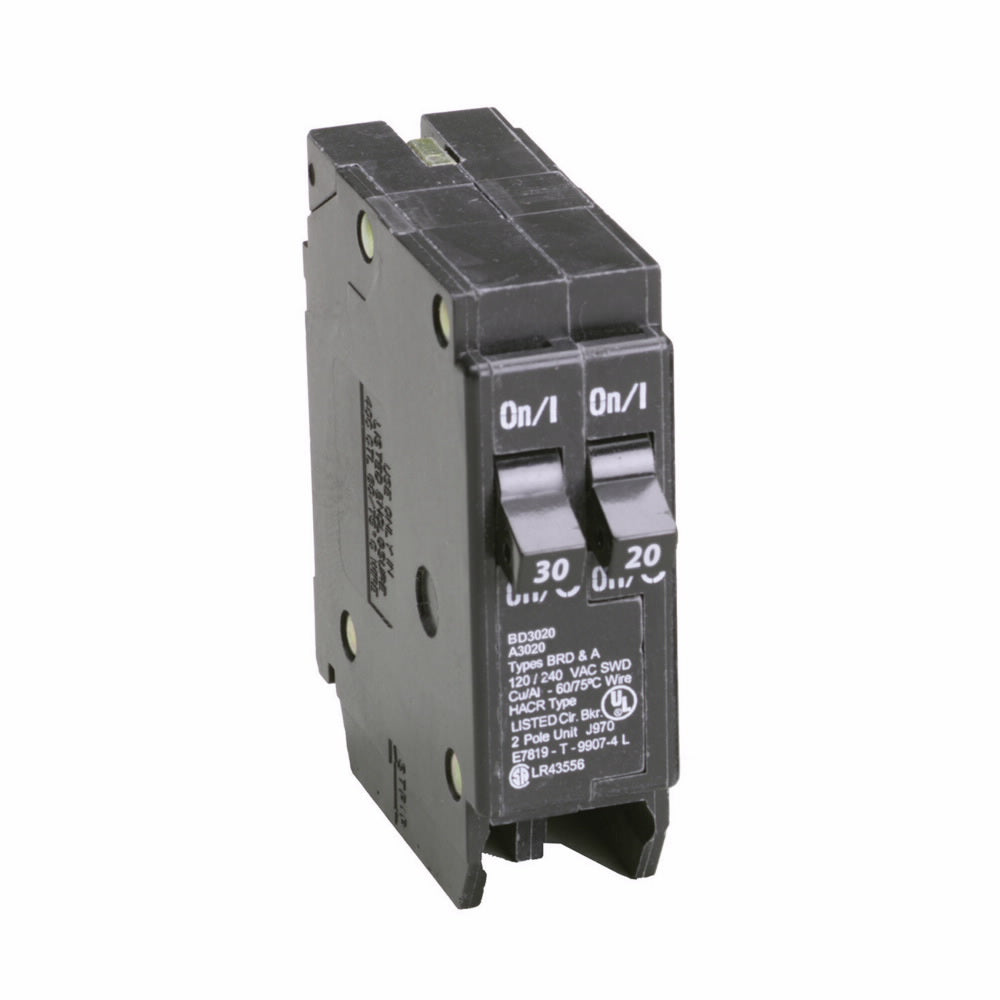

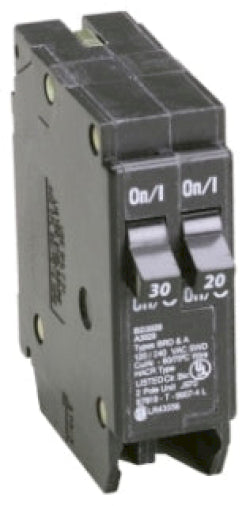

BD3020
BD3020 is a Cutler Hammer duplex circuit breaker designed for reliable protection in residential and light commercial load centers.
This thermal magnetic, single-pole tandem breaker features independent trip for two circuits—30A on the outside pole and 20A on the inside pole—in a compact, plug-on design. It is UL 489 listed and compatible with Type BR load centers, offering a 10kA interrupting rating at 120VAC for enhanced safety and performance.
Key Specifications
- Amperage: 30A (outside pole), 20A (inside pole)
- Voltage: 120VAC
- Poles: 1 (duplex/tandem, two circuits)
- Mounting Type: Plug-on
- Interrupt Rating: 10kAIC at 120V
- Series/Frame: Type BD, BR compatible
- Trip Unit: Thermal magnetic, independent trip
- Certifications: UL 489, HACR rated
- Wire Size: #14–4 AWG (copper/aluminum)
- Rejection tab for CTL compliance
- Feed-thru design
- Long time and instantaneous trip functions
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BD3020
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BD Series
- Type : BD
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786676369459
- GTIN : 00786676369459
- Country of Origin : Dominican Republic
- Dimensions : 2 in x 3 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.38
- Certification : UL 489,Federal Specifications Classification W-C375
