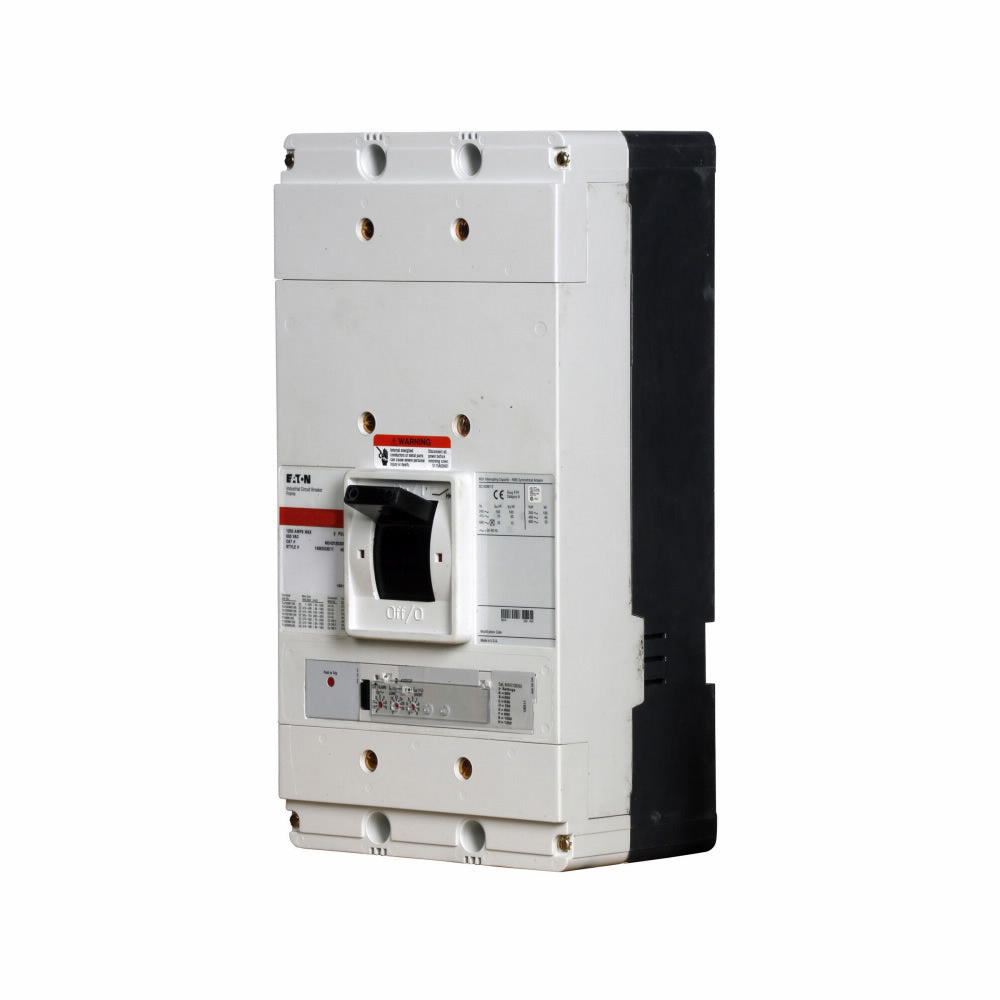

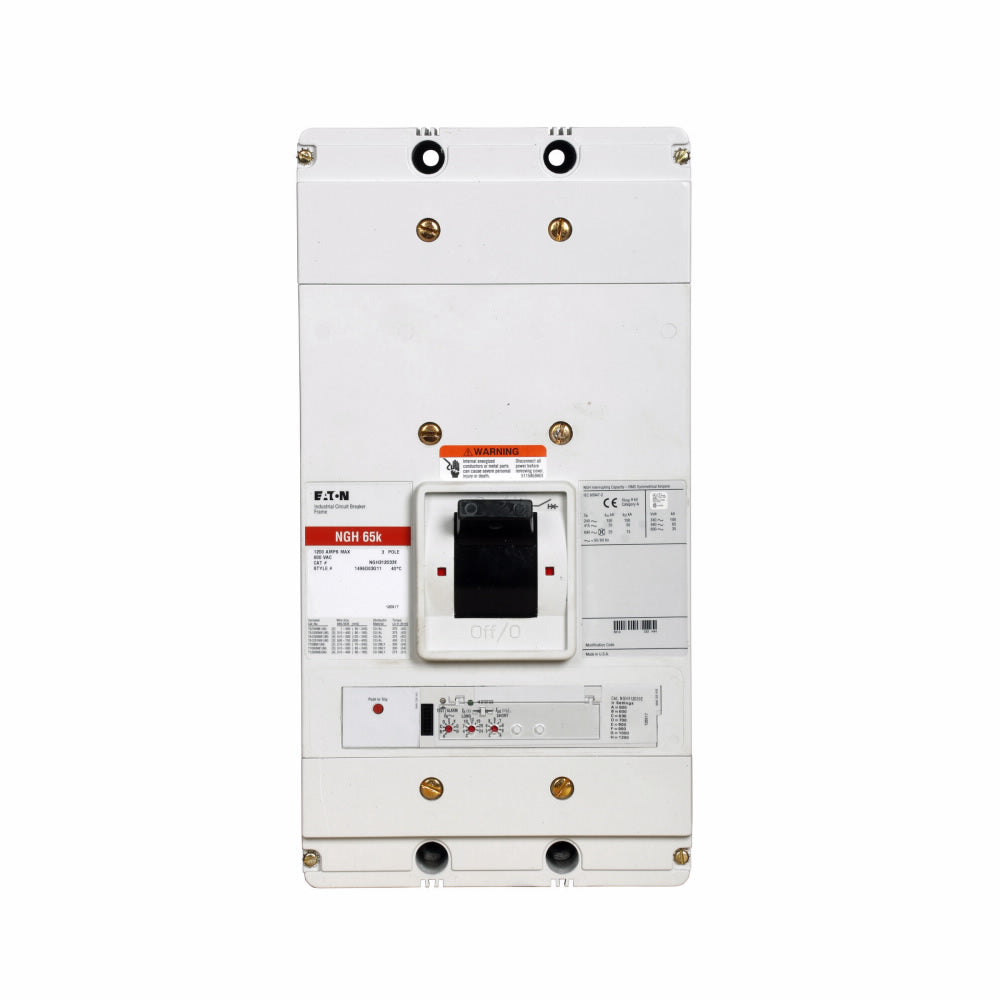

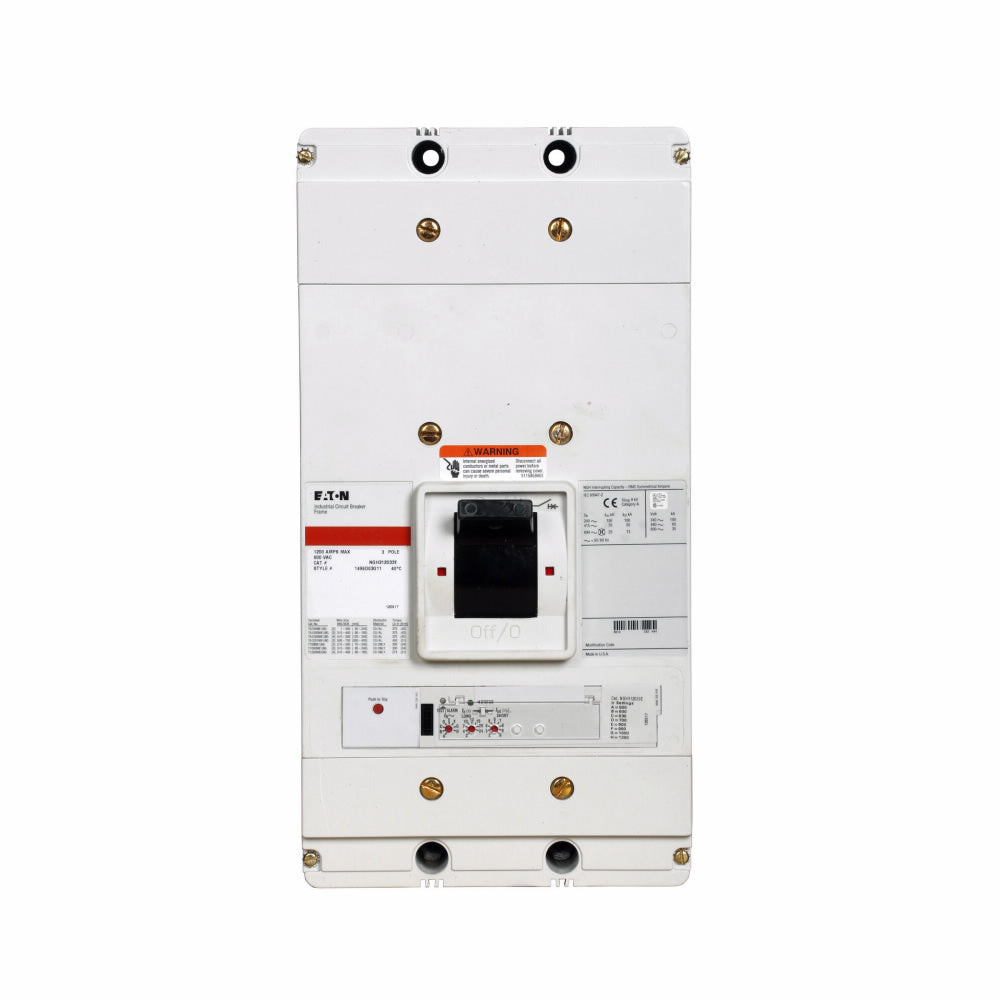

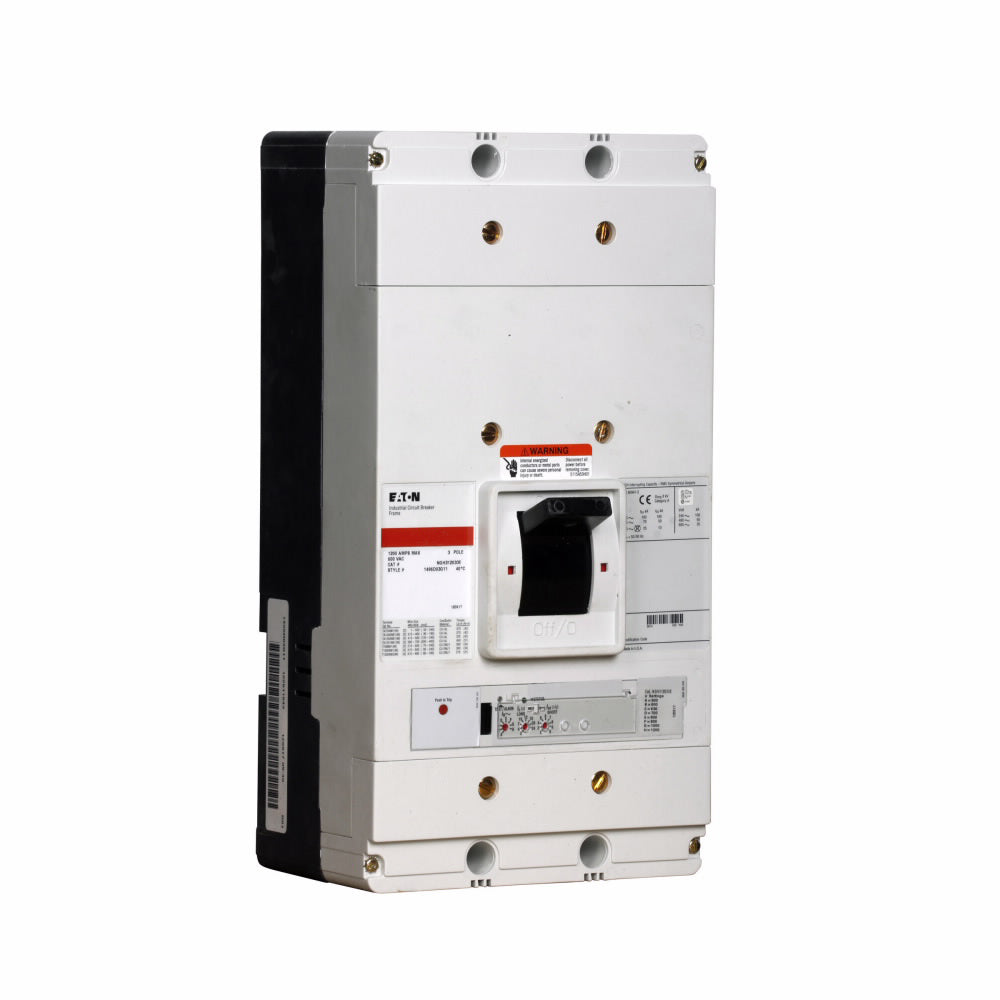

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Molded Case
- Series
- Series G
- Frame
- NGH
- Rated current
- 1200
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 65kA@480V
- Trip functions
- LSI - Long-Time, Short-Time and Instantaneous
- Protection
- Solid State
- Connection
- Bolt-On
- Country of origin
- United States
Show all specifications (5 more)
- UPC
- 786685574349
- GTIN
- 00786685574349
- Dimensions
- 6 in x 9 in x 9 in (Length/Depth x Height x Width)
- Weight
- 48 lb
- Certification
- UL Listed,CSA Certified,HACR Rated
Product description & additional details
NGH312032EC
NGH312032EC is an Eaton Series G NG frame electronic molded case circuit breaker engineered for dependable overcurrent protection in commercial and industrial power distribution applications. It is rated at 1200 amps with a 3-pole configuration and suitable for three-phase systems with up to 600 V AC service. The NGH312032EC features a solid-state electronic LSI trip unit (Digitrip RMS 310+) providing long-time, short-time, and instantaneous protection. It has a bolt-on connection and robust interrupting capacity for demanding environments.
- Manufacturer: Eaton
- Series: Series G
- Frame Size: NG
- Poles: 3
- Amperage Rating: 1200 A
- Voltage Rating: 600 V AC
- Trip Unit: Electronic LSI Digitrip RMS 310+
- Interrupt Rating: 100 kAIC @ 240 V AC, 65 kAIC @ 480 V AC
- Connection Type: Bolt-On
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: NGH312032EC
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : NGH
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 786685574349
- GTIN : 00786685574349
- Country of Origin : United States
- Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
- Weight : 48 lb
- Certification : UL Listed,CSA Certified,HACR Rated
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
