Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Shunt Trip
- Series
- Series G
- Frame
- G
- Rated current
- 1200
- Voltage
- 480/600VAC
- Poles
- 3
- Country of origin
- United States
- Control Voltage Minimum
- 480
- Compatible Frames
- ND
- Control Voltate Maximum
- 600
- UPC
- 786678262703
- GTIN
- 00786678262703
Show all specifications (2 more)
- Dimensions
- 1 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight
- 0.5
Product description & additional details
SNT5LP18K

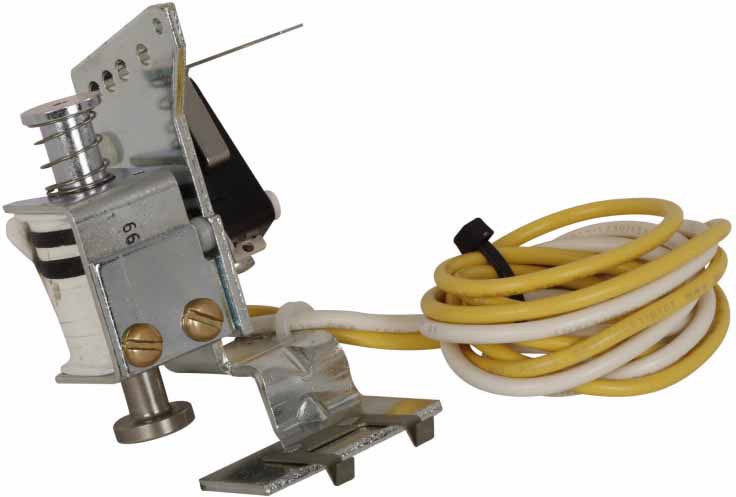

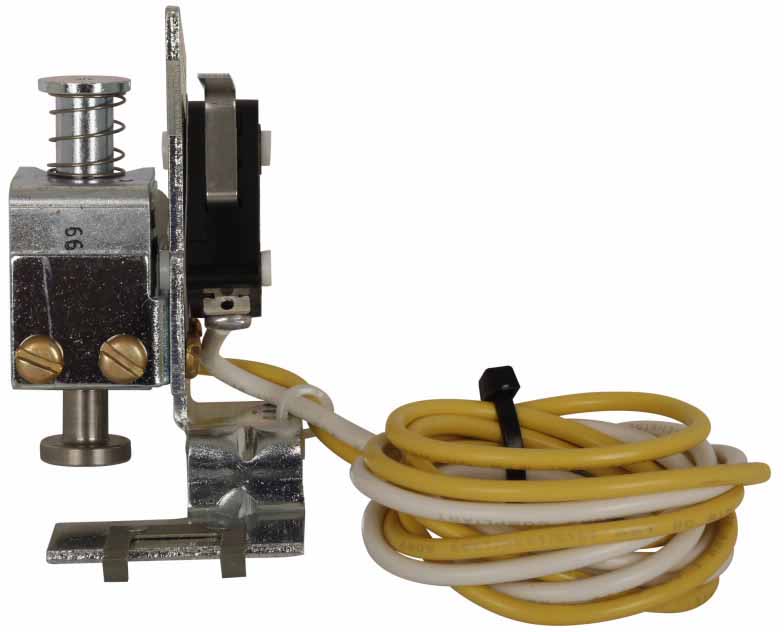

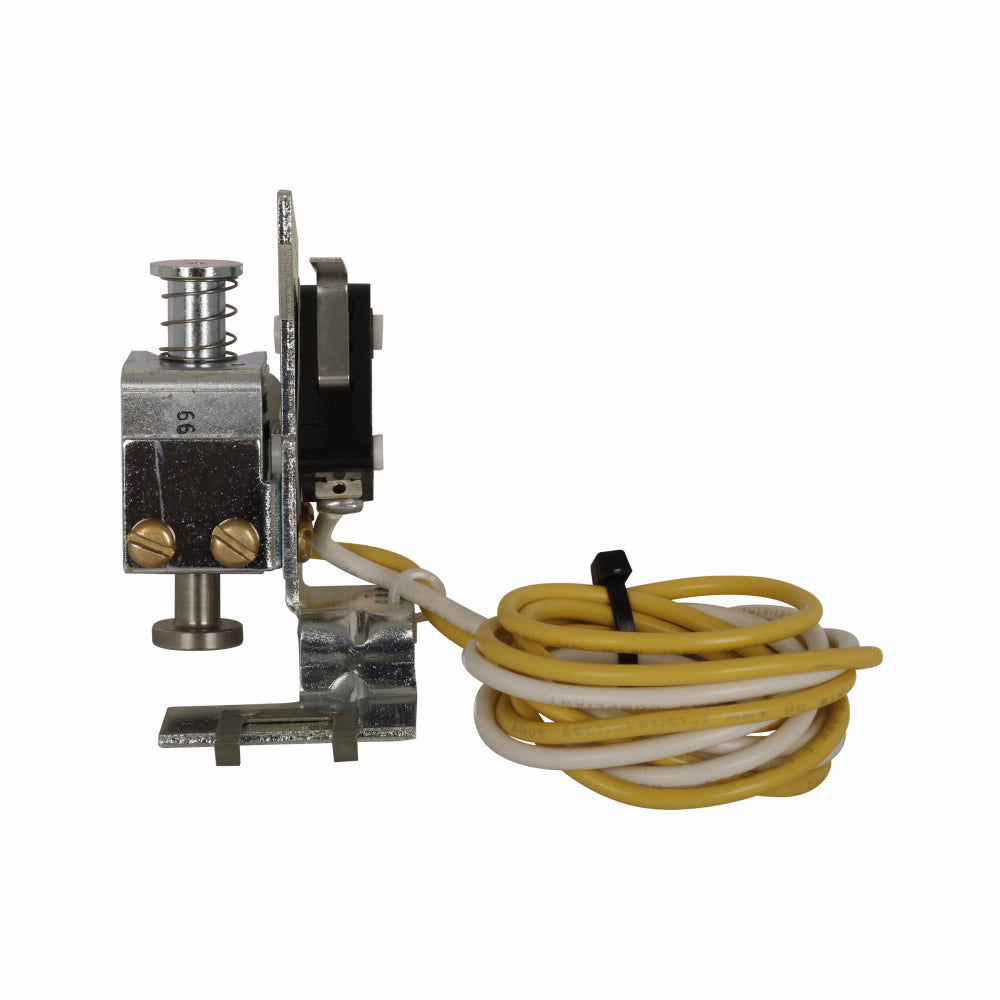

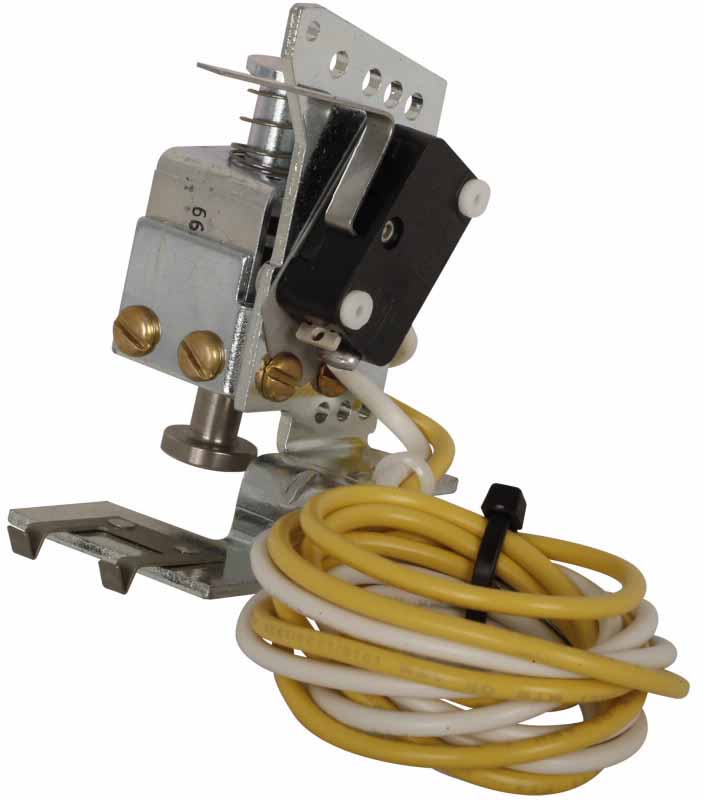

SNT5LP18K is a Cutler Hammer shunt trip accessory for molded case circuit breakers, designed for reliable remote tripping in industrial power distribution systems.
This shunt trip unit is compatible with ND and NG frame J-K series molded case circuit breakers, offering a robust solution for applications requiring rapid circuit interruption. It is engineered for left pole mounting and is suitable for use with a range of Eaton/Cutler Hammer breaker types, ensuring broad compatibility and ease of integration.
-
Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: SNT5LP18K
- Amperage Rating: 1200A
- Voltage Rating: 480-600VAC
- Poles: 3
- Mounting Type: Left Pole
- Series/Frame: ND/NG, Frame J-K
- Trip Unit Type: Shunt Trip
- Certifications: Complies with Eaton standards; for specific certifications, contact manufacturer
- Interrupt Rating: Not specified in available data
- Dimensions: 1" x 1" x 1"
- Weight: 0.5 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: SNT5LP18K
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Series G
- Type : G
- Voltage : 480/600VAC
- Amperage : 1200
- Poles : 3
- Control Voltage Minimum : 480
- Compatible Frames : ND
- Control Voltate Maximum : 600
Product Data
- UPC : 786678262703
- GTIN : 00786678262703
- Country of Origin : United States
- Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.5
