NGH312032E - Eaton Series G NG Frame 1200A 3 Pole 600V Circuit Breaker

NGH312032E

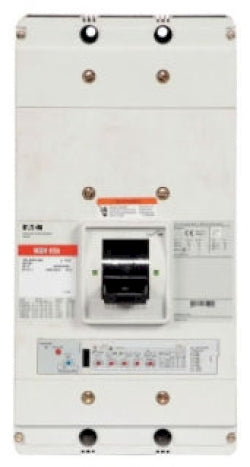

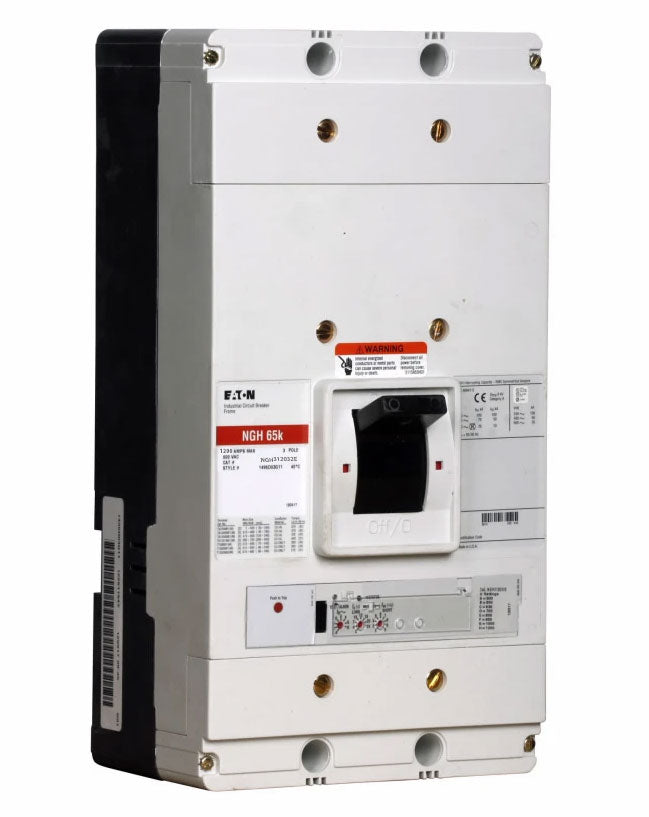

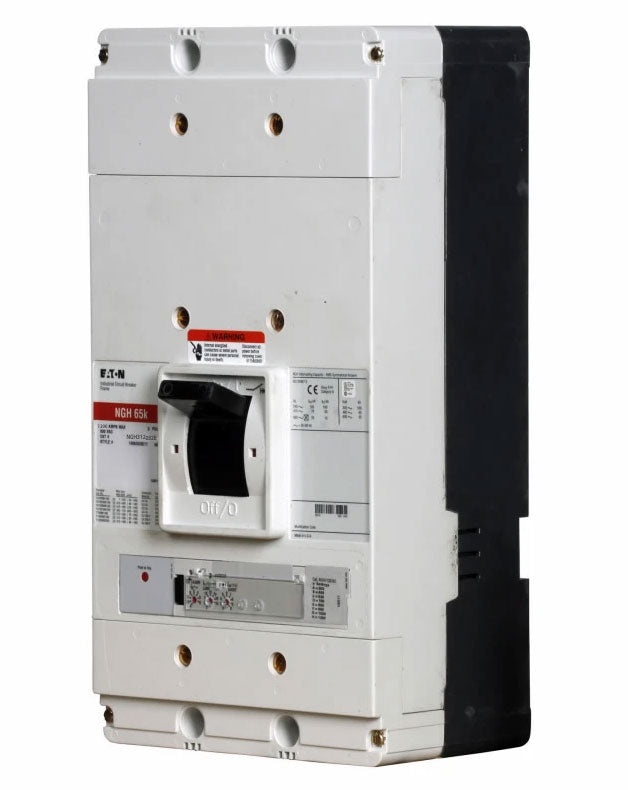

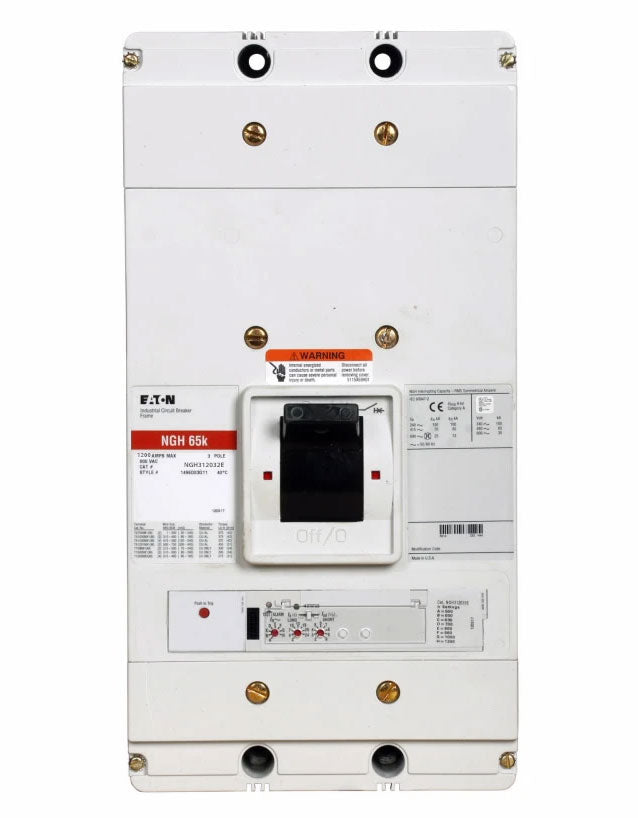

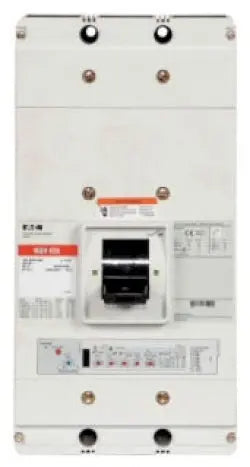

NGH312032E is an Eaton Series G NG frame molded case circuit breaker designed to provide reliable overcurrent protection in demanding commercial and industrial power distribution systems. This breaker is rated for 1200 amps and 600V AC, making it well suited for high-capacity three-phase applications. The NGH312032E features an electronic LSI trip unit using Eaton Digitrip RMS 310+ technology, delivering long-time, short-time, and instantaneous protection. Its NG frame construction ensures durability, consistent performance, and compatibility with Eaton Series G switchgear and panelboard installations.

• Manufacturer: Eaton
• Series: Series G
• Frame Size: NG
• Poles: 3
• Amperage Rating: 1200A
• Voltage Rating: 600V AC
• Trip Unit: Electronic LSI Digitrip RMS 310+
• Interrupt Rating: 65 kAIC at 480V AC
• Mounting: Bolt-on

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.It provides dependable protection and integrates easily in commercial and industrial distribution systems.

• Family: PowerPact NG (NGH)
• Poles: 3
• Amperage: 32 A
• Voltage: 600 Vac
• Mounting: I-Line plug-on (line) / lugs (load)
• Trip Unit: Micrologic electronic (per suffix)
• Certifications: UL 489 Listed, CSA Certified

Suffix meanings in this catalog number

• Micrologic electronic trip unit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: NGH312032E
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : NGH
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 1200A/N
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 500 MCM
• Breaker Type : LSI Functionality
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 786685379227
• GTIN : 00786685379227
• Country of Origin : United States
• Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
• Weight : 48 lb
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
