Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Molded Case
- Series
- BR Series
- Frame
- BRH
- Rated current
- 60
- Voltage
- 240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 22kA@240V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Country of origin
- Dominican Republic
Show all specifications (7 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- UPC
- 786676373753
- GTIN
- 00786676373753
- Dimensions
- 2 in x 2.5 in x 2.9 in (Length/Depth x Height x Width)
- Weight
- 0.7
- Certification
- UL 490,Federal Specifications Classification W-C376
- Wire Size
- AWG 4 to AWG 1/0, Cu/Al
Product description & additional details

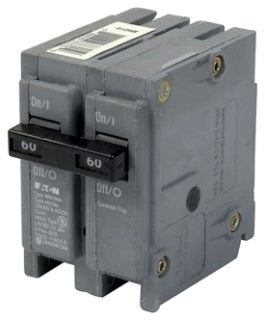

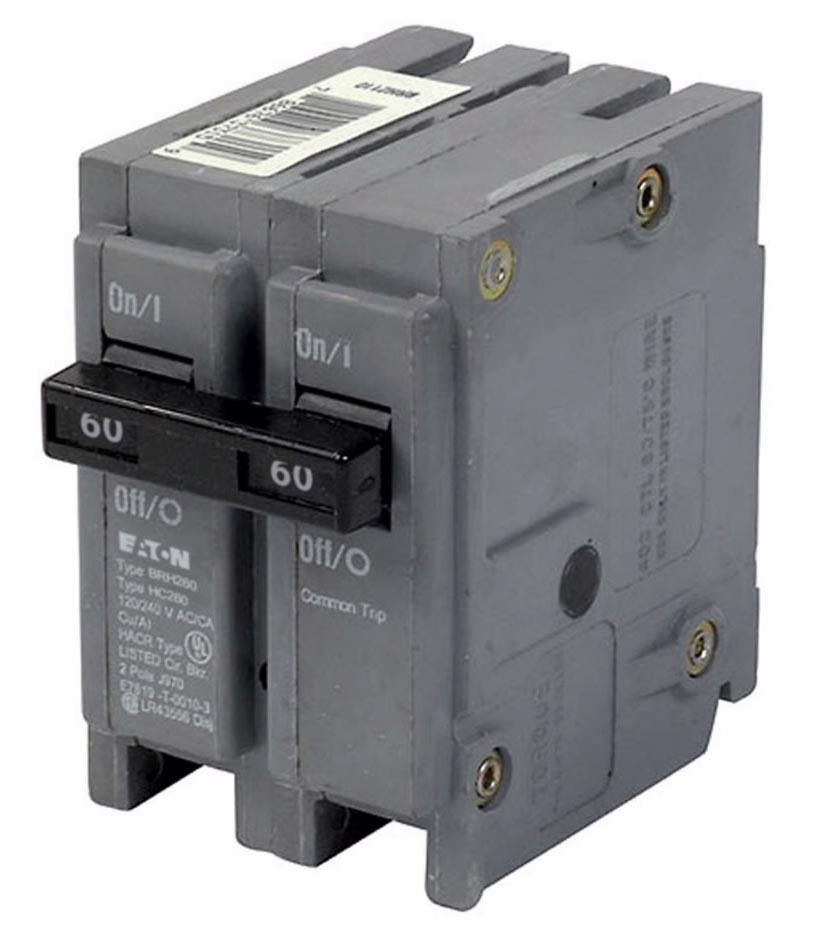

BRH260
BRH260 is a Cutler Hammer 2-pole, 60 Amp circuit breaker designed for reliable protection in residential and light commercial applications.
This plug-on mount circuit breaker is compatible with Type BR load centers, offering a 120/240V AC rating and a robust 22kA interrupt capacity. It features a thermal magnetic trip mechanism for common breaker trip operation and is HACR rated for enhanced safety.
-
Key Specifications
- Amperage: 60 Amp
- Voltage: 120/240V AC
- Poles: 2
- Mounting Type: Plug-On
- Interrupt Rating: 22kAIC
- Series/Frame: Type BR
- Trip Unit: Thermal Magnetic, Common Trip
- Certifications: HACR Rated
- Terminal Type: Plug-On Line Side, Lugs Load Side
- Conductor Range: #4-1/0 AWG Cu/Al
- Dimensions: 2.00"W x 2.88"L x 2.56"D (approximate)
- Application: Residential and light commercial load centers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BRH260
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BR Series
- Type : BRH
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786676373753
- GTIN : 00786676373753
- Country of Origin : Dominican Republic
- Dimensions : 2 in x 2.5 in x 2.9 in (Length/Depth x Height x Width)
- Weight : 0.7
- Certification : UL 490,Federal Specifications Classification W-C376
- Wire Size : AWG 4 to AWG 1/0, Cu/Al
