2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH2100

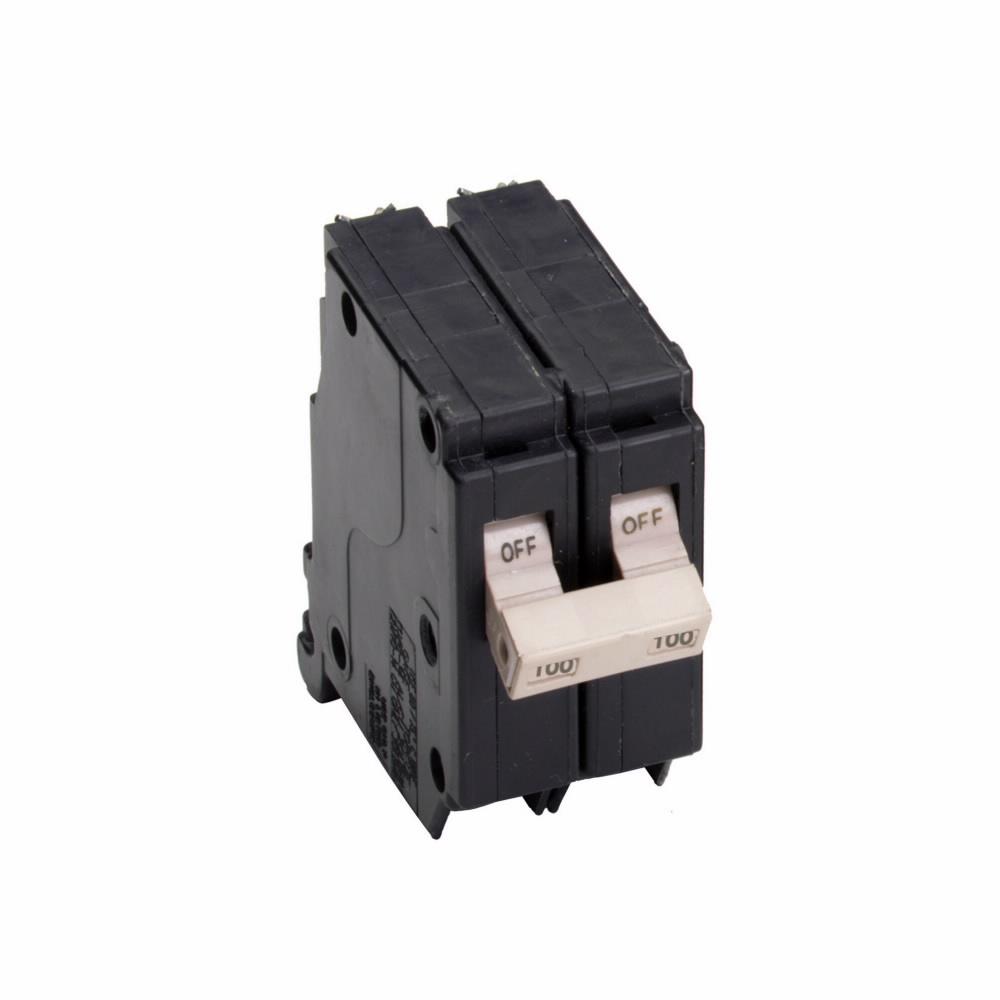

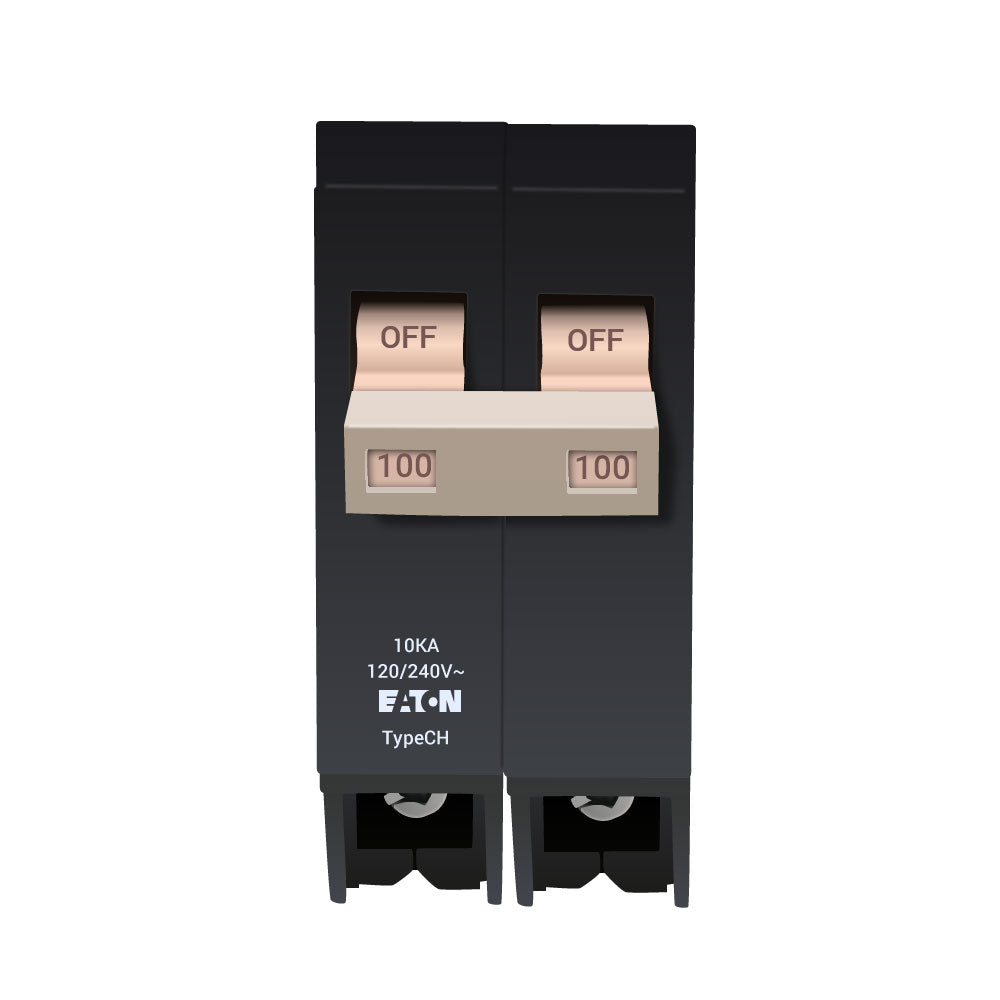

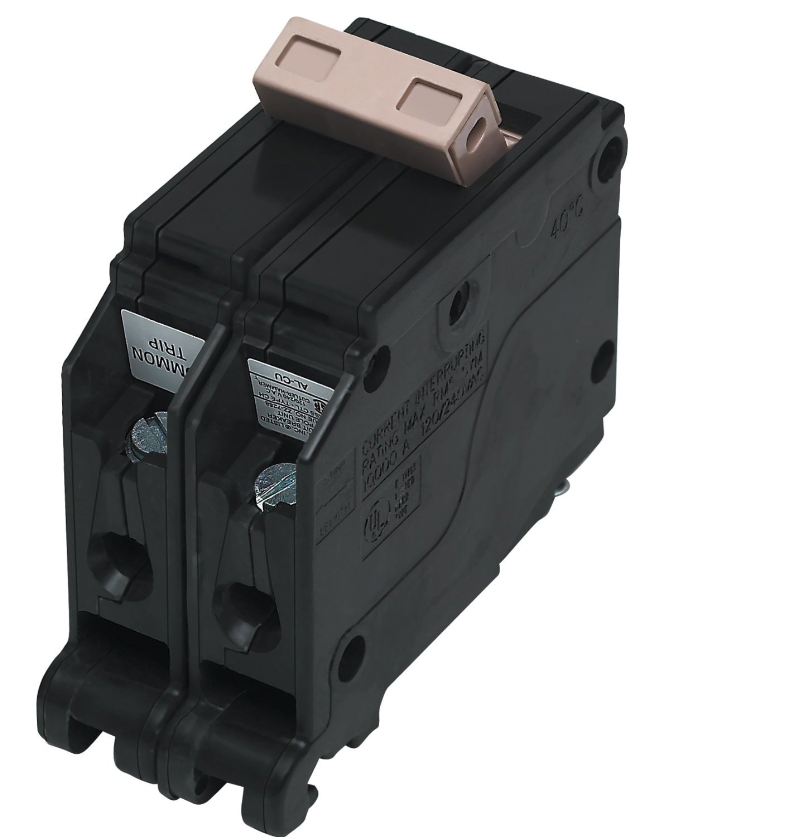

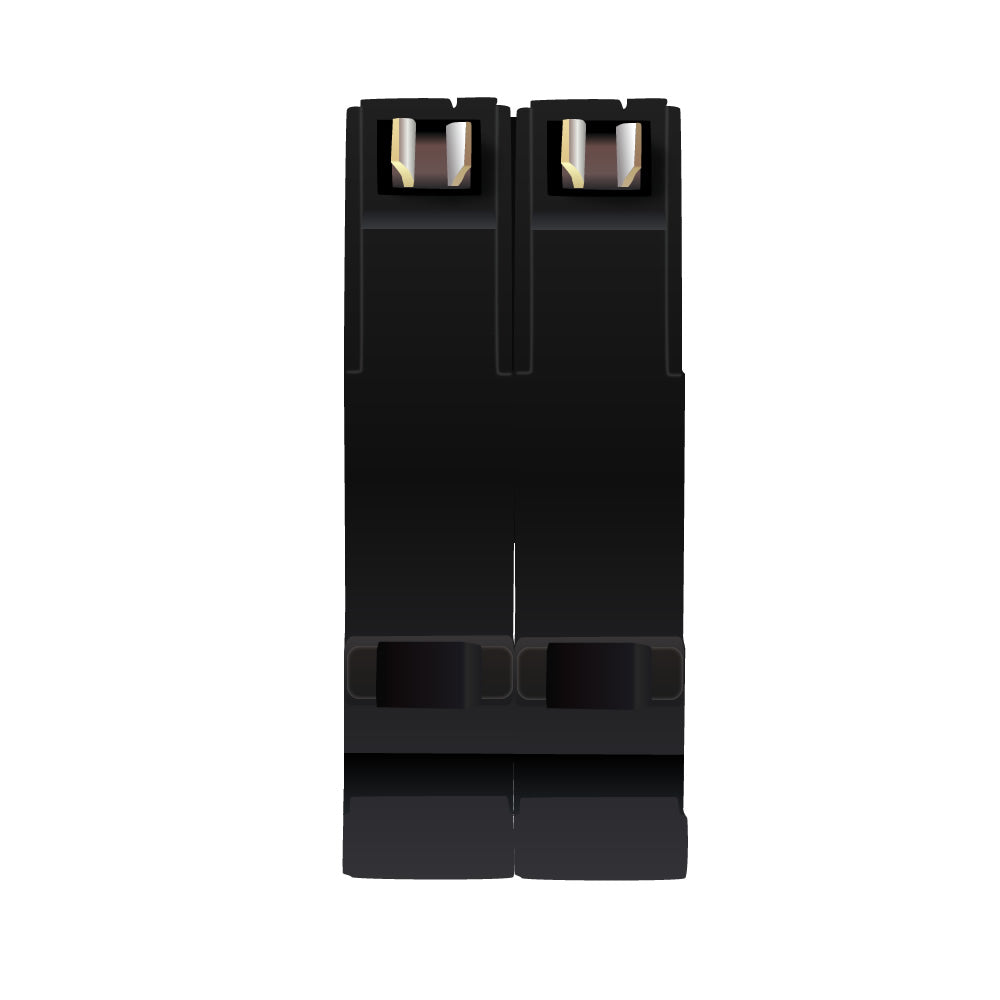

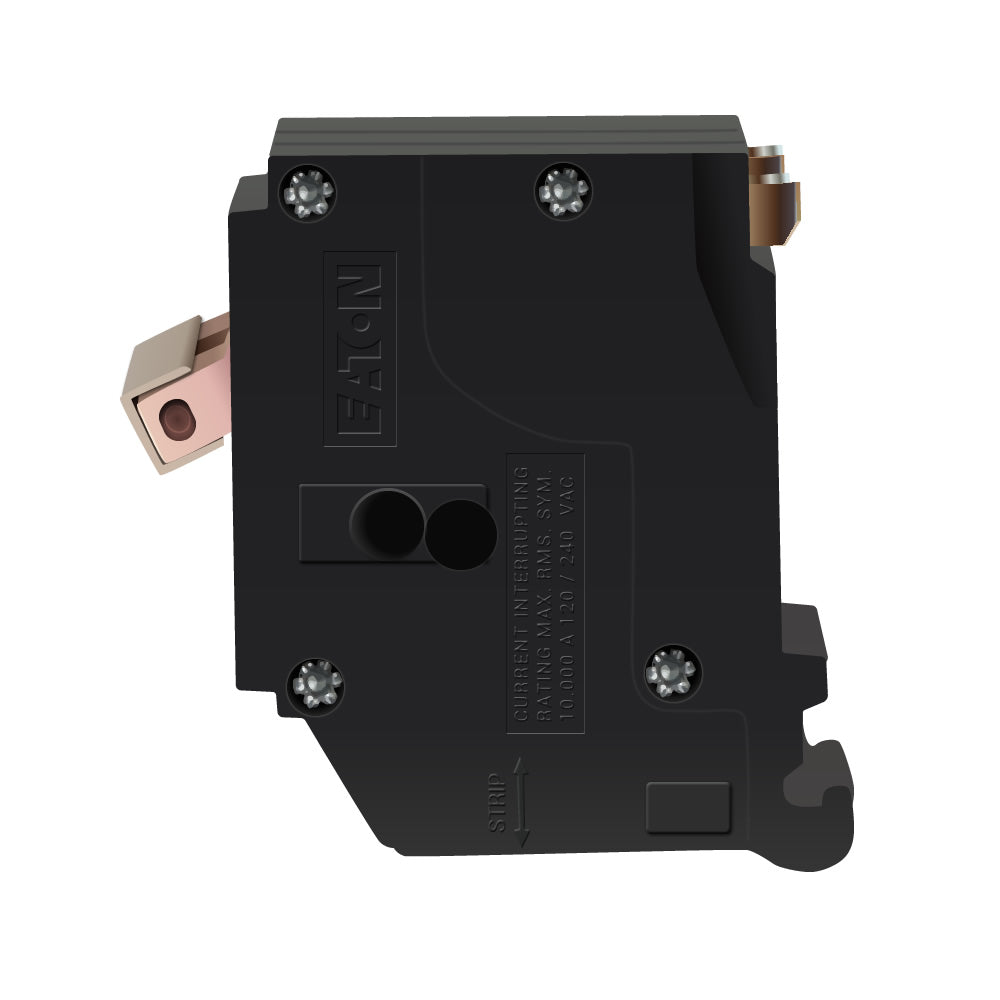

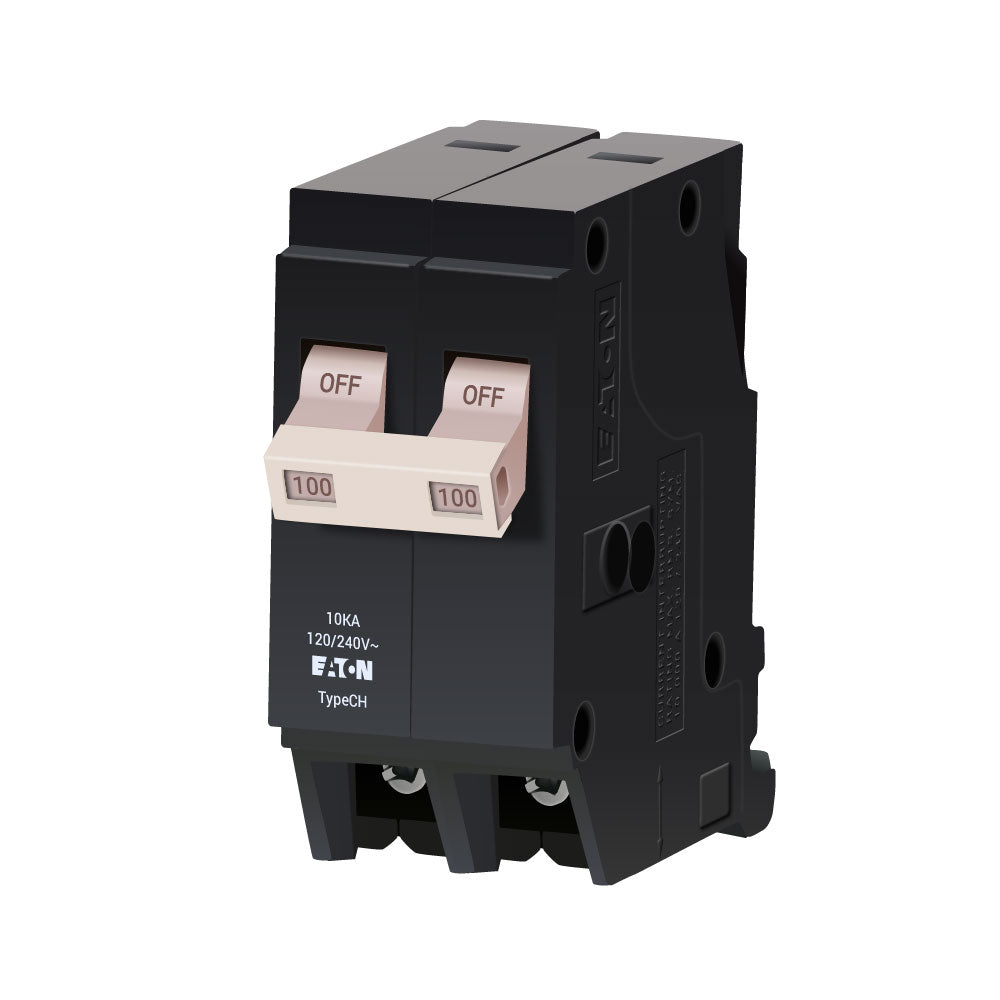

CH2100 is a Cutler Hammer 2 pole thermal magnetic circuit breaker rated for 100 amps and 120/240 volts AC.
This molded case circuit breaker features a plug-on mounting type, a 10 kA interrupting rating at 240V, and common breaker trip functionality. It is designed for use with Type CH loadcenters and supports wire sizes from 14 AWG to 1/0 AWG copper or aluminum. Certified to UL 489 standards, the CH2100 provides reliable long-time and instantaneous trip protection in residential and light commercial applications.
- Key Specifications
- Amperage: 100 A
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Plug-On
- Interrupt Rating: 10 kAIC at 240V
- Series/Frame: CH
- Trip Unit: Thermal Magnetic, Common Breaker Trip
- Wire Size: 14 AWG to 1/0 AWG Cu/Al
- Certifications: UL 489
- Phase: Single
- Connection Type: Plug-In
- Part Number: CH2100
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
- UPC : 782113102375
- GTIN : 00782113102375
- Country of Origin : United States
- Dimensions : 3.5 in x 3.25 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.65 lb
- Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
