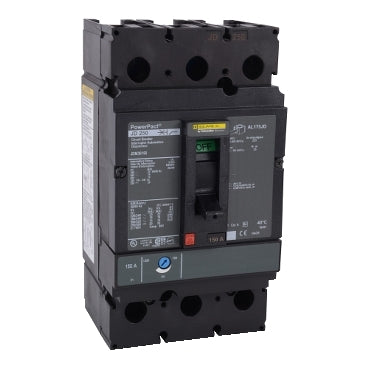

JDM36175 - Square D PowerPact J 175A 3P 600VAC 14kAIC Molded Case Circuit Breaker, Thermal Magnetic Trip, Bolt-On Mount

JDM36175

JDM36175 is a Square D PowerPact J series molded case circuit breaker designed for reliable protection in industrial power distribution applications.

This three-pole, bolt-on circuit breaker features a thermal magnetic trip unit, 175A amperage rating, and a maximum voltage of 600VAC. It is certified for safety and performance to UL, CSA, and NOM standards, ensuring compliance with North American electrical codes.

Key Specifications
• Part Number: JDM36175
• Manufacturer: Square D
• Series/Frame: PowerPact J
• Amperage: 175A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 14kAIC
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, NOM
• Depth: 86 mm
• Height: 191 mm

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDM36175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDM
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 606486283205
• GTIN : 03606486283202
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
