JDM36150 - Square D 150A 600V 3 Pole Bolt-On Circuit Breaker 18kAIC@480V JDM Frame

JDM36150

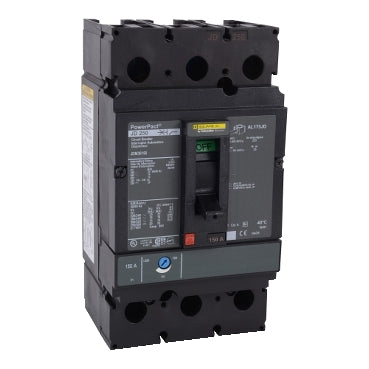

JDM36150 is a Square D 3 pole, 150 amp, 600 volt bolt-on circuit breaker designed for reliable circuit protection.This thermal magnetic molded case circuit breaker features a JDM frame and provides an interrupt rating of 18kA at 480 volts. It is suitable for use in industrial and commercial electrical distribution systems requiring a 3 pole breaker with bolt-on mounting.

Key Specifications
• Manufacturer: Square D
• Part Number: JDM36150
• Amperage: 150 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA at 480V
• Frame Type: JDM
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JDM36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDM
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : J Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic



Product Data

• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.3
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...AWG 4/0 aluminium/copper terminal
