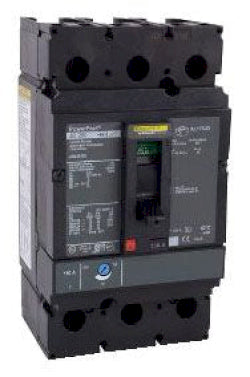

JDM36225 - Square D PowerPact J 225A 3 Pole Molded Case Circuit Breaker 600VAC 14kA Thermal Magnetic

JDM36225

JDM36225 is a 3 pole, 225 amp, 600VAC molded case circuit breaker from the Square D PowerPact J series, designed for reliable overcurrent protection and switching in commercial and industrial applications. This breaker features a thermal magnetic trip unit, 14kA interrupt rating at 600VAC, and is suitable for panel mount installation. It is UL 489 listed and meets the requirements for a wide range of electrical systems.

• Part Number: JDM36225
• Manufacturer: Square D
• Series/Frame: PowerPact J
• Amperage: 225A
• Number of Poles: 3
• Voltage Rating: 600VAC / 250VDC
• Interrupt Rating: 14kA at 600VAC
• Mounting Type: Panel Mount
• Terminal Type: Lug
• Tripping Mechanism: Thermal Magnetic
• Continuous Current Rating: 80%
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDM36225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDM
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901512660
• GTIN : 00785901512660
• Country of Origin : United States
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
