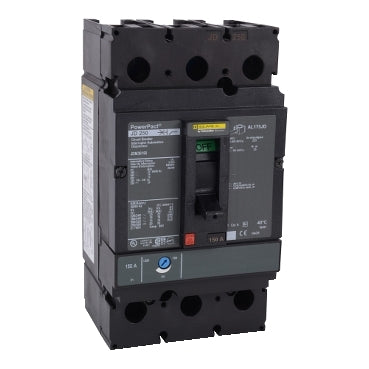

JDM36250 - Square D 250 Amp 600 Volt 3 Pole Molded Case Circuit Breaker J Frame

JDM36250

JDM36250 is a 250 Amp, 600 Volt, 3 Pole molded case circuit breaker from Square D designed for reliable circuit protection.

This Square D JDM36250 breaker features a thermal-magnetic trip unit with current limiting and adjustable settings. It belongs to the PowerPact J Frame series and is rated for up to 18kA interrupting capacity at 480V. The breaker is panel mountable with lug terminal connections and complies with UL 489 standards.

• Amperage: 250 Amp
• Voltage Rating: 600 Volt AC
• Number of Poles: 3
• Interrupt Rating: 18kA at 480V, 25kA at 240V, 14kA at 600V
• Trip Unit: Thermal-Magnetic, Current Limiting, Adjustable
• Series/Frame: PowerPact J Frame
• Mounting Type: Panel Mount (Bolt-On)
• Terminal Connection: Lug
• Certification: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDM36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : JDM
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : J
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901602095
• GTIN : 00785901602095
• Country of Origin : Mexico
• Dimensions : 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.795
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...350 kcmil aluminium/copper terminals
