Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Lug Terminal Kit
- Series
- Powerpact
- Frame
- AL
- Rated current
- 250
- Voltage
- 600VACV
- Barrels
- 1
- Country of origin
- United States
- MCM Size
- 350
- Metal Type
- Aluminum
- Compatible Frames
- JD,JG,JJ,JL,JR
- UPC
- 785901574835
- GTIN
- 00785901574835
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
Show all specifications (1 more)
- Weight
- 0.223
Product description & additional details

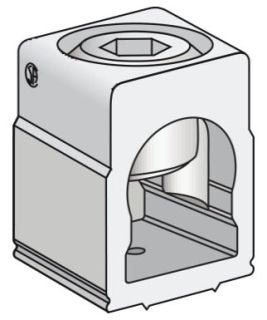

AL250JD

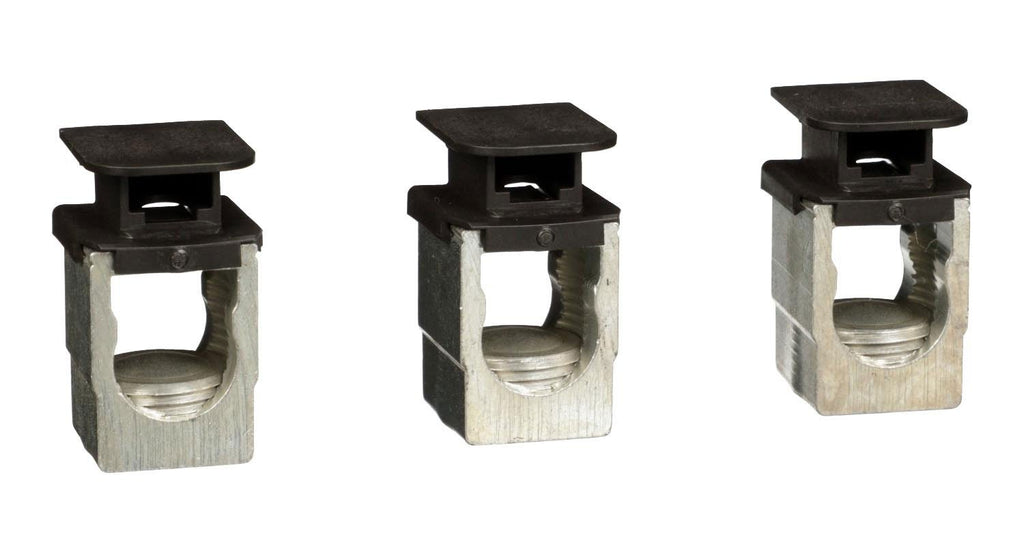

AL250JD is a Square D PowerPact J-Frame circuit breaker mechanical lug kit designed for 250 ampere breakers. AL250JD includes three aluminum mechanical lugs compatible with JD, JG, JJ, and JL frame circuit breakers rated 200 to 250 amps, supporting conductor sizes from 8 AWG to 1/0 AWG and 3/0 AWG to 350 kcmil aluminum or copper wire. This lug kit meets UL 489, CSA, IEC, and ANSI certifications and features a high interrupt rating up to 200kA at 480Vac. It is designed for easy mounting with common hole patterns shared across PowerPact H- and J-Frame breakers.
- Amperage: 250A
- Compatible Frames: JD, JG, JJ, JL
- Conductor Size Range: 8 AWG to 1/0 AWG, 3/0 AWG to 350 kcmil
- Material: Aluminum
- Quantity: 3 lugs per kit
- Interrupt Rating: Up to 200kA at 480Vac
- Certifications: UL 489, CSA, IEC, ANSI
- Mounting: PowerPact J-Frame common mounting holes
- Application: Mechanical lug terminal kit for circuit breakers
Specifications
- Part Number: AL250JD
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : Powerpact
- Type : AL
- Voltage : 600VAC
- Amperage : 250
- MCM Size : 350
- Barrels : 1
- Metal Type : Aluminum
- Compatible Frames : JD,JG,JJ,JL,JR
Product Data
- UPC : 785901574835
- GTIN : 00785901574835
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.223
