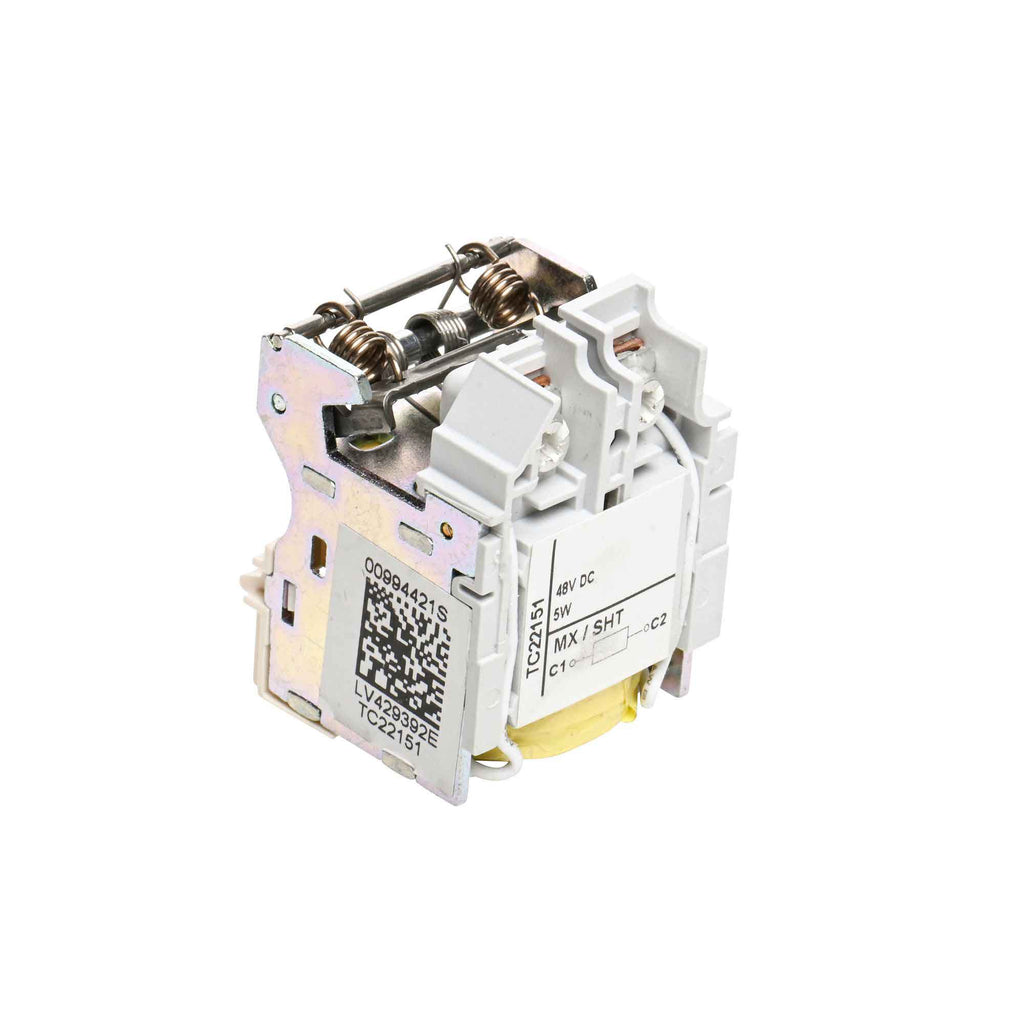

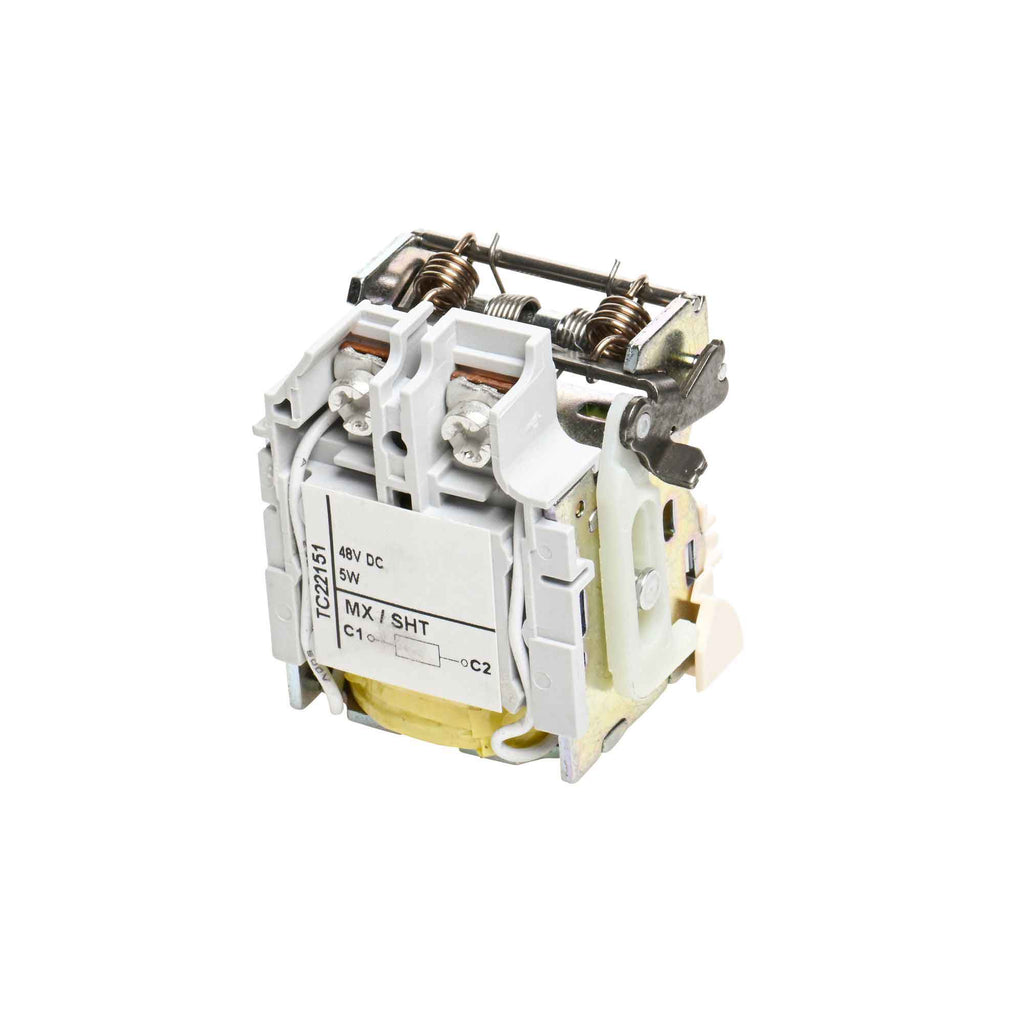

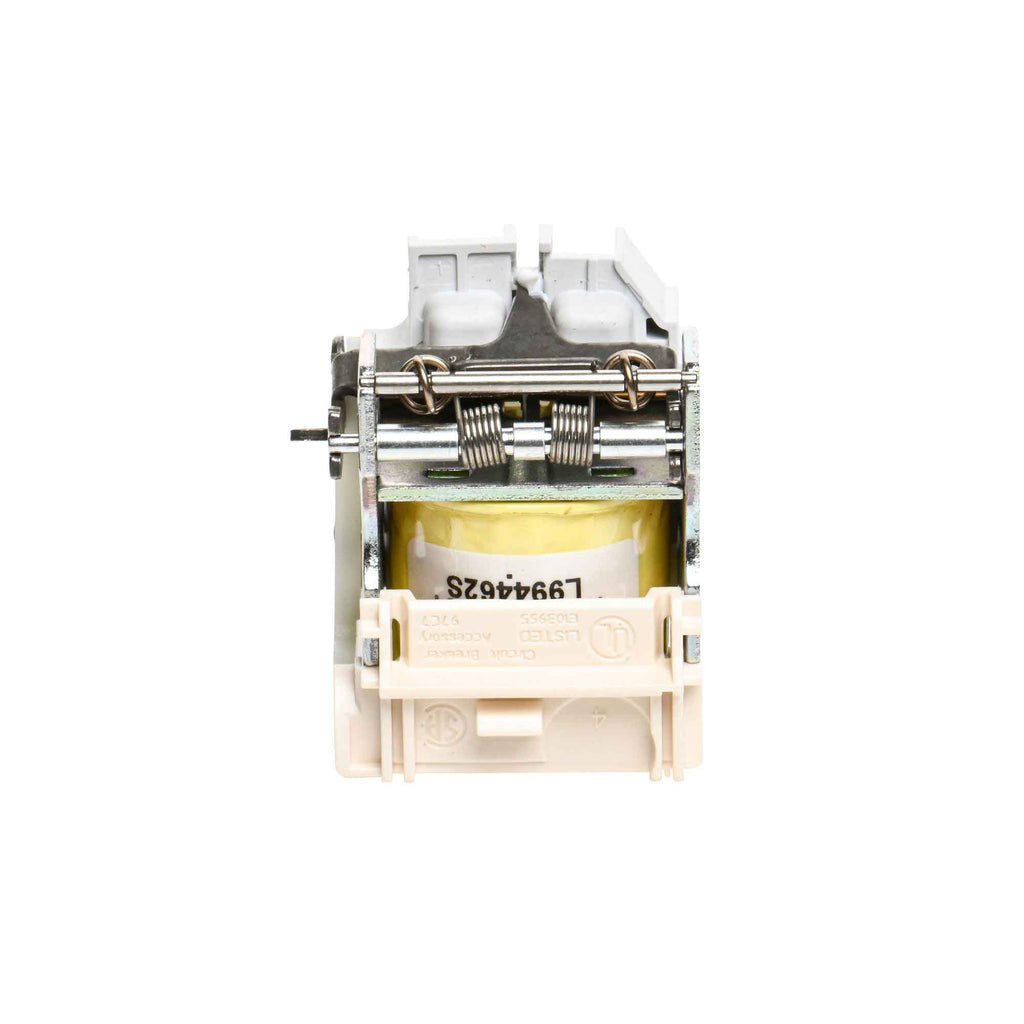

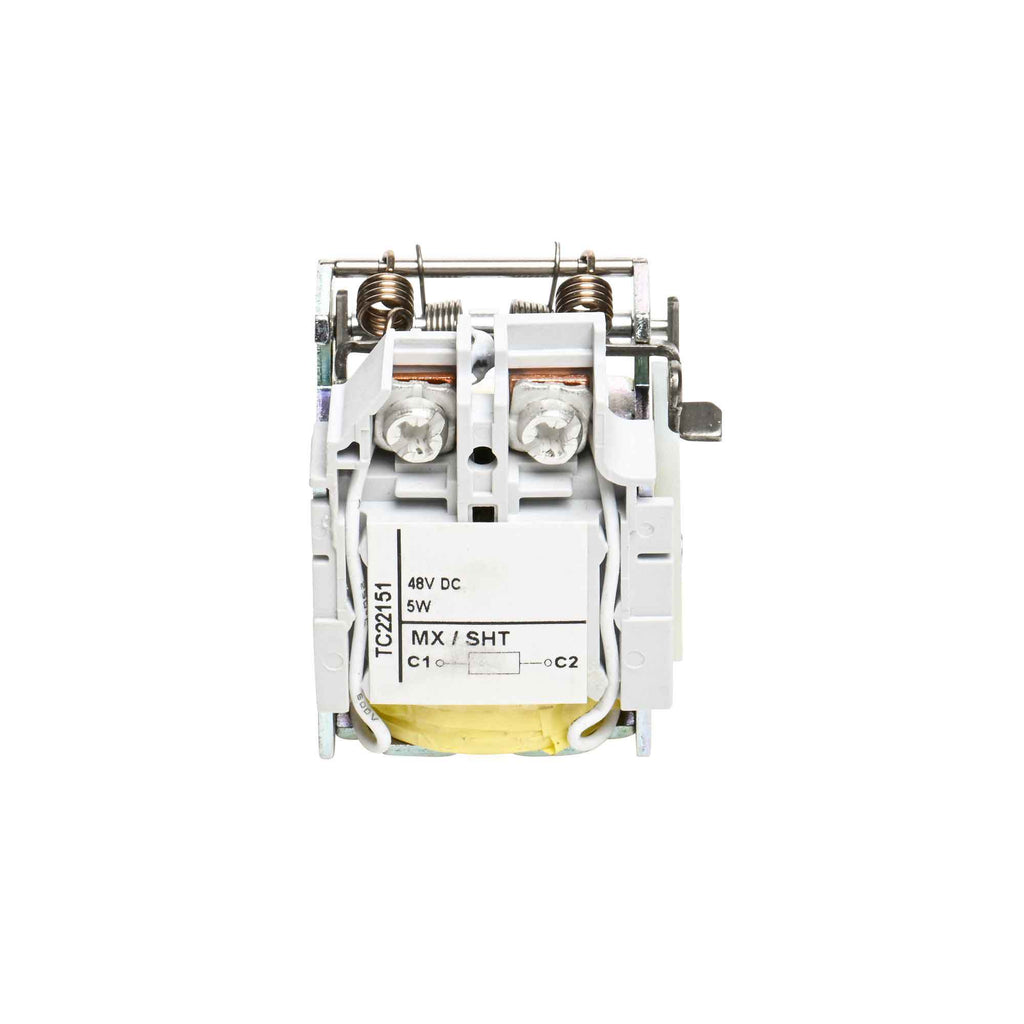

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Shunt Trip
- Series
- Powerpact
- Frame
- PowerPact
- Voltage
- 277V
- Country of origin
- United States
- Control Voltage Minimum
- 48
- Compatible Frames
- S
- Control Voltate Maximum
- 48
- UPC
- 785901855033
- GTIN
- 00785901855033
- Dimensions
- Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight
- 0.338
Show all specifications (2 more)
- Certification
- UL
- Wire Size
- AWG 18, AWG 14
Product description & additional details
S29392
S29392 is a Square D shunt trip accessory designed for PowerPact H, J, and L frame circuit breakers with a 48 VDC control voltage.
This shunt trip enables remote tripping of compatible molded case circuit breakers, enhancing safety and control in electrical distribution systems. It is UL and CSA approved and suitable for use with H, J, and L frame breakers, supporting wire gauges from AWG 18 to AWG 14. The compact design facilitates easy mounting and integration within PowerPact series equipment.
- Key Specifications
- Manufacturer: Square D (Schneider Electric)
- Part Number: S29392
- Control Voltage: 48 VDC
- Compatible Frames: PowerPact H, J, L
- Type: Shunt Trip
- Approvals: UL, CSA
- Wire Gauge: AWG 18 to AWG 14
- Dimensions (HxWxD): Approx. 2.98 x 2 x 3.13 inches
- Weight: Approx. 2.25 lbs
- Mounting: Accessory for molded case circuit breakers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: S29392
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Powerpact
- Type : PowerPact
- Voltage : 277
- Control Voltage Minimum : 48
- Compatible Frames : S
- Control Voltate Maximum : 48
Product Data
- UPC : 785901855033
- GTIN : 00785901855033
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.338
- Certification : UL
- Wire Size : AWG 18, AWG 14
