HLL36100 - Square D 100A 600V 3 Pole Powerpact H Molded Case Circuit Breaker

HLL36100

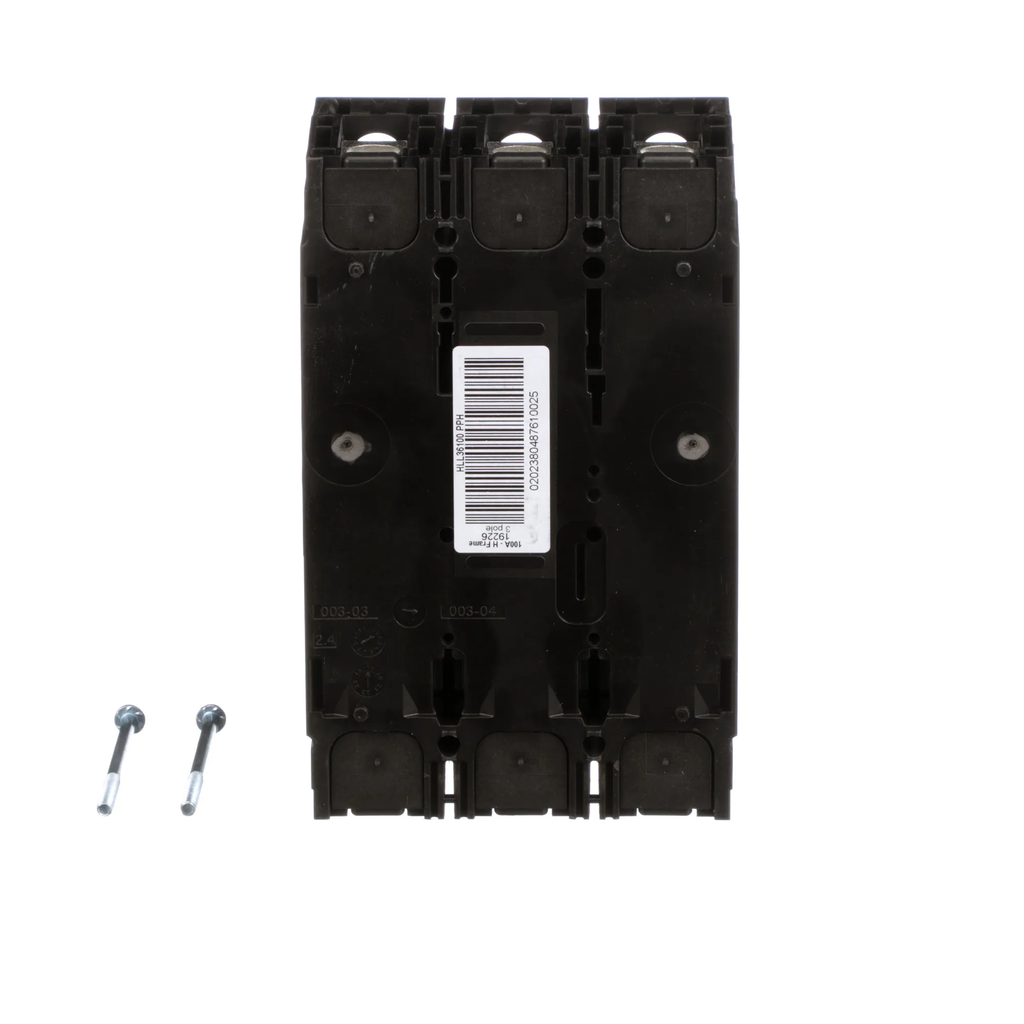

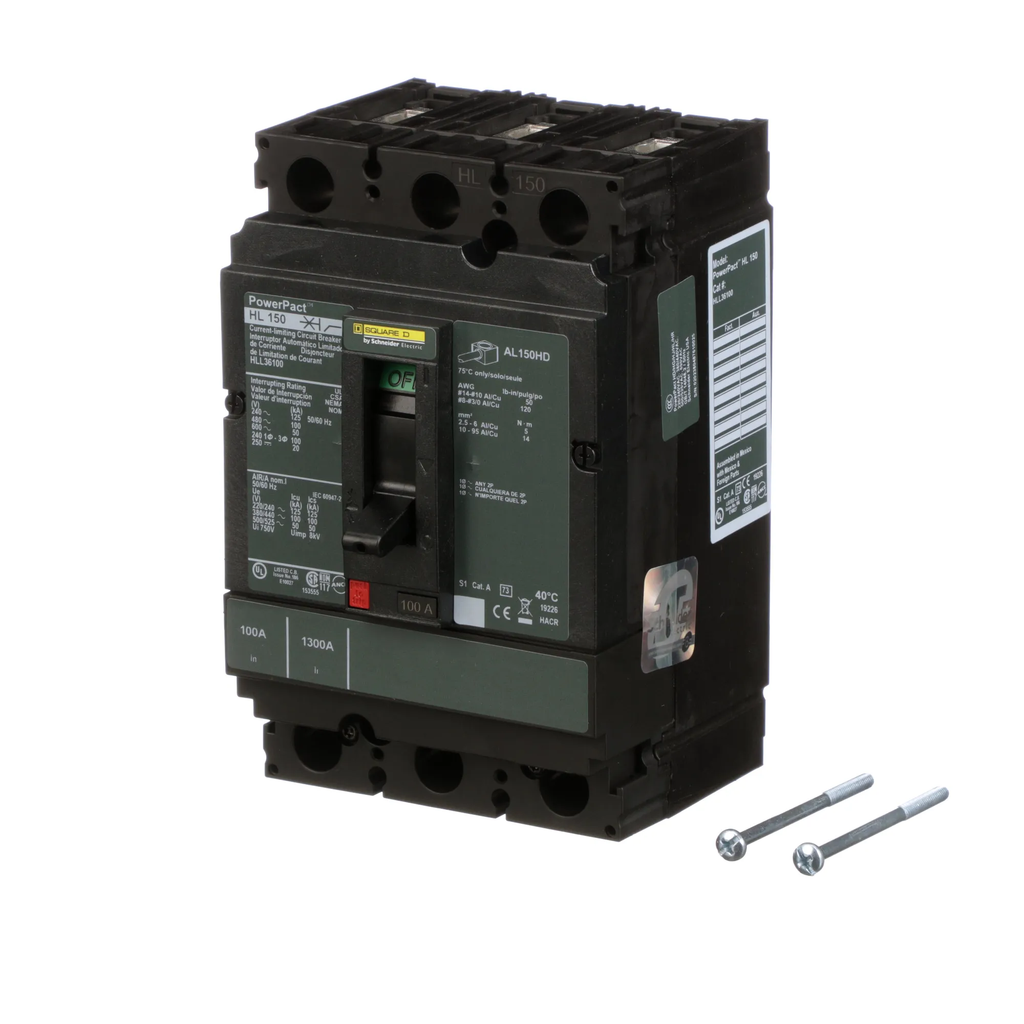

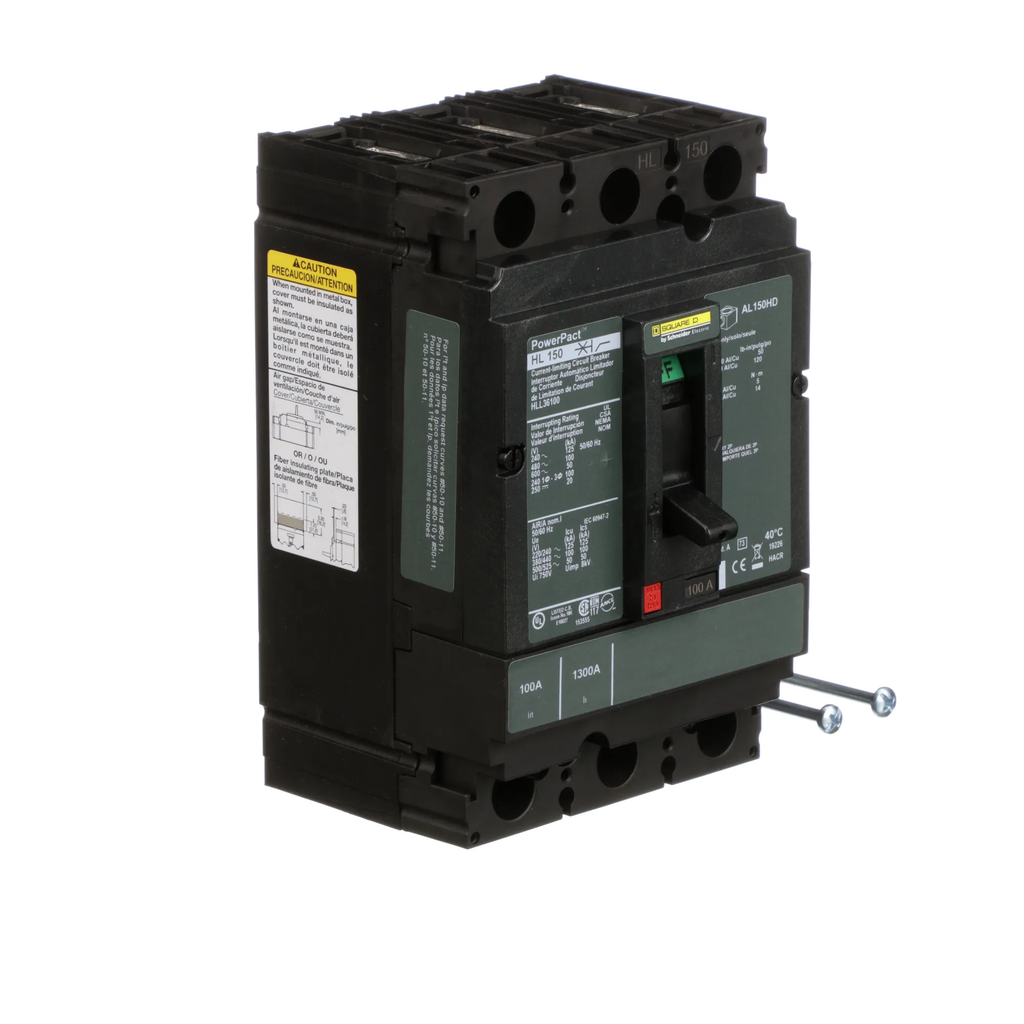

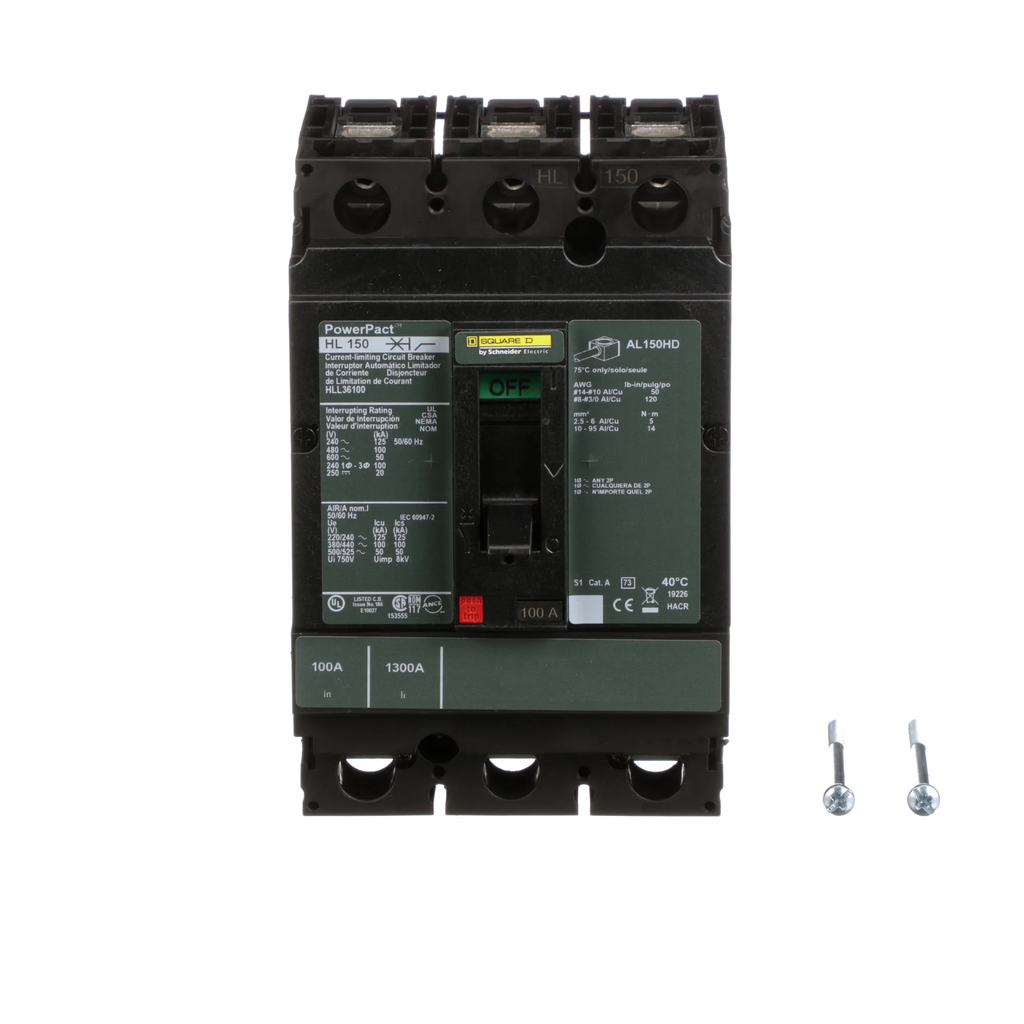

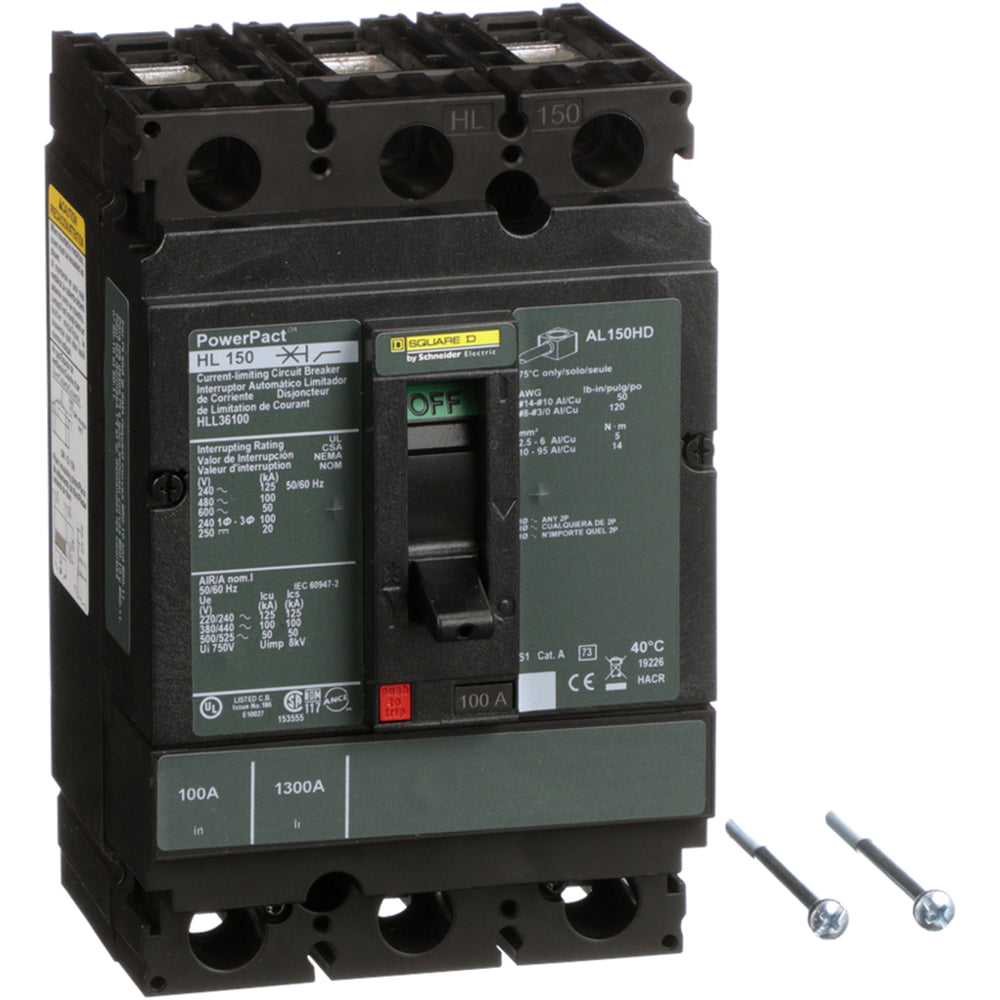

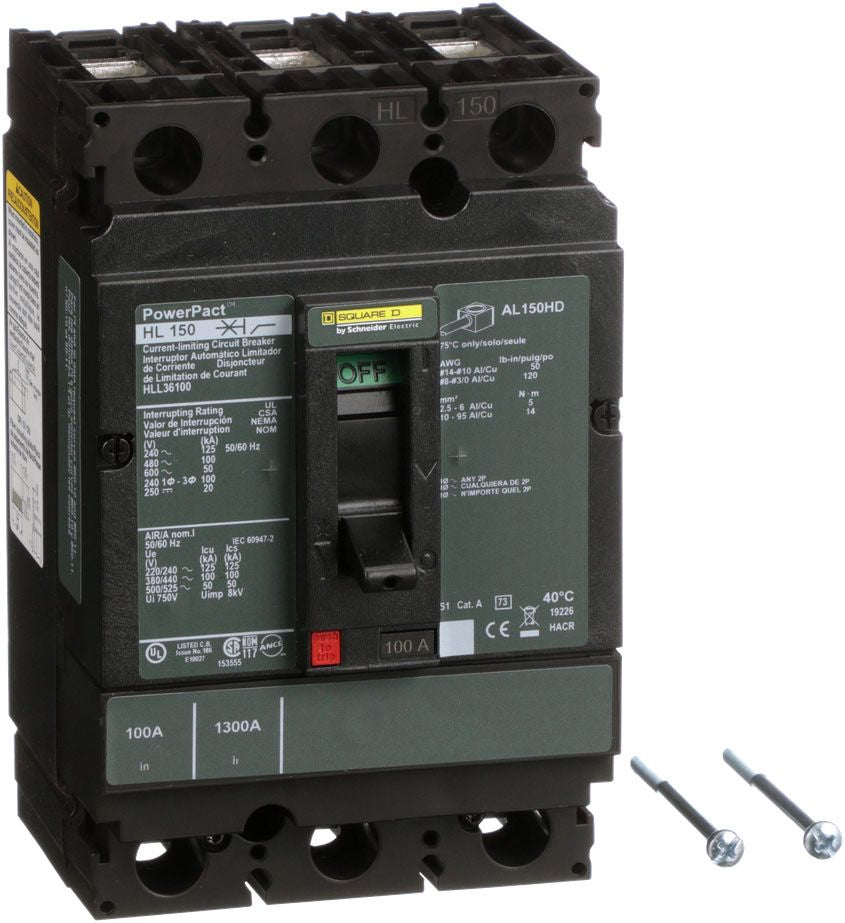

HLL36100 is a 3 pole, 100 amp, 600 volt Powerpact H frame molded case circuit breaker from Square D designed for reliable thermal magnetic protection.This circuit breaker features a 100kA interrupt rating at 480V AC, thermal magnetic trip unit, and is suitable for unit mount applications. It supports 3-phase power distribution with a feed-through mounting type and complies with UL 489, CSA, CE, and other international certifications. The breaker offers flexible accessory options and is designed for industrial and commercial electrical panel protection.

• Amperage: 100 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame/Series: Powerpact H
• Interrupt Rating: 100kA at 480V AC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount, Feed-Through
• Certifications: UL 489, CSA, CE, IEC
• Frequency: 50/60 Hz

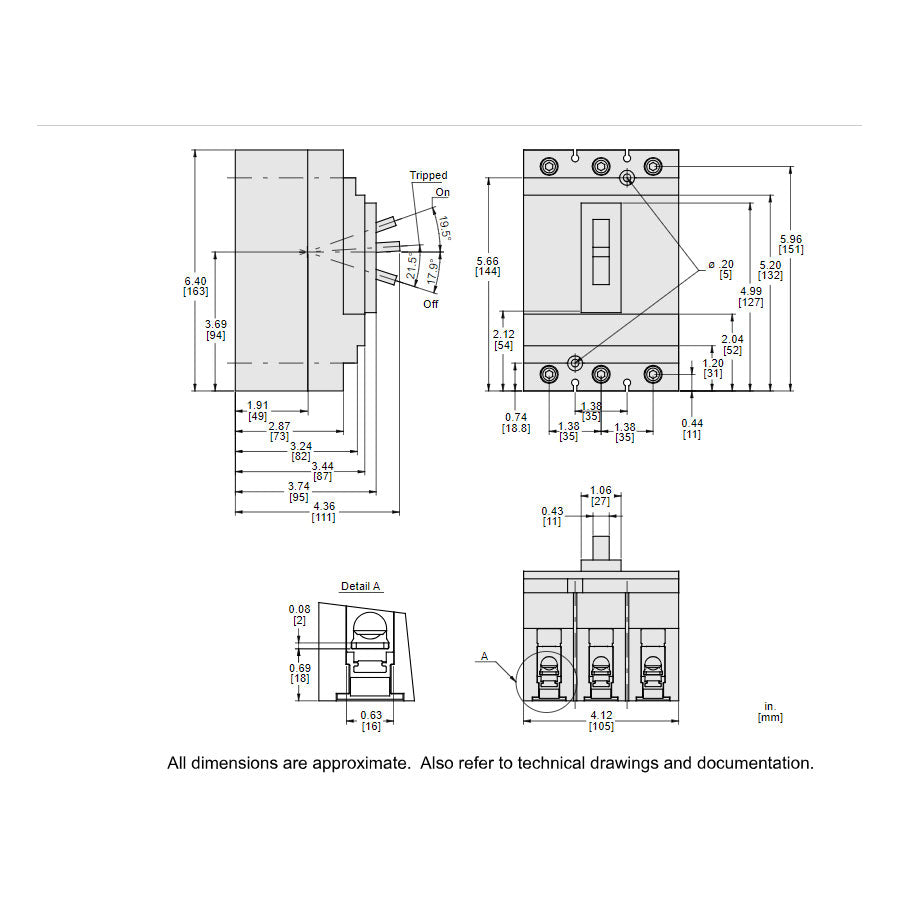

• Dimensions: Approx. 6.4" H x 4.12" W x 4.36" D
• Compatible Accessories: Field-installable trip units and switches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901683209
• GTIN : 00785901683209
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.149
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
