HLL36015

HLL36015

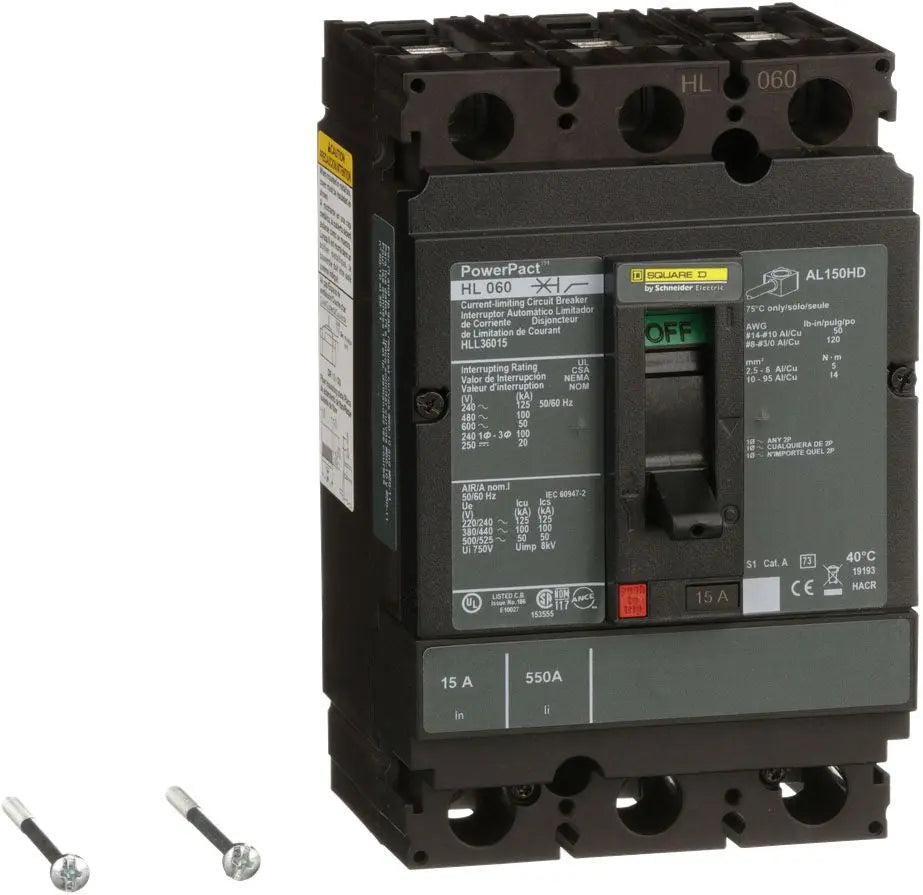

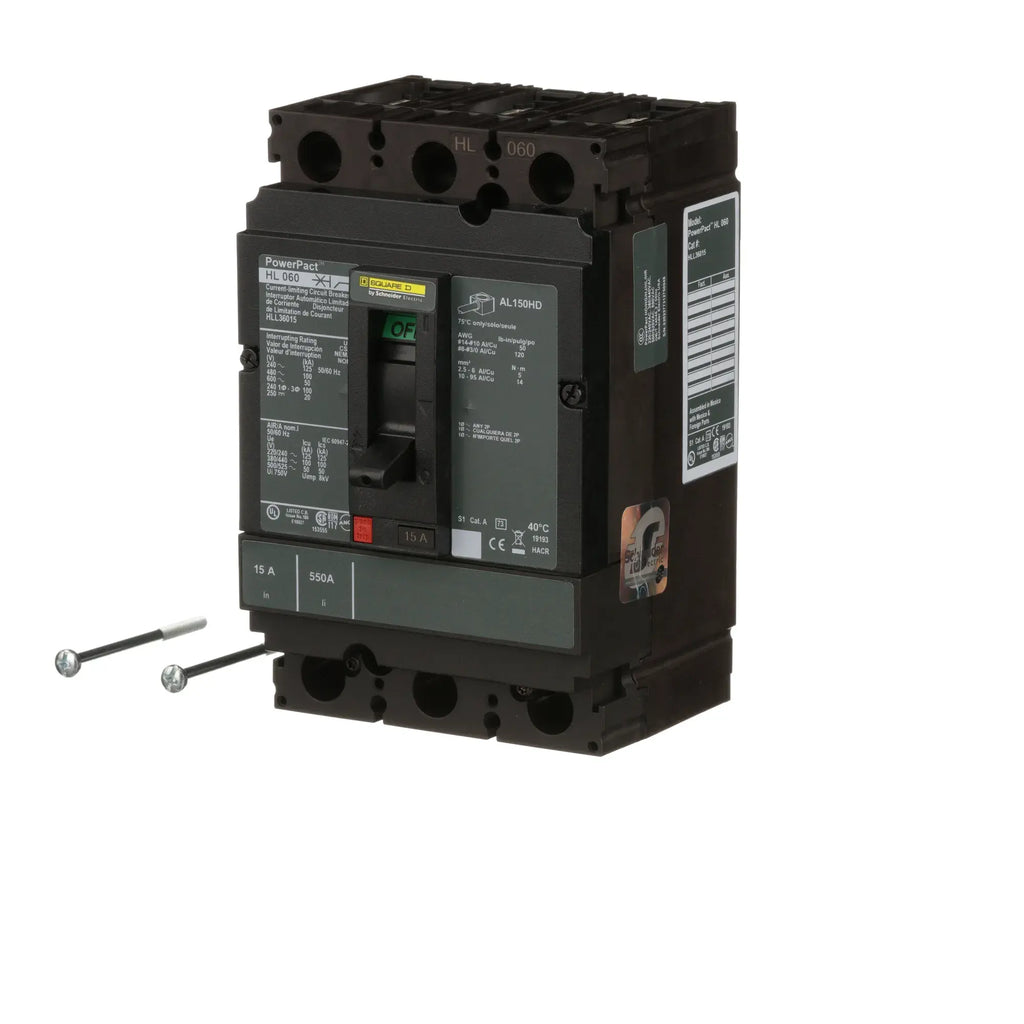

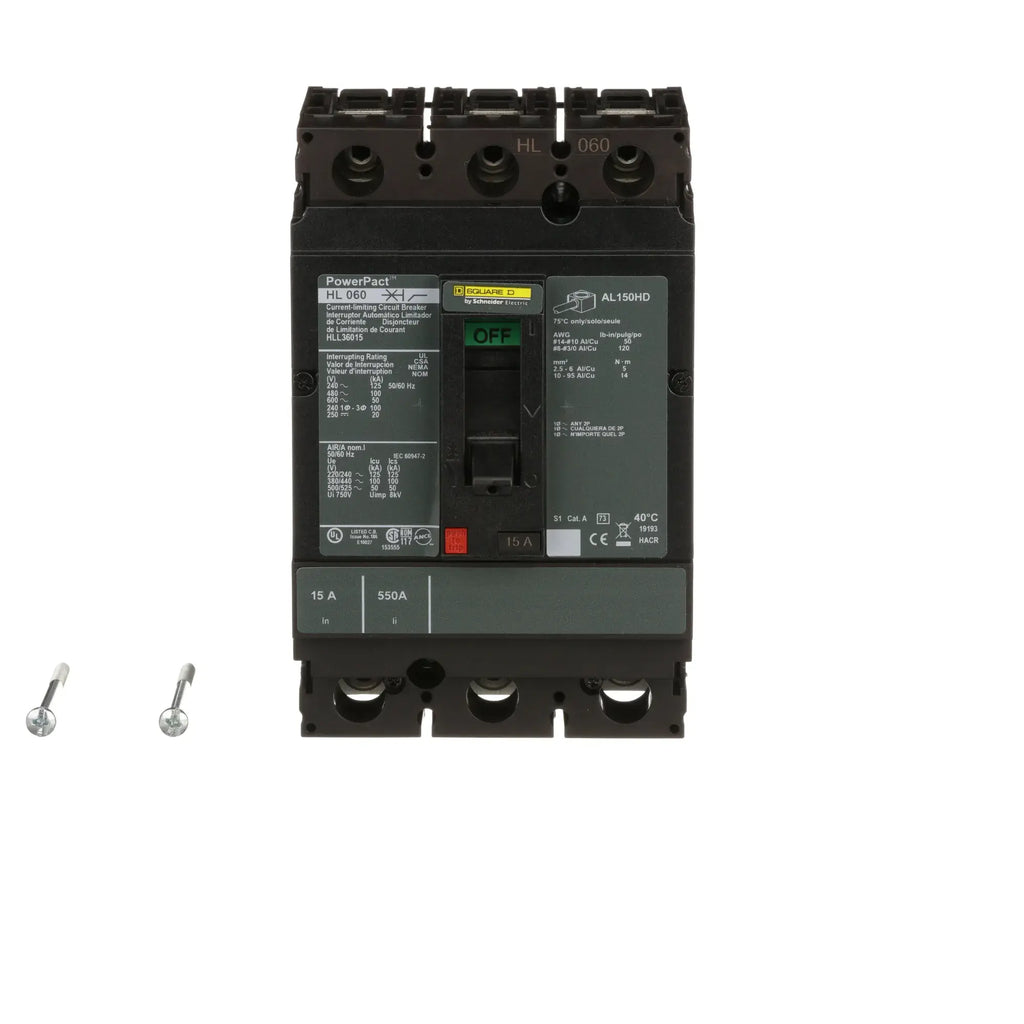

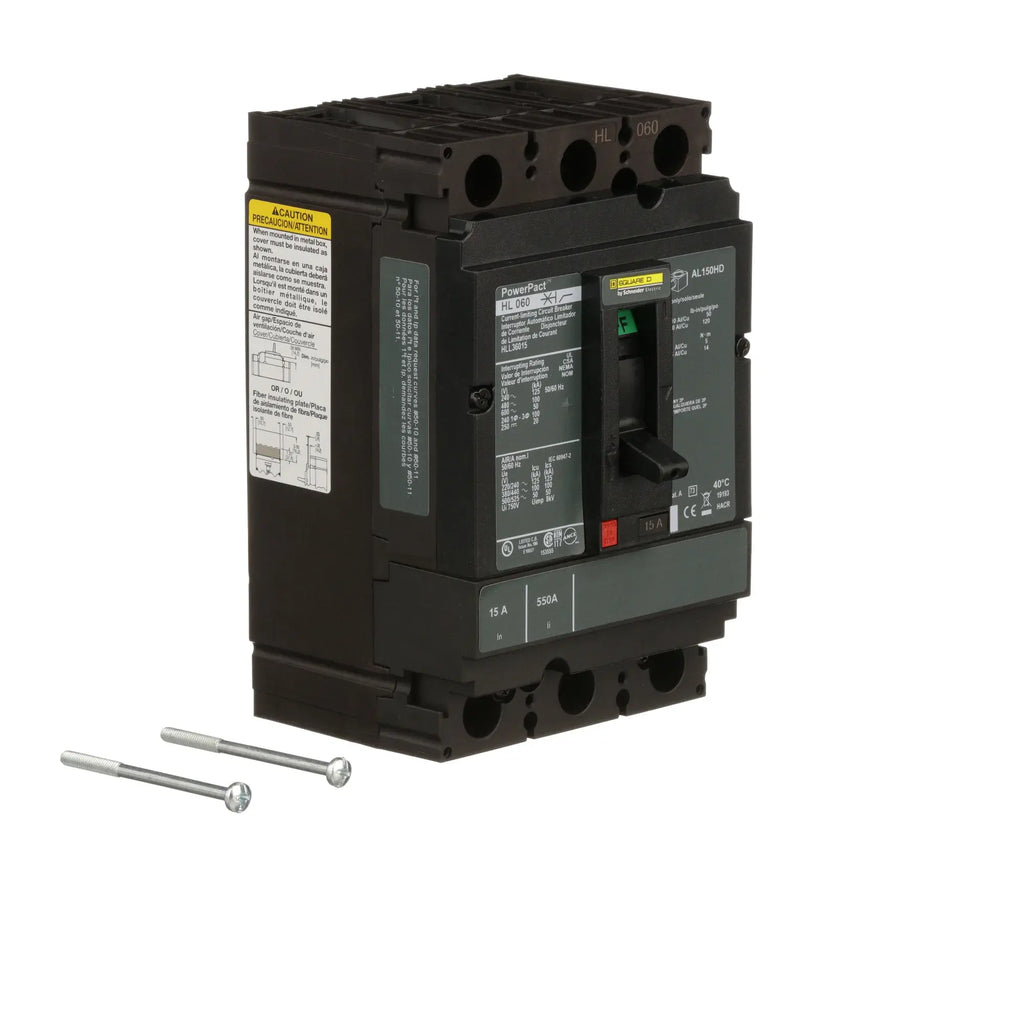

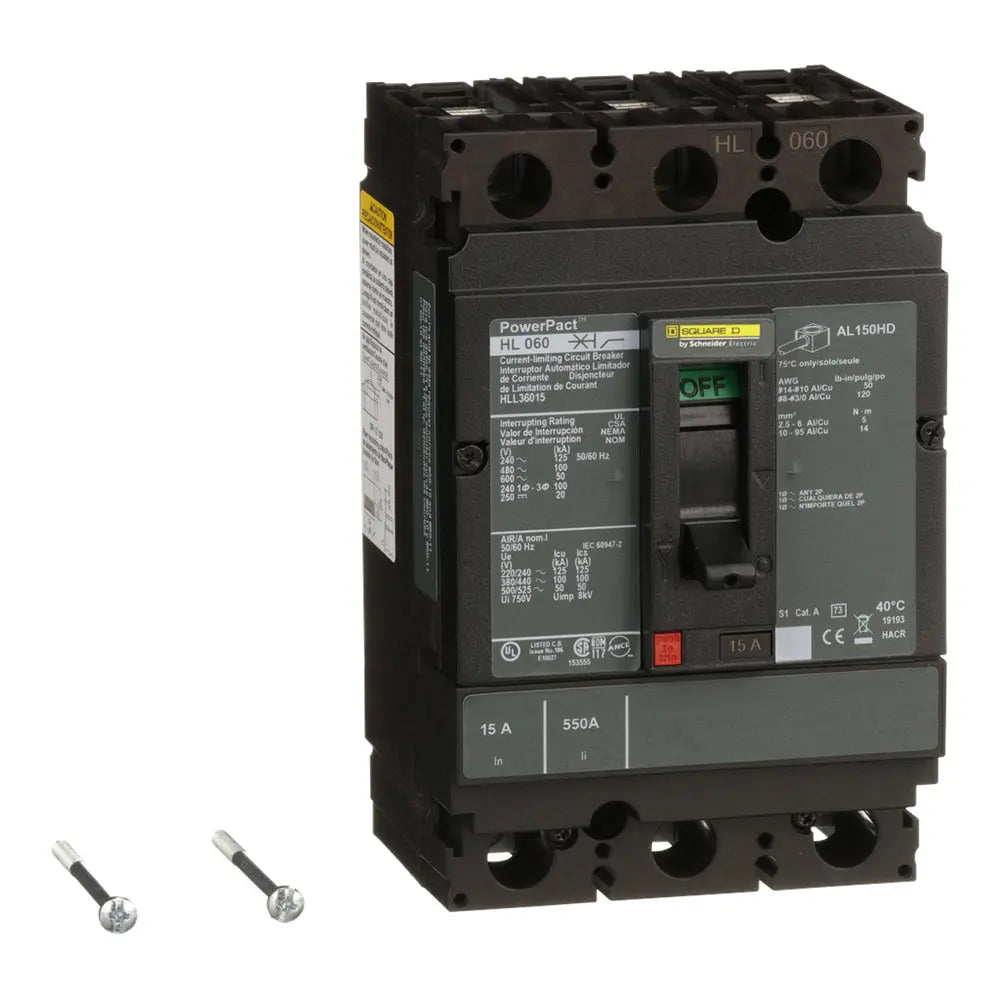

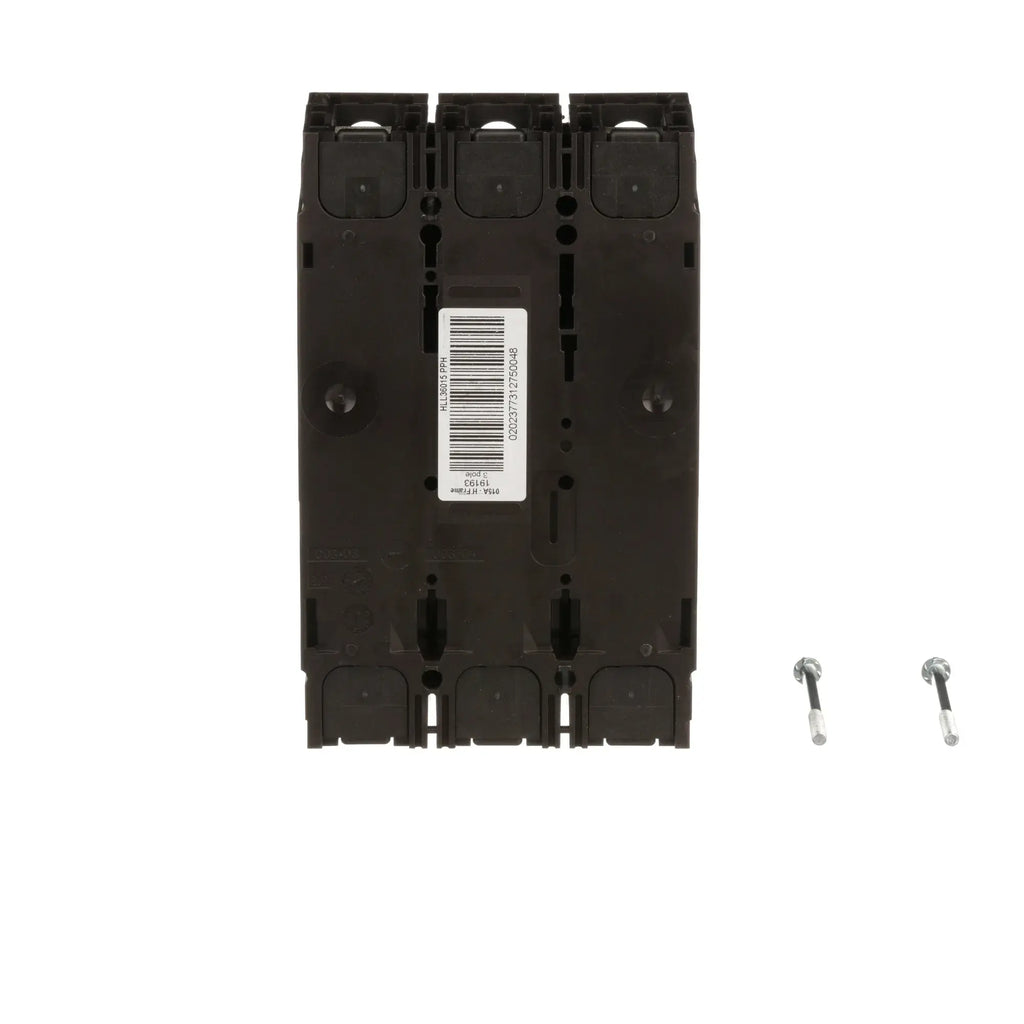

HLL36015 is a Square D 3 pole, 15 amp, 600VAC circuit breaker with thermal magnetic trip unit designed for reliable overload and short circuit protection.This molded case circuit breaker features an H frame type with unit mount construction, rated for 600 volts AC and 15 amps continuous current. It offers a 50kA interrupt rating at 600VAC and includes line and load lugs for easy installation. The breaker complies with UL 489, CSA, IEC 60947-2, and other industry certifications, ensuring safety and performance in commercial and industrial applications.

Key Specifications
• Manufacturer: Square D
• Part Number: HLL36015
• Amperage: 15 Amps
• Voltage Rating: 600VAC
• Poles: 3
• Frame Type: H (PowerPact H)
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 50kA at 600VAC
• Mounting Type: Unit Mount
• Certifications: UL 489, CSA C22.2 #5, IEC 60947-2
• UPC: 785901598879

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36015
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28°F to 158°F (-2°C to 70°C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Circuit Breaker Mounting Style : Unit Mount
• Protection : Thermal Magnetic

Product Data

• UPC : 785901598879
• GTIN : 00785901598879
• Country of Origin : Mexico

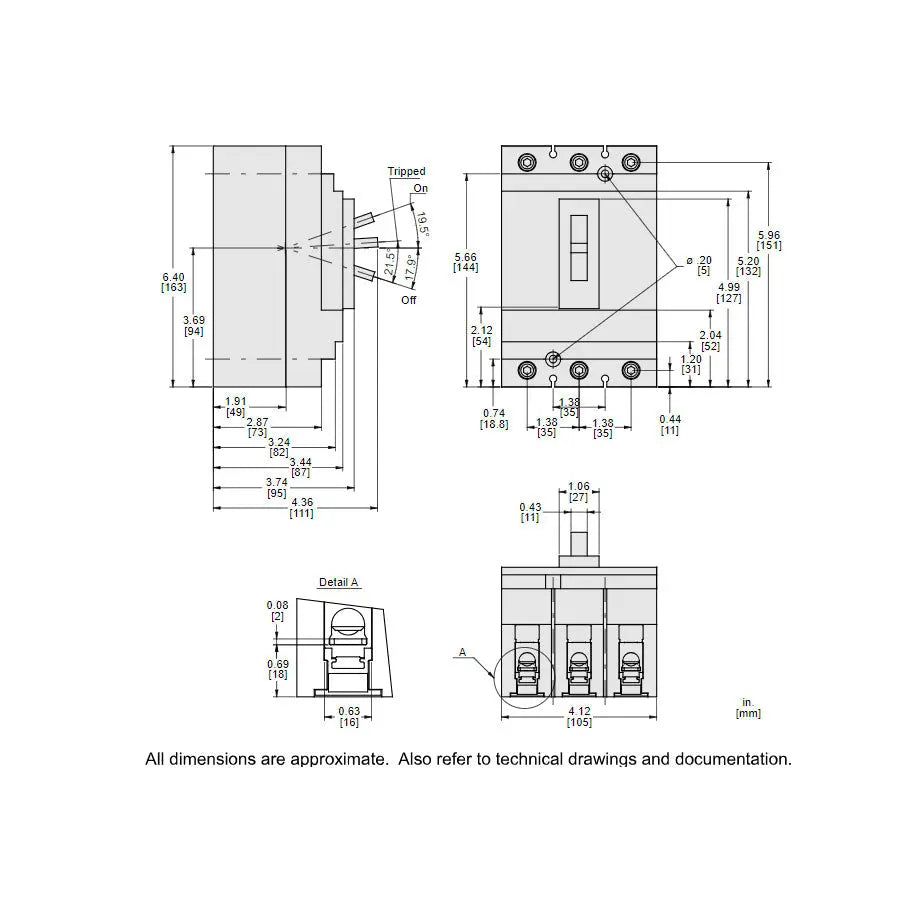

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.112
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
