HLL36030

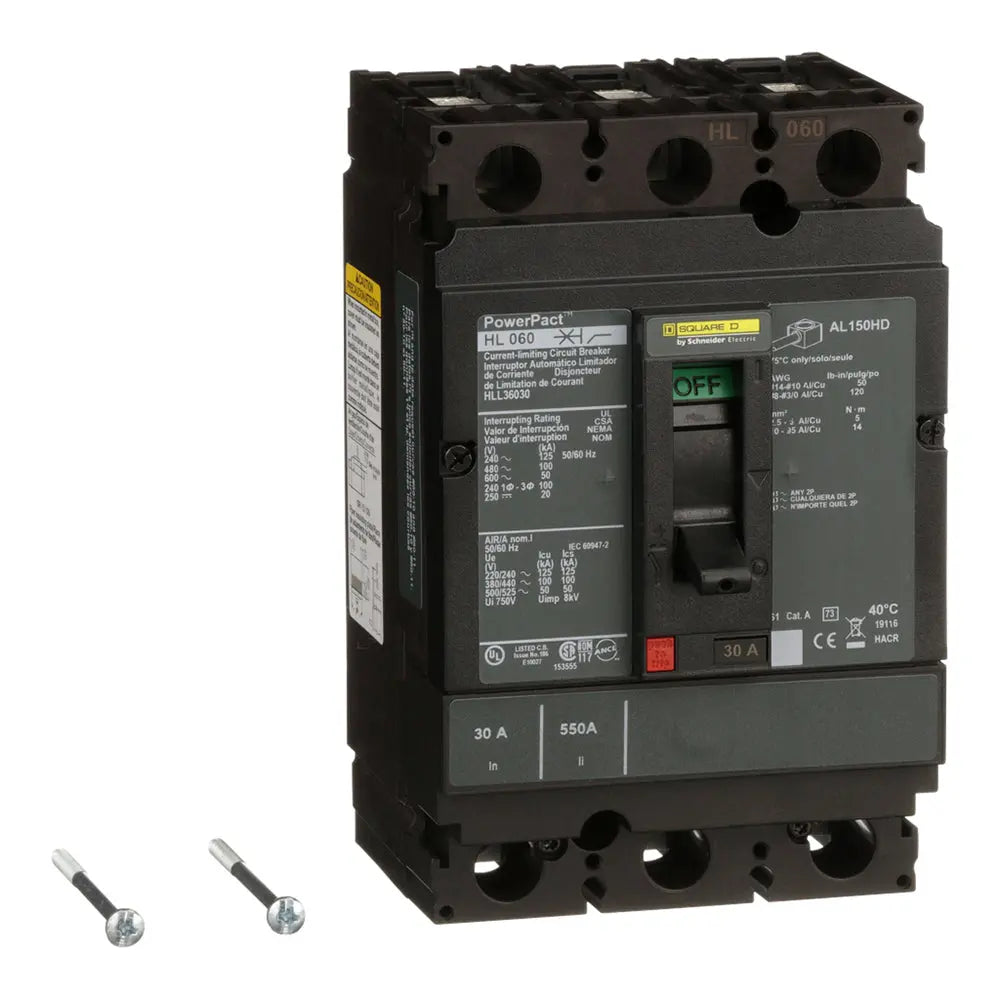

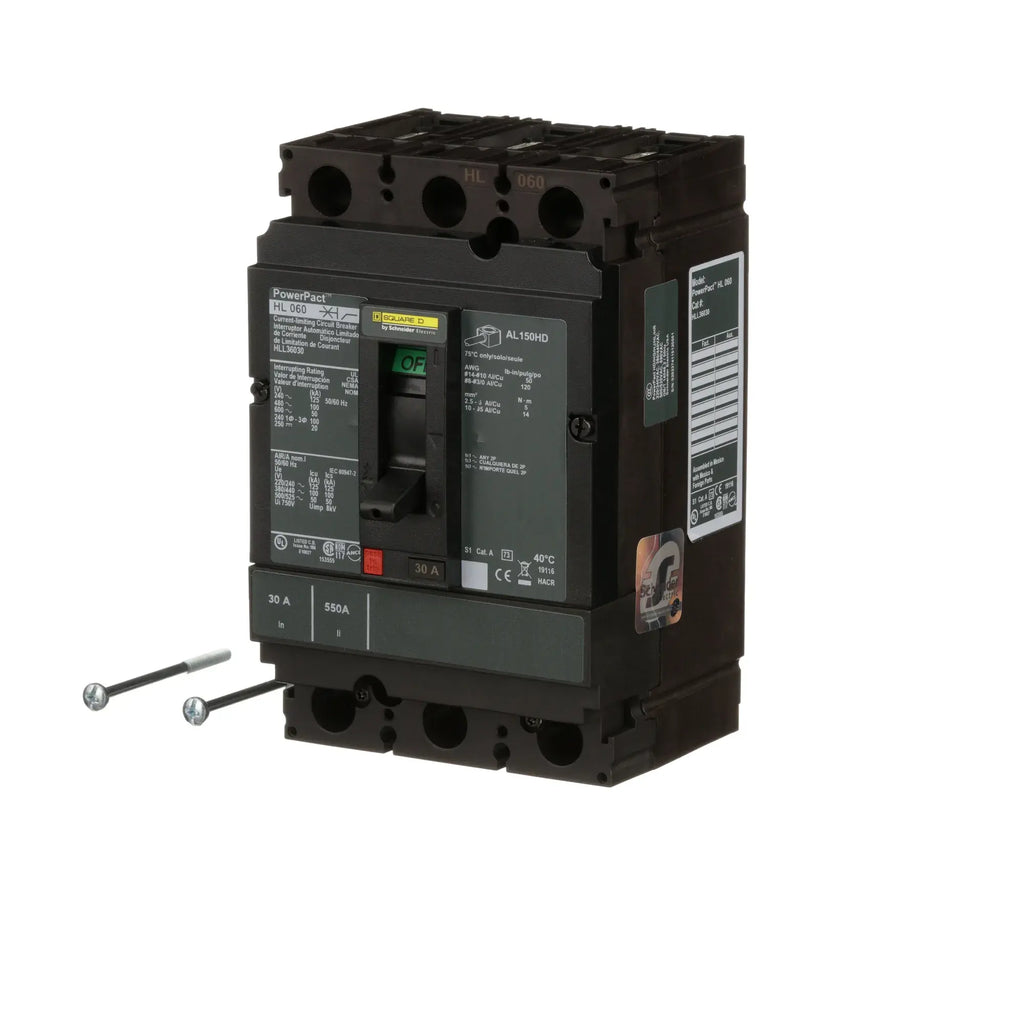

HLL36030 is a 3 pole, 30A, 600V molded case circuit breaker from Square D, designed for reliable protection in commercial and industrial applications. This HLL frame breaker features thermal magnetic trip technology, feed-thru terminals, and a high interrupt rating for demanding environments. The HLL36030 is a current limiting, unit mount molded case circuit breaker suitable for reverse fed applications. It provides long time and instantaneous trip functions, line and load side lug terminals, and non-interchangeable trip for added safety and compliance. The breaker is UL listed and built to meet rigorous industry standards.
- Part Number: HLL36030
- Manufacturer: Square D
- Series/Frame: HLL
- Poles: 3
- Amperage: 30A
- Voltage: 600V AC / 500V DC
- Interrupt Rating: 100kAIC @ 480V
- Mounting Type: Unit Mount Lug
- Trip Unit: Thermal Magnetic
- Features: Feed-Thru, Current Limiting, Suitable for Reverse Fed
- Certifications: UL Listed
- Application: 3 Phase
Specifications
- Part Number: HLL36030
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HLL
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : H
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901433866
- GTIN : 00785901433866
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.06
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
