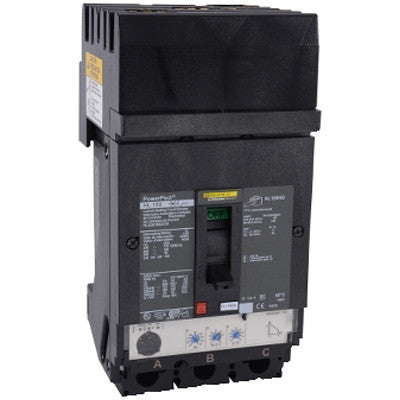

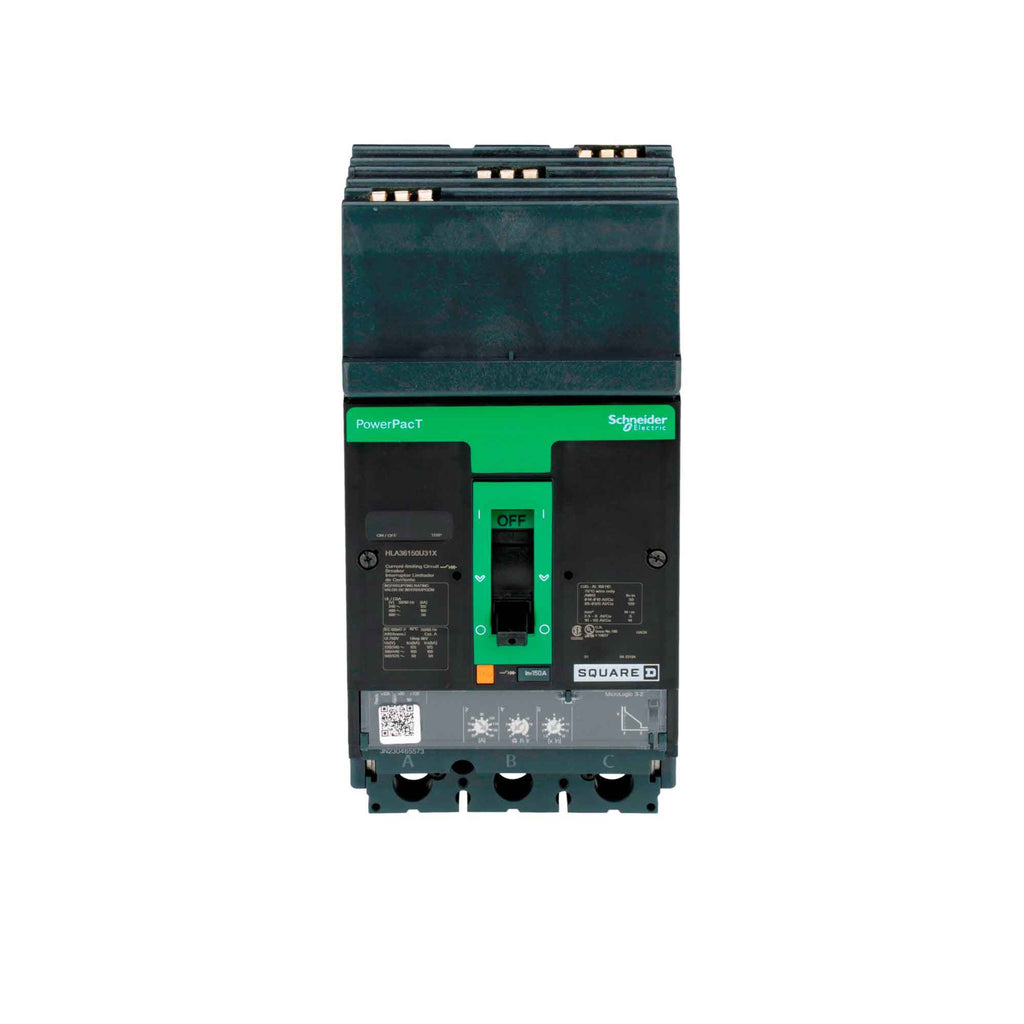

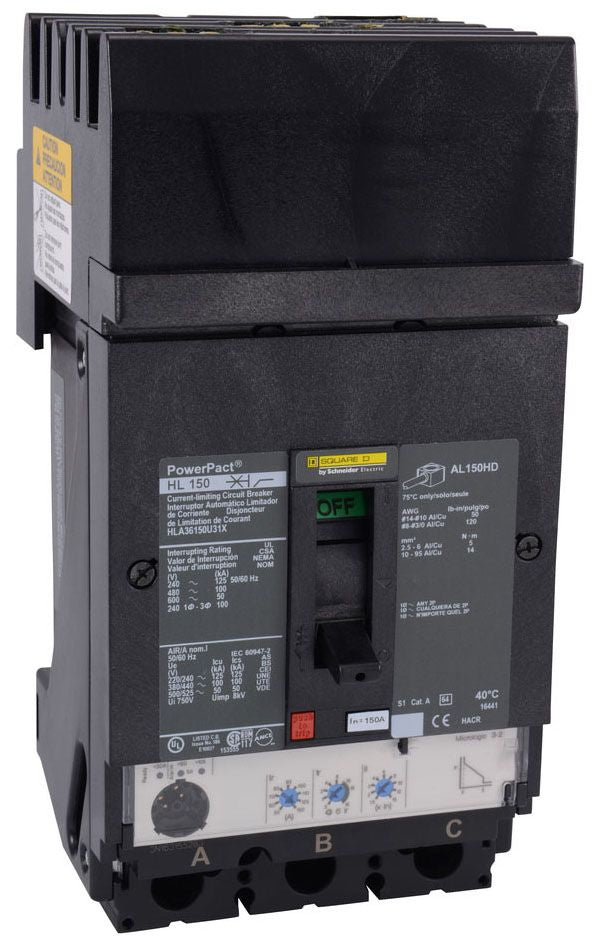

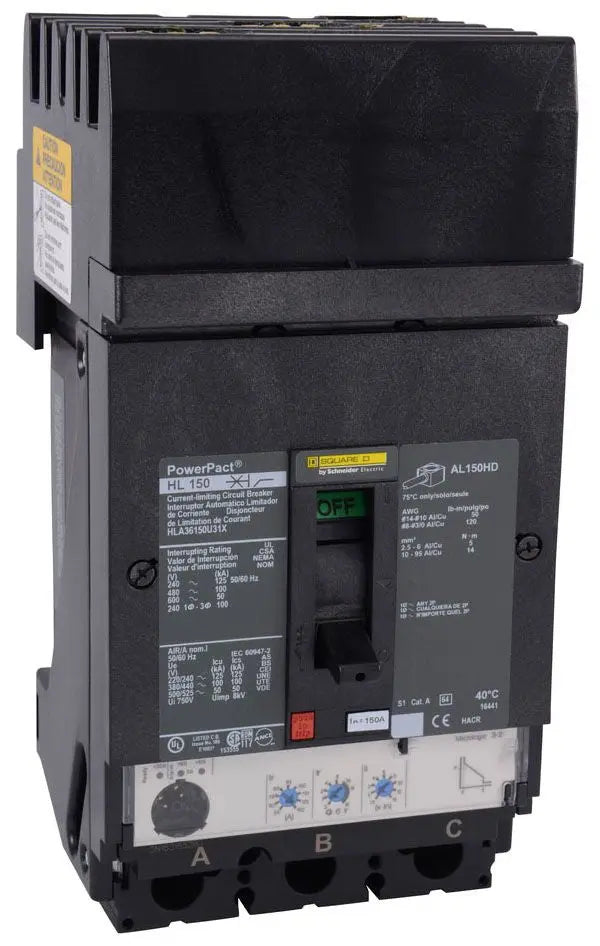

HLA36150U31X - Square D Powerpact H 150A 600V 3 Pole I-Line Circuit Breaker with Micrologic 3.2 Trip Unit

HLA36150U31X

HLA36150U31X is a Square D Powerpact H-frame molded case circuit breaker designed for three-pole, 600 Volt applications with a 150 Amp rating.This circuit breaker features an I-Line plug-in mounting type and includes a Micrologic 3.2 trip unit with LI function, providing reliable motor protection and control.

Key Specifications
• Amperage: 150 Amps
• Voltage Rating: 600 Volts AC
• Number of Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 50kA at 600VAC
• Series/Frame: Powerpact H
• Trip Unit: Micrologic 3.2 with LI function
• Phase Connection: ABC
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36150U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 078590194766
• GTIN : 00785901947660
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.28
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
