DTNF323R - Siemens 100 Amp 240 VAC 3-Pole Non-Fusible Heavy Duty Safety Switch NEMA 3R

DTNF323R

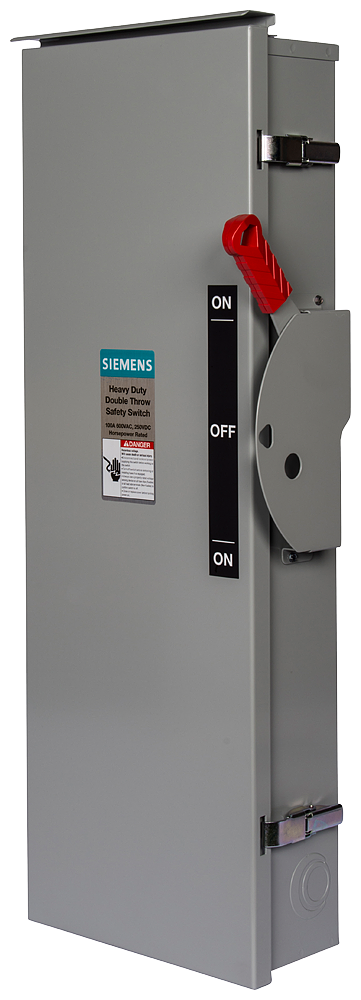

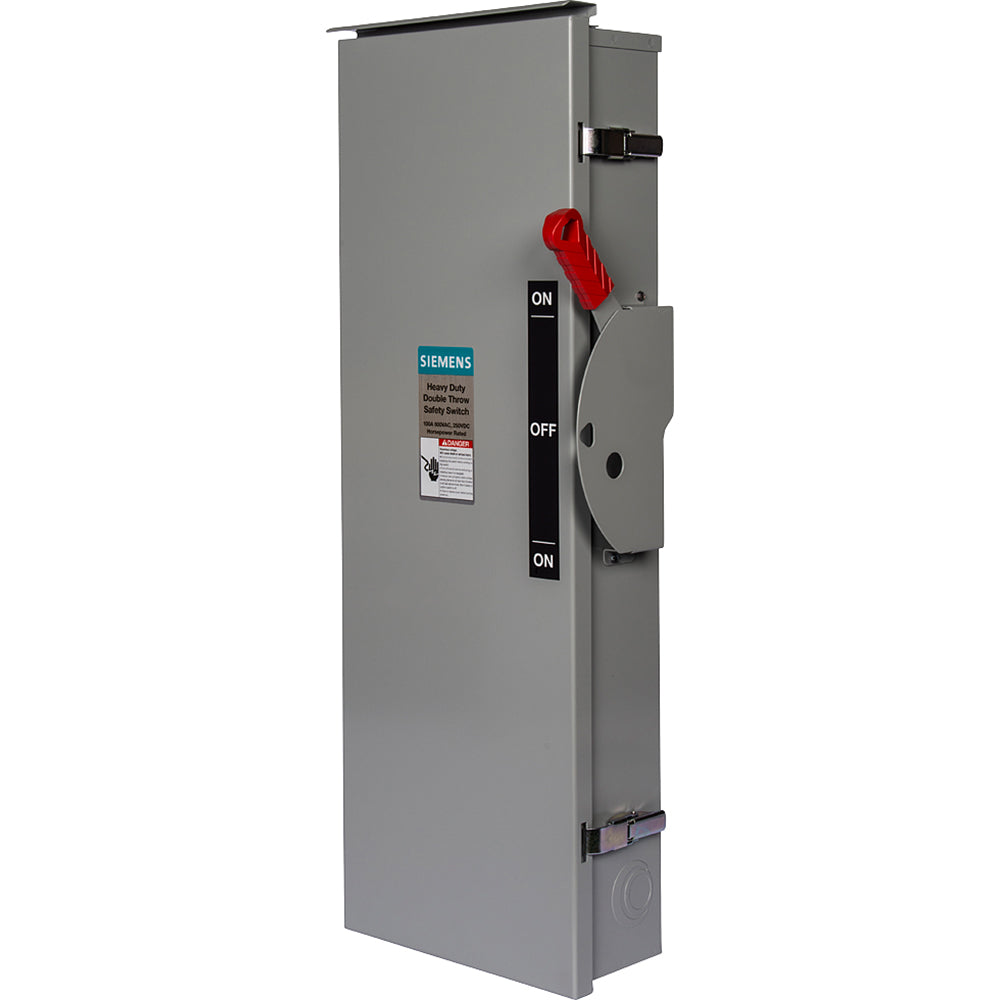

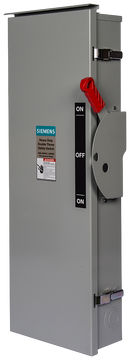

DTNF323R is a Siemens 100 Amp, 240 VAC, 3-pole non-fusible heavy duty safety switch designed for reliable power distribution and service equipment use.This enclosed safety switch features a NEMA 3R rated enclosure suitable for outdoor use, quick-make and break switching action, visible blade double break construction, and a padlockable handle in the OFF position. It meets UL98 and UL50 standards, is UL Listed under file #E4776, and complies with NEC Article 702 for optional standby systems. The switch supports up to 10,000 AIC interrupt rating when protected by Class H fuses and up to 200,000 AIC with Class R, J, or T fuses. Its modular design allows easy replacement of parts and front removable lugs convertible to copper body or compression type.

Key Specifications
• Amperage: 100 Amp
• Voltage: 240 VAC / 250 VDC
• Poles: 3 Pole, 3 Wire
• Mounting Type: Enclosed, NEMA 3R
• Interrupt Rating: 10,000 AIC (Class H), 200,000 AIC (Class R, J, T)
• Series/Frame: Heavy Duty, Type VBII Double Throw
• Trip Unit: Non-Fusible
• Certifications: UL Listed, UL98, UL50, NEC Compliant
• Handle: Padlockable in OFF position
• Construction: Visible blade, double break
• Operating Temperature: -29 degrees C minimum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DTNF323R
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Wire : 3
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : MAP

Product Data

• UPC : 783643454163
• GTIN : 00783643454163
• Country of Origin : Mexico
• Dimensions : 31.89 x 16.929 x 10.63 inch
• Weight : 46.892
• Certification : UL98
