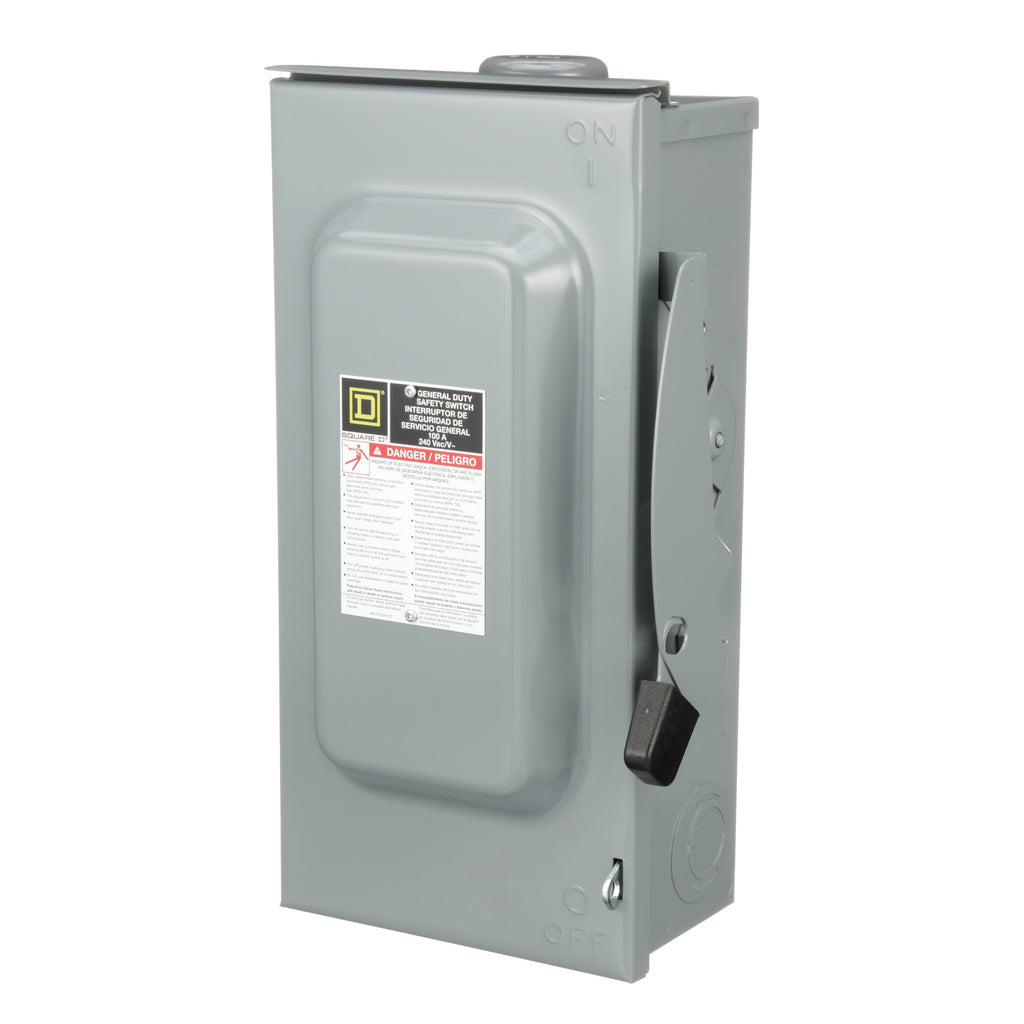

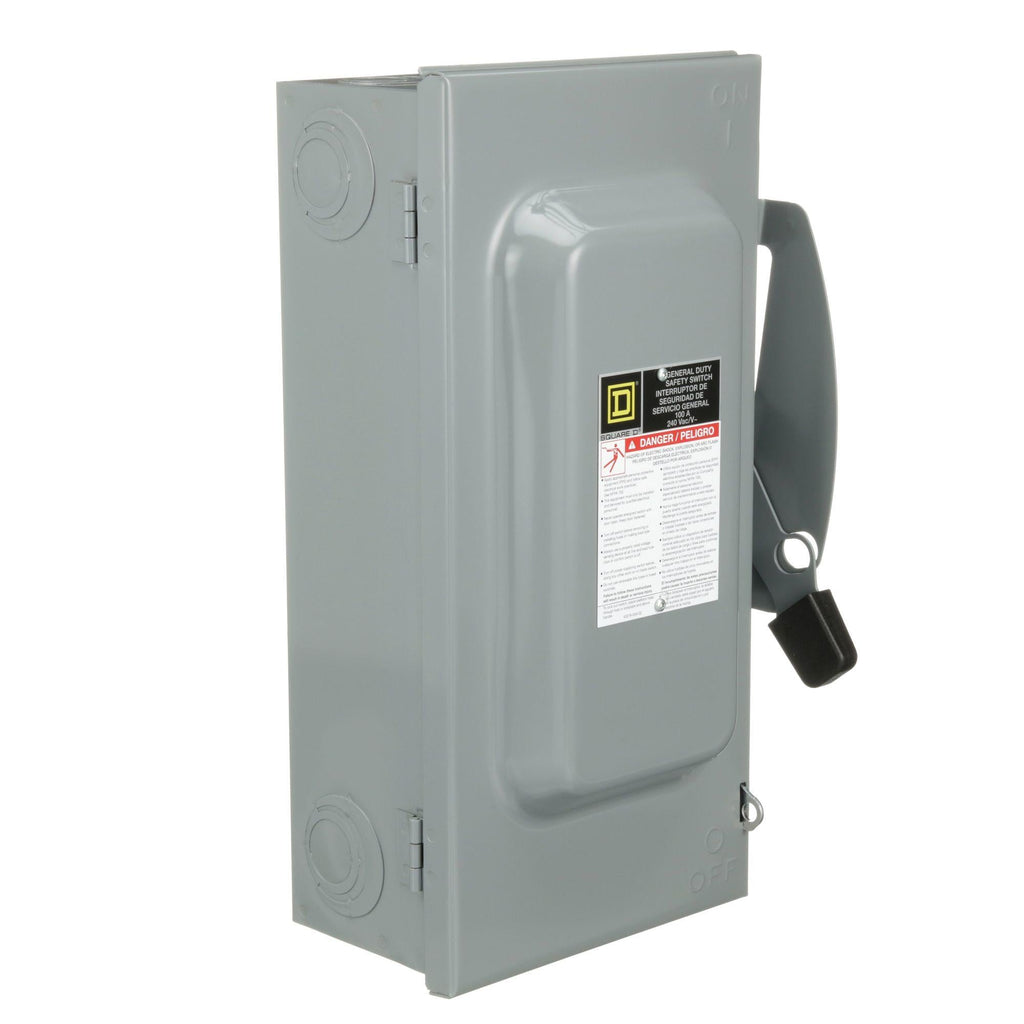

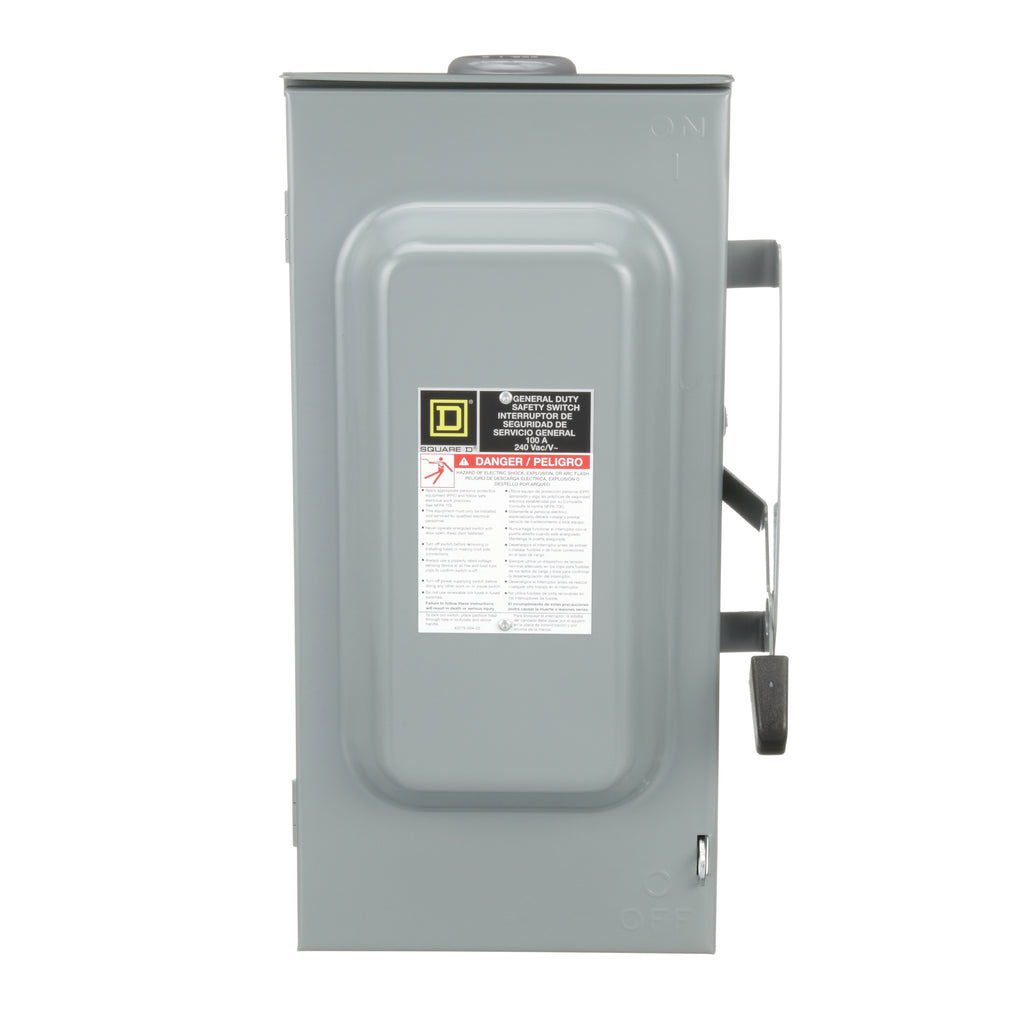

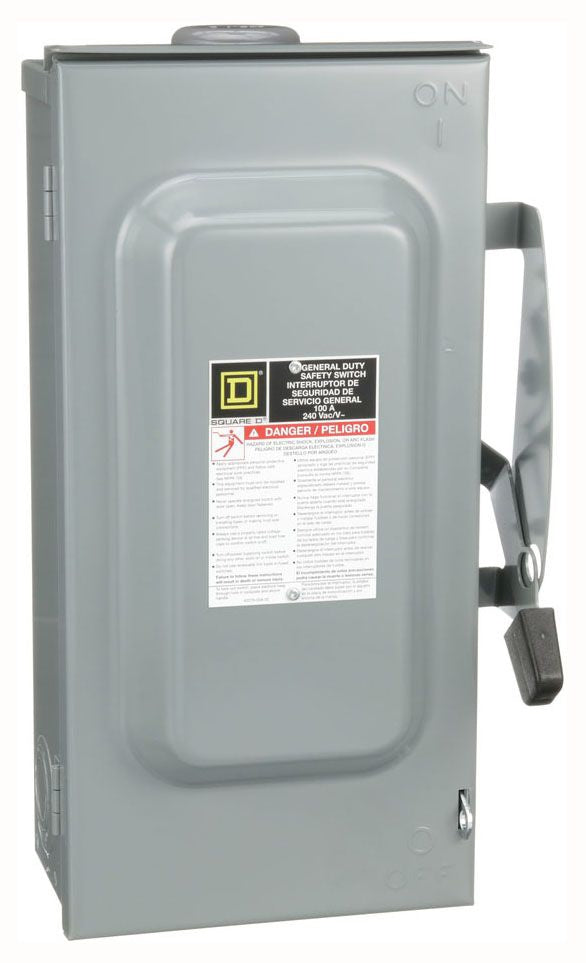

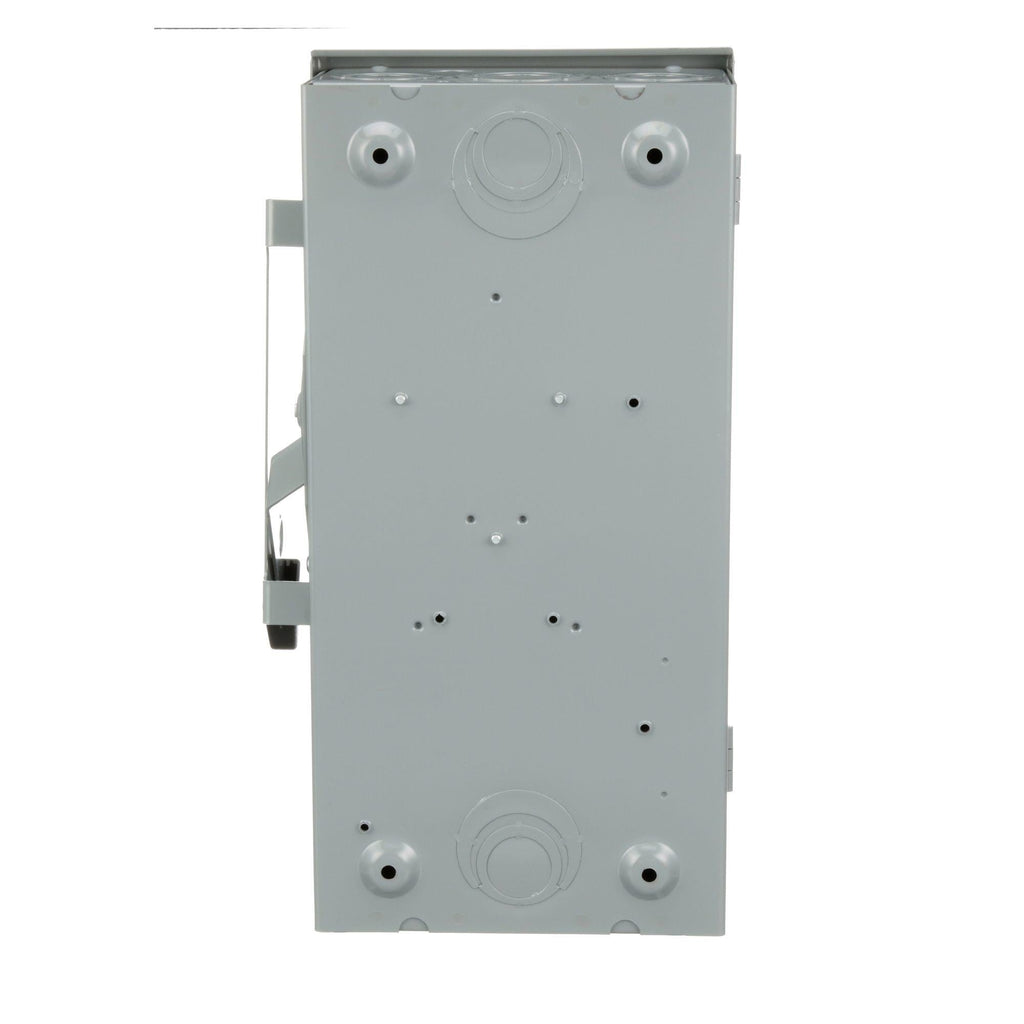

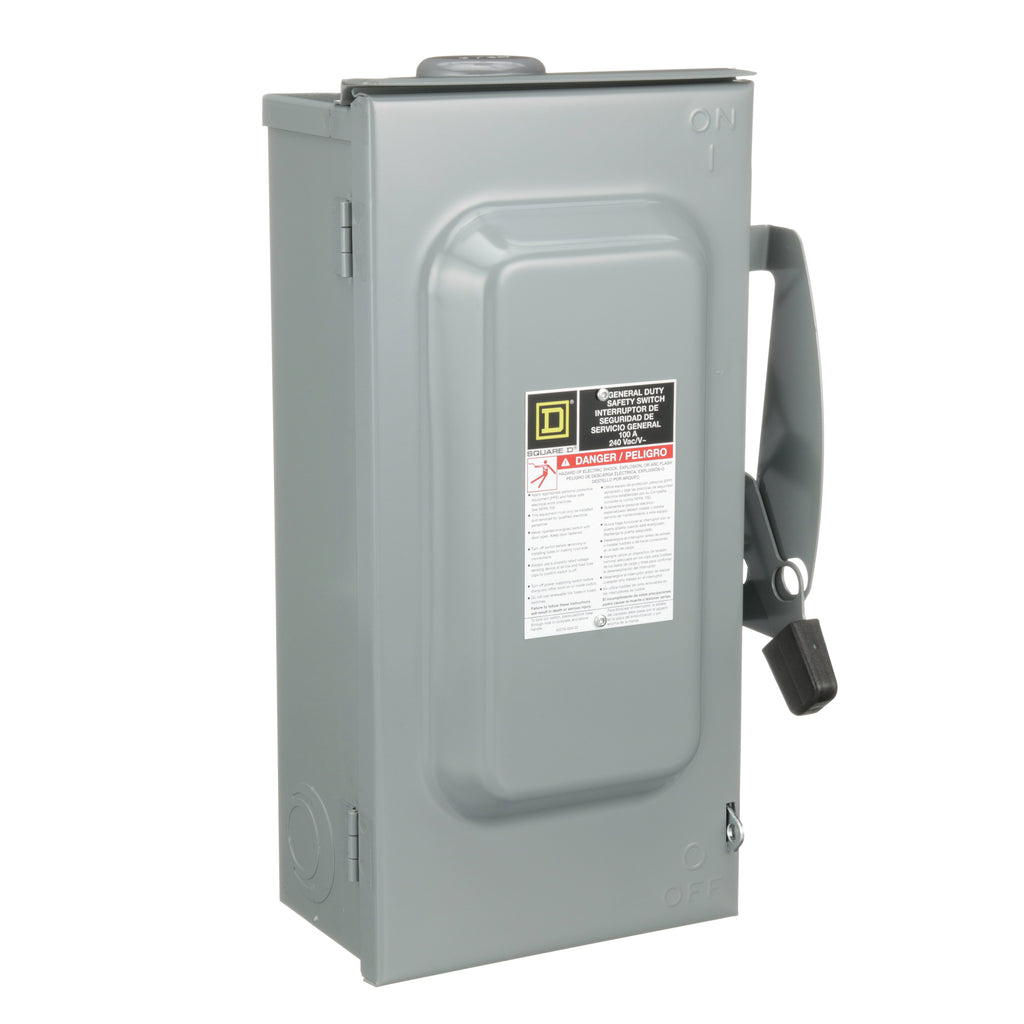

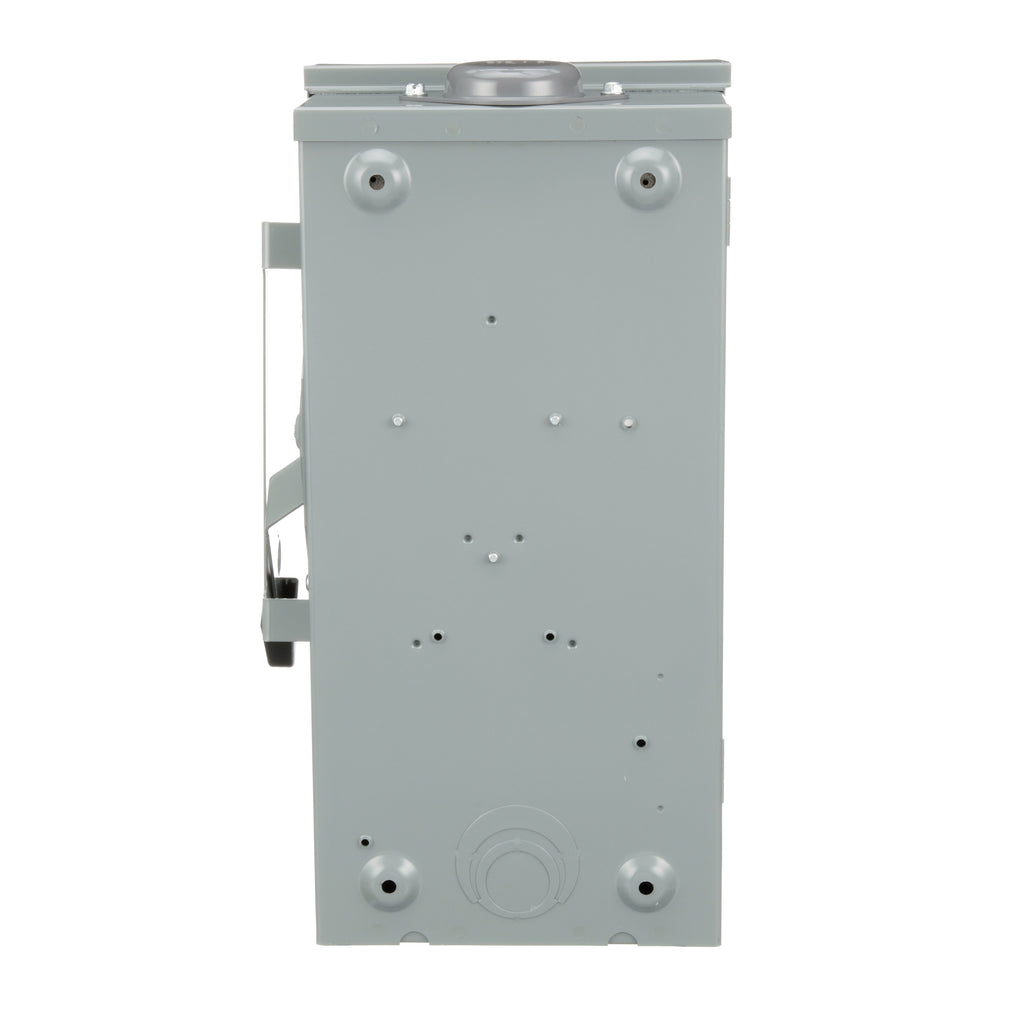

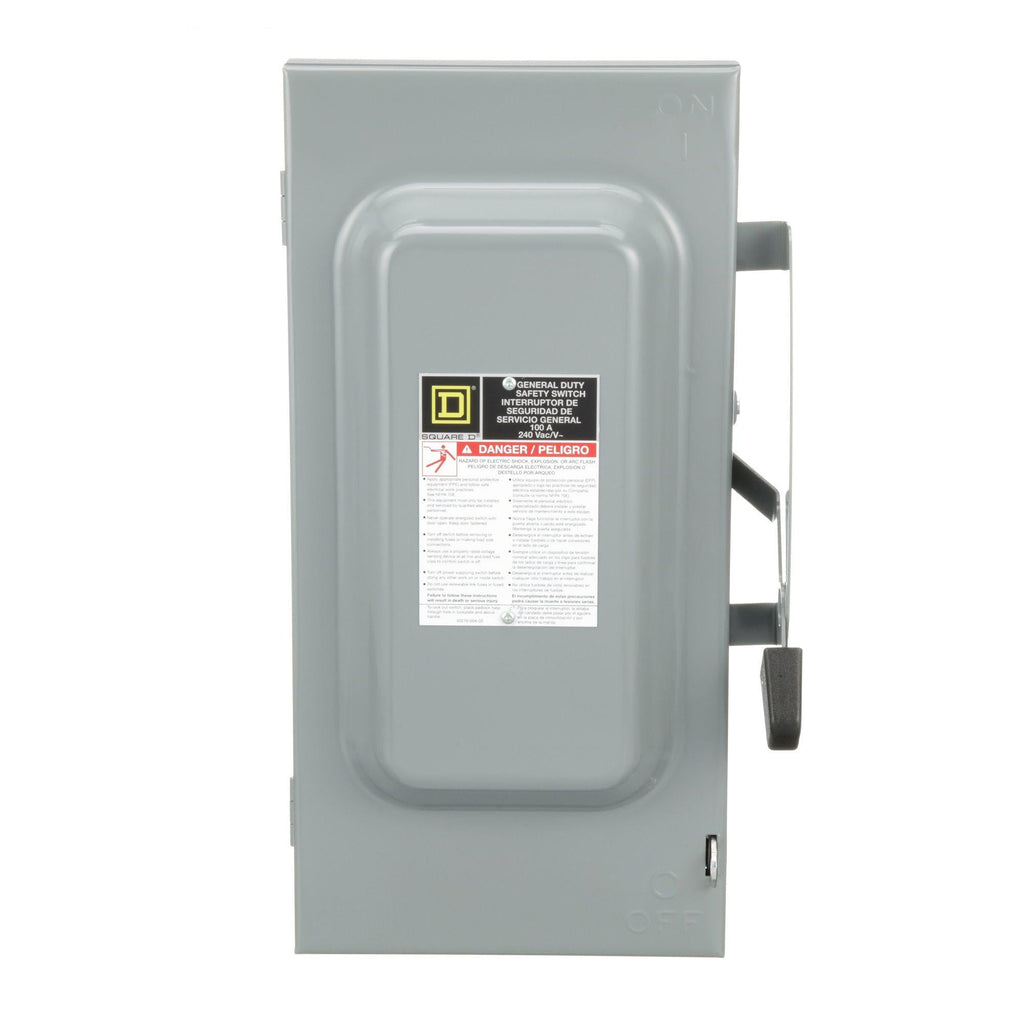

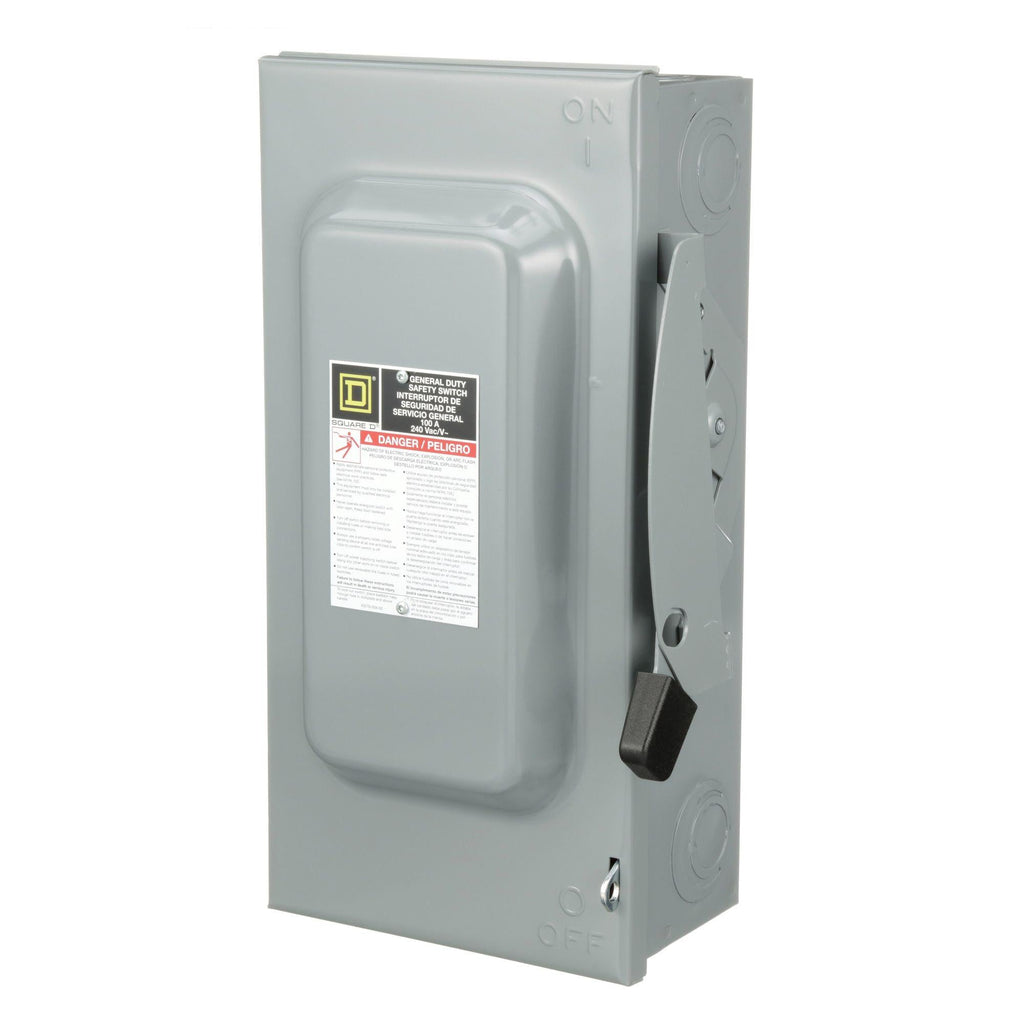

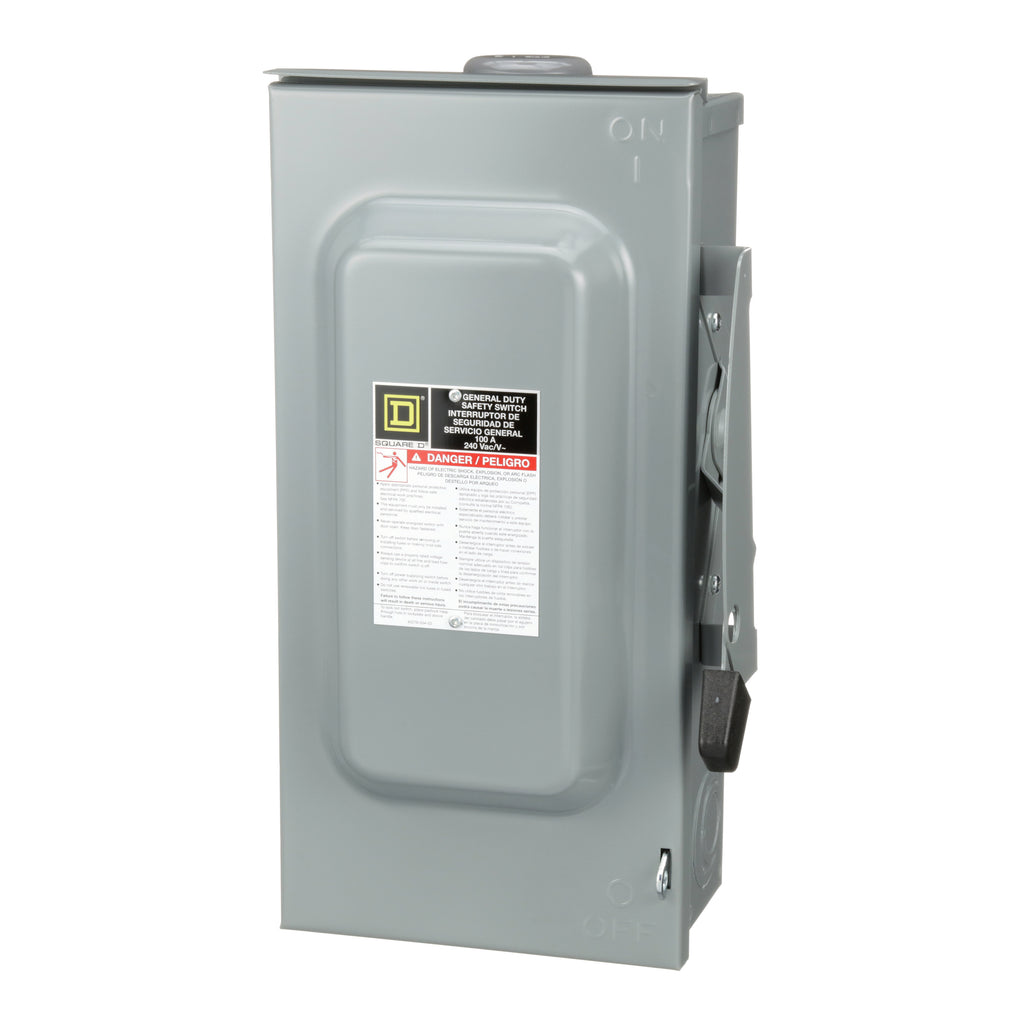

DU323RB - Square D 100A 240V 3-Pole Non-Fusible General Duty Safety Switch NEMA 3R Surface Mount

DU323RB

DU323RB is a Square D 100 Amp, 240 Volt, 3-Pole non-fusible general duty safety switch with a NEMA 3R enclosure designed for surface mounting. This single throw disconnect switch is suitable for residential and commercial applications requiring durable and economical power control.This switch features a steel NEMA 3R enclosure rated for rainproof outdoor use, accommodates wire sizes from 14 to 1 AWG copper and 12 to 1 AWG aluminum, and includes lugs for secure conductor connections. It is UL listed and designed for general duty applications such as lighting, air conditioning, and appliances. The switch has a bolt-on hub type and no neutral terminal block.

Key Specifications
• Amperage: 100 Amp
• Voltage: 240 Volt AC
• Poles: 3 Pole
• Type: Non-fusible, Single Throw Safety Switch
• Enclosure Rating: NEMA 3R (rainproof)
• Mounting Type: Surface Mount
• Conductor Size: 14-1 AWG Aluminum, 12-1 AWG Copper
• Enclosure Material: Steel
• UL Listed
• Dimensions (HxWxD): 17.5 x 10.5 x 6.5 inches
• Weight: Approx. 15 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DU323RB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : DU
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : NSE

Product Data

• UPC : 785901491828
• GTIN : 00785901491828
• Country of Origin : United States
• Dimensions : 17.5 in (444.5 mm) x 10.5 in (266.7 mm) x 6.5 in (165.1 mm) (Height x Width x Depth)
• Weight : 14.989
• Certification : UL listed
