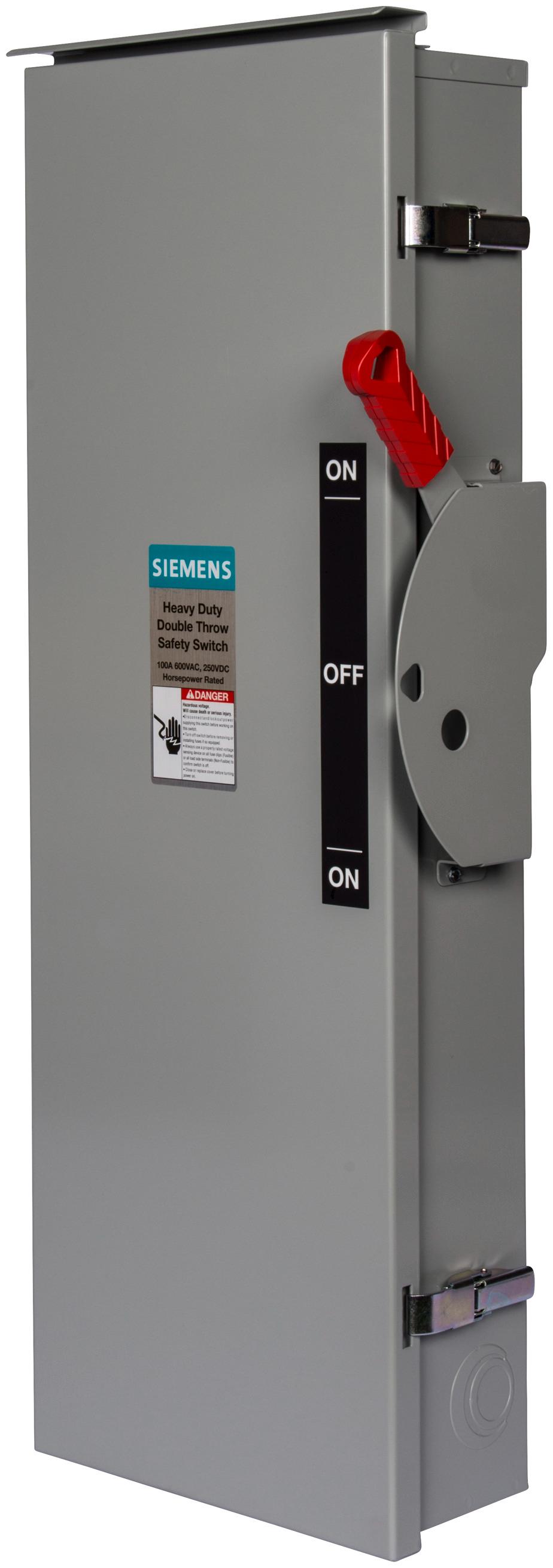

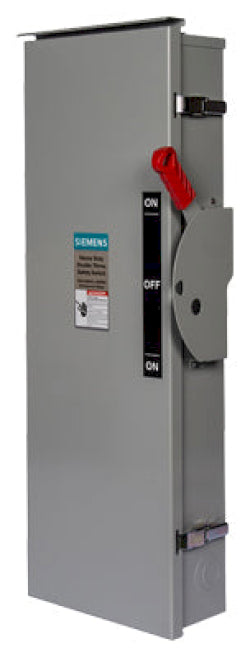

DTNF324 - Siemens 200 Amp 240V 3 Pole Non-Fusible Heavy Duty Double Throw Safety Switch NEMA 1

DTNF324

DTNF324 is a Siemens heavy duty non-fusible double throw safety switch designed for reliable load transfer between power sources in industrial and commercial applications. This 3 pole, 200 amp, 240V switch features a NEMA 1 enclosure and is suitable for indoor use as service equipment. The switch is UL98 listed and rated for both horsepower and load break operations, making it ideal for demanding environments. The operating handle can be padlocked in the off position, and a cover interlock is provided for added safety. Mechanical lugs provide secure electrical connections, and the steel housing ensures durability. This Siemens DTNF324 switch is part of the VBII series and is engineered for heavy duty service with a high interrupting rating. It is suitable for use on systems up to 100,000A when protected with Class R or Class T fuses. The switch is designed for surface mounting and is rated for 50/60 Hz operation. It is not fusible and does not include a trip unit, making it a straightforward disconnect solution for critical power transfer needs.

• Part Number: DTNF324
• Manufacturer: Siemens
• Amperage: 200 A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 100,000A (with Class R/T fuses)
• Series/Frame: VBII
• Trip Unit: None (Non-Fusible)
• Certifications: UL98 Listed
• Enclosure: NEMA 1 (Indoor)
• Application: Load Transfer Between Power Sources

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DTNF324
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Family : VBII Series
• Type : DTNF
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : MAP

Product Data

• UPC : 783643454170
• GTIN : 00783643454170
• Country of Origin : Mexico
• Dimensions : 40.551 x 24.409 x 11.417 inch
• Weight : 73.149
