Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Disconnect
- Series
- VBII Series
- Frame
- DTNF
- Rated current
- 200
- Voltage
- 600 AC
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 200kA@600V
- Configuration
- Single
- Switch style
- Non-Fusible
- Fuse class
- R
- NEMA rating
- NEMA 1
- Country of origin
- Mexico
Show all specifications (6 more)
- Compatible Frames
- MAP
- UPC
- 783643454330
- GTIN
- 00783643454330
- Dimensions
- 40.945 x 25.591 x 11.024 inch
- Weight
- 72.157
- Certification
- UL98
Product description & additional details
DTNF364

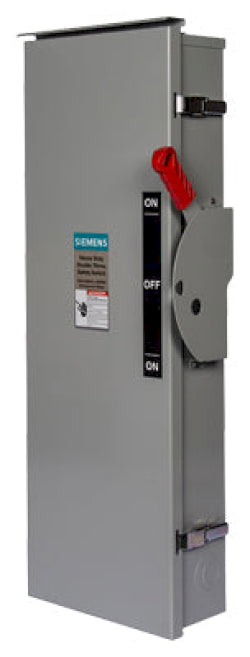

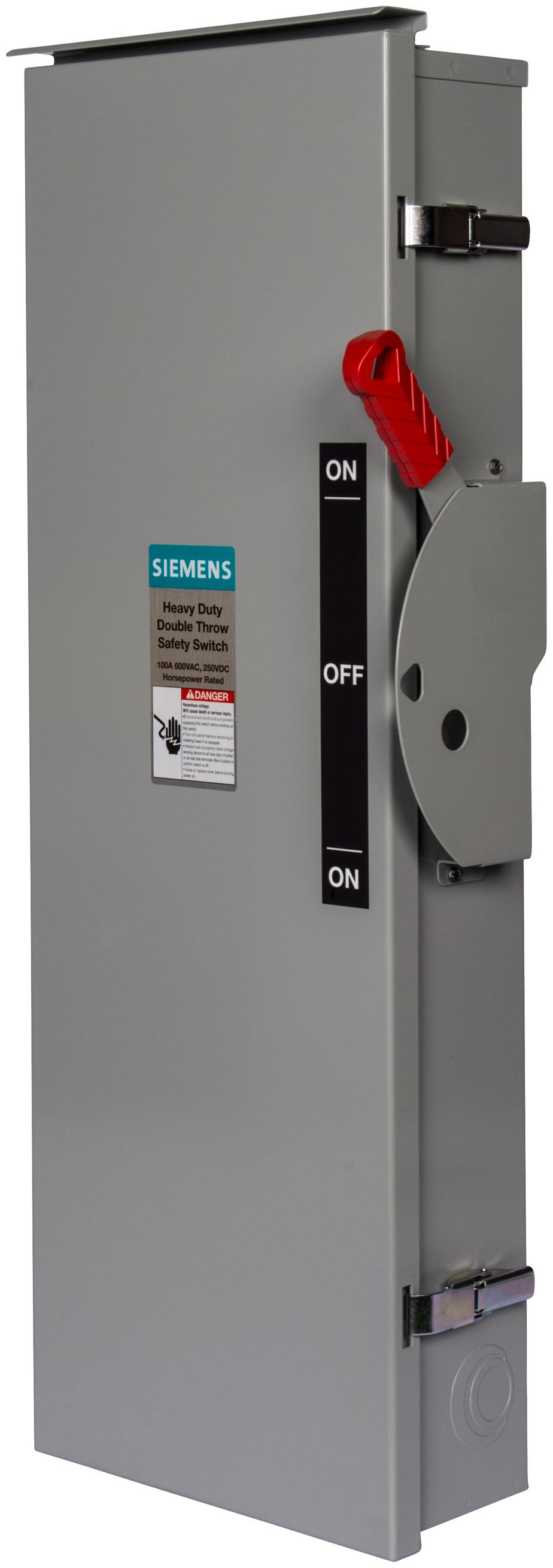

DTNF364 is a Siemens heavy duty non-fusible double throw safety switch rated for 200 amps and 600 volts AC with 3 poles.
This Siemens DTNF364 switch is designed for transferring loads between two power sources with a 3-pole, 3-wire configuration. It supports 600 VAC and 250 VDC operation, has a 200 ampere current rating, and is suitable for heavy duty service equipment applications. The switch features a TPDT contact form, a 150 hp motor rating at 60 Hz, and is UL listed for safety. It includes a cover interlock and can be padlocked in the OFF position for added security. The switch is rated for 200 kA interrupt capacity and is intended for use in systems requiring reliable load transfer and service equipment compliance.
- Key Specifications
- Amperage: 200 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3 Pole
- Type: Heavy Duty Non-Fusible
- Contact Form: TPDT (Triple Pole Double Throw)
- Horsepower Rating: 150 hp at 60 Hz
- Interrupt Rating: 200 kA
- Mounting Type: Enclosed, suitable for service equipment
- UL Listed
- Padlockable OFF position
- Frequency: 60 Hz
- Part Number: DTNF364
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Family : VBII Series
- Type : DTNF
- Voltage : 600 AC
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
- Compatible Frames : MAP
- UPC : 783643454330
- GTIN : 00783643454330
- Country of Origin : Mexico
- Dimensions : 40.945 x 25.591 x 11.024 inch
- Weight : 72.157
- Certification : UL98
