DTNF322 - Siemens 60A 3P 240V Non-Fusible Double Throw Safety Switch

DTNF322

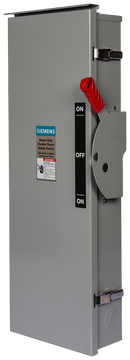

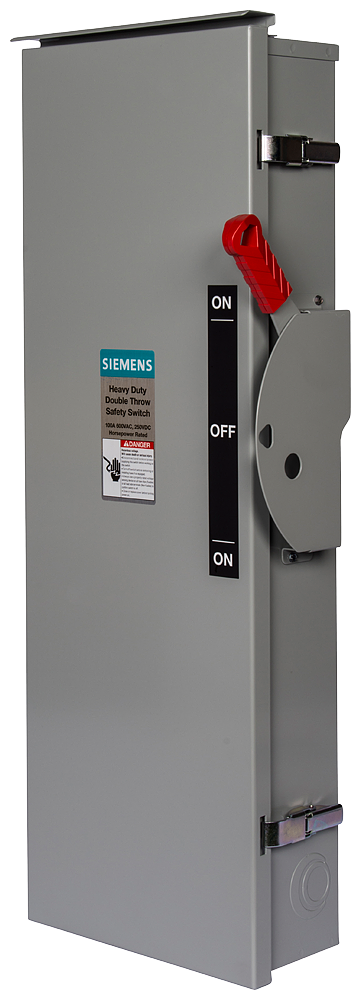

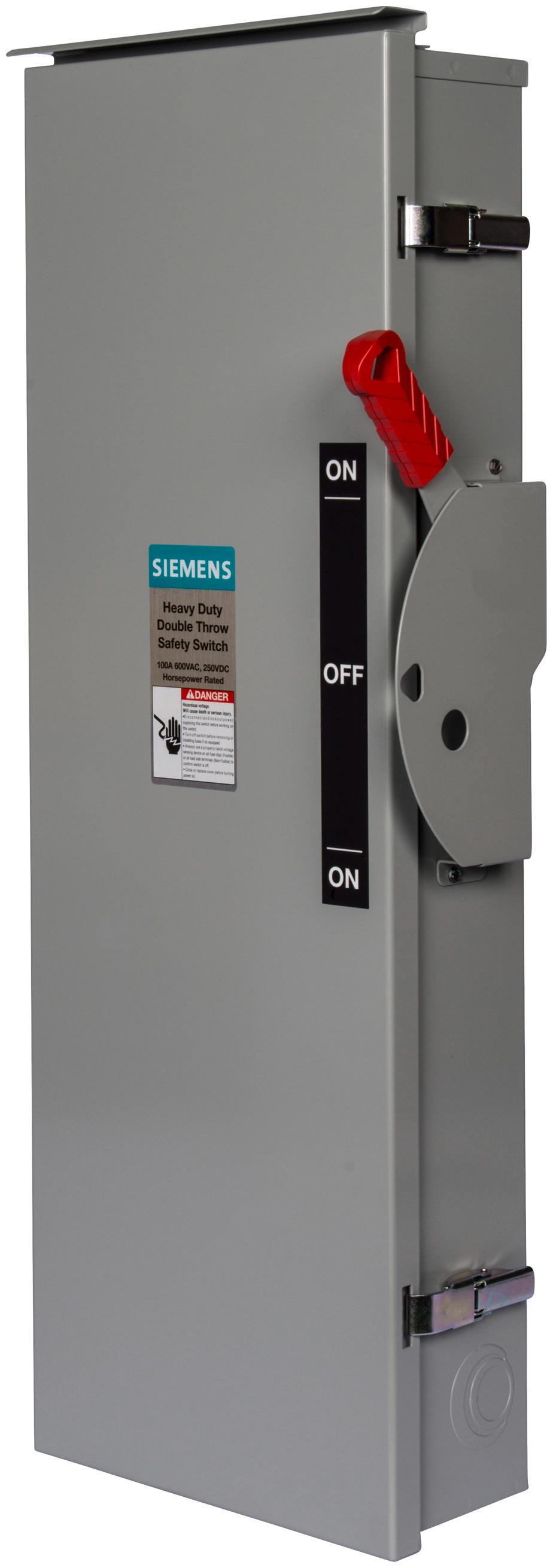

DTNF322 is a Siemens heavy duty non-fusible double throw safety switch rated for 60 amperes at 240 volts AC with three poles for load transfer between power sources.DTNF322 is a Siemens heavy duty non-fusible double throw safety switch rated for 60 amperes at 240 volts AC with three poles for load transfer between power sources. This Type 1 enclosed switch features a double throw actuating element with mechanical lugs for electrical connection, quick-make and break switching action, and a double break visible blade design. The galvanized steel housing provides durability for indoor applications, and the switch is suitable for single phase, 3 wire configurations with a 20 horsepower rating at 240V. Certified to UL98 standards, this switch delivers reliable performance for disconnect and safety switching applications.

• Amperage: 60 A
• Voltage: 240 VAC
• Poles: 3
• Phase: Single Phase
• Wires: 3 Wire
• Contact Type: TPDT (Three Pole Double Throw)
• Horsepower Rating: 20 hp
• Housing Material: Galvanized Steel
• Design: Type 1 Enclosed
• Actuating Element: Double Throw
• Certification: UL98
• Mechanical Service Life: 10000 operating cycles

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DTNF322
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Family : VBII Series
• Type : DTNF
• Voltage : 240 AC
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : MAP

Product Data

• UPC : 783643454149
• GTIN : 00783643454149
• Country of Origin : Mexico
• Dimensions : 29.528 x 16.535 x 10.63 inch
• Weight : 39.882
• Certification : UL98
