2510FG1P - Essential Electric Supply
2510FG1P - Square D 16A 1-Pole 277VAC Fractional Horsepower Manual Motor Starter NEMA 1 Toggle Switch - Essential Electric Supply
Hover to zoom
2510FG1P - Essential Electric Supply

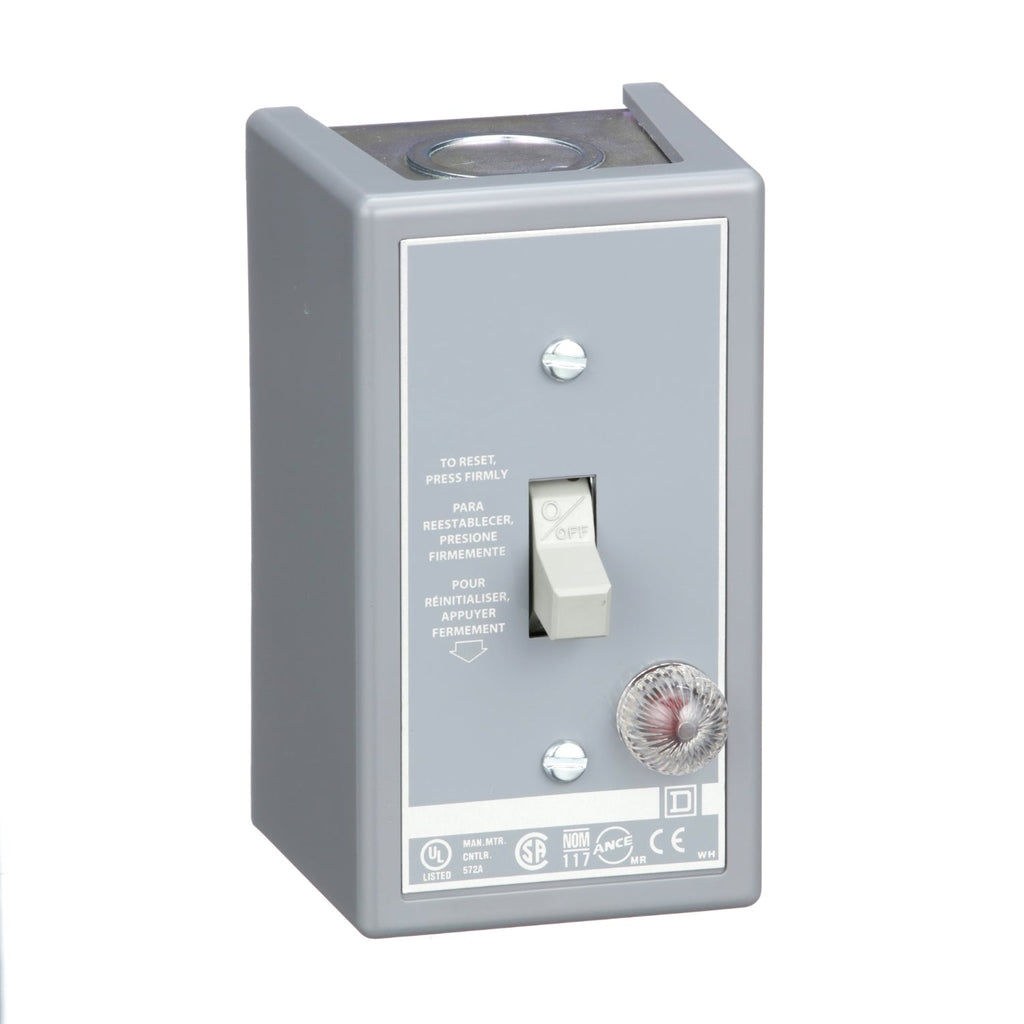

2510FG1P - Square D 16A 1-Pole 277VAC Fractional Horsepower Manual Motor Starter NEMA 1 Toggle Switch - Essential Electric Supply

Reference images. Contact us for photos of the available unit.


Schneider Electric

2510FG1P

Square D 16A 1-Pole 277VAC Fractional Horsepower Manual Motor Starter NEMA 1 Toggle Switch

Current: 16Poles: 1Voltage: 277V
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$109.18 $135.56
Save $26.38
22 In stock, ready to be shipped
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Schneider Electric
Brand
Square D
Sub-Category
Motor Starter
Series
Class 2510
Frame
F
Rated current
16
Voltage
277V
Poles
1
Phases
1
NEMA rating
00
Country of origin
Mexico
UPC
785901553946
GTIN
00785901553946
Dimensions
4.25 in (107.95 mm) x 2.44 in (61.98 mm) x 2.75 in (69.85 mm) (Height x Width x Depth)
Show all specifications (2 more)
Weight
0.8
Certification
CSA LR25490, E42243 CCN NLRV, UL Listed
Product description & additional details

2510FG1P


2510FG1P is a Square D fractional horsepower manual motor starter designed for overload protection and manual ON/OFF control of small motors.2510FG1P features a 16 amp line rated current, supports 1 HP motors at 115, 230, and 277 VAC, and operates at 277V AC system voltage. It is a 1-pole, 1-phase device with a toggle switch control type and includes a red indicator for local signaling. The starter is non-reversing with manual reset and screw clamp electrical connections, housed in a NEMA 1 surface enclosure.
    Key Specifications
    • Amperage: 16A
    • Voltage: 277VAC
    • Poles: 1
    • Phase: 1
    • Motor Power: 1 HP at 115/230/277 VAC
    • Control Type: Toggle Switch
    • Enclosure: NEMA 1 Surface Mount
    • Reset: Manual
    • Local Signaling: Red Indicator
    • Motor Starter Type: Non-Reversing
    • Electrical Connection: Screw Clamp Terminals
    • Series: 2510F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing


Specifications

  • Part Number: 2510FG1P
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Motor Control
  • Item Subcategory : Motor Starter
  • Family : Class 2510
  • Type : F
  • Voltage : 277
  • Amperage : 16
  • Phase : 1
  • Poles : 1
  • Nema Rating : 00

Product Data

  • UPC : 785901553946
  • GTIN : 00785901553946
  • Country of Origin : Mexico
  • Dimensions : 4.25 in (107.95 mm) x 2.44 in (61.98 mm) x 2.75 in (69.85 mm) (Height x Width x Depth)
  • Weight : 0.8
  • Certification : CSA LR25490, E42243 CCN NLRV, UL Listed

Technical Documents
Product Datasheet
Return eligibility: what to know before ordering

Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.

Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.

Read the complete return and warranty policy ↗

Warranty supplied by Essential Electric

Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.

Review coverage, exclusions, and the claim process ↗
