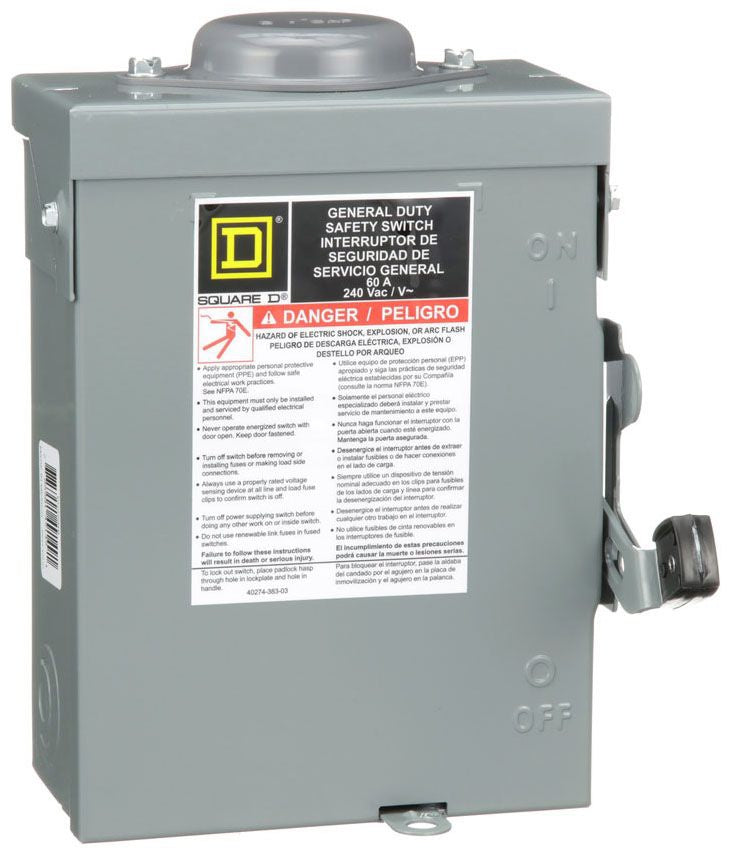

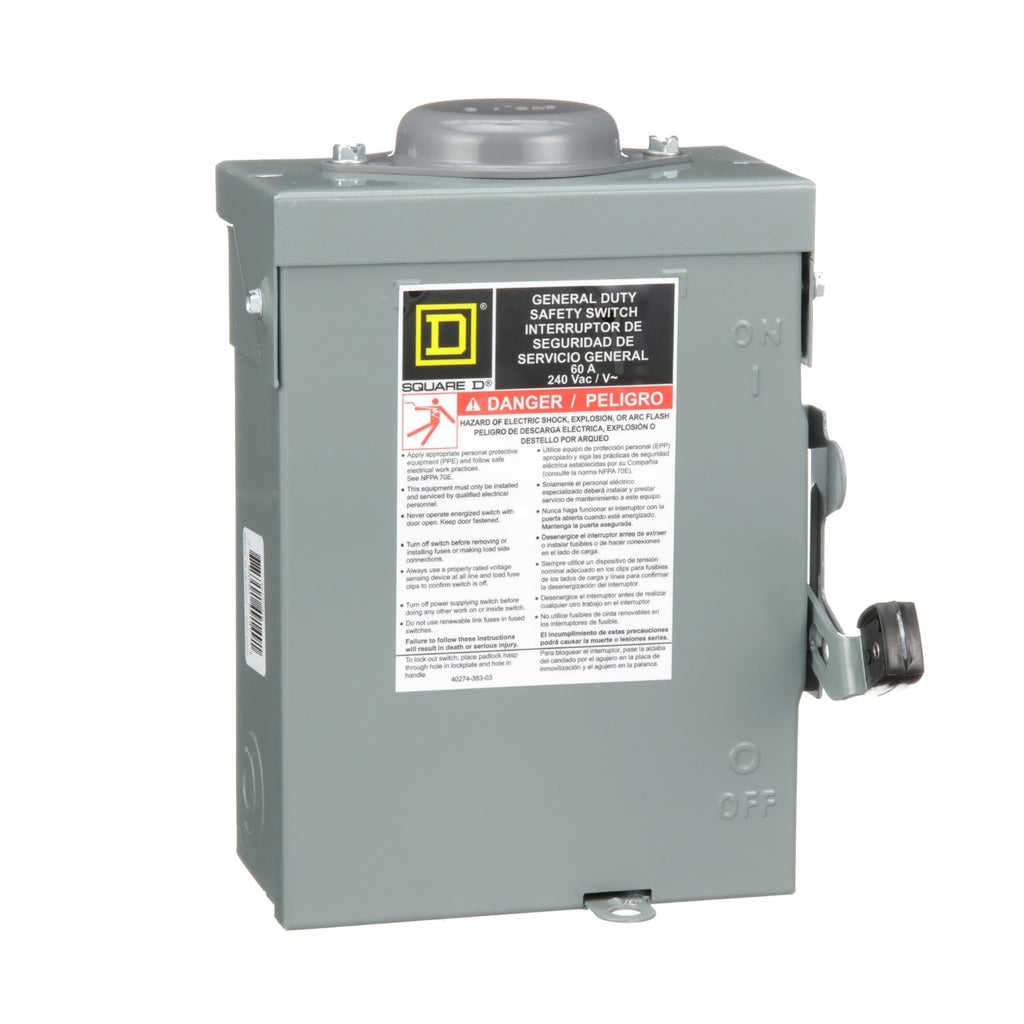

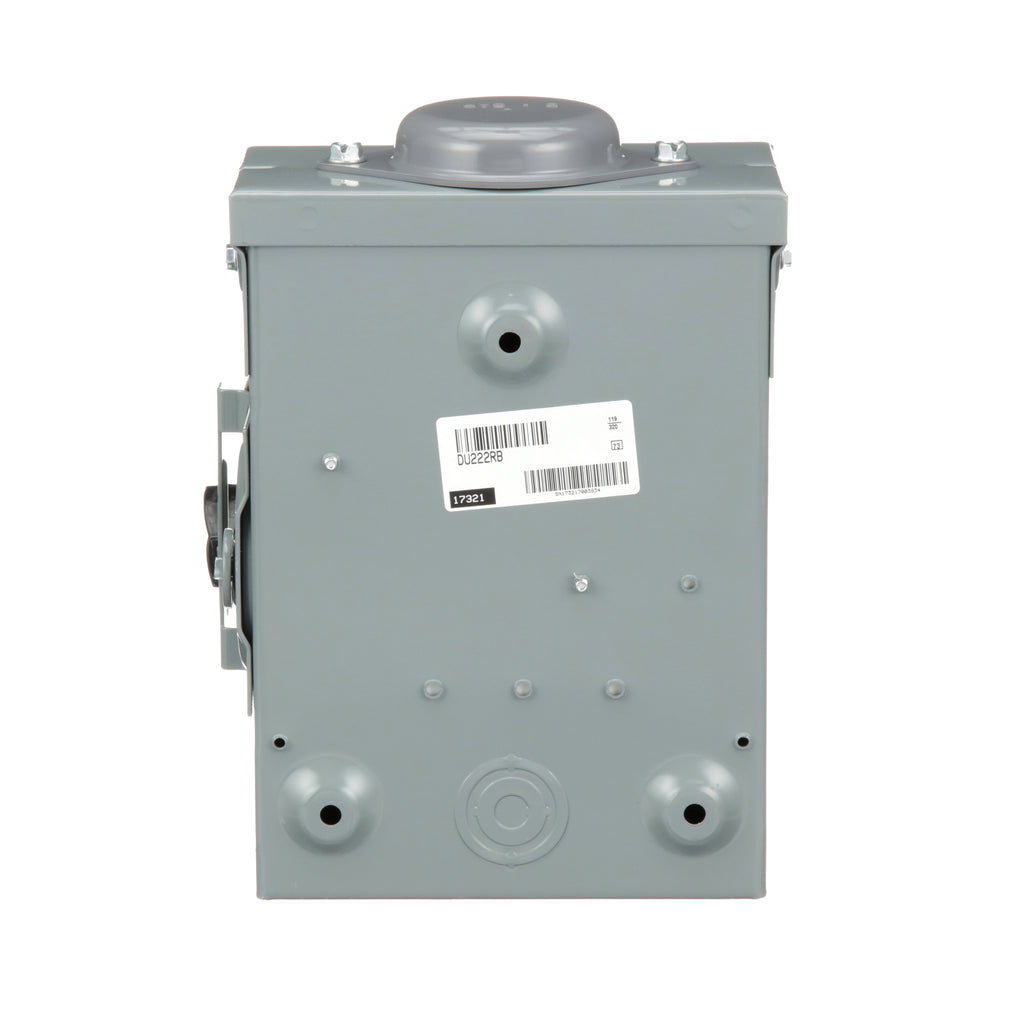

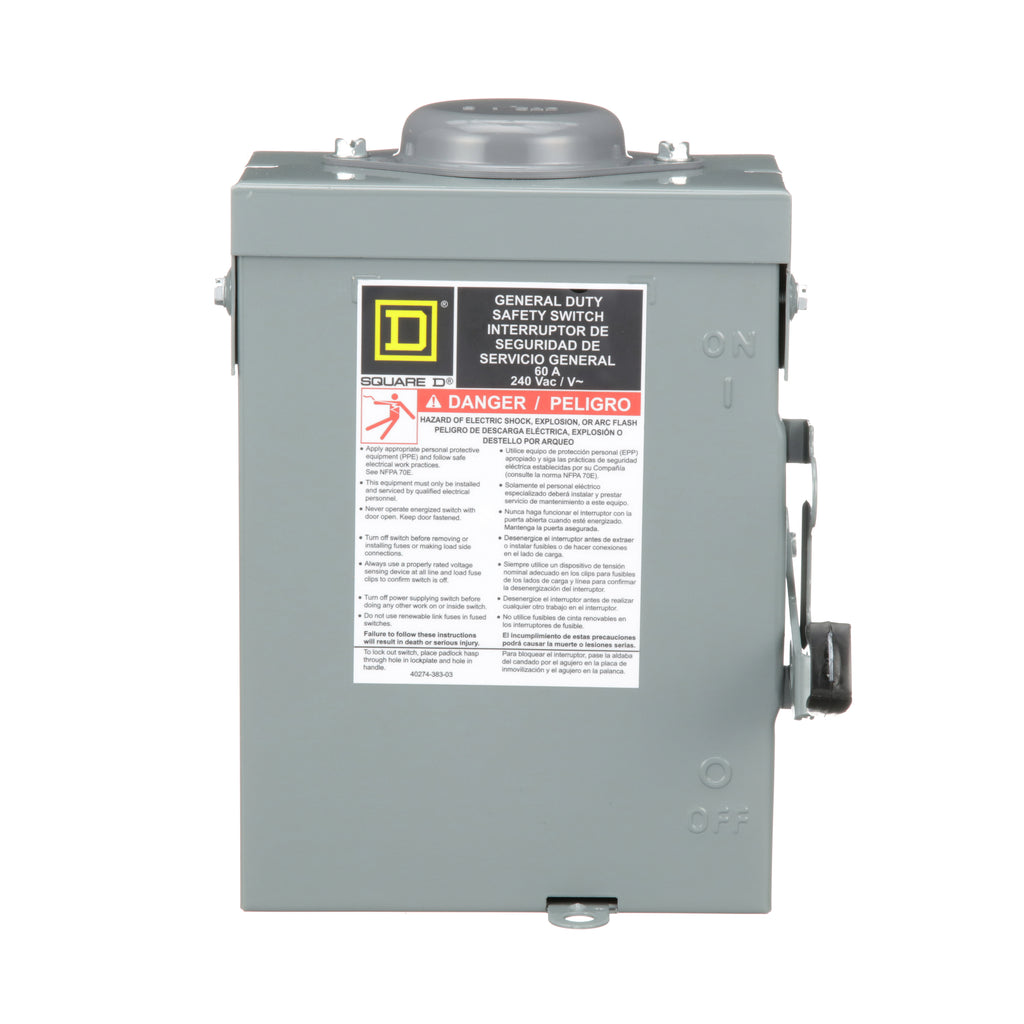

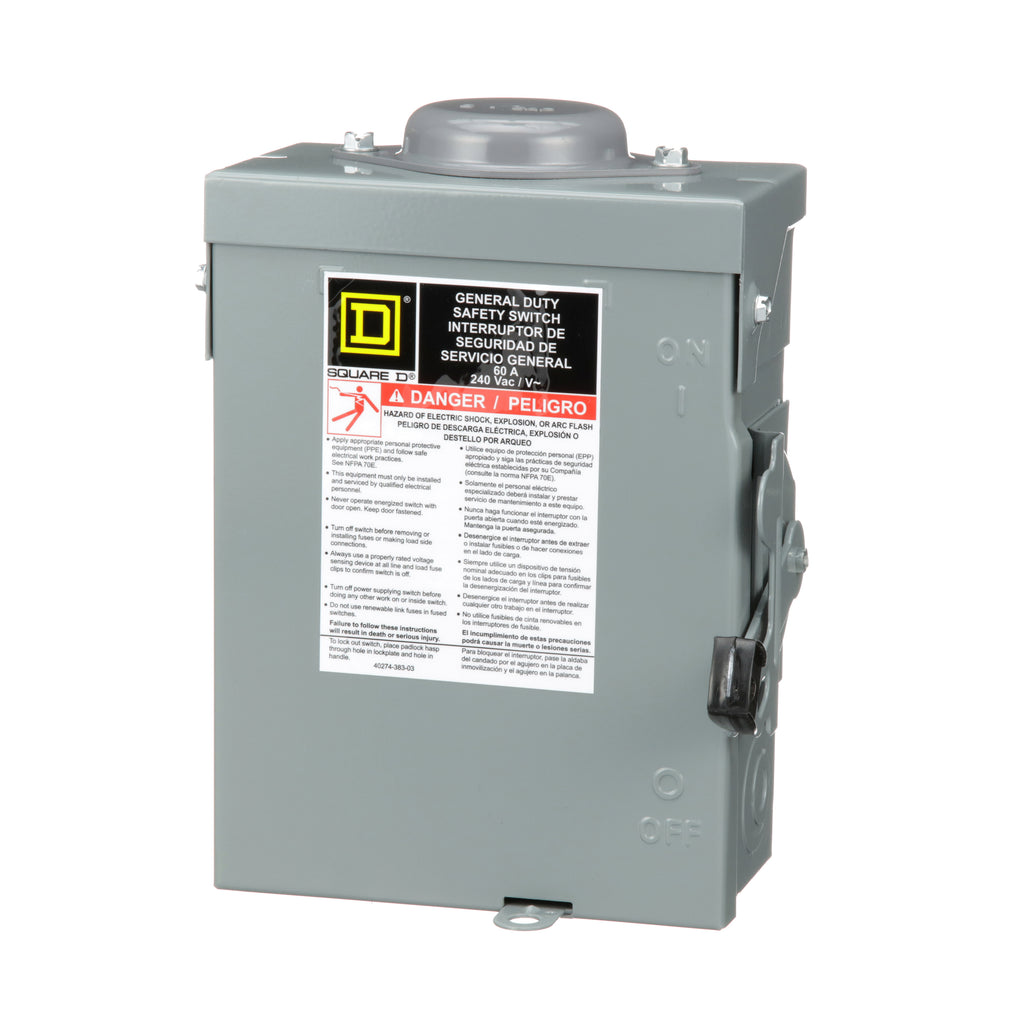

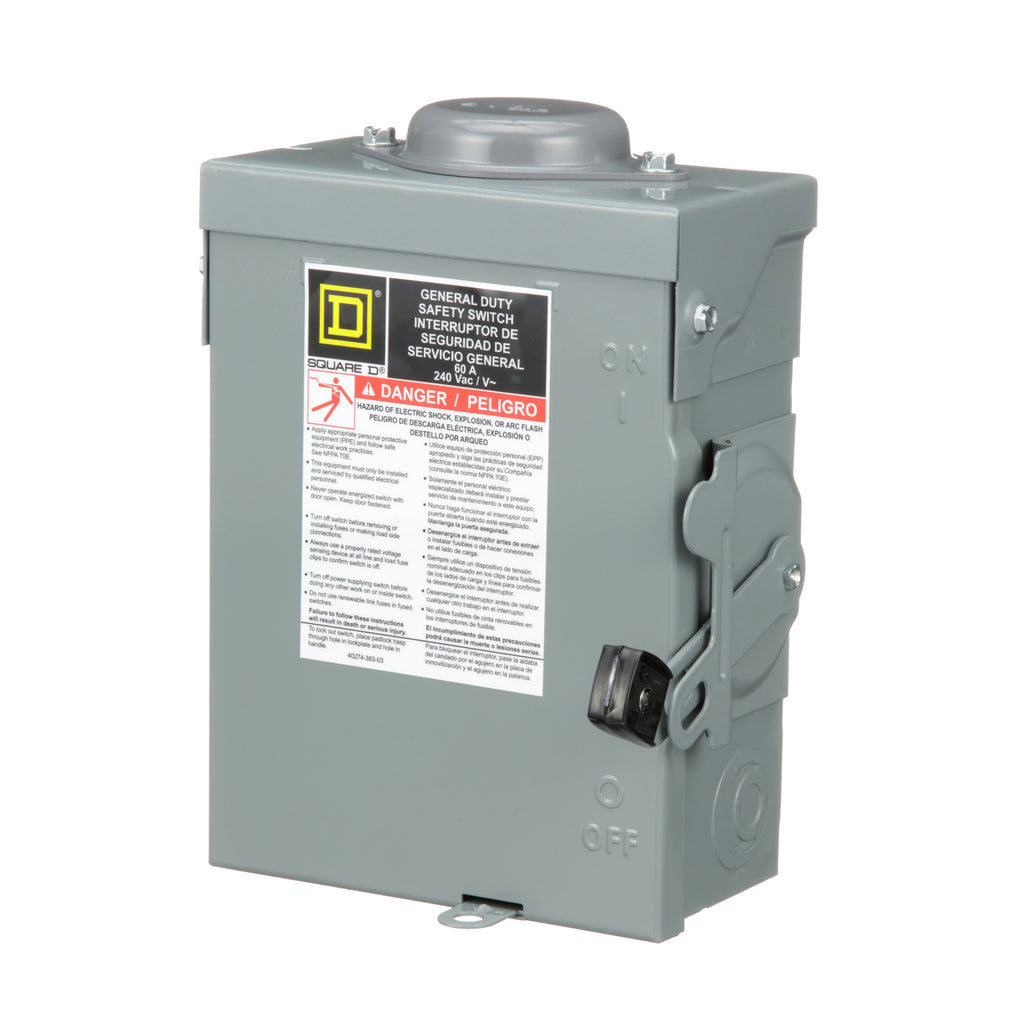

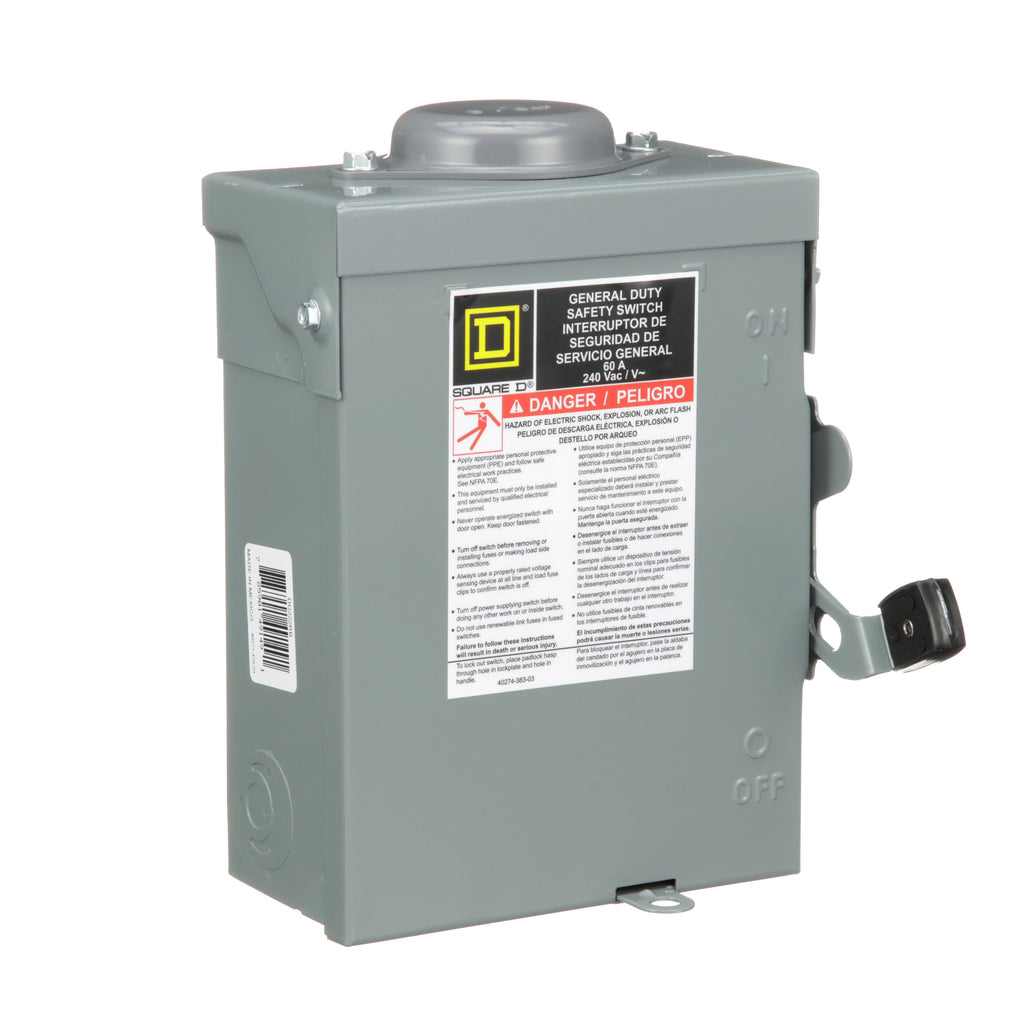

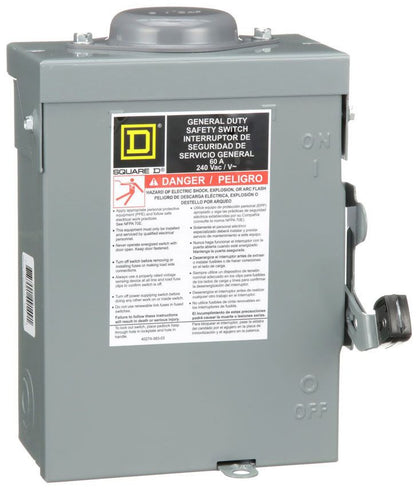

DU222RB - Square D 60A 240V 2-Pole Non-Fusible Safety Switch NEMA 3R Surface Mount

DU222RB

DU222RB is a Square D 60 Amp, 240 Volt, 2-Pole non-fusible safety switch designed for general duty applications.This Square D DU222RB safety switch features a NEMA 3R rainproof enclosure suitable for indoor/outdoor use, surface mounting, and a single throw action. It supports wire sizes from #10 to #2 AWG aluminum and #14 to #2 AWG copper, with a 10kA interrupt rating and UL listing (File E2875). The switch is non-fusible, has lug-type terminals, and no factory-installed neutral.

Key Specifications
• Amperage: 60A
• Voltage: 240VAC
• Poles: 2-Pole
• Mounting Type: Surface Mount
• Interrupt Rating: 10kA
• Enclosure Rating: NEMA 3R (Rainproof, Sleet/Ice Proof)
• Disconnect Type: Non-Fusible
• Terminal Type: Lugs
• Wire Size Range: #10 to #2 AWG Aluminum, #14 to #2 AWG Copper
• Action: Single Throw
• Certifications: UL Listed (File Number E2875)
• Type of Duty: General Duty

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: DU222RB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : DU
• Voltage : 240 AC
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 3R

Product Data

• UPC : 785901491491
• GTIN : 00785901491491
• Country of Origin : Mexico
• Dimensions : 9.63 in (244.60 mm) x 7.75 in (196.85 mm) x 3.75 in (95.25 mm) (Height x Width x Depth)
• Weight : 4.63
• Certification : UL listed
