Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Disconnect
- Series
- Series E
- Frame
- HU
- Rated current
- 100
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 200kA@600V
- Configuration
- Single
- Switch style
- Non-Fusible
- NEMA rating
- 1
- UPC
- 785901505846
Show all specifications (4 more)
- GTIN
- 00783164011319
- Dimensions
- 21.25 in (539.75 mm) x 10.25 in (260.35 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
- Weight
- 16.6 lb
- Certification
- UL Listed
Product description & additional details
HU363

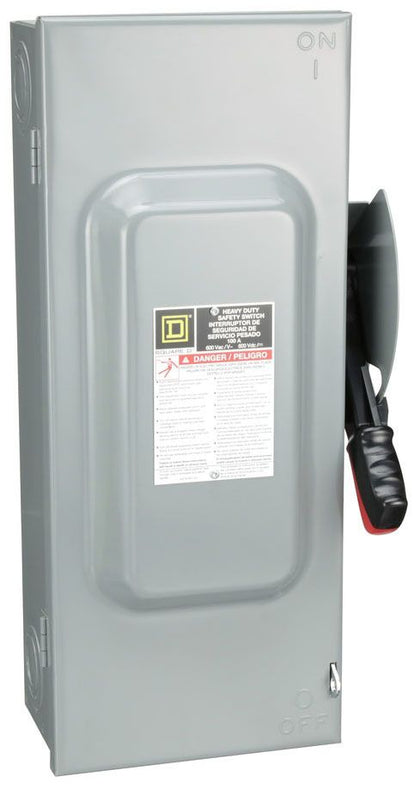

HU363 is a Square D heavy duty non-fusible safety switch rated for 100 amperes and 600 volts AC/DC with a 3-pole configuration.
This switch features a steel NEMA 1 enclosure designed for indoor general purpose applications. It supports 3-wire connections and is suitable for service entrance use when equipped with a neutral assembly or grounding kit. The switch is rated for 100A continuous current, 600V AC/DC voltage, and can handle motor loads up to 100 HP. It is UL and CSA approved and built for heavy duty industrial use with a single throw mechanism.
- Amperage: 100A
- Voltage Rating: 600V AC/DC
- Poles: 3
- Mounting Type: Surface mount, NEMA 1 steel enclosure
- Interrupt Rating: Heavy duty
- Series/Frame: Series K / E
- Trip Unit: Non-fusible
- Certifications: UL, CSA
- Wire: 3-wire
- Horsepower Ratings: Up to 100 HP
- Enclosure Type: Indoor NEMA 1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HU363
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : HU
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : 1
Product Data
- UPC : 785901505846
- GTIN : 00783164011319
- Dimensions : 21.25 in (539.75 mm) x 10.25 in (260.35 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
- Weight : 16.6 lb
- Certification : UL Listed
Technical Documents
