Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Disconnect
- Series
- VBII Series
- Frame
- HNF
- Rated current
- 30
- Voltage
- 600 AC AC
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 200kA@600V
- Configuration
- Single
- Switch style
- Non-Fusible
- NEMA rating
- NEMA 4X
- Country of origin
- Mexico
- Section
- Non-Fusible Disconnect Switch
Show all specifications (6 more)
- Compatible Frames
- PGP
- UPC
- 783643152069
- GTIN
- 0783643152069
- Dimensions
- 16.929 x 11.417 x 7.874 inch
- Weight
- 14.771
- Certification
- UL listed
Product description & additional details
HNF361S

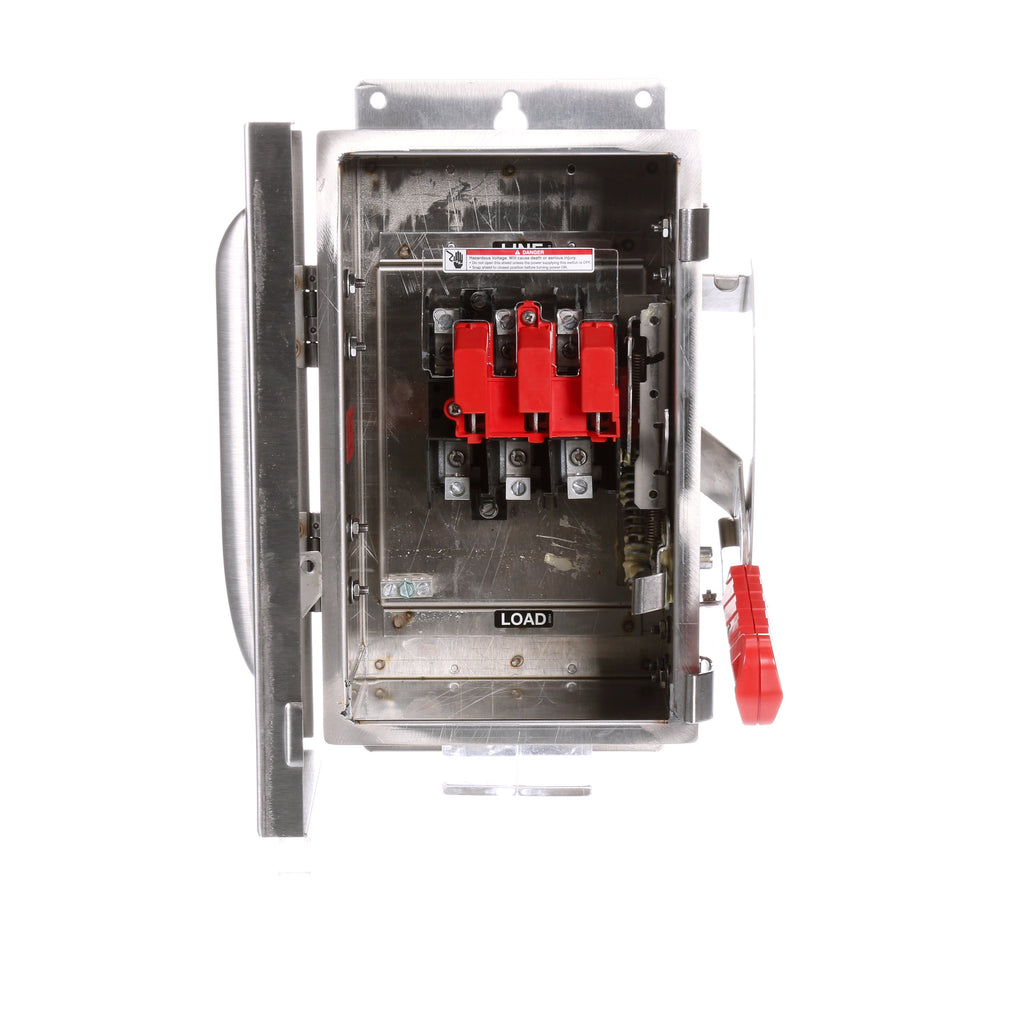

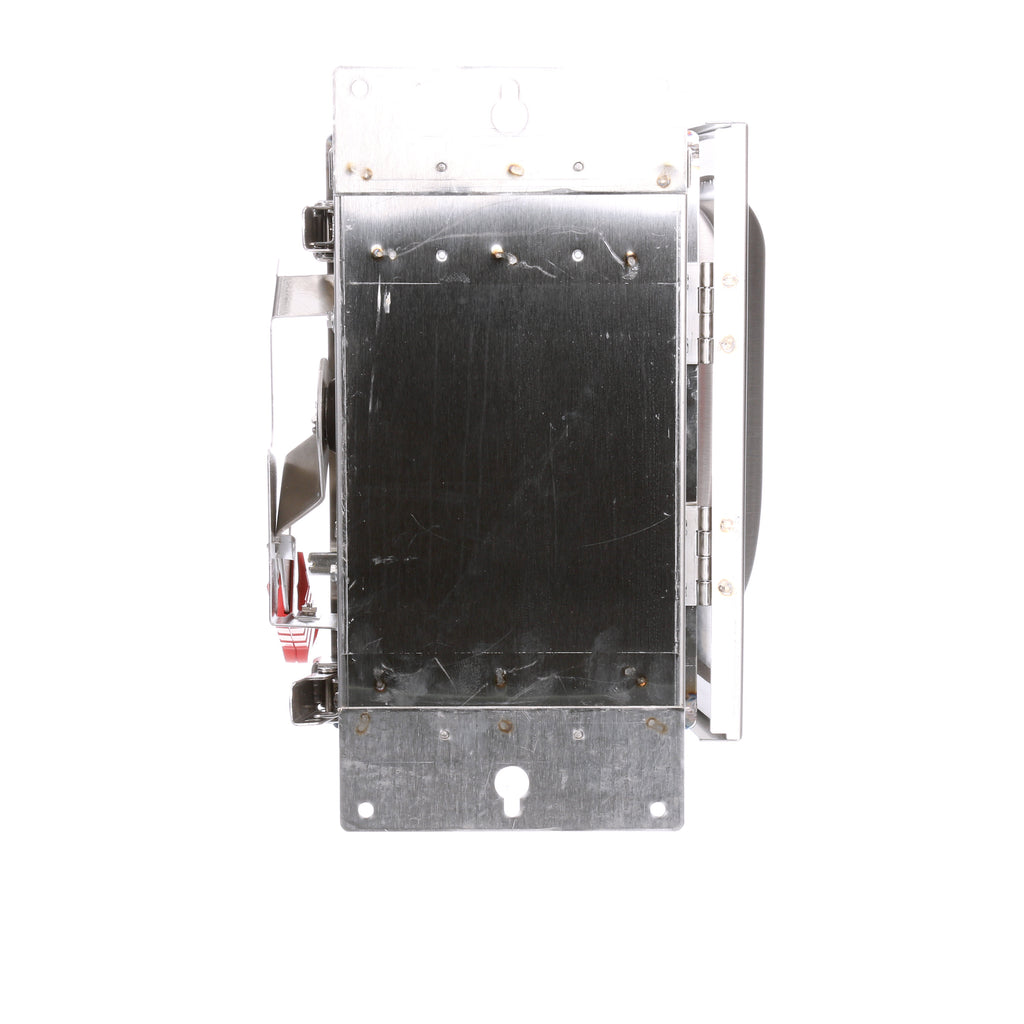

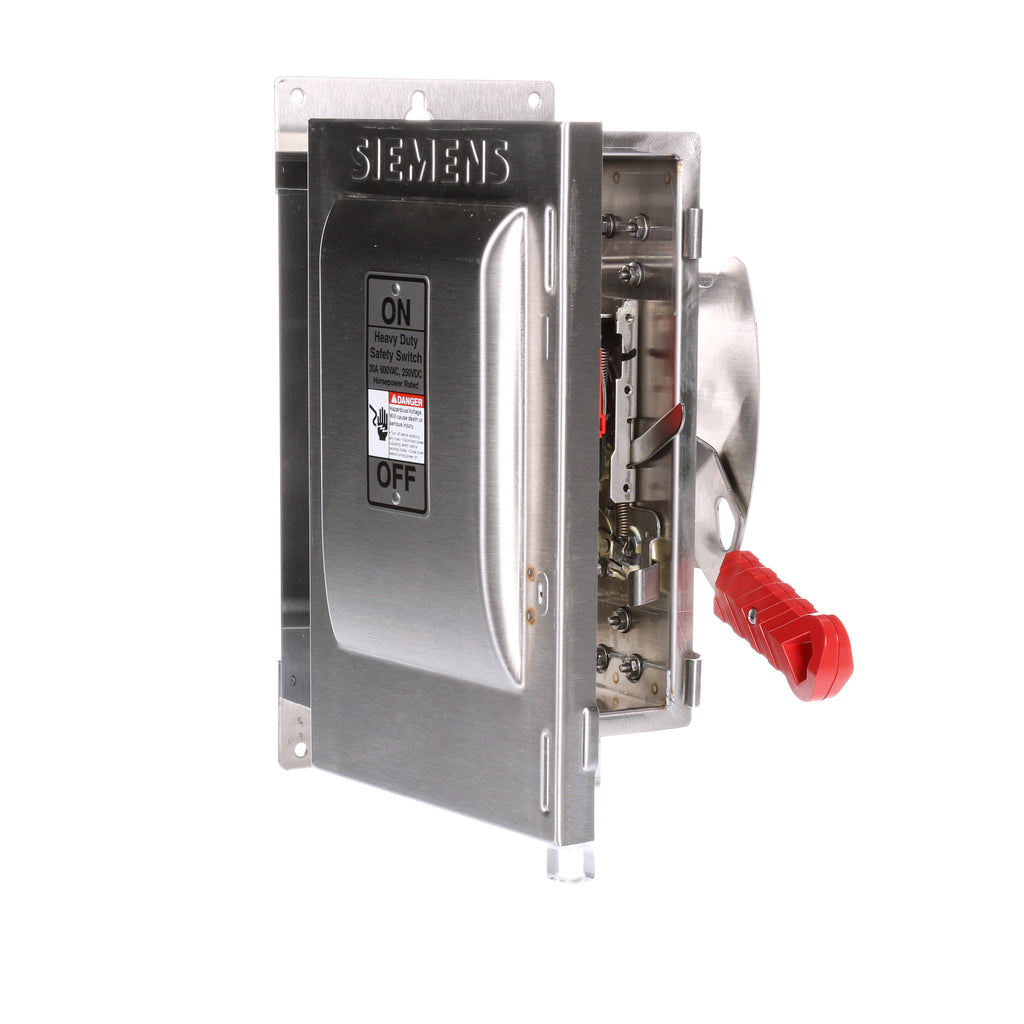

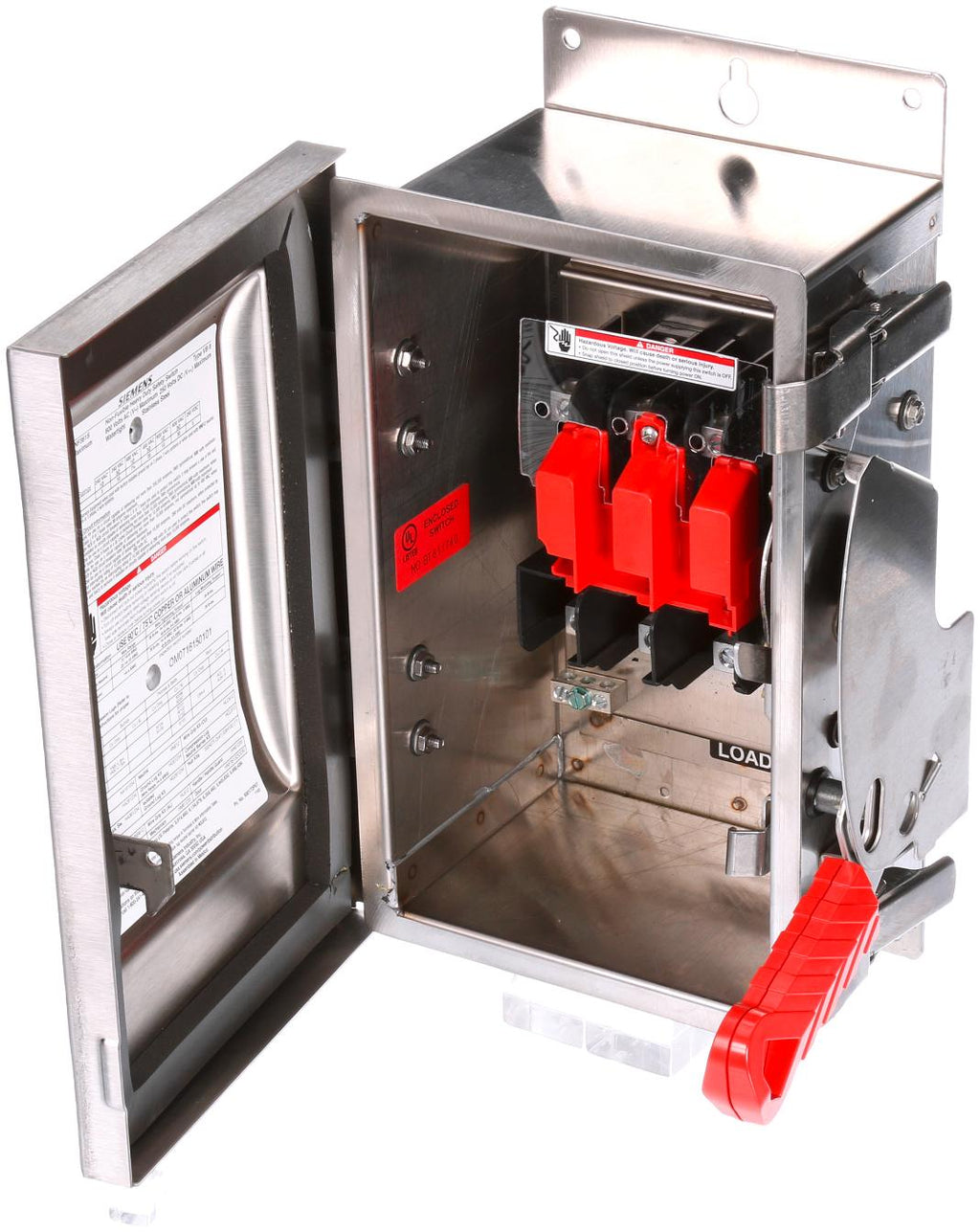

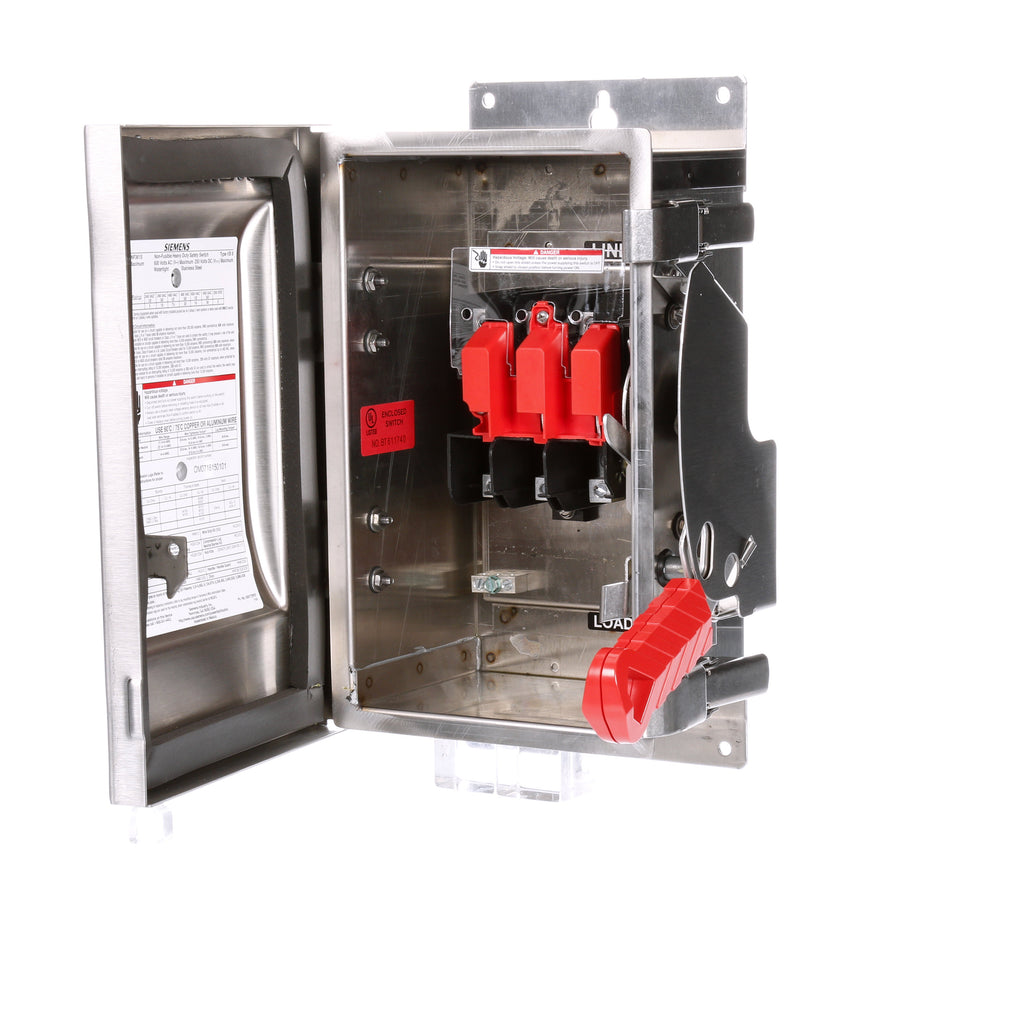

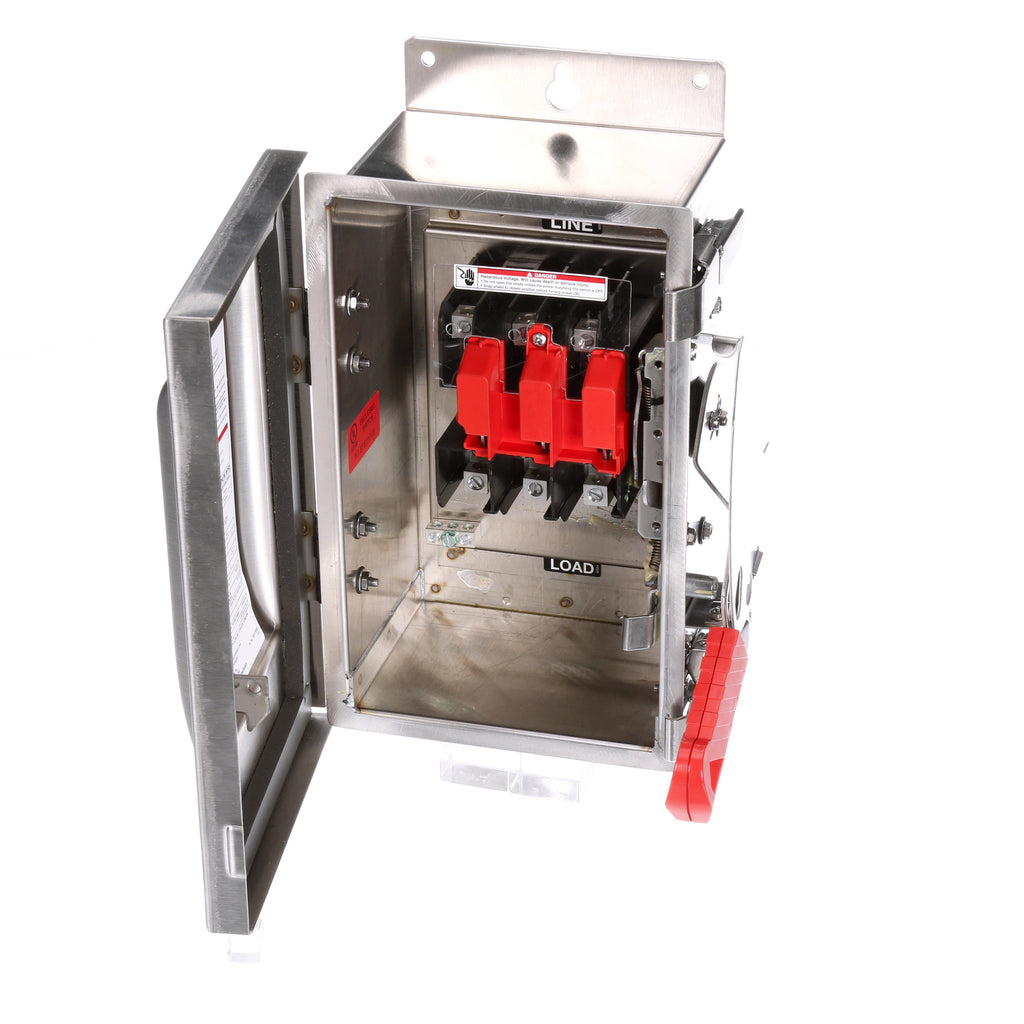

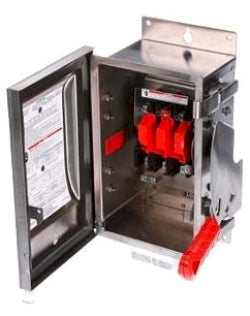

HNF361S is a Siemens heavy duty safety switch designed for reliable electrical circuit disconnection with a 30 amp, 3-pole rating in a NEMA 4X stainless steel enclosure.
This non-fusible switch supports 600 VAC and 250 VDC operation with a quick-make, quick-break mechanism and visible double break blade for positive switching action. It features a highly visible red handle with padlock capability, front removable mechanical lugs suitable for copper or aluminum conductors, and a rugged 304 stainless steel Type 4X enclosure for durability and corrosion resistance. The switch meets UL98 and UL50 standards and is suitable for service entrance or load disconnect applications.
- Key Specifications
- Amperage: 30 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Enclosure Type: NEMA 4X, 304 Stainless Steel
- Mounting Type: Surface Mount
- Interrupt Rating: 10,000 AIC standard
- Contact Form: Triple Pole Single Throw (TPST)
- Operating Frequency: 50/60 Hz
- UL Listed (UL98, UL50)
- Handle Padlockable with up to 3 padlocks
- Front removable mechanical (more...)
Specifications
- Part Number: HNF361S
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Non-Fusible Disconnect Switch
- Family : VBII Series
- Type : HNF
- Voltage : 600 AC AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 4X
- Compatible Frames : PGP
Product Data
- UPC : 783643152069
- GTIN : 0783643152069
- Country of Origin : Mexico
- Dimensions : 16.929 x 11.417 x 7.874 inch
- Weight : 14.771
- Certification : UL listed
