Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Shunt Trip
- Series
- Series C
- Frame
- C
- Rated current
- 1200
- Voltage
- 110/125VDC
- Poles
- 3
- Connection
- Pigtail Lead
- Frequency
- 50/60 Hz
- Country of origin
- United States
- Control Voltage Minimum
- 110
- Compatible Frames
- ND
- Control Voltate Maximum
- 125
Show all specifications (4 more)
- UPC
- 786678262666
- GTIN
- 00786678262666
- Dimensions
- 4 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight
- 4
Product description & additional details
SNT5LP26K

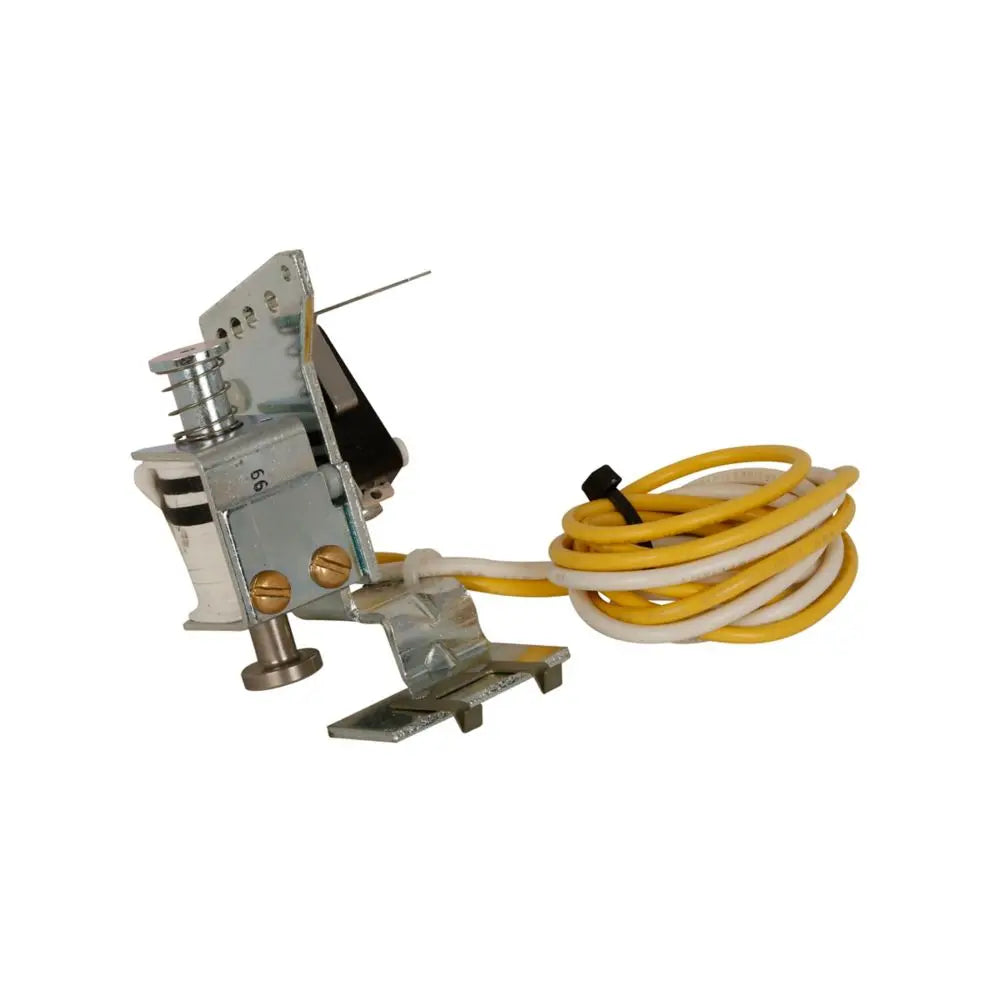

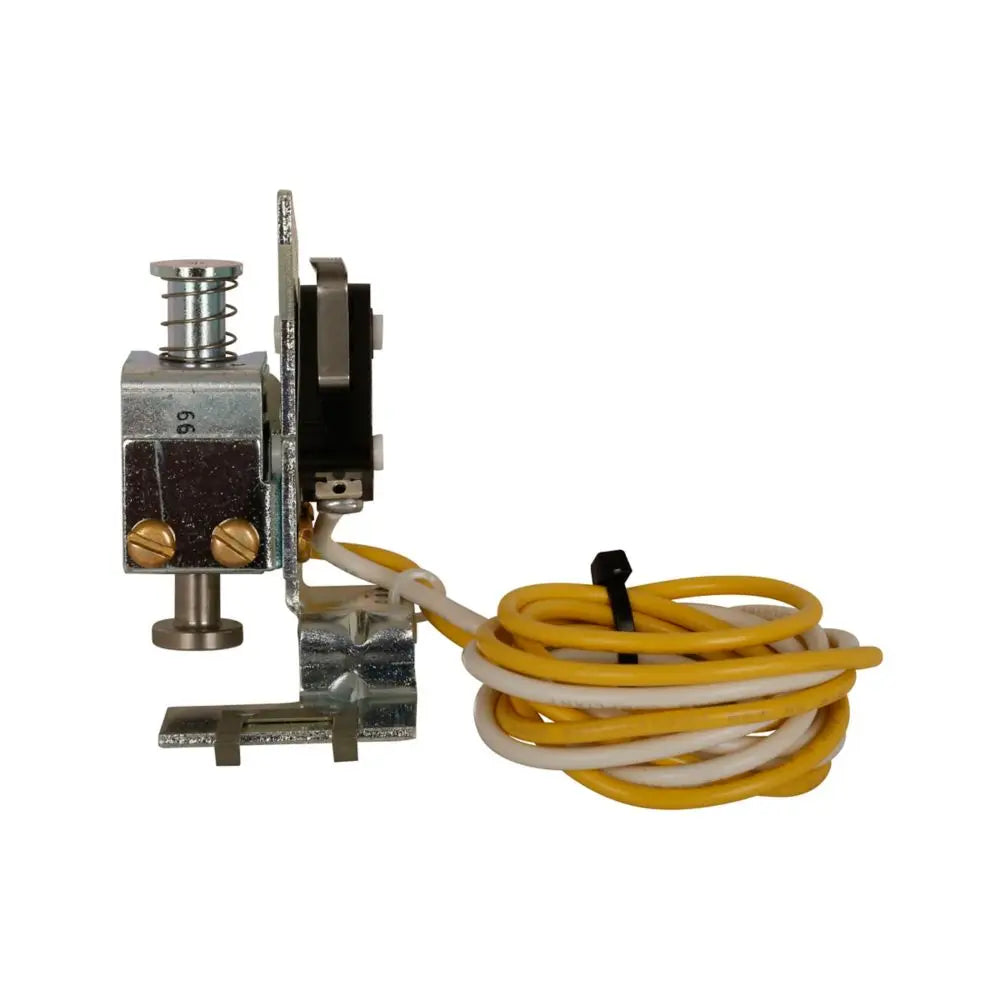

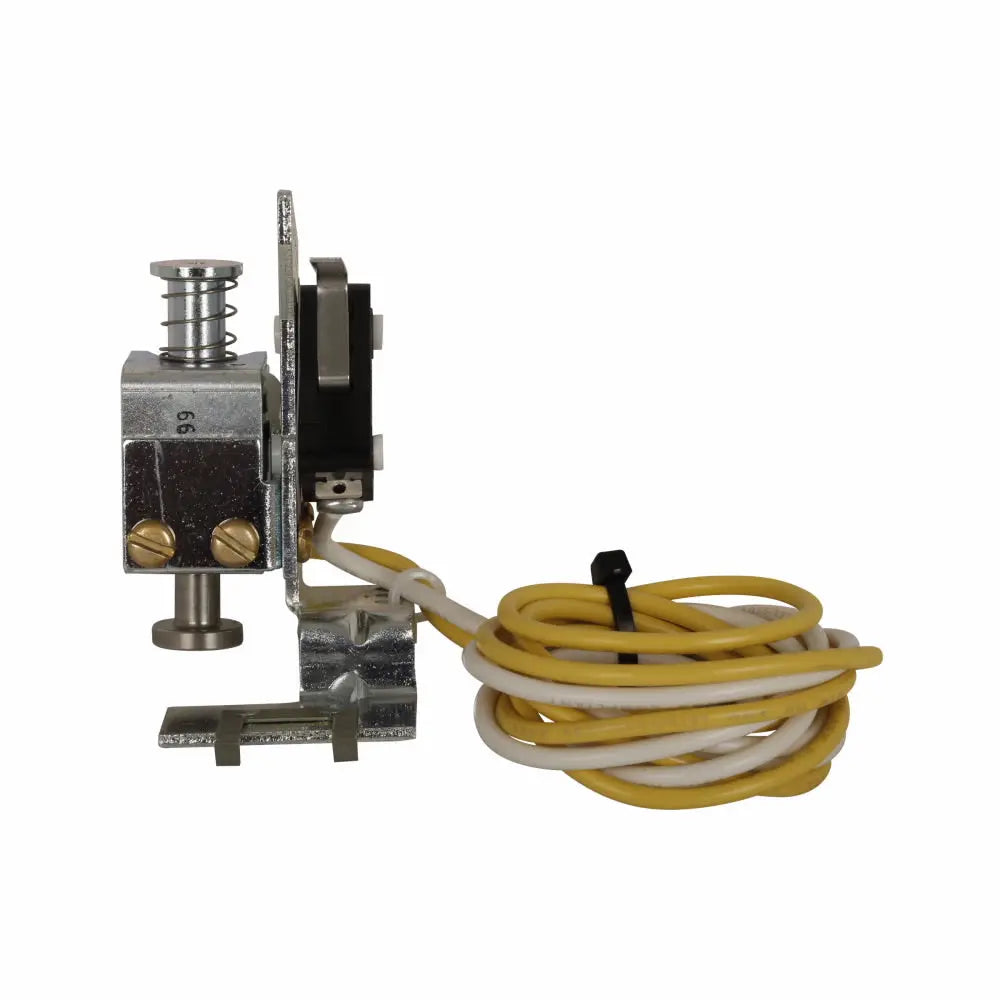

SNT5LP26K is a Cutler Hammer shunt trip accessory designed for NG frame molded case circuit breakers with a control voltage rating of 110 to 125 VDC.
This shunt trip unit provides remote tripping capability for NG frame breakers, ensuring enhanced safety and control in electrical distribution systems. It features a pigtail lead connection and is UL approved for reliable performance. The unit is designed for left pole mounting and operates at 50/60 Hz frequency.
- Key Specifications
- Manufacturer: Cutler Hammer
- Part Number: SNT5LP26K
- Type: Shunt Trip Accessory
- Voltage Rating: 110-125 VDC
- Frame Type: NG Frame
- Mounting Location: Left Pole
- Connection Type: Pigtail Lead
- Frequency: 50/60 Hz
- UL Approved
- Compatible with NG Frame Circuit Breakers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: SNT5LP26K
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Series C
- Type : C
- Voltage : 110/125VDC
- Amperage : 1200
- Poles : 3
- Connection : Pigtail Lead
- Control Voltage Minimum : 110
- Compatible Frames : ND
- Control Voltate Maximum : 125
Product Data
- UPC : 786678262666
- GTIN : 00786678262666
- Country of Origin : United States
- Dimensions : 4 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 4
